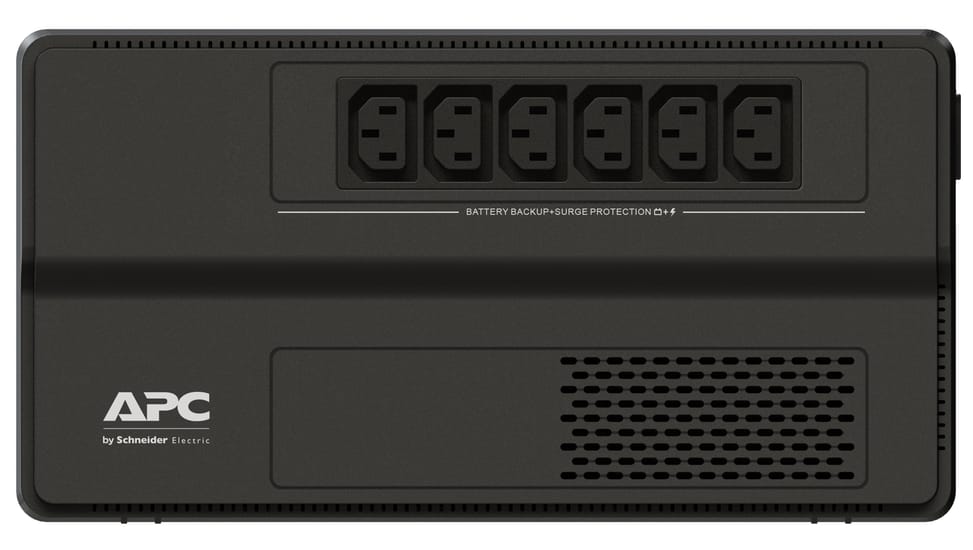

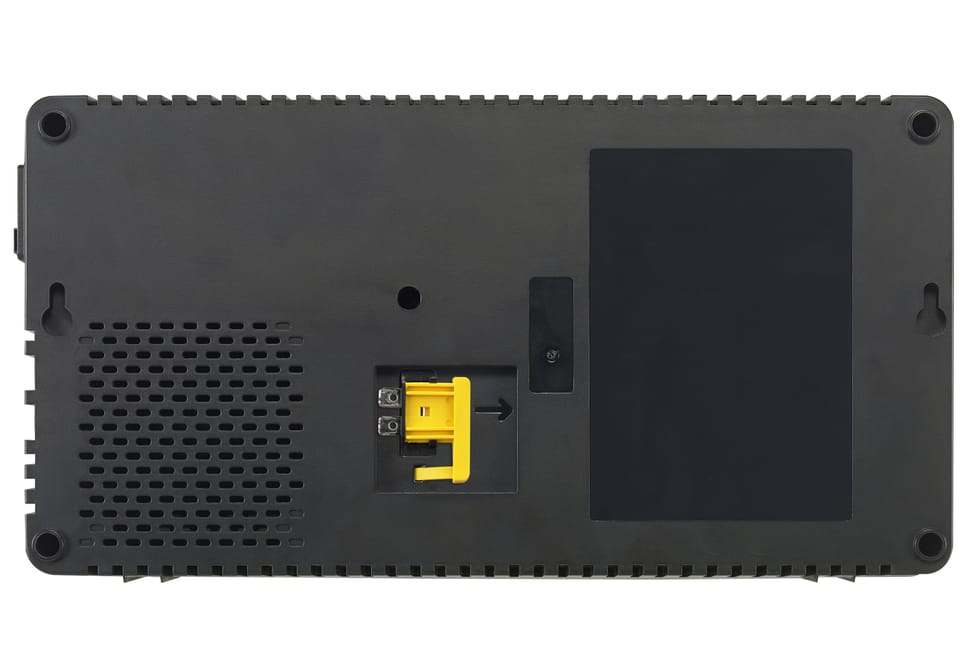

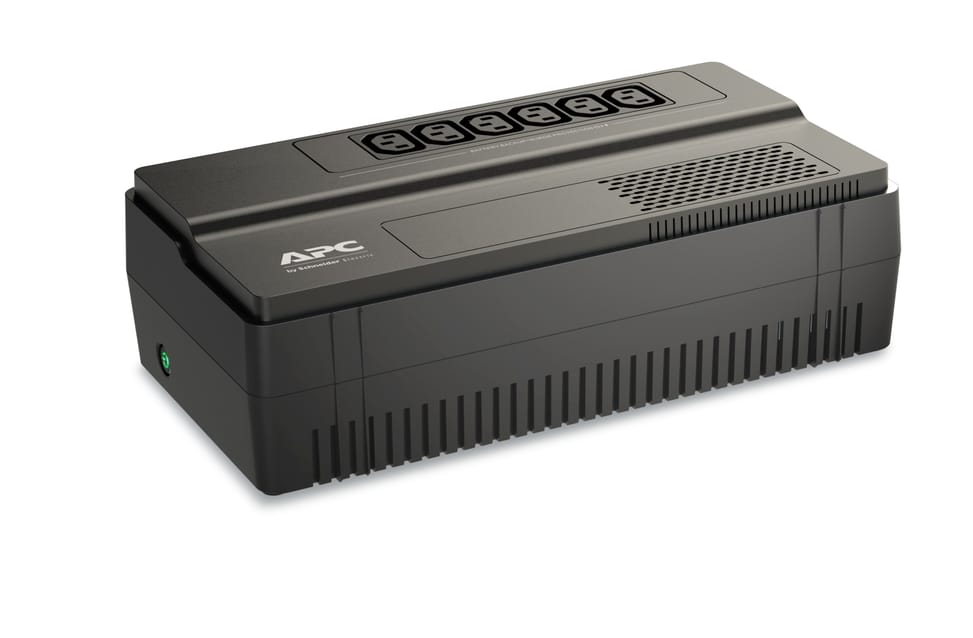

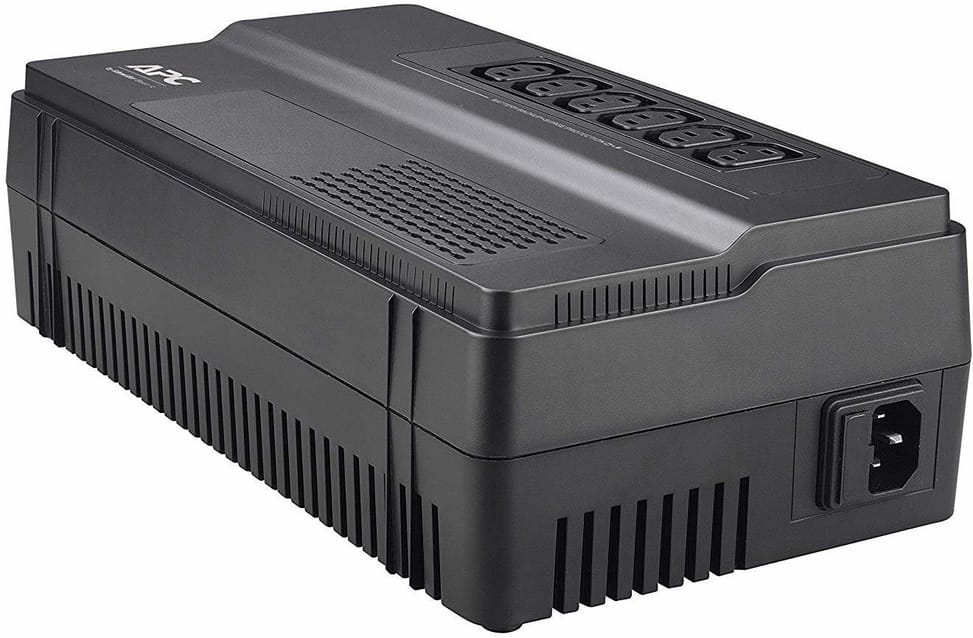

APC EASY UPS BV BV650I Line-Interactive UPS - 375 W / 650 VA - 6 C13 outlets
Compact, quiet UPS (under 40 dB) to protect a light computer workstation. Switches to battery in just 6 ms, ideal for example for a desktop PC and its monitor.
- Compact format, non-rackable (tower/desktop)
- Quiet operation (under 40 dBA), ideal near a workstation
- Fast transfer time (6 ms typical) to battery
- Weight 4.5 kg
Ref.: BV650I
1 329,00 DHincl. VAT
Out of stock
Manufacturer's datasheetView the PDF · 102 Ko — downloadable
Product overview
A compact, affordable UPS to protect a computer workstation: line-interactive with voltage regulation and 650 VA / 375 W.
Technology & protection: it takes over on battery the moment the power fails, protects against surges and corrects voltage dips and spikes to deliver stable power.
Power: 650 VA for 375 W of usable power — a light computer workstation.
Outlets: 6 C13 outlets (computer and server power cords).
Quiet operation (under 40 dB), ideal next to a workstation.
Ideal, for example, for a desktop PC and its monitor or a small switch.
Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.
Request a quoteShare:
Technical specifications
| Output voltage | 230V |
|---|---|
| Waveform type | Approximated sine wave |
| Output connections | (6) IEC 320 C13 (Battery backup) |
| Input voltage | 230V |
| Input frequency | 50/60 Hz +/- 5 Hz (auto-sensing) |
| Input connections | 1 IEC 60320 C14 inlet |
| Cord length | 1.50 m |
| Voltage range | 170 - 280 V |
| Automatic voltage regulation (AVR) | AVR (automatic voltage regulation), input range 170 - 280 V |
| Battery type | Sealed maintenance-free lead-acid battery, 12 V / 7.0 Ah |
| Typical recharge time | 8 hours |
| User interface | Mains / battery status indicator |
| Audible alarm | Alarm when switching to battery, distinct low-battery alarm, continuous alarm on overload |
| Weight (kg) | 4.5 |
| Dimensions (W x D x H) (mm) | 160.5 x 305 x 92.5 mm |
| Estimated battery service life (years) | 3 to 5 years |
|---|---|
| Technology | Line Interactive |
| Power (VA) | 650 VA |
| Voltage stabiliser | Yes |
| Box contents | User manual |
| Replacement battery | APCRBCV210 |
| Surge protection and filtering | 156 J |
| Transfer/switching time | 6 ms at half load, 10 ms maximum |
| Audible noise | < 40 dBA |
| Output frequency | 50 / 60 Hz +/- 1 Hz, not synchronised to mains |
| Output type | C13 outlets |
| Power (W) | 375 W |
| Form factor | Tower |
| Battery-backed outlets | 5 to 8 outlets |
| Warranty | 2 years |
Downloads
Customer reviews
Write a review
5
1 customer review
Frequently asked questions about this product
Are all six outlets on the BV650I battery-backed?
Yes, all six C13 outlets are powered by the battery: none is limited to surge protection. That is generous for a 650 VA unit, which often has half as many battery-backed outputs.
How long does the BV650I take to switch to battery?
6 milliseconds typical, 10 maximum. The output is then a stepped approximation to a sine wave, built up in steps rather than a true sine wave.
How much load can this 650 VA unit take?
375 W, i.e. a power factor of 0.57. That suits a light workstation: a desktop PC and its monitor, or a broadband router and a set-top box. Always add up the watts before plugging in.
How much space does the BV650I take up, and can it be rack-mounted?
143 × 373 × 237 mm, weighing 4.5 kg. It is a desktop tower format, not rack-mountable, to be placed on the floor or behind a PC tower.
Is the BV650I quiet enough next to a workstation?
Yes, it is rated at less than 40 dBA: one of the quietest in its category, and it operates between 0 and 40 °C.
What is in the BV650I box?
The UPS and its user manual. As the outputs are C13 and the inlet is C14, you will need IEC cords to suit your machines.
What battery does the BV650I use?
A maintenance-free sealed lead-acid battery with suspended electrolyte, leakproof. It is the unit's wear part, the one you replace after a few years rather than the UPS itself.
Is the APC Easy UPS BV650I new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for a period of 2 years. It automatically detects an input frequency of 50 or 60 Hz ±5 Hz and outputs the same at ±1 Hz. The datasheet covers the rest.
