Grandstream GXP1628 Wired IP Phone

Eight speed-dial keys with dual-colour indicators show at a glance who is on a call. Two switched Gigabit ports, power over the network cable and a universal mains adapter in the box.

2 SIP accounts and 2 call lines
8 dual-colour BLF and speed-dial keys
3 context-sensitive XML programmable keys
132 x 48 backlit LCD display (2.95 inches)
2 switched Gigabit Ethernet ports, computer can be daisy-chained
Built-in PoE, universal mains adapter included
3-party conference calling
HD audio on the handset and the speakerphone
RJ9 headset port with EHS for Plantronics headsets
Directory of up to 1,000 entries, 200-call history
2-angle stand, wall-mountable
Automatic configuration with Grandstream UCM IP PBXs

Ref.: GXP1628

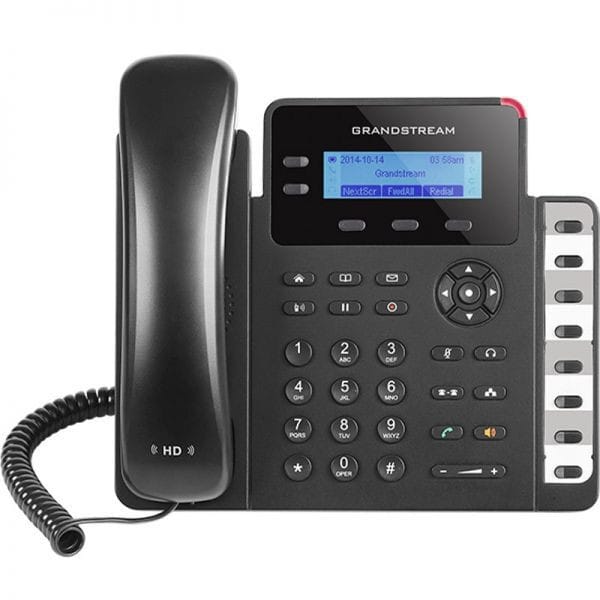

Grandstream GXP1628 Wired IP Phone — image 1

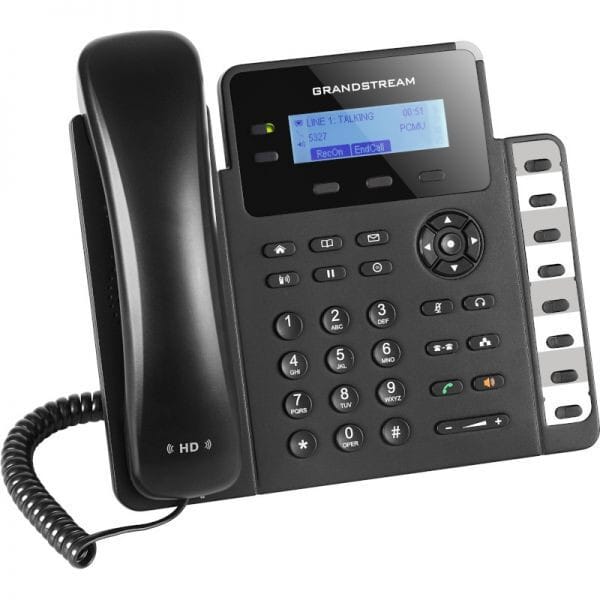

Grandstream GXP1628 Wired IP Phone — image 2

749,00 DHincl. VAT

On order — delivery within 3 à 6 semaines

Quantity

Earn 8 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

Delivery within 3 to 6 weeks — delivery 40 DH incl. VAT all over Morocco

1 year warranty — free repair in Morocco if it breaks down during the warranty period

100% secure payment: Bank transfer · Bank card

Manufacturer's datasheetView the PDF · 870 Ko — downloadable

Product overview

Boost your productivity with the Grandstream GXP1628 corded IP phone. With 2 SIP accounts, 2 Gigabit ports with PoE and 8 speed-dial keys, this phone delivers outstanding HD audio through both the handset and the speaker. Compatible with Plantronics EHS headsets and 3CX, it keeps your calls smooth and secure. Enjoy an intuitive interface and easy setup thanks to its automated provisioning options. Perfect for making your office more efficient.

See all the specifications ↓

Request a quoteShare:

Technical specifications

Technical specifications
Operating system	None (proprietary firmware)
Display	Backlit graphic LCD 132 x 48, 2.95 inches
Dimensions (W x D x H)	209 x 184.5 x 76.2 mm (handset included)
Video resolution	None (device has no camera)
Line keys	2 rows of dual-colour LED keys
SIP accounts	2 SIP accounts
Wireless technology	None (wired device)
Speaker	HD speaker, wideband audio
Voice codecs	G.711µ/a, G.722 (wideband), G.723, G.726-32, G.729 A/B, iLBC
VoIP protocols	SIP (RFC 3261)
Call management	Hold, call transfer, call forwarding (unconditional, no answer, busy), call park and pickup, shared call (SCA and BLA), call waiting, auto dial with handset off-hook, auto answer, one-click dialling, flexible dial plan, hot desking, redundancy and failover to a second server
Phonebook	Up to 1,000 entries, downloadable via XML and LDAP
Local conferencing	3 participants
Supported network protocols	TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, CDP/SNMP/RTCP-XR
Network interfaces	2 switched 10/100/1000 Mbps auto-sensing Ethernet ports, built-in PoE
Weight	800 g
Security	User and administrator passwords, MD5 and MD5-sess authentication, AES 256-bit encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control

Technical specifications (continued)
Programmable keys	3 XML programmable context-sensitive keys and 8 dual-colour BLF extension keys
Talk time	None (phone permanently powered)
Standby time	None (phone permanently powered)
Box contents	GXP1628 phone, handset with cord, stand, universal power supply, network cable, quick installation guide, brochure, GPL licence
Power supply	Built-in IEEE 802.3af Class 2 PoE (3.84 to 6.49 W), or 5 V DC / 600 mA power adapter (100-240 V AC input, 50-60 Hz)
Mounting	Desktop (stand with 2 positioning angles), wall mounting possible
PoE power	Yes
Device type	Desk phone
Headset jack	RJ9
Network port	2 Gigabit ports
Power supply included	Universal power supply included (100-240 V AC input, 5 V DC / 600 mA output)
Wireless range	None (wired device)
Audio processing	Echo cancellation (AEC), automatic gain control (AGC), packet loss concealment (PLC), voice activity detection (VAD), comfort noise generation (CNG) and adaptive jitter buffer (AJB)
Supported handsets	None (standalone device)
Audio bandwidth	Wideband HD audio on the handset and speaker
Connectivity	1 RJ9 headset jack with EHS electronic hook switch (Plantronics headsets)
Warranty	1 year

Downloads

Fiche technique(PDF)

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review

Frequently asked questions

What are the delivery times and fees?

Delivery all over Morocco within 1 to 5 working days, at the same rate in every city for parcels up to 30 kg — and free delivery from 3 000 dh of purchases. Above 30 kg, the rate follows the weight and is shown on the product page and in the basket. You are notified by SMS, then called by the courier.

Is the product new and under warranty?

Yes: a new, genuine product, delivered in its original packaging with an invoice. The invoice serves as the warranty document (1 year) with the manufacturer's after-sales service in Morocco.

Can I collect my order in store?

Yes, at the Casablanca store (Mon–Fri 10am–7pm · Sat 10am–2pm) or the Témara collection point (Mon–Fri 8.30am–1pm / 2–6pm · Sat 8.30am–12.30pm). Payment on site: cash, bank card via terminal, certified cheque.

Which payment methods do you accept?

Bank card online (secure Attijari Payment), cash on delivery, bank transfer and certified cheque. All our prices are in dirhams, VAT included.

Can I get an invoice in my company's name (with its ICE)?

Yes. Provide your company's legal name and ICE when ordering: the invoice is issued in its name and enclosed with the parcel (handed over with the order for in-store collection). Companies and public bodies can also request a quote — reply within 24 working hours.
