MSI B760M Gaming Plus WIFI Motherboard (911-7D99-051)

Compact in micro-ATX format, with four DDR5 slots up to 256 GB, two Gen4 M.2 ports and two PCIe x16 slots. Wired 2.5 Gb/s networking on top of wireless, for 12th to 14th generation Core processors.

  • Socket LGA 1700 (12th, 13th and 14th generation Core, Pentium Gold, Celeron)
  • Intel B760 chipset
  • Micro-ATX format (243.8 x 243.8 mm)
  • 4 DDR5 slots, 256 GB maximum
  • Up to 6800 MHz when overclocked, Intel XMP 3.0 profiles
  • 2 PCIe 4.0 x16 slots and 1 PCIe 3.0 x1 slot
  • 2 M.2 PCIe 4.0 x4 ports (2242, 2260 and 2280 formats)
  • 4 SATA 6 Gb/s ports, RAID 0, 1, 5 and 10
  • Intel Wi-Fi 6E up to 2.4 Gb/s and Bluetooth 5.3
  • 2.5 Gb/s networking
  • HDMI 2.1 and DisplayPort 1.4 outputs in 4K 60 Hz
  • 2 USB ports at 10 Gb/s and 7 at 5 Gb/s, one of them Type-C at the front
  • 7.1 high definition audio
  • EZ Debug diagnostic LEDs
Ref.: 911-7D99-051

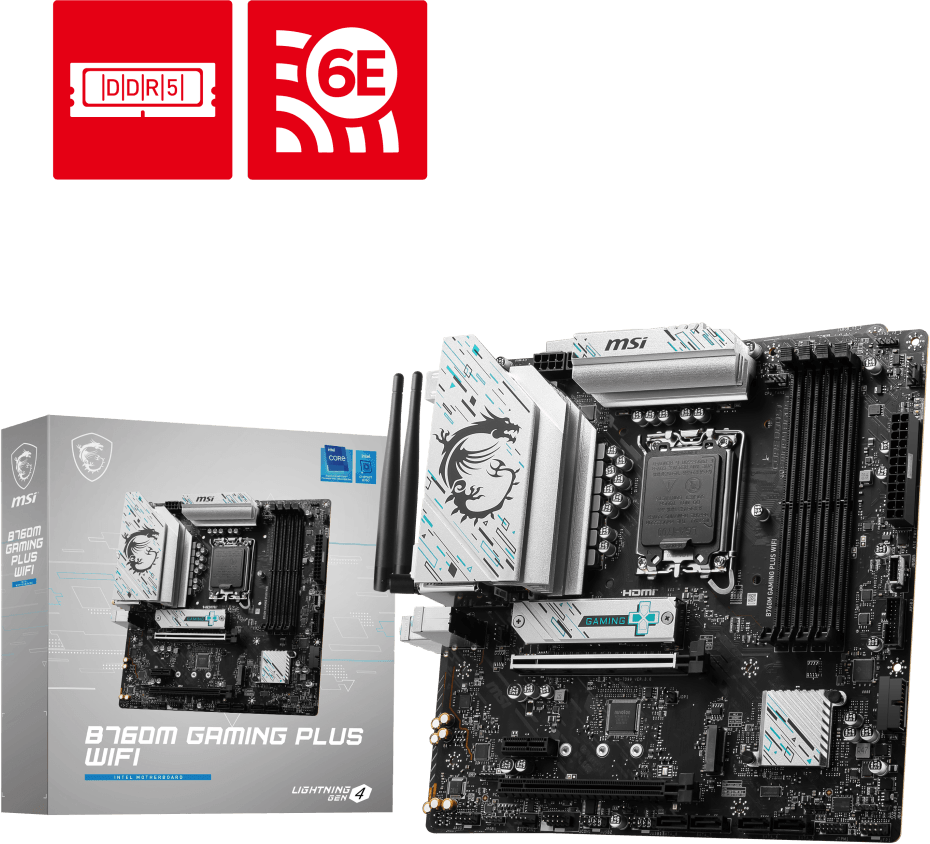

MSI B760M Gaming Plus WIFI Motherboard (911-7D99-051) — image 1

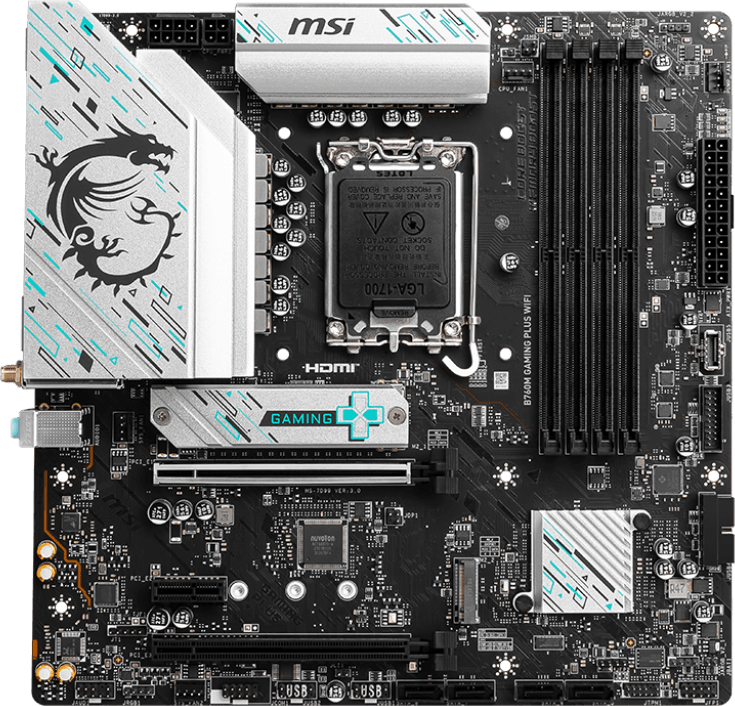

MSI B760M Gaming Plus WIFI Motherboard (911-7D99-051) — image 2

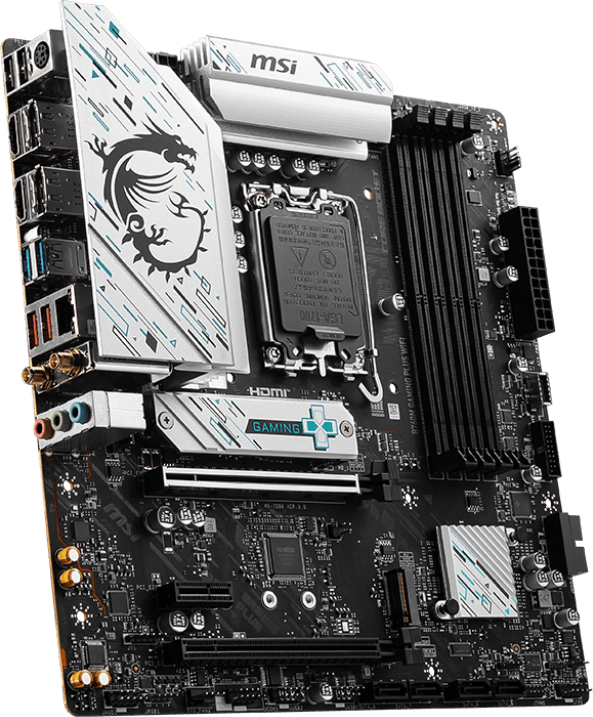

MSI B760M Gaming Plus WIFI Motherboard (911-7D99-051) — image 3

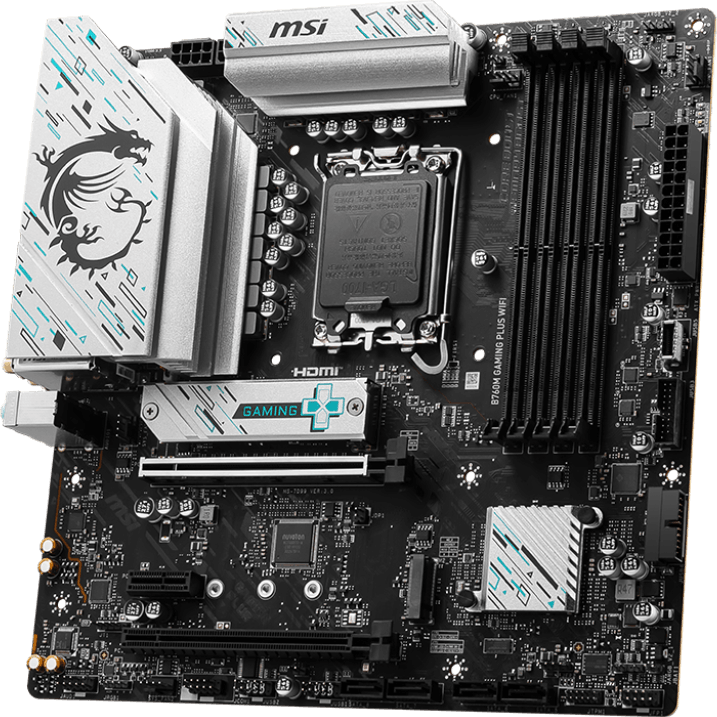

MSI B760M Gaming Plus WIFI Motherboard (911-7D99-051) — image 4
MSI B760M Gaming Plus WIFI Motherboard (911-7D99-051) — image 5

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Design and revisions : one component is produced by several partner manufacturers: cooler, backplate, RGB lighting and printing change with the version delivered.
  • Quantity : an image showing two memory modules or several fans does not mean the set is sold that way — check the packaging in the specifications.
  • Cooling : a processor may be sold without a cooler, and not all the fans visible inside a case are supplied.
  • Accessories : cables, adapters, screws, brackets and software licences are supplied only if the specifications say so.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/5
2 159,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 4,2 Mo — downloadable

Product overview

The MSI B760M Gaming Plus WIFI delivers unrivalled gaming power, with support for 14th/13th/12th Gen Intel® Core™ processors and DDR5-6800+ MHz compatibility for extreme performance. Its dual PCIe 4.0 slots and two M.2 Gen4 slots deliver lightning-fast transfer speeds. Enjoy advanced connectivity with Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gbps LAN. Its rugged design and efficient cooling provide stability and durability — ideal for demanding gamers.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Maximum RAM256 GB
Supported memory frequenciesUp to 6800+ MHz (OC)
Audio8-channel (7.1) HD audio with Audio Boost
Ethernet network cardRealtek RTL8125BG, 2.5 Gbps
BluetoothBluetooth 5.3
Dimensions (W x D x H)243.8 x 243.8 mm
RAIDRAID 0, 1, 5 and 10
Wi-FiYes
Wi-Fi standardWi-Fi 6E
CPU socketIntel LGA 1700
Compatible processors12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron
ChipsetIntel B760
Onboard video outputsHDMI 2.1 and DisplayPort 1.4, 4K at 60 Hz — requires a processor with integrated graphics
Technical specifications (continued)
Motherboard form factorMicro-ATX
Memory typeDDR5
Memory slots4 x DDR5 DIMM, dual channel
Wired network2.5 Gbps
Internal USB headers1 x USB Type-C 5 Gbps header for the case front panel

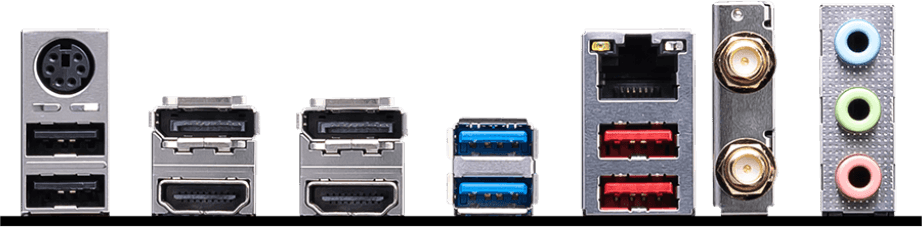

Rear panel connectorsPS/2 keyboard/mouse, DisplayPort, HDMI, USB-A 5 Gbps, USB-A 10 Gbps, USB 2.0, 2.5 Gbps LAN, Wi-Fi/Bluetooth antenna, audio connectors
USB ports2 x USB-A 10 Gbps, 7 x USB 5 Gbps (6 Type-A + 1 Type-C), 6 x USB 2.0
Number of M.2 slots2 slots
SATA ports4 x SATA 6 Gbps
M.2 slots2 x M.2 PCIe 4.0 x4 (64 Gbps), 2242, 2260 and 2280 form factors
PCI Express slots2 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Warranty1 year
