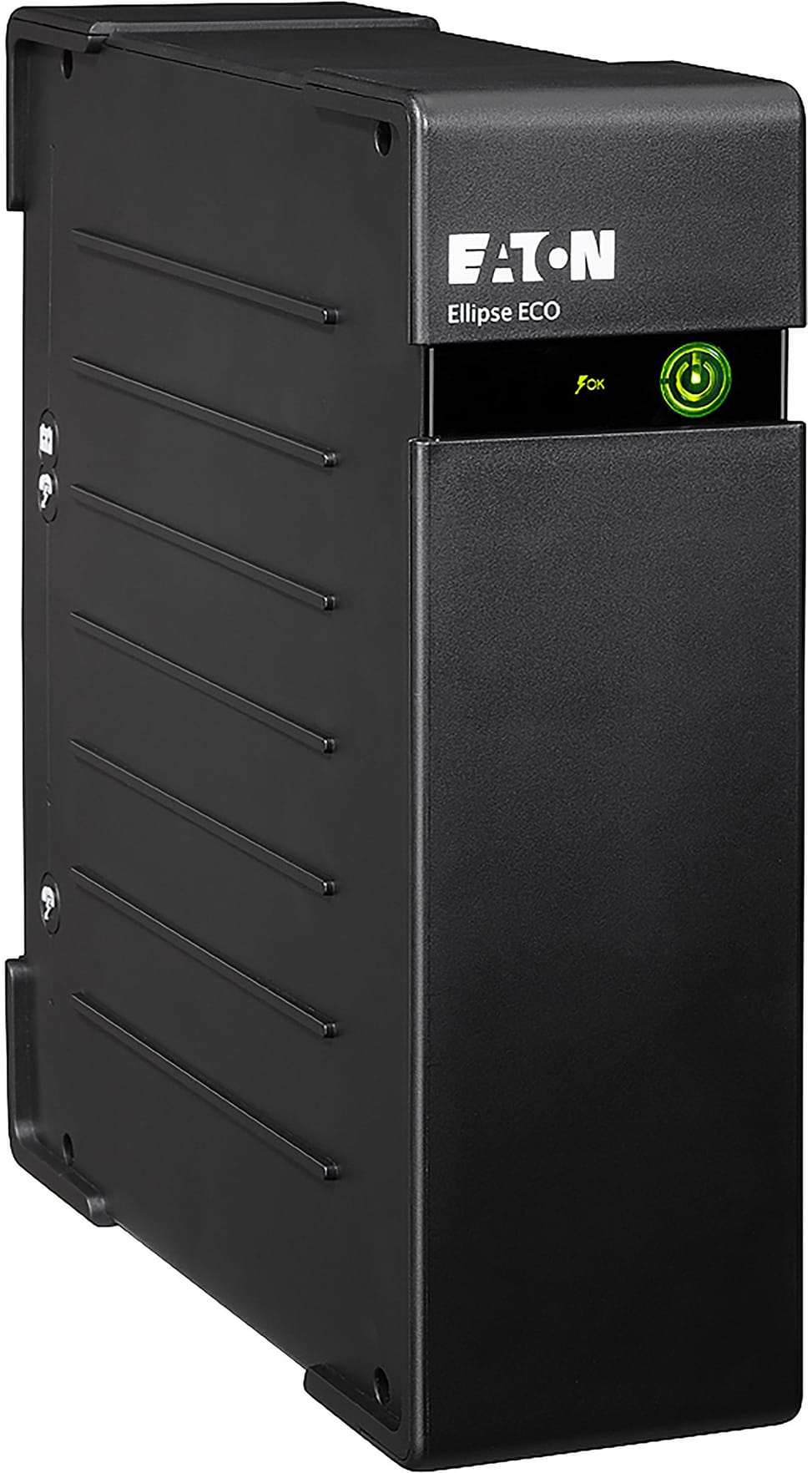

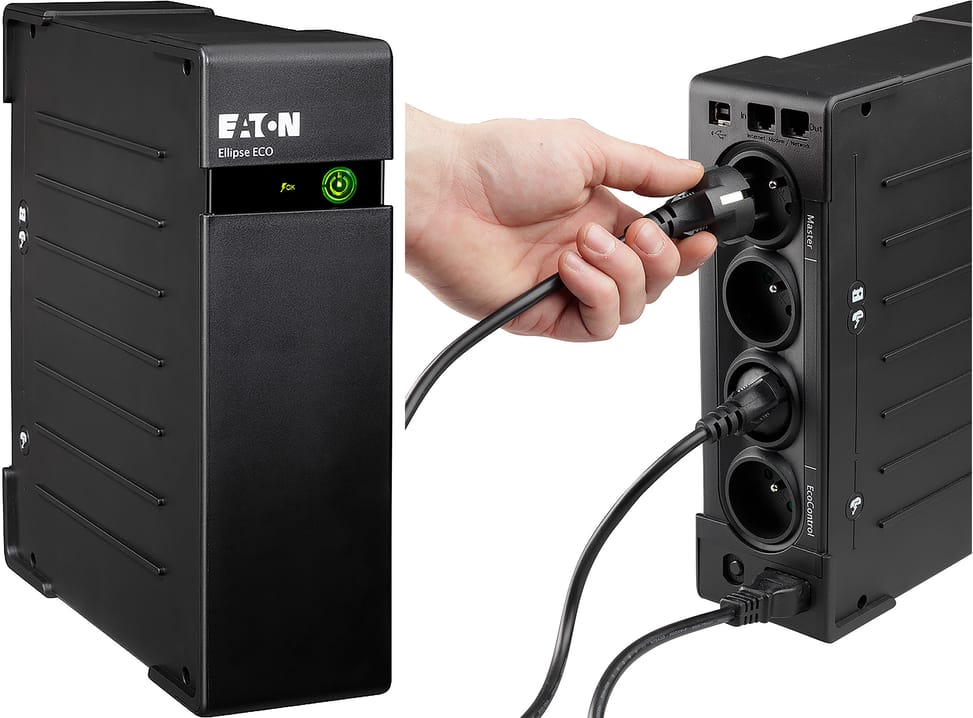

Eaton Ellipse ECO EL500FR Off-Line UPS - 300 W / 500 VA - 4 FR outlets
Under 25 dBA and 2.9 kg: this extra-flat housing slides under a desk or under the monitor. Three of the four outlets are battery-backed, with 9 minutes of runtime at half load.
- Runtime 9 minutes at 50% load (150 W), 5 minutes at 70% (210 W)
- 3 battery-backed outlets and 1 surge-protected outlet
- Built-in surge protection compliant with IEC 61643-1
- Protection for telephone, modem, Internet and Ethernet lines
- Replaceable sealed lead-acid battery, with periodic self-test
- LED indicators and audible battery replacement alarm
- Cold start possible with no mains supply
- Resettable circuit breaker after overload or short circuit

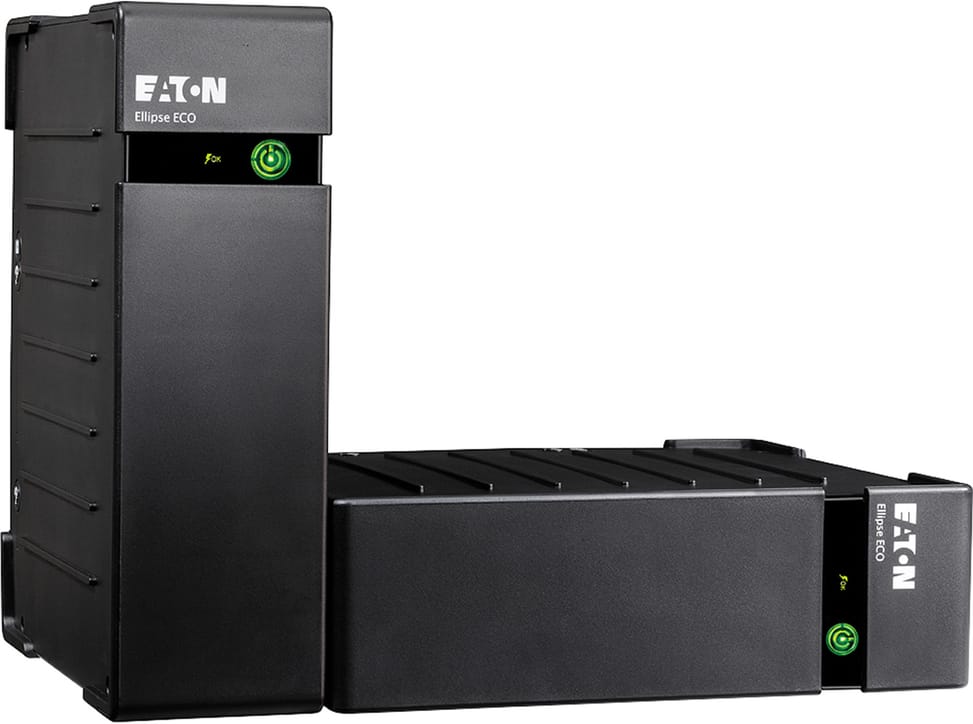

- Extra-flat 81 mm housing, vertical or horizontal placement
- Weight 2.9 kg
Ref.: EL500FR
1 159,00 DHincl. VAT
Out of stock
Manufacturer's datasheetView the PDF · 212 Ko — downloadable
Product overview
Compact entry-level UPS to protect the essentials: off-line technology and 500 VA / 300 W.
Technology & protection: when the power fails, it switches to battery within a few milliseconds and protects against surges — simple, affordable protection.
Power: 500 VA for 300 W of usable power — a light computer workstation or an internet box.
Runtime: approx. 9 minutes at half load (150 W).
Outlets: 4 French outlets — 3 with battery backup, 1 with surge protection only — no adapter needed.
Very quiet operation (below 25 dB).
Ideal, for example, for a desktop computer, an internet box or a camera.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.
Request a quoteShare:
Technical specifications
| Output voltage | 230 V (adjustable to 220 V, 230 V, 240 V) |
|---|---|
| Output connections | 3 FR outlets with battery backup and surge protection + 1 FR outlet with surge protection only |
| Input voltage | 230 V |
| Input frequency | 46-70 Hz |
| Input connections | (1) IEC-320-C14 |
| Voltage range | 184 - 264 V (adjustable from 161 to 284 V) |
| Input circuit breaker rating | Resettable circuit breaker |
| Battery type | Compact sealed lead-acid |
| Battery replacement | By the user |
| Battery management | Automatic self-test, deep discharge protection (4 h), LED replacement indicator and audible alarm |
| Interface port | No communication port |

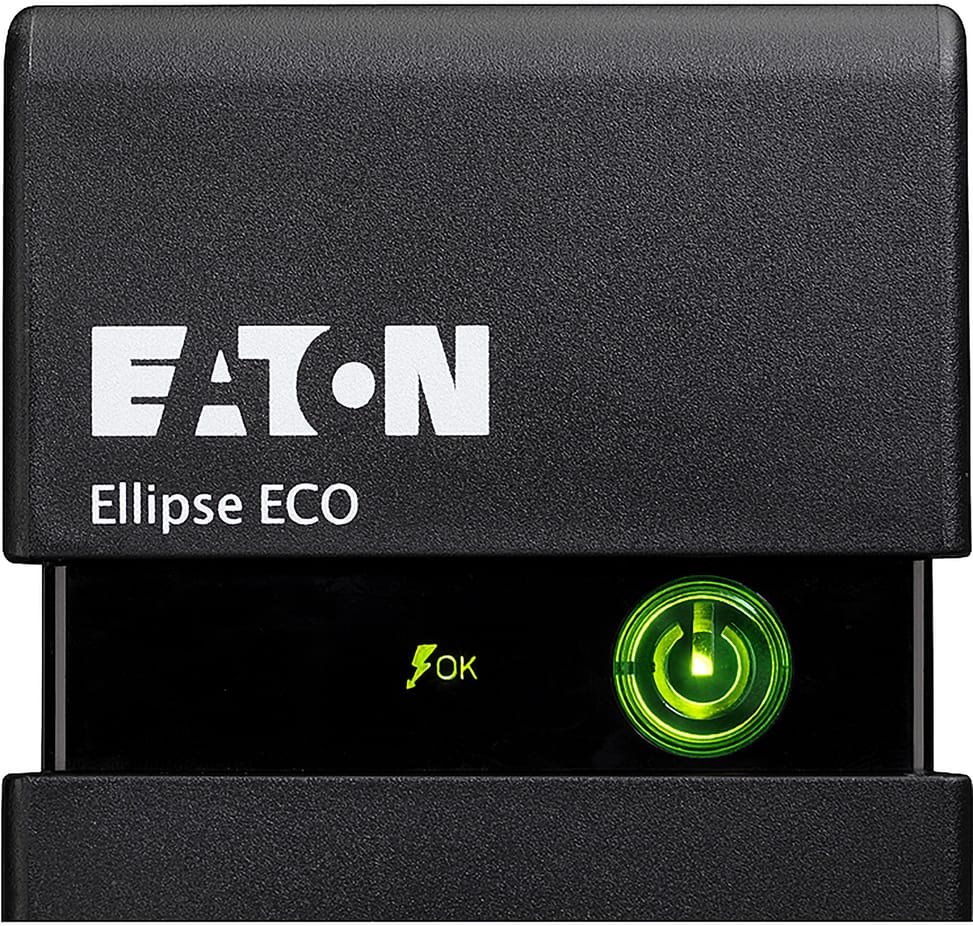

| User interface | Status LEDs (including battery replacement indicator) |
| Audible alarm | Audible battery replacement alarm |
| Power management software | None |
| Weight (kg) | 2.9 |
| Dimensions (W x D x H) (mm) | 81 x 235 x 263 |
| Technology | Off-line |
| Power (VA) | 500 VA |
| Voltage stabiliser | No |
|---|---|
| Box contents | Power cord · User manual in 20 languages · Safety instructions |
| Data line protection | Telephone / fax / modem / Internet and Ethernet line |
| Rack height | 2U with the ELRACK 19-inch rack kit (optional) |
| Surge protection and filtering | Built-in surge protector compliant with IEC 61643-1 |
| Cold start | Yes |
| Audible noise | < 25 dBA |
| Certifications | IEC 62040-1 · IEC 60950-1 · IEC 62040-2 · IEC 61643-1 · CB report · CE marking |
| Mounting | Vertical · Horizontal · Wall (optional ELWALL kit) · 19-inch rack, 2U (optional ELRACK kit) |
| Output frequency | 50-60 Hz |
| Phase (output/input) | Single-phase / Single-phase |
| Output type | FR outlets |
| Power (W) | 300 W |
| Runtime | 9 min at 50% load (150 W); 5 min at 70% (210 W) |
| Form factor | Tower |
| Battery-backed outlets | 3 to 4 outlets |
| Warranty | 2 years |
Downloads
Customer reviews
Write a review
5
2 customer reviews
Onduleur Eaton
Excellent onduleur, très fiable. C'est le deuxième que j'installe dans ma configuration informatique personnelle et j'en suis entièrement satisfait. Excellent rapport qualité/prix.
Jean Vasseur
Frequently asked questions about this product
Can the EL500FR be connected to a computer for automatic shutdown?
No: this version has neither a communication port nor software, unlike the USB models in the same range. It protects and takes over, but cannot trigger the shutdown of the computer.
How long does the EL500FR run on battery?
9 minutes at 50% load, i.e. 150 W, and 5 minutes at 70%, i.e. 210 W. These figures correspond to a light workstation: it is a backup UPS, to be kept for the essentials.
What can you really plug into a 500 VA?
300 W, i.e. a power factor of 0.6. That covers the essentials — an office desktop tower, an internet box, a recorder — but not a complete workstation with a large monitor and peripherals.

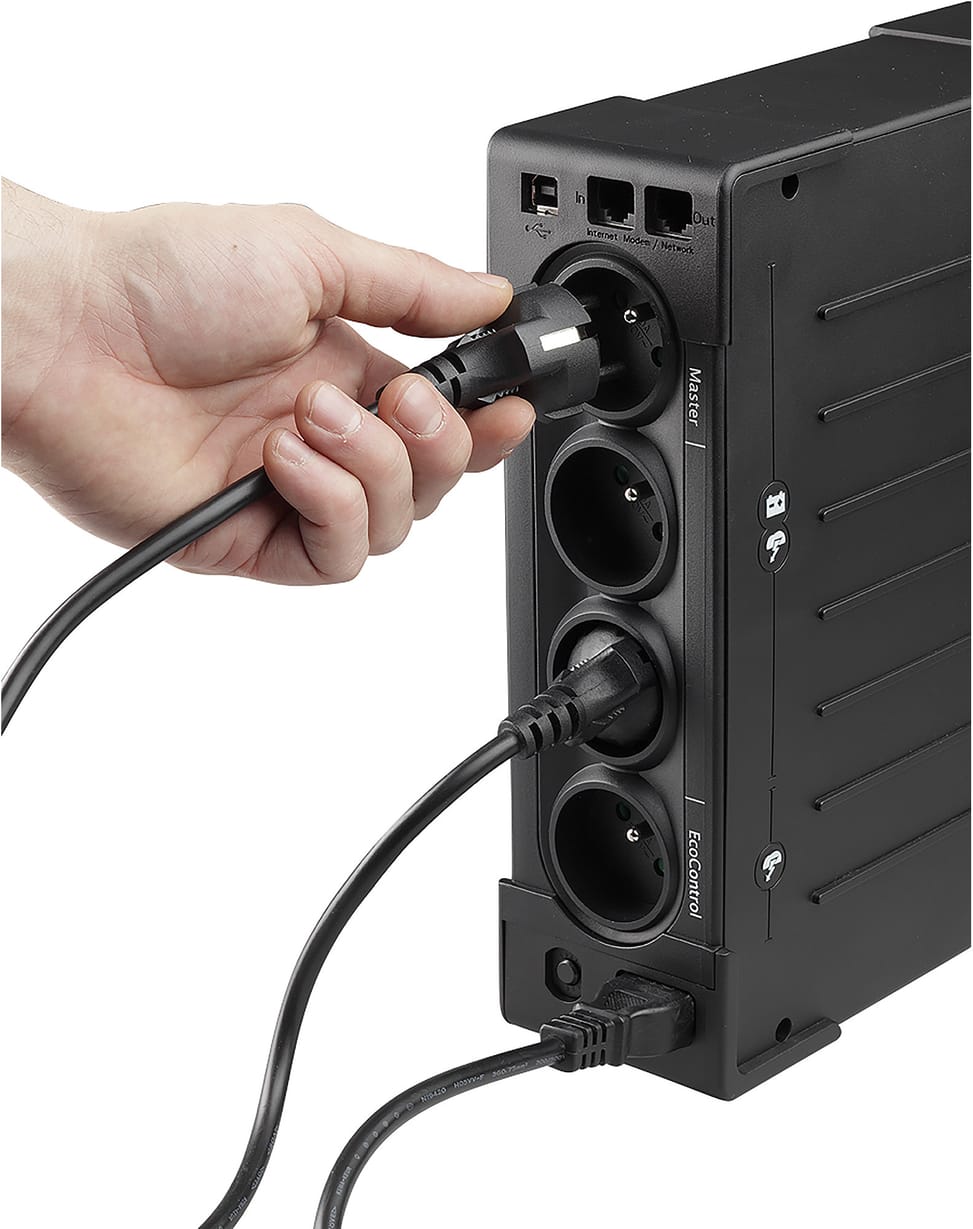

How many of the four outlets stay powered during a power cut?
Three. The fourth is a surge-only outlet: it protects against voltage spikes but switches off along with the mains. Plan your connections accordingly before the first power cut, not during it.
Does the UPS protect the telephone line and the network?
Yes, its built-in surge protector, compliant with the IEC 61643-1 standard, also covers the data lines: telephone, modem, internet and Ethernet. That is a real asset on a unit in this category.
How much space does the EL500FR take up, and is it noisy?
81 mm thick for 235 × 263 mm and only 2.9 kg — the lightest in the range. It runs at under 25 dBA and can stand upright under a desk or lie flat under a monitor.
Does the EL500FR regulate the mains voltage?
No, there is no AVR regulator: as an off-line unit, it passes mains power through as long as it stays within the 184-264 V range — adjustable from 161 to 284 V — and switches to battery outside it.

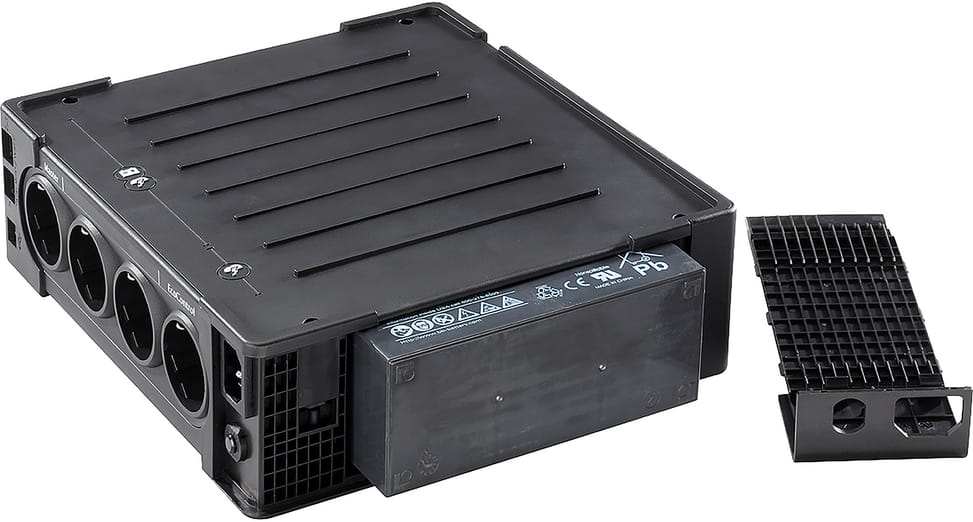

Can the battery be replaced, and are you warned in time?
Yes, the sealed lead-acid battery is replaceable, and an automatic periodic self-test detects the problem before it occurs. LED indicators and an audible alarm signal when it is time to replace it.
Is the Eaton Ellipse ECO EL500FR new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 2 years. It supports cold start — switching on from battery with no mains power — and has a circuit breaker that can be reset after an overload. The datasheet compares the models.
