Ruijie 1000BASE-SX MM 550m LC SFP Transceiver (MINI-GBIC-SX-MM850)

The most common Gigabit optical module, at 850 nm: it hot-plugs into a switch, a router or a network card and can be replaced without stopping the service. Digital optical monitoring flags a drifting link before it drops.

  • 1.25 Gbps data rate
  • 850 nm wavelength
  • DDM digital optical monitoring
  • 1.5 W power consumption at most
  • Hot-pluggable and hot-swappable
  • Complies with IEEE 802.3z, SFP MSA and SFF-8472
  • VCSEL transmitter and PIN receiver, bit error rate of 1E-12
  • Class 1 laser safety
  • Operates from 0 to 70 °C
Ref.: MINI-GBIC-SX-MM850

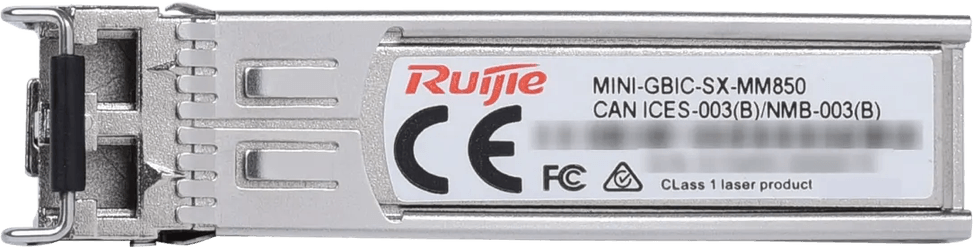

Ruijie 1000BASE-SX MM 550m LC SFP Transceiver (MINI-GBIC-SX-MM850) — image 1

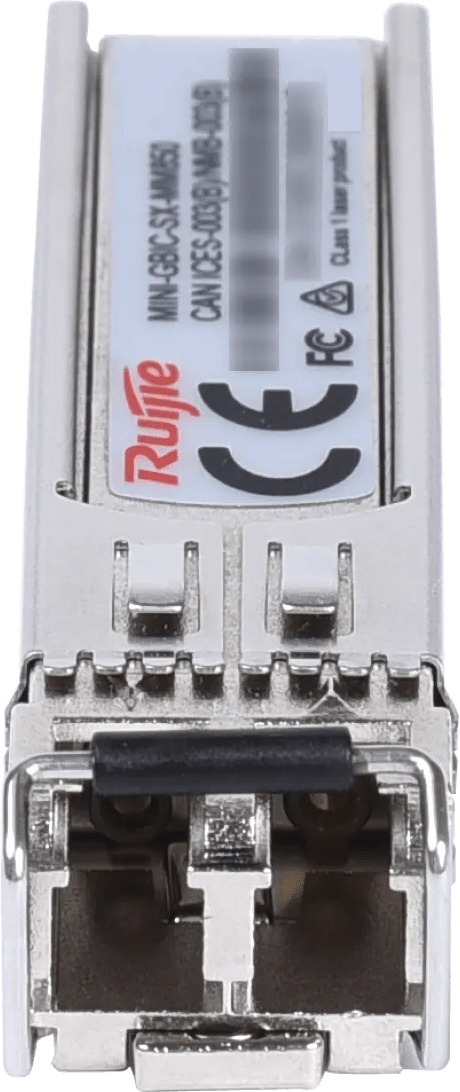

Ruijie 1000BASE-SX MM 550m LC SFP Transceiver (MINI-GBIC-SX-MM850) — image 2

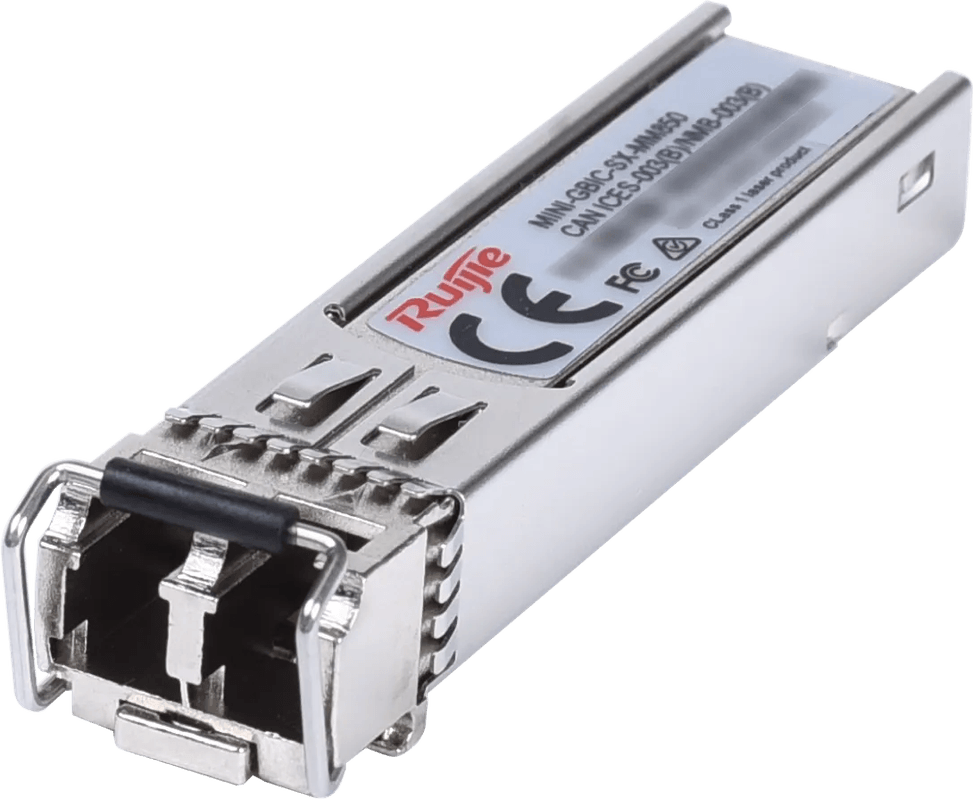

Ruijie 1000BASE-SX MM 550m LC SFP Transceiver (MINI-GBIC-SX-MM850) — image 3

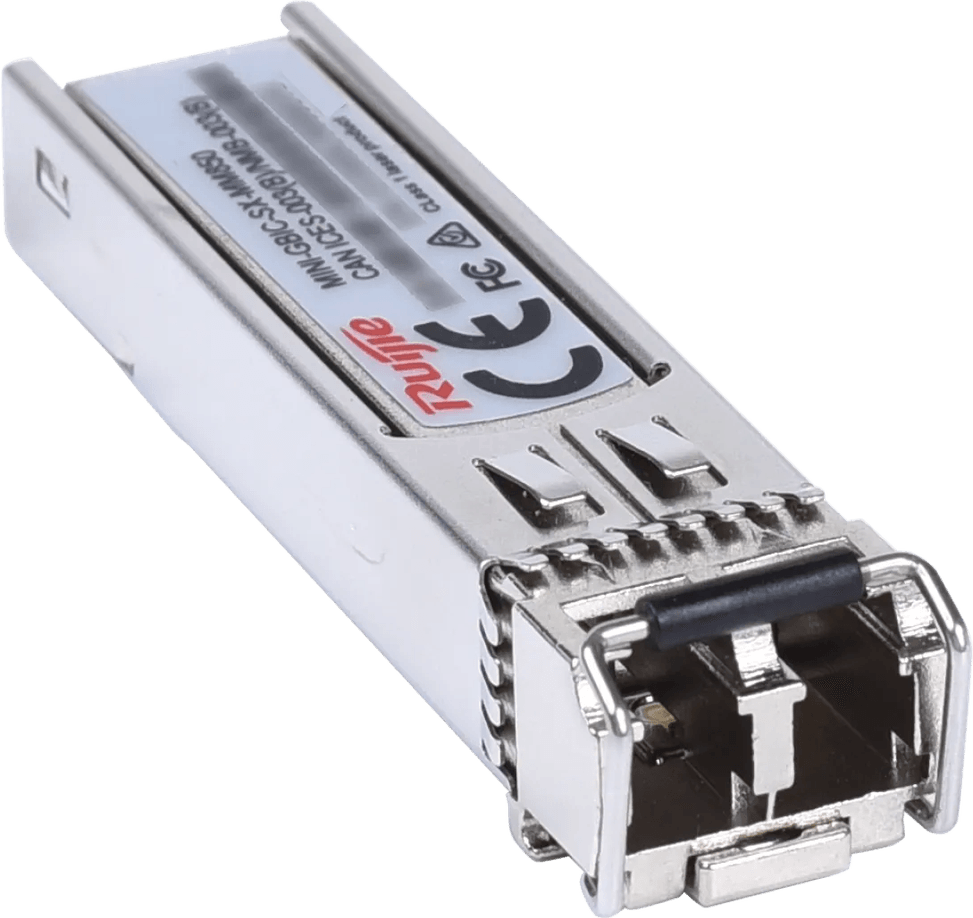

Ruijie 1000BASE-SX MM 550m LC SFP Transceiver (MINI-GBIC-SX-MM850) — image 4

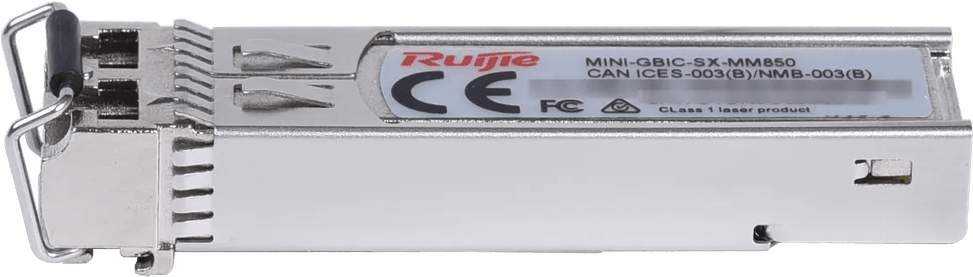

Ruijie 1000BASE-SX MM 550m LC SFP Transceiver (MINI-GBIC-SX-MM850) — image 5

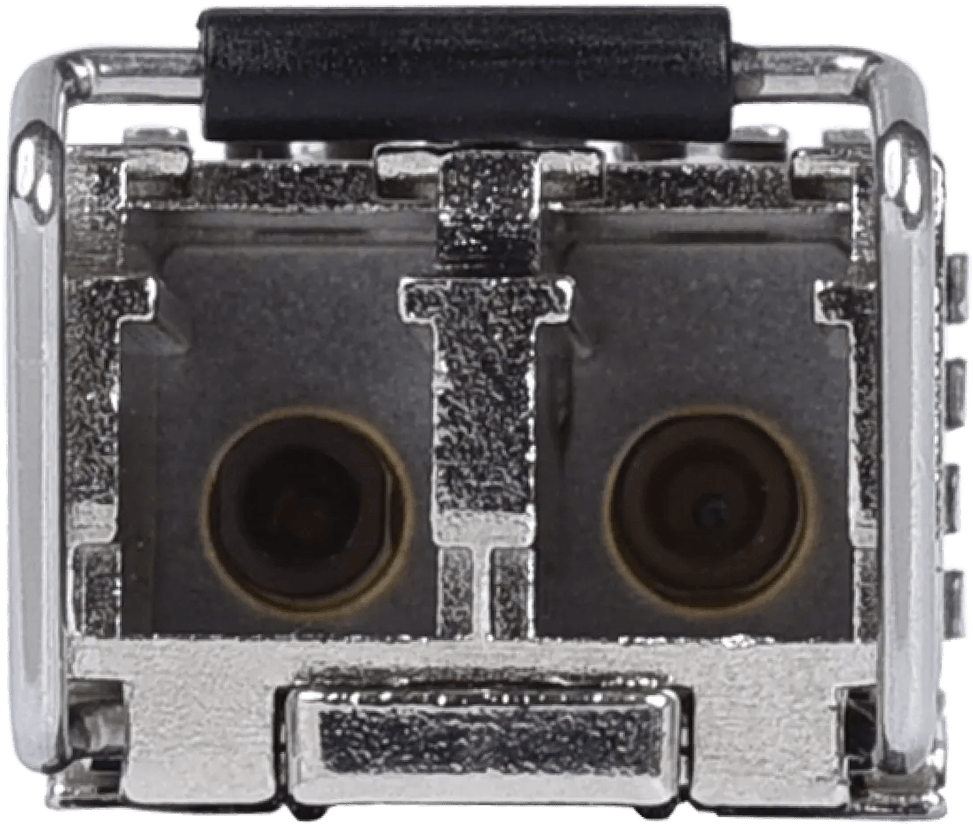

Ruijie 1000BASE-SX MM 550m LC SFP Transceiver (MINI-GBIC-SX-MM850) — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6

Back to school

-4%
675,00 DHincl. VAT705,00 DH

You save 30,00 DH incl. VAT

Final hours, ends in 21 hours and 44 minutes

In stock

Quantity
Order on WhatsAppOn WhatsAppQuick reply

Earn 7 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco

Delivery to your address

Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco

The estimate is refined using actual delivery rounds to your city.

  • Free delivery from 3 000 DH of purchases, all over Morocco.
  • Below that, the same rate in every city for parcels up to 30 kg (delivery to your home or workplace) — the exact amount is shown above, then in the basket.
  • Above 30 kg, the rate follows the parcel's weight. In Casablanca, the flat rate holds up to 120 kg.
  • You are notified by SMS, then called by the courier before your parcel is handed over (delivered by Sapress).
  • Observed delivery time: 1 to 5 working days depending on the city.
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)

In-store collection — free

Casablanca store
We bring it to the store within 24 h
We call you as soon as it arrives in store.

Résidence Manoir des Roses, Lot. 18, Boulevard El Hachmi El Filali, Rond-point Bachkou, Casablanca

Opening hours

  • Mon–Fri: 10am – 7pm
  • Sat: 10am – 2pm
  • Closed on Sundays and public holidays

Payment on site: cash, bank card via terminal, certified cheque.

View the map on Google Maps

Temara pickup point
We bring it to the store within 48 h
We call you as soon as it arrives in store.

Boulevard Hassan II, Résidence Les Perles de Témara, Immeuble 5, appartement 2, Témara

Opening hours

  • Mon–Fri: 8.30am – 1pm / 2pm – 6pm
  • Sat: 8.30am – 12.30pm
  • Closed on Sundays and public holidays

Payment on site: cash, bank card via terminal, certified cheque.

View the map on Google Maps

1 year warranty — free repair in Morocco if it breaks down during the warranty period

1 year manufacturer's warranty

This product is covered for 1 year by a manufacturer's warranty (the brand's official warranty). Your iris.ma invoice serves as the warranty document: keep it safe.

A problem with your product? Don't worry: contact us by phone, WhatsApp or e-mail. Depending on the brand, we direct you either straight to the repairer appointed by the brand to fix your product, or to us — and we take care of the rest.

  • If a repair is possible, it is carried out free of charge.
  • If the product cannot be repaired, the brand offers an exchange for another product.
  • If no product is available, a refund is issued as soon as the brand confirms it.

Faulty straight out of the box? Some brands offer an immediate exchange, others a repair. Contact us to find out what applies to your product.

The warranty covers breakdowns occurring under normal use, as defined by the brand's terms. Product breakage (drop, impact, liquid…) is not covered, nor are certain consumable parts.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

New, never opened — our commitment

All our products are new, delivered in their sealed original packaging.

We commit to never sending you a product that has been opened, unboxed or returned by another customer — even one “just opened for checking”.

Any doubt on delivery (damaged box, seal already opened)? Point it out to the courier or contact us immediately: we take the product back and send you another one.

Sales invoice

Every order comes with its sales invoice, included with the parcel (handed over in person for a store collection).

Ordering for a company? Using the details you give at checkout (company name and ICE), the invoice is issued in your company's name, with its ICE.

Need a quote? Request a free quote — reply within 24 working hours.

100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 300 DH by card or bank transfer) · Certified cheque

Accepted payment methods

Bank transfer

Simply transfer the amount shown to account 007 826 0002684000000426 89 — SGM2I, Attijariwafa bank. The rest (the reference to quote, sending us the proof, tracking) is explained right after confirmation and by email. An instant transfer is recommended: it saves you 24 hours on the delivery time.

Bank card

Your everyday Moroccan bank card is enough — Visa, Mastercard or CMI, no special card required. Foreign cards are accepted too. Secure payment by Attijari Payment.

Cash on delivery (deposit of 300 DH by card or bank transfer)

Pay 300 MAD up front by card, then 375 MAD in cash on delivery. The deposit is not refunded if you cancel your order.

Certified cheque

Certified cheque payable to “sgm2i”. Have your bank certify the cheque, then send us a copy on WhatsApp (+212 6 64 10 46 24) or to service.client@iris.ma — we dispatch as soon as we receive it.

Cash at a bank branch

Pay the cash in at any of the 3,400 Attijariwafa Bank branches in Morocco, to the SGM2I account no. 0268 D 000 000 426. You do not need an account there: your ID and the cash are enough.

The methods offered depend on the order total and the carrier — checkout shows the final list.

Google reviews4.7(553 reviews)
Manufacturer's datasheetView the PDF · 1,1 Mo — downloadable

Product overview

Get fast, reliable network connectivity with the Ruijie 1000BASE-SX MM 550m LC SFP Transceiver. Designed for demanding environments, this compact optical module supports links of up to 550 metres over multimode fibre at 850 nm. Compliance with the IEEE 802.3z, SFP MSA and RoHS standards ensures smooth, safe integration. Ideal for data centres and campus networks, it provides accurate diagnostics through digital optical monitoring. Low power consumption (1.5 W), hot-pluggable and fitted with an LC connector, it offers cost-effective, high-performance interconnection between switches, routers and servers.

See all the specifications ↓
Request a quote

Be notified of a price drop

Share:

Technical specifications

Technical specifications
Hardware typeShort-range 1 Gigabit Ethernet SFP optical transceiver
Ethernet or Fibre Channel standard1000BASE-SR
Nominal data rate1.25 Gbps
Wavelength850 nm
Fibre type and core diameterMultimode, UPC (Ultra Physical Contact) polished end faces
Range by fibre type550 m over multimode fibre
Connector detailsLC duplex, two strands
Optical transmit power−9.5 dBm minimum, 0 dBm maximum (average value)
DDM/DOM digital monitoringYes
Network standardsIEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, RoHS
Power consumption1.5 W maximum
Weight35 g
Technical specifications (continued)
Dimensions (W x D x H)56.5 x 13.5 x 8.5 mm (width x depth x height)
Receiver sensitivityLess than −17 dBm (OMA), 0 dBm average saturation power
Hot-swappableYes
Operating temperature0 to 70 °C
Operating humidity10 to 90% RH
Module speed1 Gbps
Module form factorSFP
Media typeMultimode fibre
Connector typeLC
Maximum range300 m to 550 m
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How far can this Ruijie 1G transceiver reach?
Up to 550 metres over multimode fibre, at a wavelength of 850 nm. That is the typical reach of a link between two buildings on the same site.
Will this SFP module fit any switch?
It complies with the IEEE 802.3z, SFP MSA and SFF-8472 standards — the specifications manufacturers follow. Still, check your switch’s compatibility list: some manufacturers lock their ports.
Do I need to turn off the switch to install this module?
No: it is hot-pluggable and hot-swappable. The module can be changed with the switch running, without cutting the other links in the chassis.
Can the status of the optical link be monitored?
Yes: DDM digital optical monitoring reports transmit power, receive power, temperature and voltage. That is what lets you spot a degrading fibre before the link goes down.
How reliable is this module’s transmission?
The stated bit error rate is 1E-12, i.e. one error per trillion bits transmitted. The module uses a VCSEL transmitter and a PIN receiver, and meets Class 1 laser safety requirements.
How much power does this SFP transceiver draw?
1.5 W maximum, for a data rate of 1.25 Gbps. On a switch fitted with several modules, this is the figure to multiply when sizing the power supply.
What temperature range does this module operate in?
From 0 to 70 °C. This is the standard commercial range, intended for an equipment room, not for an outdoor cabinet exposed to frost.
Is this Ruijie 1000BASE-SX transceiver new and under warranty?
Yes, this is a new Ruijie product, reference MINI-GBIC-SX-MM850, with an LC connector. The invoice serves as the warranty document for 1 year. Datasheet: Ruijie MINI-GBIC-SX-MM850.
