Grandstream GCC6010W Convergence Solution for UC + Networking

Four devices in one desktop casing: VPN router, firewall, 5-port switch and IP PBX, plus a built-in dual-band Wi-Fi 6 access point. Everything is managed from the GDMS cloud or the local web interface.

Built-in dual-band Wi-Fi 6 access point
Up to 3,603 Mbps on the 5 GHz band
Up to 573.5 Mbps on the 2.4 GHz band
5 Gigabit Ethernet ports configurable as WAN or LAN, 3 WAN maximum
Routing throughput of 3 Gb/s
IPsec VPN throughput of 1 Gb/s
Firewall with antivirus, intrusion detection and prevention, SSL inspection
DNS, URL, category and keyword filtering
Multi-WAN with automatic failover and load balancing
IP PBX: 12 users and 4 simultaneous calls, expandable
Up to 500 Wi-Fi clients and 150 GWN access points managed
WPA3 security and captive portals
GDMS cloud management, mobile app, local web interface, SSH and SNMP
3 internal antennas, power adapter and network cable included

Ref.: GCC6010W

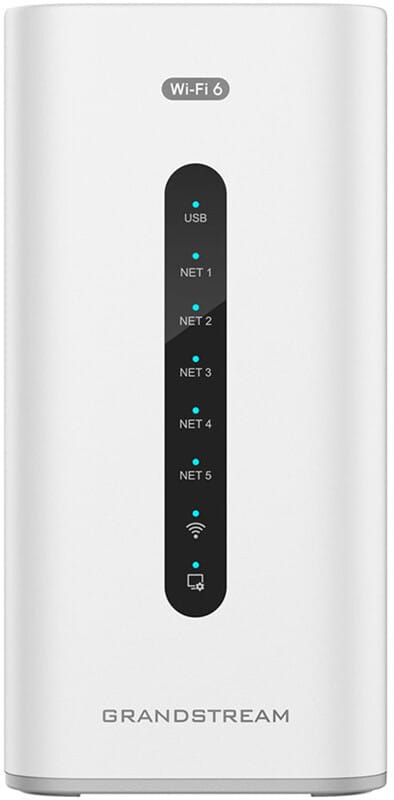

Grandstream GCC6010W Convergence Solution for UC + Networking — image 1

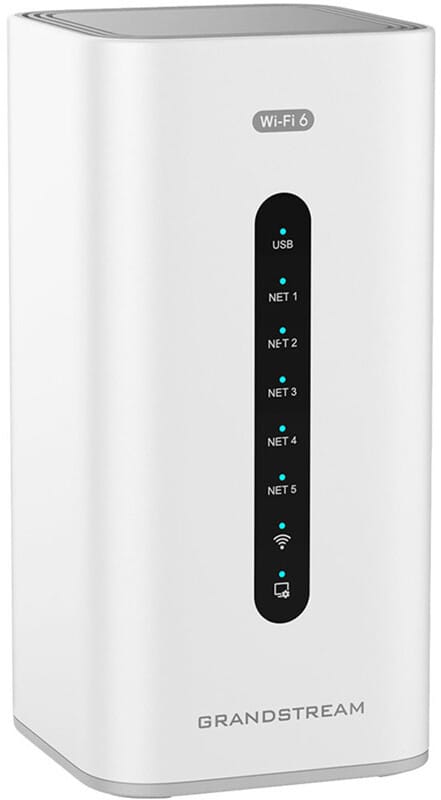

Grandstream GCC6010W Convergence Solution for UC + Networking — image 2

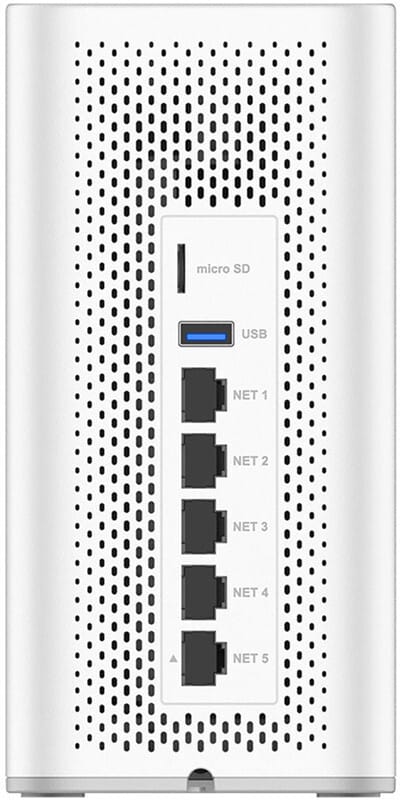

Grandstream GCC6010W Convergence Solution for UC + Networking — image 3

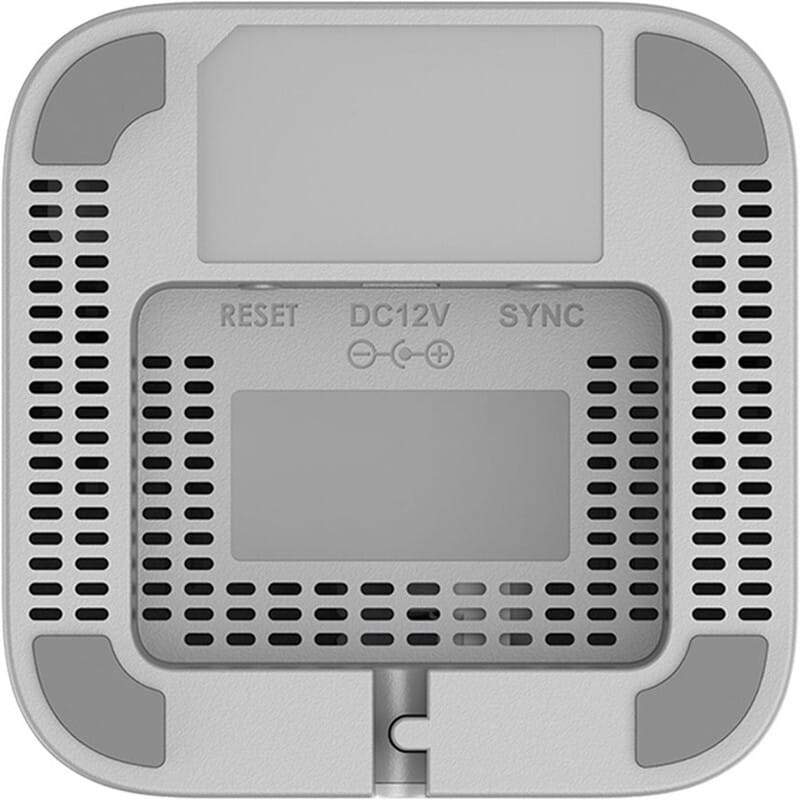

Grandstream GCC6010W Convergence Solution for UC + Networking — image 4

4 869,00 DHincl. VAT

On order — delivery within 3 à 6 semaines

Quantity

Earn 49 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

Delivery anywhere in Morocco

On orderReceive it within 3 to 6 weeks

1 year warranty — free repair in Morocco if it breaks down during the warranty period

100% secure payment: Bank transfer · Bank card

Manufacturer's datasheetView the PDF · 401 Ko — downloadable

Product overview

The Grandstream GCC6010W brings power and versatility together in a single compact device. Designed for today's businesses, it combines a VPN router, a firewall, a switch, an IP PBX and a dual-band Wi-Fi 6 access point. With 5 Gigabit ports, Wi-Fi speeds of up to 3.6 Gbps and 1 Gbps IPsec VPN throughput, it delivers fast, secure connectivity. Its advanced GDMS management system simplifies network administration, while support for up to 200 SIP users keeps communications running smoothly. Rugged, reliable and powerful, the GCC6010W boosts productivity while strengthening network security and stability.

See all the specifications ↓

Request a quoteShare:

Technical specifications

Technical specifications
Package contents	GCC6010W, universal power adapter
Internal memory	2 GB RAM, 32 GB eMMC flash memory
Interfaces	5 Gigabit RJ45 ports configurable as WAN/LAN (up to 3 WAN), 1 micro-SD reader, 1 USB 3.0 port, 1 reset button
Concurrent sessions	160,000 NAT sessions
Rated routing throughput	3 Gbps routing, 1 Gbps in IPsec VPN, 900 Mbps in IDS/IPS
Supported WAN technology	Gigabit Ethernet
Network standards	IEEE 802.11a/b/g/n/ac/ax, 802.3, 802.3u, 802.3x, 802.3ab, 802.1Q, 802.1p, 802.1x
Maximum channel width	160 MHz on 5 GHz, 40 MHz on 2.4 GHz
Spatial streams and MU-MIMO	2×2:2 on 2.4 GHz, 3×3:3 on 5 GHz, MU-MIMO
Maximum Wi-Fi throughput per band	573.5 Mbps on 2.4 GHz, 3,603 Mbps on 5 GHz
Management modes	Local web interface, mobile app, Grandstream GDMS management system, SSH, SNMP v1/v2c/v3
Cloud management platform	Grandstream GDMS
Managed access points	Up to 150 GWN access points and 500 clients
Layer 2 features	VLAN and TOS, multiple traffic classes, filtering by port, IP address and DSCP, application QoS, VoIP priority
Weight	565 g
Dimensions (W x D x H)	95 x 95 x 193 mm

Technical specifications (continued)
Number of ports	5 ports or fewer
Frequency bands	Dual-band: 2.4 GHz (2,400 to 2,483.5 MHz) and 5 GHz (5,150 to 5,895 MHz)
Antennas	3 individual internal antennas (2 dual-band and 1 single-band 5 GHz), maximum gain 4 dBi at 2.4 GHz and 6 dBi at 5 GHz
Maximum transmit power	28.5 dBm on 2.4 GHz, 25.5 dBm on 5 GHz
Security features	WPA and WPA2 Personal and Enterprise (TKIP/AES), WPA3, anti-hacking secure boot, unique security certificate and random password per device
Power supply	Universal external power adapter, input 100-240 V AC 50-60 Hz, output 12 V DC 1.5 A (18 W)
Firewall	DDNS, port forwarding, DMZ, UPnP, protection against denial of service and spoofing, traffic rules, NAT, deep packet inspection, antivirus, IPS/IDS, SSL proxy
Status indicators	8 LEDs for device monitoring and status
VPN	Site-to-site and client-to-site IPsec, OpenVPN server and client, PPTP server and client, L2TP client-to-site, WireGuard
Operating temperature	0 to 45 °C
Operating humidity	5 to 95% non-condensing
Wi-Fi standard	Wi-Fi 6
Port speed	1 Gbps (Gigabit)
Router type	Wi-Fi router
Simultaneously connected devices	Up to 500 clients
Warranty	1 year

Downloads

Fiche technique(PDF)

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review

Frequently asked questions

What are the delivery times and fees?

Delivery all over Morocco within 1 to 5 working days, at the same rate in every city for parcels up to 30 kg — and free delivery from 3 000 dh of purchases. Above 30 kg, the rate follows the weight and is shown on the product page and in the basket. You are notified by SMS, then called by the courier.

Is the product new and under warranty?

Yes: a new, genuine product, delivered in its original packaging with an invoice. The invoice serves as the warranty document (1 year) with the manufacturer's after-sales service in Morocco.

Can I collect my order in store?

Yes, at the Casablanca store (Mon–Fri 10am–7pm · Sat 10am–2pm) or the Témara collection point (Mon–Thu 8.30am–6pm · Fri 8.30am–1.30pm / 2.30–6pm · Sat 8.30am–12.30pm). Payment on site: cash, bank card via terminal, certified cheque.

Which payment methods do you accept?

Bank card online (secure Attijari Payment), cash on delivery, bank transfer and certified cheque. All our prices are in dirhams, VAT included.

Can I get an invoice in my company's name (with its ICE)?

Yes. Provide your company's legal name and ICE when ordering: the invoice is issued in its name and enclosed with the parcel (handed over with the order for in-store collection). Companies and public bodies can also request a quote — reply within 24 working hours.

Suggestions

Best seller
TP-Link
TP-Link Archer AX53 AX3000 Dual-Band Wi-Fi 6 Router (ARCHERAX53)
Everything runs through the five Gigabit sockets and the two bands: 2,402 Mbps on 5 GHz, a built-in VPN server and OneMesh networking to widen coverage later on.
- Up to 2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- 1 Gigabit WAN port and 4 Gigabit LAN ports
- Built-in OpenVPN and PPTP VPN server
In stock
639 DHincl. VAT639,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
-359 DH
TP-Link

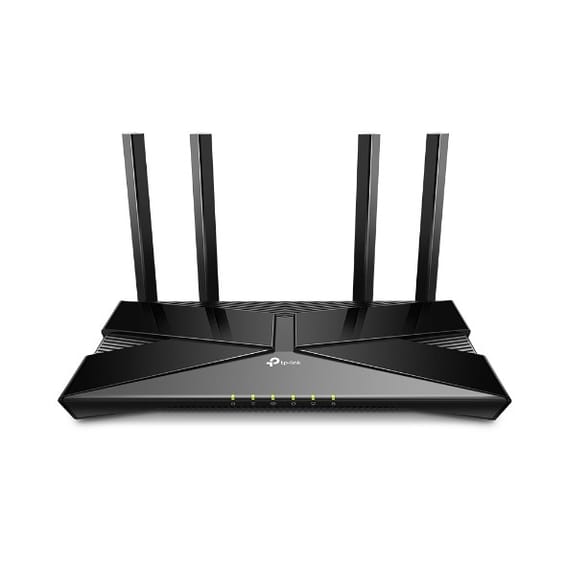

TP-Link Archer AX23 Dual-Band Gigabit Ethernet Wireless Router (2.4 GHz / 5 GHz) Black (ARCHER AX23)
TP-Link
TP-link Archer GX90 AX6600 Tri-Band Wi-Fi 6 Gaming Router (ARCHERGX90)
Consoles and gaming PCs get their own band at 4,804 Mbps, away from the rest of the home. 2.5 Gbps port, quad-core processor and latency displayed in real time.
- 5 GHz band dedicated to gaming, up to 4,804 Mbps
TP-Link

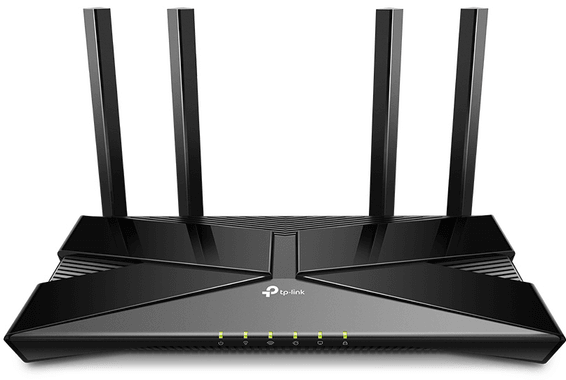

TP-Link Archer AX10 AX1500 Dual-Band Gigabit WiFi 6 Router (ARCHERAX10)
