MSI PRO B840M-B Motherboard (911-7E76-002)

AM5 platform for the Ryzen 9000, 8000 and 7000, with two DDR5 slots and two M.2 Gen4 ports. 2.5 Gbps wired networking, HDMI and VGA outputs, and a button to flash the BIOS without a processor or memory.

  • AM5 socket — AMD Ryzen 9000, 8000 and 7000 processors
  • 2 dual-channel DDR5 slots, up to 8000+ MT/s when overclocked
  • 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot
  • 2 M.2 Gen4 x4 ports
  • 4 SATA 6 Gbps ports
  • 2.5 Gbps wired networking
  • HDMI 2.1 and VGA outputs (graphics processor required)
  • 7 USB 5 Gbps ports including one Type-C, and 6 USB 2.0
  • Flash BIOS button, without a processor or memory
  • Clear CMOS button
  • Graphics card released with one finger thanks to EZ PCIe Clip II
  • Direct 7+2+1 phase power delivery
  • 7.1 high-definition audio
Ref.: 911-7E76-002
New

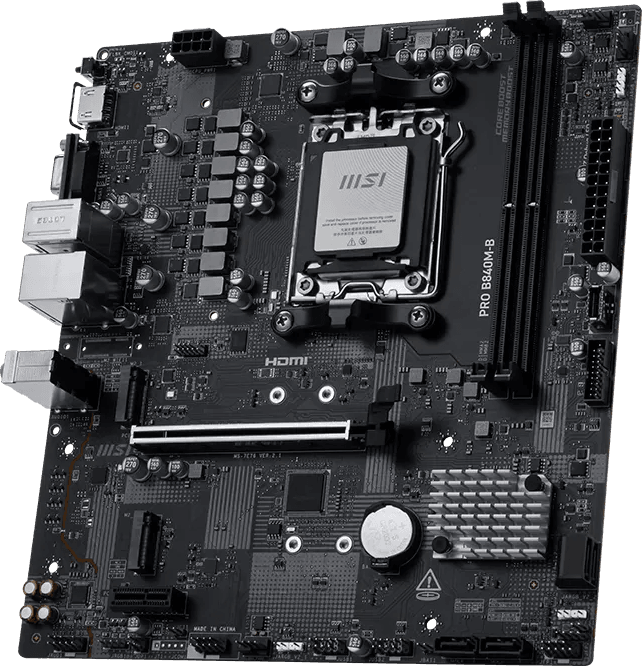

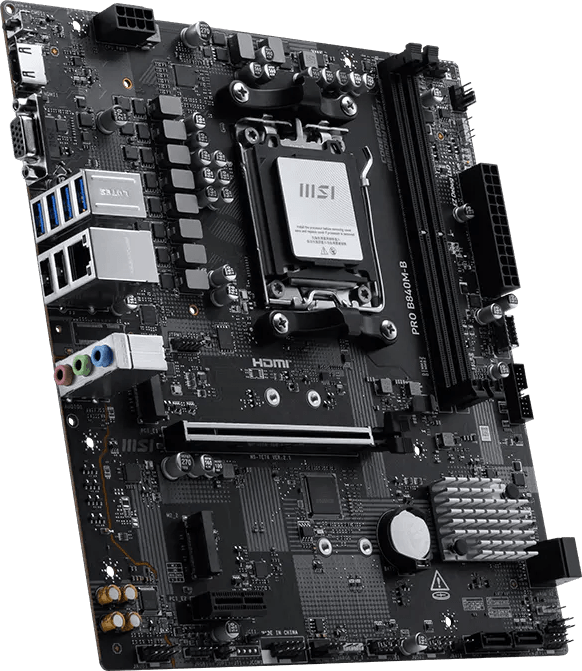

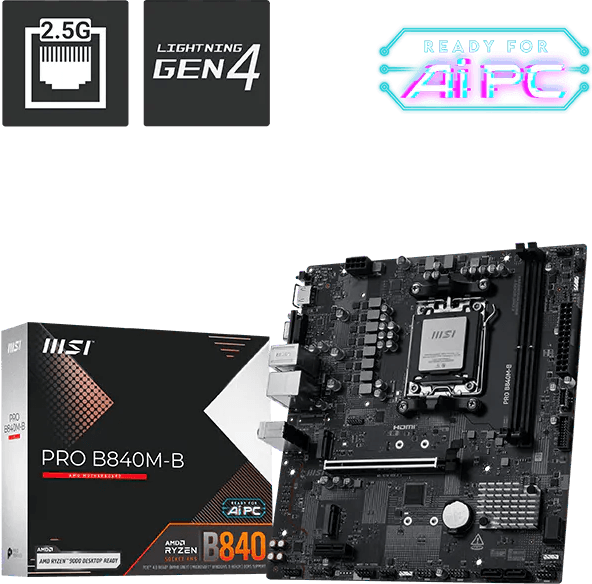

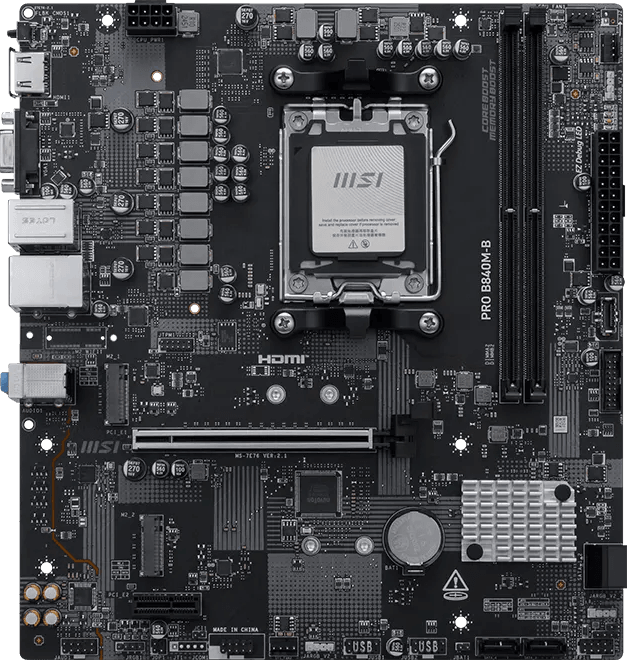

MSI PRO B840M-B Motherboard (911-7E76-002) — image 1
MSI PRO B840M-B Motherboard (911-7E76-002) — image 2
MSI PRO B840M-B Motherboard (911-7E76-002) — image 3
MSI PRO B840M-B Motherboard (911-7E76-002) — image 4
MSI PRO B840M-B Motherboard (911-7E76-002) — image 5

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Design and revisions : one component is produced by several partner manufacturers: cooler, backplate, RGB lighting and printing change with the version delivered.
  • Quantity : an image showing two memory modules or several fans does not mean the set is sold that way — check the packaging in the specifications.
  • Cooling : a processor may be sold without a cooler, and not all the fans visible inside a case are supplied.
  • Accessories : cables, adapters, screws, brackets and software licences are supplied only if the specifications say so.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/5
1 249,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 440 Ko — downloadable

Product overview

Optimise your build with the MSI PRO B840M-B, a motherboard designed for performance and reliability. Compatible with AMD Ryzen 7000, 8000 and 9000 processors on the AM5 socket, it harnesses DDR5 memory up to 8000+ MT/s for fast, stable performance. Its PCIe 4.0 and M.2 Gen4 slots deliver ultra-fast transfers, ideal for gaming and productivity. 2.5G LAN provides a smooth connection, while Frozr AI Cooling optimises cooling automatically. With MSI's advanced technologies, this motherboard offers a durable, upgradable and fully controlled experience.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Supported memory frequenciesUp to 8000+ MT/s (OC)
Audio8-channel (7.1) HD audio with Audio Boost
Ethernet network cardRealtek 8125, 2.5 Gbps
Wi-FiNo
CPU socketAMD AM5
Compatible processorsAMD Ryzen 9000, 8000 and 7000
ChipsetAMD B840
Onboard video outputsHDMI 2.1 and VGA, 4K at 60 Hz — requires a processor with integrated graphics
Motherboard form factorMicro-ATX
CPU power stages7+2+1 phases (direct power)
Technical specifications (continued)
Memory typeDDR5
Memory slots2 x DDR5 DIMM, dual channel
Wired network2.5 Gbps

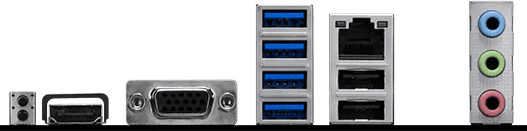

Rear panel connectorsHDMI, VGA, USB-A 5 Gbps, USB 2.0, 2.5 Gbps LAN, audio jacks, Clear CMOS and Flash BIOS buttons
USB ports7 x USB 5 Gbps (6 Type-A + 1 Type-C), 6 x USB 2.0
Number of M.2 slots2 slots
SATA ports4 x SATA 6 Gbps
M.2 slots2 x M.2 PCIe 4.0 x4 (64 Gbps)
PCI Express slots1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions

What are the delivery times and fees?
Delivery all over Morocco within 1 to 5 working days, at the same rate in every city for parcels up to 30 kg — and free delivery from 3 000 dh of purchases. Above 30 kg, the rate follows the weight and is shown on the product page and in the basket. You are notified by SMS, then called by the courier.
Is the product new and under warranty?
Yes: a new, genuine product, delivered in its original packaging with an invoice. The invoice serves as the warranty document (1 year) with the manufacturer's after-sales service in Morocco.
Can I collect my order in store?
Yes, at the Casablanca store (Mon–Fri 10am–7pm · Sat 10am–2pm) or the Témara collection point (Mon–Fri 8.30am–1pm / 2–6pm · Sat 8.30am–12.30pm). Payment on site: cash, bank card via terminal, certified cheque.
Which payment methods do you accept?
Bank card online (secure Attijari Payment), cash on delivery, bank transfer and certified cheque. All our prices are in dirhams, VAT included.
Can I get an invoice in my company's name (with its ICE)?
Yes. Provide your company's legal name and ICE when ordering: the invoice is issued in its name and enclosed with the parcel (handed over with the order for in-store collection). Companies and public bodies can also request a quote — reply within 24 working hours.
