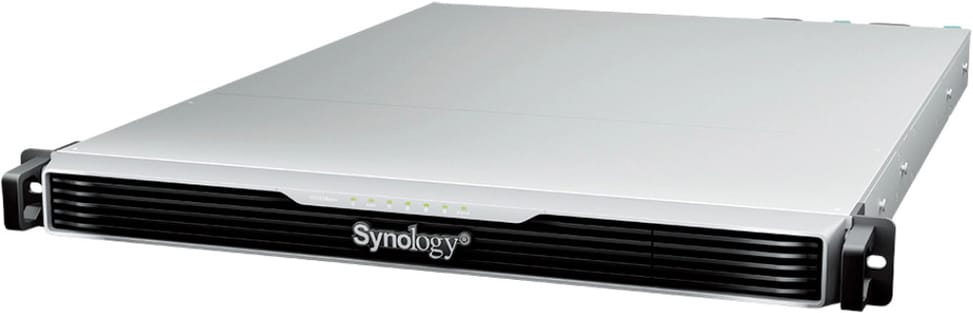

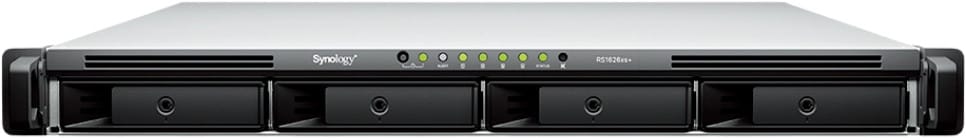

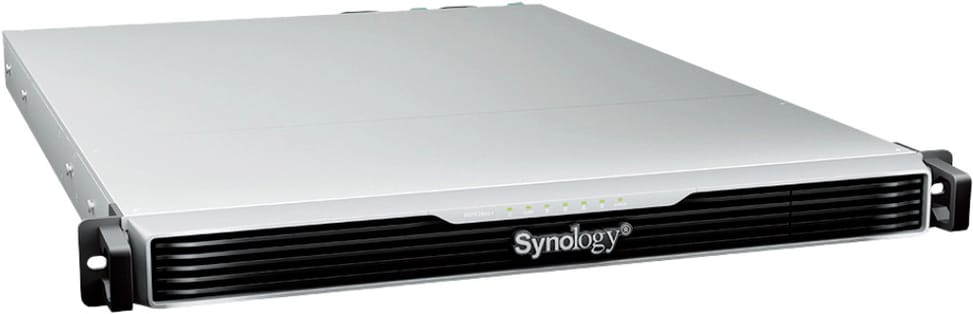

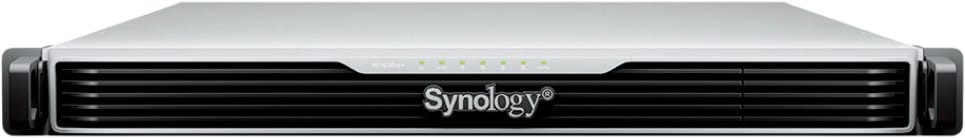

Synology RackStation® RS1626xs+ 4-Bay NAS Server
1U 4-bay rack NAS for intensive workloads: six-core Xeon D-1726, 16 GB ECC, dual 10 GbE and redundant power supply in a single rack unit. Over 84,000 random write IOPS, expandable to 16 drives. Drives not included.
- Six-core, twelve-thread Intel Xeon D-1726, up to 3.5 GHz
- 16 GB of DDR4 ECC RDIMM memory, expandable to 64 GB
- Over 84,000 random write IOPS
- 2 x 10 GbE RJ-45 ports and 1 out-of-band management port
- Redundant power supply
- 4 SATA bays for 3.5- and 2.5-inch drives, drives sold separately
- 2 M.2 NVMe slots for SSD cache
- PCIe 4.0 x8 slot: optional 25 GbE or Fibre Channel
- Expandable to 16 drives with an RX1225RP unit
- Volumes up to 1 PB in RAID 6, with 64 GB of memory
- Failover cluster with Synology High Availability
- Up to 75 IP cameras, 2 licences included
- 1U rack, 668.5 mm deep, optional RKS-04 rails
Ref.: RS1626XS+
New
1/7
78 828,00 DHincl. VAT
Configuration · Synology RackStation xs+
- Configuration shown: RS1626xs+ 4 bays Xeon D-1726 16 GB
- RS3626xs 12 bays Xeon D-1726 8 GB
- RS6426xs+ 16 bays Xeon D-1739 16 GB
Limited quantity
Earn 300 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
5 years warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Certified cheque
Product overview
Rack NAS server for intensive workloads when space is tight: Xeon in 1U, dual 10 GbE and redundant power supply.
Processor: Intel Xeon D-1726, 6 cores and 12 threads
Memory: 16 GB DDR4 ECC RDIMM, up to 64 GB
Storage: 4 bays, up to 16 with the RX1225RP
Cache: 2 M.2 2280 NVMe slots
Network: 2 x 10 GbE ports and out-of-band management port
Upgrade: 1 PCIe Gen4 x8 slot
An enterprise server in a single rack unit, where every U of the cabinet is already taken.
Request a quoteShare:
Technical specifications
| Processor | Intel Xeon D-1726 |
|---|---|
| Processor details | 6 cores, 12 threads, 64-bit architecture |
| Surveillance cameras | 75 IP cameras maximum, 2 licences included |
| Hardware encryption | Yes (hardware encryption engine) |
| Installed RAM | 16 GB DDR4 ECC RDIMM (1 x 16 GB) |
| Maximum RAM | 64 GB (4 x 16 GB) |
| Operating system | Synology DiskStation Manager (DSM) |
| RAID | RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Typical power consumption | 97.59 W (access) |
| Standby power consumption | 56.19 W (drive hibernation) |
| Interfaces | 2 x USB 3.2 Gen 1, 1 x Mini-SAS HD expansion port |
| Network ports | 2 x RJ-45 10 GbE, 1 out-of-band management port |
| Frequency | 2.9 GHz (3.5 GHz Turbo) |
| RAM slots | 4 slots |
| RAM type | DDR4 ECC RDIMM |
| Hard drive type | 3.5-inch SATA HDD, 2.5-inch SATA SSD |
| Hot-swappable | Yes |
| Storage bays | 4 bays (up to 16 with one RX1225RP expansion unit) |
| M.2 NVMe slots | 2 M.2 2280 NVMe slots |
| Supplied storage | No drives supplied |
| Expansion slots | 1 PCIe Gen4 x8 slot (x8 link) |
| Power supply | 2 redundant internal PSUs, 250 W, 100-240 V |
| Weight | 9.5 kg |
|---|---|
| Dimensions | 44 x 481.9 x 668.5 mm (H x W x D) |
| Box contents | Main unit, accessory pack, 2 C13 to C14 power cables, front bezel |
| Operating temperature | 5 °C to 35 °C |
| Storage temperature | -20 °C to 60 °C |
| File system | Internal: Btrfs — External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| Sharing protocols | SMB, AFP, NFS, FTP, WebDAV, Rsync |
| Rack height | 1U (optional RKS-04 sliding rails) |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL |
| Fan | 4 fans (40 x 40 mm), easily replaceable |
| Network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, Kerberised NFS sessions, iSCSI, Fibre Channel, HTTP, HTTPS, FTP, SNMP, LDAP, CalDAV |
| Noise level | 52.6 dB(A) |
| Operating humidity | 8% to 80% RH |
| Form factor | Rack mount |
| Drive bays | 4 bays |
| Built-in M.2 slots | Yes |
| Port speed | 10 Gbps (10G) |
| Drives included | No |
| Redundant power supply | Yes |
| NAS processor | Intel Xeon |
| Warranty | 5 years |
Specific references
| MPN | RS1626xs+ |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Are drives included with the RS1626xs+?
No, the RS1626xs+ is sold without drives: its 4 bays accept 3.5-inch SATA hard drives or 2.5-inch SATA SSDs. For this model, Synology lists its Enterprise series HAT5300 drives and its SAT5200 SSDs, as well as SNV3400 or SNV5400 NVMe SSDs for the two internal M.2 slots reserved for caching.
Why choose a 4-bay NAS in a 1U form factor?
To fit an enterprise server into a single rack unit: six-core Xeon, 16 GB ECC, dual 10 GbE and redundant power supply. Filled with SATA SSDs, the 4 bays provide fast storage, and capacity grows to 16 drives by adding an RX1225RP unit as data grows, without changing server.
How far can the RS1626xs+ memory be expanded?
Up to 64 GB: it comes with one 16 GB DDR4 ECC RDIMM module and has 4 slots, each accepting 16 GB (Synology part number D4ER02-16G). Going up to 64 GB unlocks 1 PB volumes in RAID 6; below that, a volume is limited to 200 TB with 32 GB of memory, and to 108 TB with less memory.
Does the RS1626xs+ offer remote management?
Yes, a dedicated out-of-band management network port lets you work on the server even when it is powered off: turn it back on, check its logs, diagnose a fault, without going through the data ports. The two 10 GbE RJ-45 ports thus stay reserved for traffic, and can be aggregated to combine throughput or fail over in case of an outage.
Which rail kit should be used for the RS1626xs+?
The Synology RKS-04 sliding rail kit, sold separately: it is the only one Synology specifies for this model, in a 4-post 19-inch rack. The RS1626xs+ takes up 1U of height but 668.5 mm of depth and weighs 9.5 kg: check that your cabinet accepts this depth before ordering.
Can the RS1626xs+ be placed in an office?
A server room or technical cabinet is better: its four 40 mm fans, needed to cool a Xeon in 1U, bring the noise level to 52.6 dB(A) in operation. It draws 97.59 W in access and 56.19 W with the drives in hibernation, and operates at an ambient temperature between 5 °C and 35 °C.
Can the RS1626xs+ connect over Fibre Channel?
Yes, by adding a Fibre Channel adapter in its PCIe 4.0 x8 slot: the server then presents its LUNs to a SAN storage network. The same slot can take a 25 GbE E25G30-F2 card or a 10 GbE SFP+ card. It handles up to 256 iSCSI targets and 512 LUNs.
