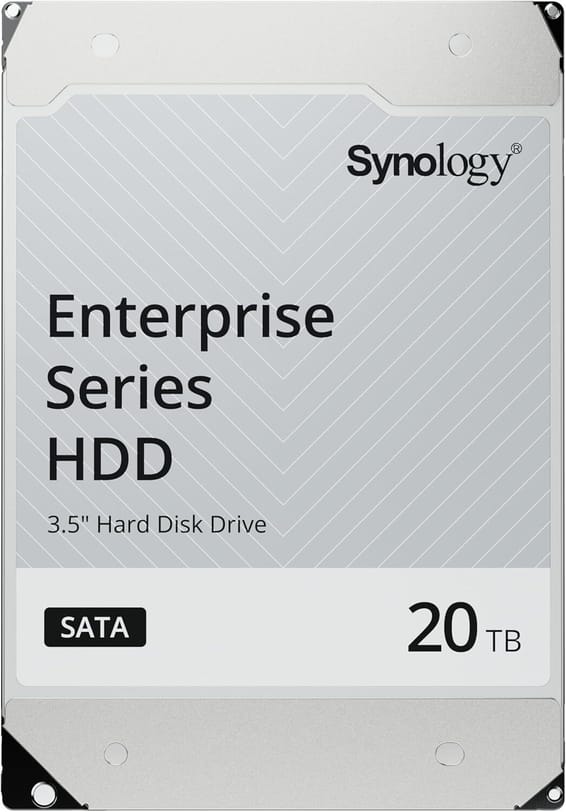

Synology HAT5300 SATA 3.5'' Enterprise Series HDD 20 TB Internal Hard Drive for NAS (HAT5310-20T)
In stock
15 499 DHincl. VAT15 499,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
Visit the Synology store

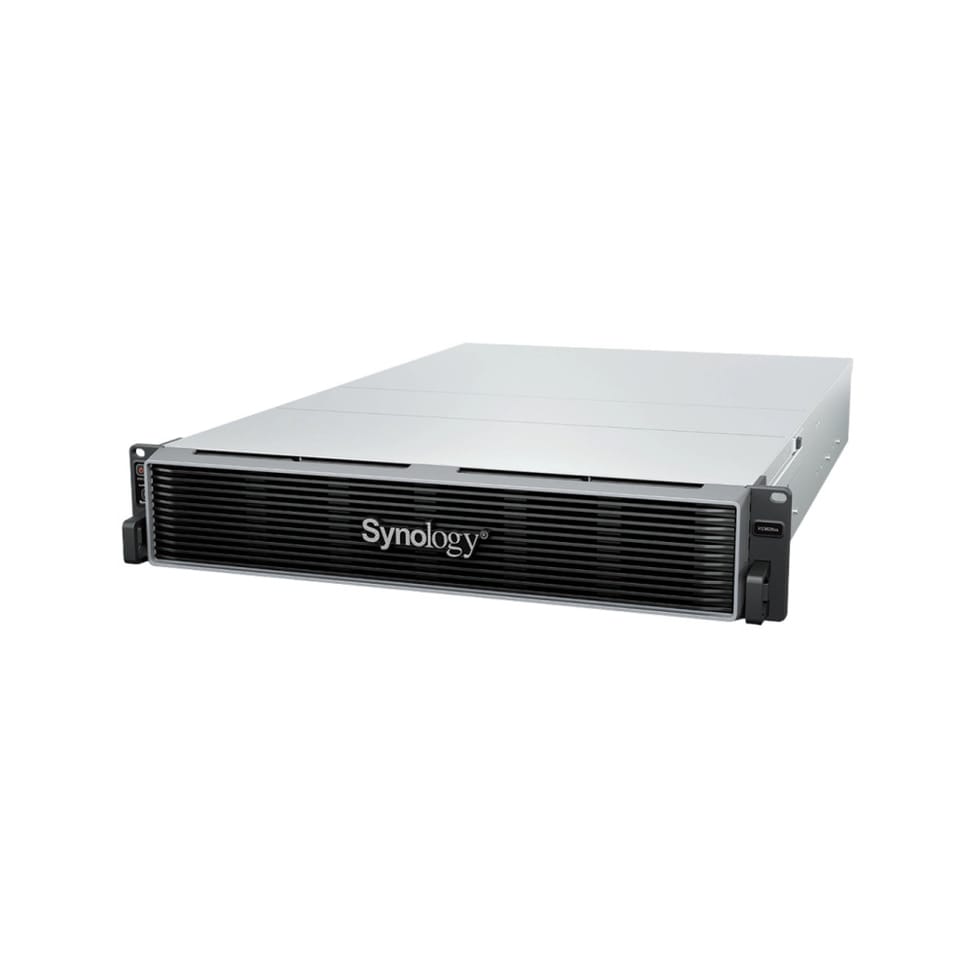

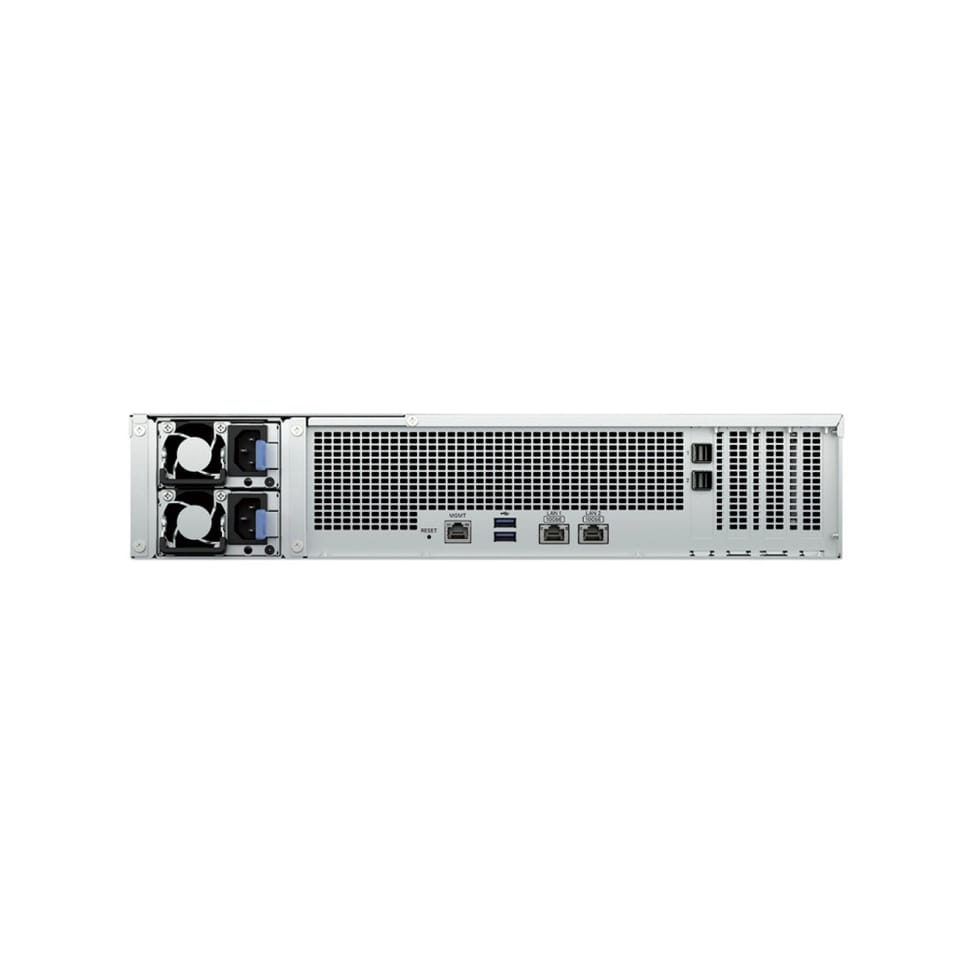

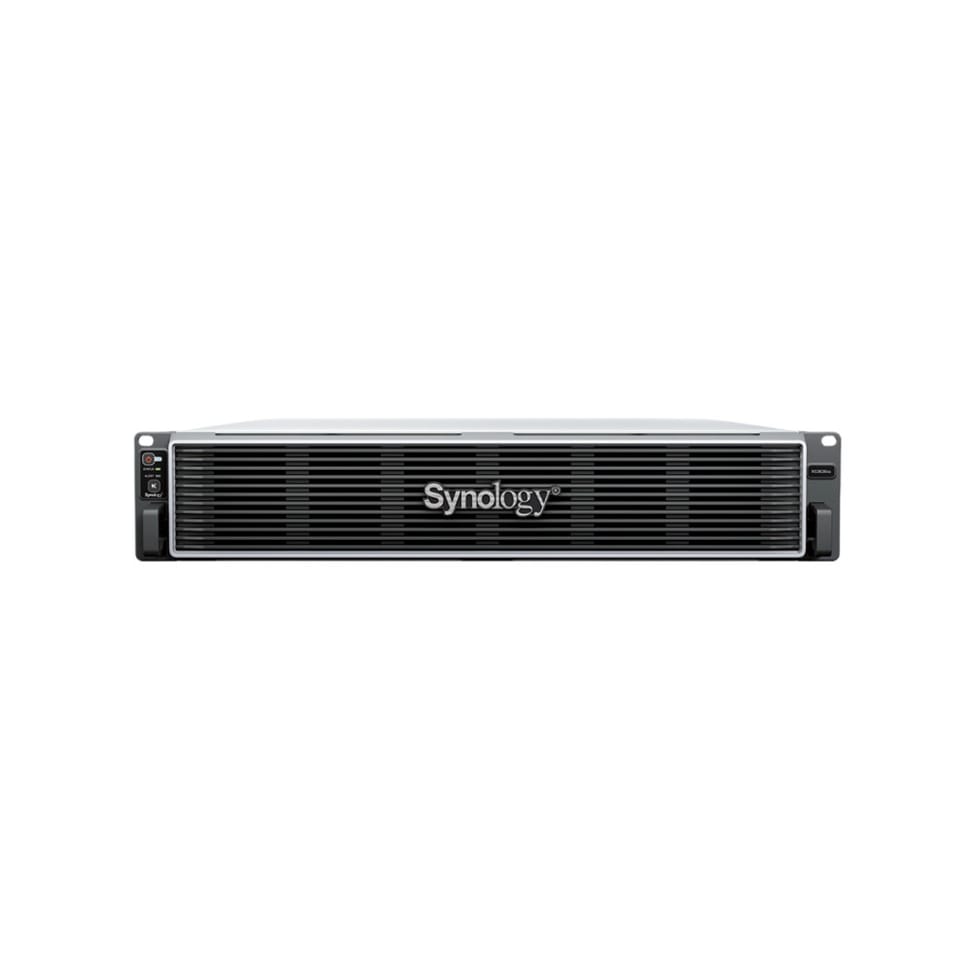

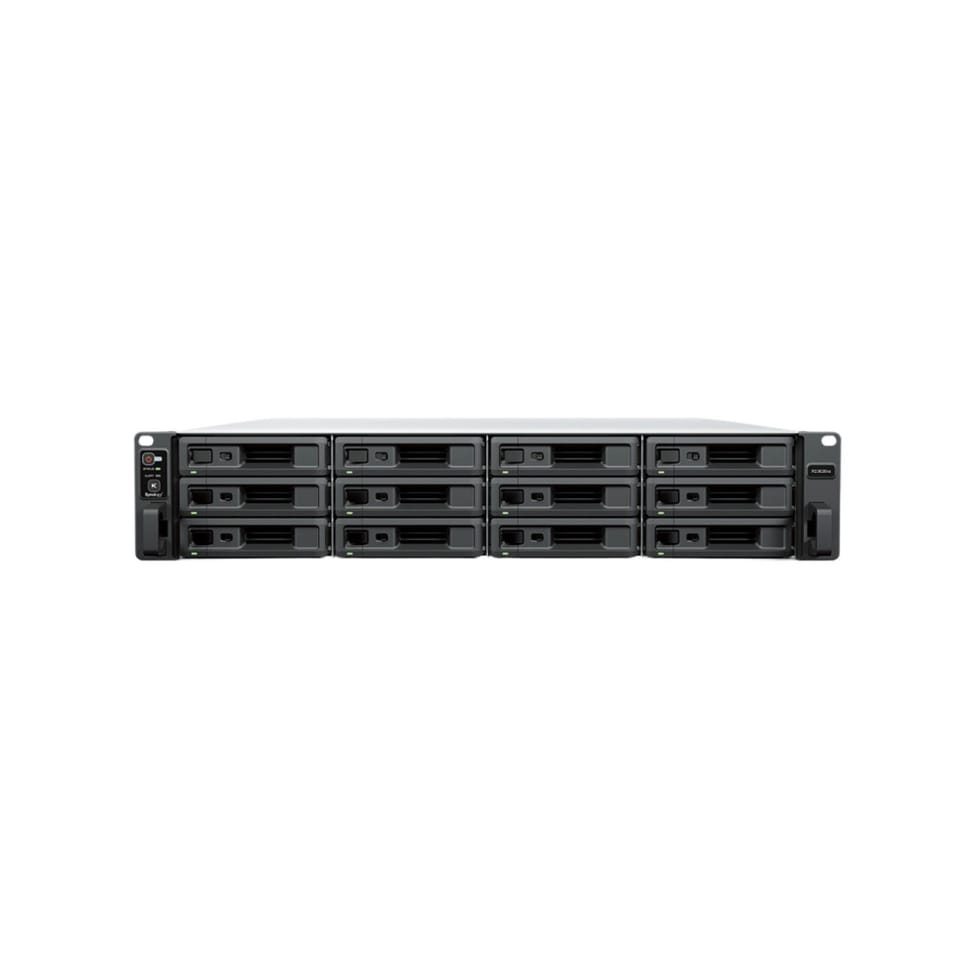

Synology RackStation® RS3626xs 12-Bay NAS Server
2U 12-bay rack NAS server for businesses: six-core Xeon D-1726, dual 10 GbE, redundant power supply and out-of-band management port. Over 6,300 MB/s sequential read, expandable to 36 drives. Drives not included.
- Six-core, twelve-thread Intel Xeon D-1726, up to 3.5 GHz
- 8 GB of DDR4 ECC UDIMM memory, expandable to 48 GB
- Over 6,300 MB/s sequential read and 3,700 MB/s sequential write
- 12 SATA bays for 3.5- and 2.5-inch drives, drives sold separately
- 2 x 10 GbE RJ-45 ports and 1 out-of-band management port
- Two redundant 550 W power supplies
- 2 PCIe 4.0 x8 slots: 25 GbE, Fibre Channel or M.2 cache
- Expandable to 36 drives and 864 TB raw with two RX1225RP units
- Failover cluster with Synology High Availability
- Up to 90 IP cameras, 2 licences included
- 2U rack, optional RKS-02 sliding rails
Ref.: RS3626XS
New
1/6
78 828,00 DHincl. VAT
Configuration · Synology RackStation xs+
- RS1626xs+ 4 bays Xeon D-1726 16 GB
- Configuration shown: RS3626xs 12 bays Xeon D-1726 8 GB
- RS6426xs+ 16 bays Xeon D-1739 16 GB
Limited quantity
Earn 300 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
5 years warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Certified cheque
Product overview
Rack NAS server for businesses that centralise their data: 12 bays in 2U, Xeon processor and dual power supply.
Processor: Intel Xeon D-1726, 6 cores and 12 threads
Memory: 8 GB DDR4 ECC, up to 48 GB
Expansion: up to 36 bays with two RX1225RP
Network: 2 x 10 GbE ports and out-of-band management port
Upgrade: 2 PCIe Gen4 x8 slots
Power: 2 x 550 W redundant units
The 12-bay rack of the xs series, for volumes that grow without changing server.
Request a quoteShare:
Technical specifications
| Processor | Intel Xeon D-1726 |
|---|---|
| Processor details | 6 cores, 12 threads, 64-bit architecture |
| Surveillance cameras | 90 IP cameras maximum, 2 licences included |
| Hardware encryption | Yes (hardware encryption engine) |
| Installed RAM | 8 GB DDR4 ECC UDIMM (1 x 8 GB) |
| Maximum RAM | 48 GB (6 x 8 GB) |
| Operating system | Synology DiskStation Manager (DSM) |
| RAID | RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Typical power consumption | 147.79 W (access) |
| Standby power consumption | 75.73 W (drive hibernation) |
| Interfaces | 2 x USB 3.2 Gen 1, 2 x Mini-SAS HD expansion ports |
| Network ports | 2 x RJ-45 10 GbE, 1 out-of-band management port |
| Frequency | 2.9 GHz (3.5 GHz Turbo) |
| RAM slots | 6 slots |
| RAM type | DDR4 ECC UDIMM |
| Hard drive type | 3.5-inch SATA HDD, 2.5-inch SATA SSD |
| Hot-swappable | Yes |
| Storage bays | 12 bays (up to 36 with two RX1225RP expansion units) |
| M.2 NVMe slots | None built in; NVMe SSD cache possible with an M2D20 or E10M20-T1 card in a PCIe slot |
| Supplied storage | No drives supplied |
| Expansion slots | 2 PCIe Gen4 x8 slots (x8 link) |
| Power supply | 2 redundant internal PSUs, 550 W, 100-240 V |
| Weight | 14.5 kg |
|---|---|
| Dimensions | 88 x 482 x 724 mm (H x W x D) |
| Box contents | Main unit, accessory pack, 2 C13 to C14 power cables, front bezel |
| Operating temperature | 0 °C to 35 °C |
| Storage temperature | -20 °C to 60 °C |
| File system | Internal: Btrfs — External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| Sharing protocols | SMB, AFP, NFS, FTP, WebDAV, Rsync |
| Rack height | 2U (optional RKS-02 sliding rails) |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL |
| Fan | 4 fans (80 x 80 mm), easily replaceable |
| Network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, Kerberised NFS sessions, iSCSI, Fibre Channel, HTTP, HTTPS, FTP, SNMP, LDAP, CalDAV |
| Noise level | 38.8 dB(A) |
| Operating humidity | 8% to 80% RH |
| Form factor | Rack mount |
| Drive bays | 12 bays |
| Built-in M.2 slots | No |
| Port speed | 10 Gbps (10G) |
| Drives included | No |
| Redundant power supply | Yes |
| NAS processor | Intel Xeon |
| Warranty | 5 years |
Specific references
| MPN | RS3626xs |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Are drives included with the RS3626xs?
No, no drives are included: the 12 bays take 3.5-inch SATA hard drives or 2.5-inch SATA SSDs. For this model, Synology lists its Enterprise series HAT5300 drives and its SAT5200 SSDs. With 24 TB drives, raw capacity reaches 288 TB in the chassis alone, and 864 TB with two expansion units.
Is the RS3626xs the same product as the RS3621xs+?
No, they are two separate servers, and the RS3626xs carries no “+”. The RS3626xs is a 2026 model: six-core Intel Xeon D-1726, 8 GB of UDIMM memory, PCIe 4.0 slots and a dedicated out-of-band management port. The RS3621xs+ is an earlier model, with a Xeon D-1541: check the part number carefully before ordering.
Does the RS3626xs have M.2 slots for SSD cache?
Not internally: NVMe SSD cache is added with a card in one of the two PCIe 4.0 x8 slots, the M2D20 (two M.2 SSDs) or the E10M20-T1, which combines two M.2 SSDs and a 10 GbE port. The cache reduces latency and increases the IOPS of a hard drive array, without taking up a front bay.
How far can the RS3626xs memory be expanded?
Up to 48 GB: it comes with an 8 GB DDR4 ECC UDIMM module and has 6 slots, each accepting an 8 GB module (Synology part number D4EU02-8G). Memory determines volume size: above 108 TB, a volume requires 32 GB installed, to reach 200 TB.
Can the RS3626xs be managed remotely?
Yes, thanks to its dedicated out-of-band management port: you can turn the server back on, read its critical logs and diagnose a fault remotely, even when it is powered off. Its two 10 GbE RJ-45 ports stay reserved for data and can be aggregated to combine throughput or fail over automatically.
Which rail kit does the RS3626xs need?
The Synology RKS-02 sliding rail kit, sold separately, for a 4-post 19-inch rack. The RS3626xs takes up 2U but is 724 mm deep and weighs 14.5 kg without drives: check the usable depth of your cabinet and plan for two people for the installation.
How many cameras can the RS3626xs record?
Up to 90 IP cameras in 1080p with Surveillance Station, and as many in 4K with the H.265 codec. Two camera licences are included; additional ones are bought separately. At the same time, the server can back up the company's computers and servers and host up to 12 recommended virtual machines.
