APC Smart-UPS SMT 1500VA Line-Interactive UPS - 230V Rack SmartConnect (SMT1500RMI2UC)

1000 W usable in a compact 2U rack, for a network rack or a server. Pure sine wave output, multifunction LCD display and built-in voltage regulator.

  • 1000 W usable (1500 VA)
  • 2U rack format
  • 4 C13 outlets + 2 connectors, all battery-backed
  • Pure sine wave output
  • Battery life around 25 min at half load (500 W)
  • Multifunction LCD display
  • Remote monitoring from a browser (cloud function)
  • USB port and RJ-45 serial for automatic system shutdown
  • Audible noise 46 dBA
Ref.: SMT1500RMI2UC

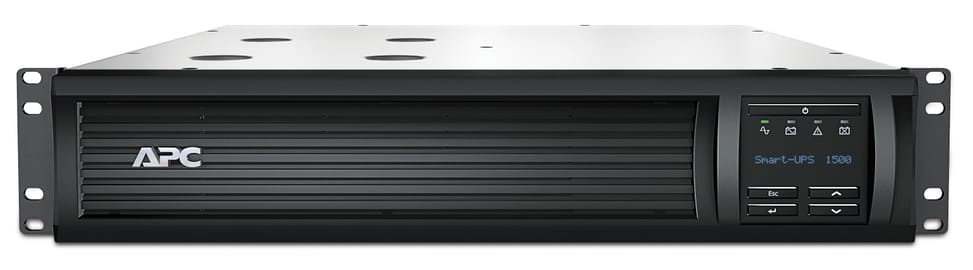

APC Smart-UPS SMT 1500VA Line-Interactive UPS - 230V Rack SmartConnect (SMT1500RMI2UC) — image 1

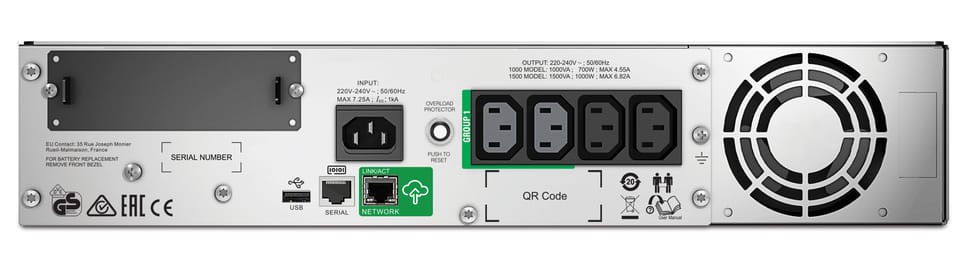

APC Smart-UPS SMT 1500VA Line-Interactive UPS - 230V Rack SmartConnect (SMT1500RMI2UC) — image 2

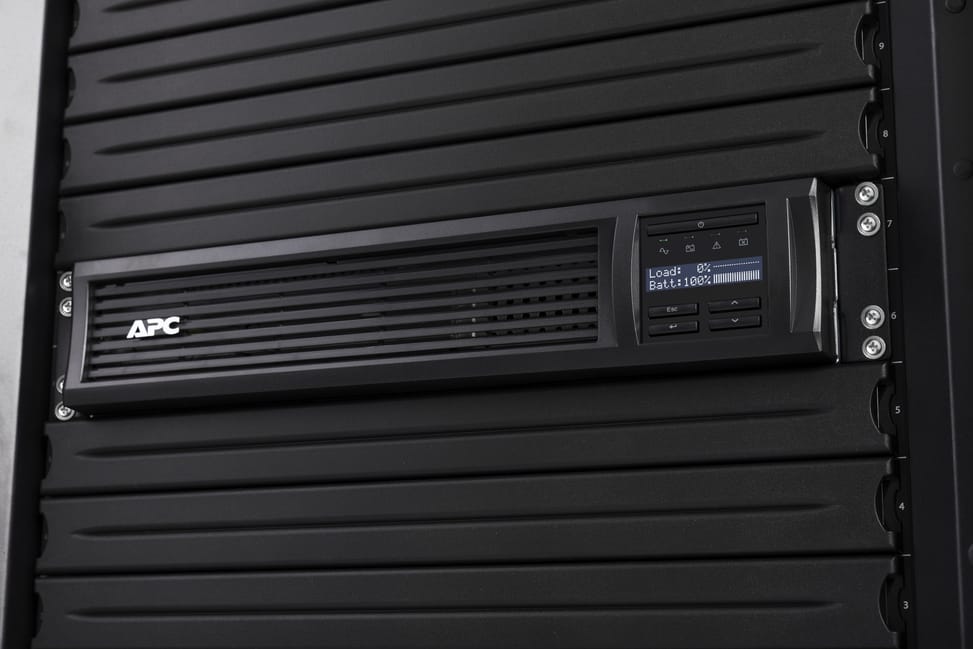

APC Smart-UPS SMT 1500VA Line-Interactive UPS - 230V Rack SmartConnect (SMT1500RMI2UC) — image 3

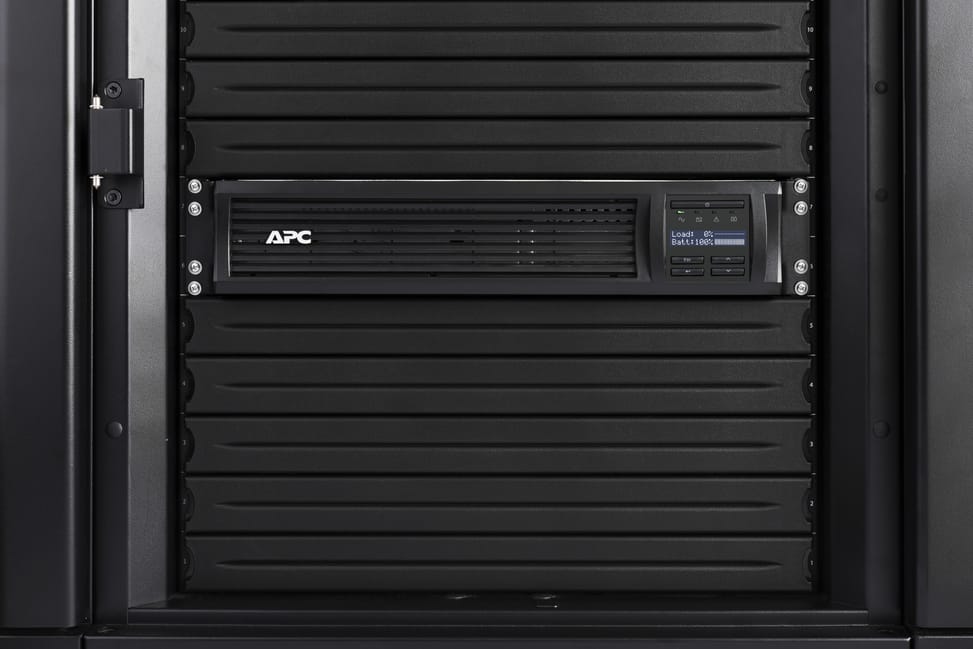

APC Smart-UPS SMT 1500VA Line-Interactive UPS - 230V Rack SmartConnect (SMT1500RMI2UC) — image 4

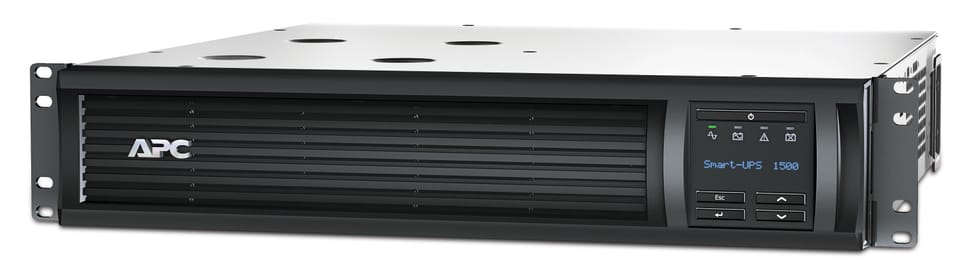

APC Smart-UPS SMT 1500VA Line-Interactive UPS - 230V Rack SmartConnect (SMT1500RMI2UC) — image 5

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/5
10 899,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 83 Ko — downloadable

Product overview

A professional UPS for network racks, with cloud monitoring: line-interactive with voltage regulation, 1500 VA / 1000 W, 2U rack format with SmartConnect.
Technology & protection: it switches to battery the moment the power fails, absorbs surges and continuously corrects voltage fluctuations without drawing on the battery.
Power: 1500 VA for 1000 W of usable power.
Runtime: about 25 minutes at half load (500 W), 14 minutes at 70%.
Outlets: 4 C13 outlets (computer and server power cords).
Management: SmartConnect cloud monitoring port to keep track of the UPS remotely from a web browser.
LCD display: shows load, battery level and remaining runtime at a glance — so you can monitor the UPS without any software.
Designed, for example, for a server or rack-mounted network equipment.
Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage230V
Waveform typePure sine wave
Output connections(2) IEC jumpers (Battery backup) (4) IEC 320 C13 (Battery backup)
Input voltage230V
Input frequency50/60 Hz +/- 3 Hz auto-sensing
Input connectionsIEC 320 C14
Automatic voltage regulation (AVR)AVR (automatic voltage regulation)
Battery typeSealed lead-acid battery
Typical recharge time3 hours
Interface portRJ-45 Serial, SmartSlot, USB
User interfaceMultifunction LCD status and control console
Audible alarmAlarm when switching to battery, distinct low-battery alarm, configurable delays
Weight (kg)26.1 kg
Dimensions (W x D x H) (mm)432 x 477 x 86
Estimated battery service life (years)3 to 5 years
TechnologyLine Interactive
Power (VA)1,500 VA
Technical specifications (continued)
Voltage stabiliserYes
Box contentsInstallation guide, Rack mounting support rails, USB cable
Communication card slot1 free SmartSlot
Rack height2U
Surge protection and filtering459 J
Transfer/switching time2 ms on average
Output voltage distortionLess than 5%
Emergency power-off switchOptional
Audible noise46 dBA
Output frequency50 / 60 Hz +/- 3 Hz, synchronised to mains
Output typeC13 outlets
Power (W)1,000 W
Runtime50% load (500 Watts): 25 minutes / 70% load (700 Watts): 14 minutes
Form factorRack
Battery-backed outlets3 to 4 outlets
Control & communicationUSB, RS232 serial port, Network (SNMP / monitoring), Card slot
Warranty3 years

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

What does the SMT1500RMI2UC's SmartConnect feature do?
It lets you monitor the UPS from a web browser, over a cloud connection: status, alerts and reports are accessible remotely without an extra network card or a monitoring server to install. This is what the “C” at the end of the part number stands for.
How long does the SMT1500RMI2UC run on battery?
25 minutes at 50% load, i.e. 500 W, and 14 minutes at 70%, i.e. 700 W. That is well above the average for its category, and a full recharge takes only 3 hours.
Is this Smart-UPS's output a pure sine wave?
Yes, the output is a pure sine wave — rare for a line-interactive unit, which usually produces a stepped approximation of a sine wave. This is what the power-factor-corrected power supplies of servers require.
What outlets does the SMT1500RMI2UC have?
Four C13 outlets and two IEC jumpers, all powered by the battery, with a C14 inlet. No output is limited to surge protection.
How much rack space does the UPS take up?
2U high (8.6 cm), 43.2 cm wide and 47.7 cm deep, weighing 26.1 kg. The rack-mount rails are included, along with the installation guide and a USB cable.
Why does 1500 VA only give 1000 W?
The power factor is about 0.67: 1000 W actually available for the 1500 VA rating. Compare this figure in watts with the combined consumption of your server, your switch and your access points.
How do you shut down a server automatically with this UPS?
Through the USB port — cable included — or the RJ-45 serial port. A SmartSlot also lets you add a network management card, in addition to the SmartConnect cloud connection.
How much surge energy does the UPS absorb?
459 joules. It is CE, EAC, RCM, TÜV and VDE certified, and compliant with EN/IEC 62040-1 and 62040-2 — a longer list of approvals than the average for its category.
Can the SMT1500RMI2UC stay in an office?
It is rated at 46 dBA: audible in a quiet room, which is consistent with its intended use — a network rack or a technical room, rather than a workstation occupied all day.
Is the APC Smart-UPS SMT1500RMI2UC new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 3 years excluding the battery, the battery being covered for 2 years. This is the usual distinction on this professional range. The datasheet covers the rest.
