Visit the TP-Link store

TP-Link CPE210 WiFi 4 300 Mbps White Ethernet connection, Power over Ethernet (PoE) supported (CPE210 V3.20)

Five kilometres of range thanks to a built-in 9 dBi directional antenna, to link two buildings or cover a large outdoor area. The housing is water resistant and the network cable alone powers it.

  • Outdoor range up to 5 km
  • Internal 9 dBi dual-polarised directional antenna
  • Water-resistant outdoor housing, IPX5 rated
  • Powered by passive 24 V PoE, injector included
  • 2 Ethernet ports, 10/100 Mbps
  • Pole mounting, kit included
  • Centralised Pharos Control management and web interface
  • Automatic channel selection and VLAN support
  • WPA2 security and MAC address filtering
Ref.: CPE210
TP-Link CPE210 WiFi 4 300 Mbps White Ethernet connection, Power over Ethernet (PoE) supported (CPE210 V3.20) — image 1
TP-Link CPE210 WiFi 4 300 Mbps White Ethernet connection, Power over Ethernet (PoE) supported (CPE210 V3.20) — image 2
TP-Link CPE210 WiFi 4 300 Mbps White Ethernet connection, Power over Ethernet (PoE) supported (CPE210 V3.20) — image 3

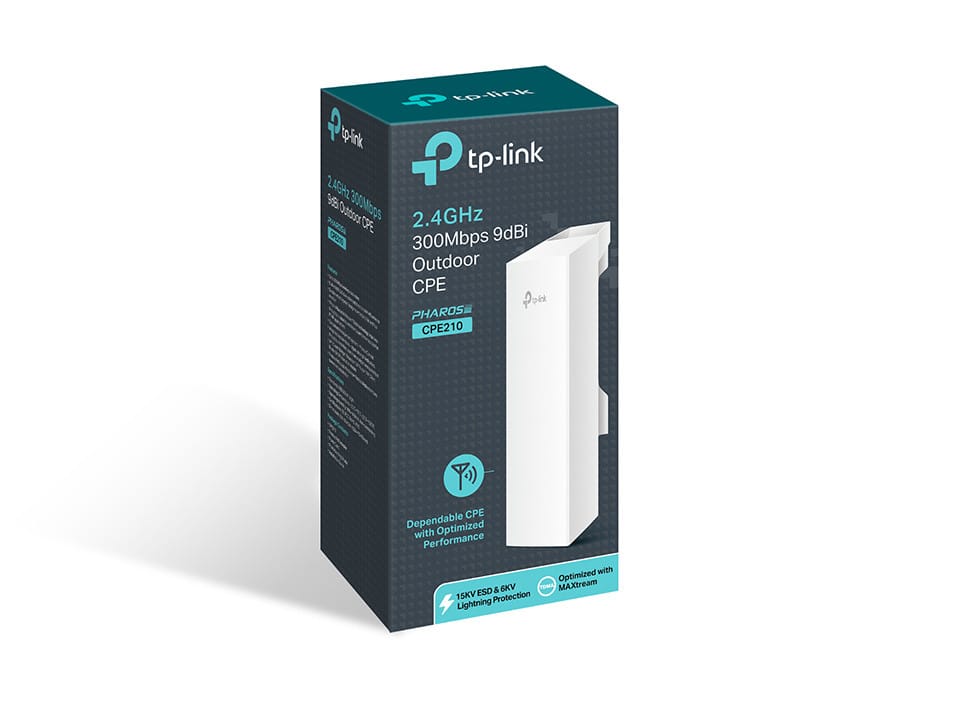

TP-Link CPE210 WiFi 4 300 Mbps White Ethernet connection, Power over Ethernet (PoE) supported (CPE210 V3.20) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
685,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

Long-range outdoor Wi-Fi access point TP-Link CPE210: cover large open-air areas with a directional Wi-Fi 4 signal reaching up to 5 km.
Wi-Fi & speed: single-band Wi-Fi 4 (802.11n) on 2.4 GHz — speeds of up to 300 Mbps.
Installation: rugged IPX5 outdoor enclosure, pole mounting (kit included); built-in 9 dBi dual-polarised directional antenna for aiming over long distances.
Ports & power: 2 x 10/100 Mbps Ethernet ports; powered by 24 V passive PoE (injector included) — a single cable is all it takes, with no power outlet needed nearby.
Management: centralised control via Pharos Control, web interface, MAC filtering, VLAN, QoS.
WPA2 security and IGMP filtering to secure your network.
Use cases: long-range Wi-Fi links for terraces, courtyards, warehouses, building sites, campsites, farmland, car park coverage and large outdoor spaces.
A reliable outdoor access point to extend your Wi-Fi network where cables can't reach.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Package contentsCPE210, 24 V DC 1 A passive PoE injector, pole-mounting straps, power cord, installation guide
IP protection ratingIPX5, outdoor-stabilised ASA plastic enclosure
Electrostatic discharge protection15 kV against electrostatic discharge, 6,000 V against lightning
Product typeOutdoor CPE station, built-in radio and directional antenna
Internal memory64 MB DDR2 RAM, 8 MB flash memory
Interfaces1 shielded 10/100 Mbps Ethernet port (LAN0, passive PoE input), 1 grounding terminal, 1 reset button
Supported WAN technologyStatic, dynamic, PPPoE, L2TP or PPTP WAN; static, dynamic or DHCP LAN
Network standardsIEEE 802.11n, 802.11b/g/n modes, Pharos MAXtream disabled
Proprietary link protocolPharos MAXtream TDMA mode
Maximum channel width5/10/20/40 MHz selectable
Maximum Wi-Fi throughput per bandUp to 300 Mbps on a 40 MHz channel, 144 Mbps at 20 MHz, 72.20 Mbps at 10 MHz and 36.10 Mbps at 5 MHz, dynamic data rates
Management modesPharos Control app, HTTP/HTTPS web management, system log, SNMP v2c agent, Ping Watch Dog, dynamic DNS, SSH server
Installation and alignment toolsSpectrum analyser, speed test, ping, traceroute, signal strength, noise and CCQ quality indicators
Power consumption10.5 W maximum; actual consumption may exceed this value with passive PoE depending on cable length
Dimensions (W x D x H)224 x 79 x 60 mm
Operating frequency range2.4 to 2.483 GHz; usable frequencies depend on country regulations
Technical specifications (continued)
Antennas9 dBi dual-polarised 2x2 MIMO internal directional antenna
Antenna beamwidth65° in the horizontal plane, 35° in the vertical plane
Security featuresWPA/WPA2 and WPA-PSK/WPA2-PSK encryption (AES/TKIP), 64/128/152-bit WEP, SSID broadcast can be enabled, multi-SSID with VLAN tagging in access point mode, MAC address filtering
Power supplyPassive PoE via the LAN0 port, 16 to 27 V DC (pins 4 and 5 positive, 7 and 8 negative); 24 V 1 A passive PoE injector included
FirewallSPI firewall, ping blocking, denial-of-service attack protection, access control, static routing, bandwidth control, IP and MAC binding
CertificationsCE, FCC, RoHS and IPX5
Operating temperature-40 to 70 °C
Operating humidity10 to 90% non-condensing
Wi-Fi standardWi-Fi 4
LocationOutdoor
BandsSingle-band
PoE powerPassive PoE
Required operating systemWindows 98SE, NT, 2000, XP, Vista, 7 and 8, macOS, NetWare, UNIX or Linux
Operating modeAccess point, client, AP router, AP client router (WISP client)
Warranty1 year

Specific references

EAN6935364071677

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Do you need a power socket near the CPE210?
No. It is powered over the network cable, using 24 V passive PoE, and the injector is supplied with its power cord: only this unit, which stays indoors, is plugged into the 100-240 V mains. At the top of the pole, a single Ethernet cable therefore carries both power and data.
Do the CPE210's 300 Mbps carry over to the network cable?
No: both Ethernet ports are 10/100, not Gigabit. The 300 Mbps is the theoretical radio data rate of the 802.11n standard; the traffic passing through the cable tops out at 100 Mbps. That is the real limit to keep in mind when sizing a link between two buildings.
Does the CPE210 also work on the 5 GHz band?
No, 2.4 GHz only, from 2.4 to 2.483 GHz, in 802.11b, g and n. It is a more congested band than 5 GHz, but it passes through vegetation and light obstacles better — which explains the choice for an outdoor link without a perfectly clear line of sight.
Do you need to add an antenna to the CPE210?
No, it is internal. The unit has a built-in 9 dBi dual-polarised directional antenna, with a beamwidth of 65° in azimuth and 40° in elevation, for a stated outdoor range of up to 5 km. This fairly wide beam is forgiving of small aiming errors, unlike narrow-beam models.
What is in the CPE210 box?
The CPE, its PoE injector, the power cord and the pole-mounting kit. Nothing else is needed for mounting. You still need to run the Ethernet cable between the injector and the outdoor unit, and to provide the pole or mast that will hold the assembly.
Can you isolate several networks on a single CPE210?
Yes, it supports VLANs, as well as MAC address filtering and IGMP filtering for multicast. Encryption ranges from WPA to WPA2-PSK, with AES or TKIP. Configuration is done through a web interface, and the Pharos Control software manages an entire fleet of devices from a single computer.
Can the CPE210 stay outdoors all year round?
Its enclosure is rated IPX5, protected against water jets, and it operates from -30 to 70 °C, at 10 to 90% humidity. It mounts on a pole and only exposes a reset button and a status LED, with no ventilation opening to protect.
How much space should you allow to install a CPE210?
224 × 79 × 60 mm. It is a flat, compact unit with low wind load, fastened with straps to a small-diameter pole. Its white colour and size allow it to remain discreet on a façade or along a roof edge.
Is the CPE210 new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. The model carries the CE, FCC and RoHS markings, and is built around a 560 MHz Qualcomm Atheros MIPS 74Kc processor backed by 64 MB of RAM and 8 MB of flash memory.
