Eaton 5PX 3000i RT2U G2 Line-Interactive UPS - 3000 W / 3000 VA - 10 outlets (5PX3000IRT2UG2)

Unity power factor: all the power in VA is usable in watts, unlike most conventional UPS units. Runtime extendable with hot-swappable external battery modules.

  • Unity power factor (1.0) — all the power in VA is usable in watts, unlike most UPS units
  • Runtime extendable with external battery modules (EBM), up to 4, hot-swappable
  • Outlets: 8 C13 + 2 reinforced C19 for power-hungry equipment
  • USB port + RS-232 + dry contacts for remote monitoring
  • Pure sine wave output (High-Frequency Line-Interactive)
  • Convertible 2U rack or tower format
  • Graphic LCD screen: load, battery, consumption and configuration
  • Slot for an optional SNMP/Web network card
Ref.: 5PX3000IRT2UG2

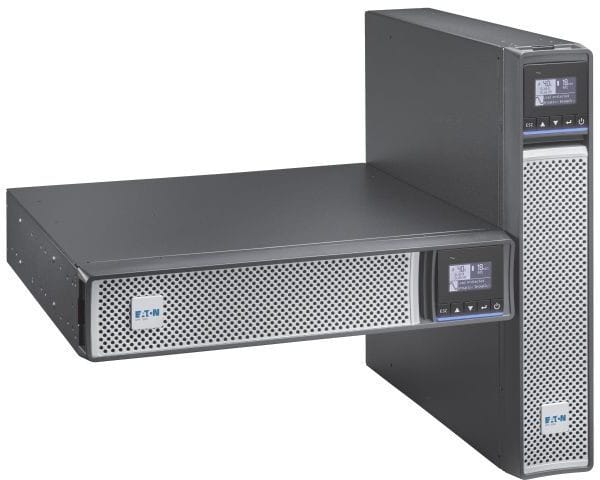

Eaton 5PX 3000i RT2U G2 Line-Interactive UPS - 3000 W / 3000 VA - 10 outlets (5PX3000IRT2UG2) — image 1

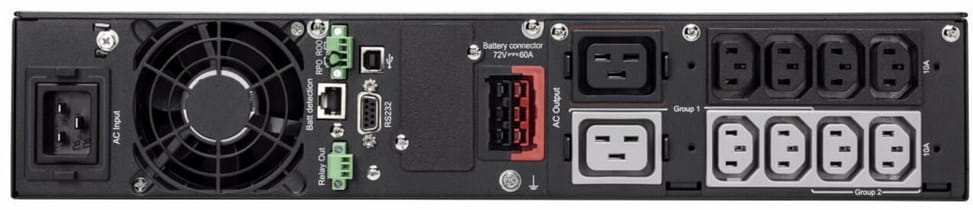

Eaton 5PX 3000i RT2U G2 Line-Interactive UPS - 3000 W / 3000 VA - 10 outlets (5PX3000IRT2UG2) — image 2

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/2
28 899,00 DHincl. VAT

On its way — back in stock soon

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 548 Ko — downloadable

Product overview

High-end professional UPS, convertible between rack and tower: line-interactive with voltage regulation, 3000 VA / 3000 W.
Technology & protection: it switches to battery the instant the power cuts out, absorbs surges and continuously corrects voltage fluctuations without drawing on the battery.
Power: 3000 VA for 3000 W of usable output — its power factor of 1 makes the full rating available in watts, where a conventional UPS loses almost half of it.
Runtime: expandable with additional battery modules that connect to the UPS.
Outlets: 8 C13 outlets + 2 heavy-duty C19 outlets for power-hungry equipment.
Pure sine wave output and a form factor that converts between rack and tower.
LCD display: it shows the load, battery level and remaining runtime at a glance — so you can monitor the UPS without any software.
Ideal, for example, for servers, storage or business network equipment.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage230 V
Waveform typePure sine wave
Output connections(8) C13, (2) C19
Input voltage230V default (200/208/220/230/240V)
Input frequency50-60 Hz
Input connectionsC20
Voltage range160-294 V (adjustable 150-294 V)
Automatic voltage regulation (AVR)AVR step-up and step-down (booster and fader), input range 160 - 294 V (adjustable 150 - 294 V)
Battery replacementUser-replaceable, hot-swappable (no power interruption)
Battery managementABM management and temperature-compensated charging (user-selectable), automatic self-test, deep discharge protection, automatic detection of battery extensions
Interface portUSB port (HID compatible) Serial port (RS232) 1 mini terminal block for the on/off function and remote power off Mini terminal block for output relay Dry contacts (3 outputs, one input, via optocoupler, DB9)
User interfaceLCD screen (status, measurements, kWh consumption per outlet group)
Power management softwareEaton Intelligent Power Manager
Weight (kg)31.7 kg
Dimensions (W x D x H) (mm)438 x 603 x 85.5 mm
TechnologyLine Interactive
Technical specifications (continued)
Power (VA)3,000 VA
Voltage stabiliserYes
Communication card slot1 slot for Network M2, INDGW-M2 or Relay-MS card
Rack height2U
Emergency power-off switchYes
Audible noise< 40 dB(A) at typical load
Output frequency50 / 60 Hz +/- 0.1 Hz auto-sensing
Phase (output/input)1 / 1
Output typeC13 outlets
Power (W)3,000 W
Runtime68 min at 300 W; 39 min at 500 W; 23 min at 800 W; 13 min at 1,200 W; 7 min at 1,800 W; 4 min at 2,500 W
Form factorConvertible rack/tower
Battery-backed outlets9 outlets or more
Control & communicationUSB, RS232 serial port
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Does the 5PX 3000i really deliver 3000 W?
Yes: its power factor is unity, so the full 3000 VA is available in watts. On a conventional line-interactive unit at 0.6, only 1800 would remain — that is almost twice as much equipment powered for the same stated rating.
What waveform does the 5PX Gen 2 output on battery?
A pure sine wave: the technology is high-frequency Line-Interactive with a booster and fader. The output is held at 230 V (+6/-10%), adjustable to 200, 208, 220, 230 or 240 V, with a frequency stabilised to within ±0.1 Hz.
Can the runtime of the 5PX 3000i be extended?
Yes, with up to four external battery modules (EBM), hot-swappable: the runtime can therefore be adjusted afterwards, without changing the UPS and without cutting the power during replacement.
Which outlets does the 5PX 3000i have?
Eight C13 outlets and two heavy-duty 16 A C19 outlets, with a C20 input, also rated at 16 A. Some outputs are grouped into controllable load segments, so secondary equipment can be shut down before the rest.
What input voltage range does the 5PX Gen 2 accept?
160 to 294 V, adjustable down to 150-294 V, at a frequency of 47 to 70 Hz on a 50 Hz system — and down to 40 Hz in low-sensitivity mode. This wide range lets it cope with a badly degraded grid, or even a generator.
Can the UPS be replaced without cutting power to the equipment?
Yes, the 5PX Gen 2 is compatible with the HotSwap MBP maintenance bypass range, which lets you remove the UPS in the event of a failure without interrupting the power supply. Battery replacement, for its part, is done through a dedicated panel.
How do you connect the 5PX 3000i to a monitoring system?
Through an HID-compliant USB port, an RS-232 serial port, a mini terminal block for remote on/off, a mini relay terminal block and dry contacts (three outputs, one input, on DB9). A communication card slot takes an optional network card.
Does the 5PX 3000i install in a rack or as a tower?
Both: it is a convertible 2U rack or tower chassis, weighing 31.7 kg. At that weight, rack mounting takes two people and the unit goes at the bottom of the cabinet.
What does ABM battery management bring on the 5PX Gen 2?
It only recharges the batteries when necessary instead of keeping them on constant charge, which prevents plate corrosion and extends their service life. The graphical LCD screen also shows the load, the battery and the measured power consumption.
Is the Eaton 5PX 3000i RT2U G2 new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. It stays below 40 dB at one metre, which is very quiet for a 3000 VA unit, and can therefore stay in an occupied room. The datasheet covers the rest.
