MSI PRO Z890-S WIFI Motherboard (911-7E54-001)

Thunderbolt 4 at 40 Gb/s and Wi-Fi 7 on a board built for Intel Core Ultra series 2, on socket LGA 1851. DDR5 memory up to 8800 MT/s and a Gen5 M.2 port at 128 Gb/s for the main SSD.

  • Socket LGA 1851, Intel Core Ultra series 2 processors
  • Intel Z890 chipset
  • 4 DDR5 slots in dual channel, up to 8800 MT/s when overclocked
  • 1 PCIe 5.0 x16 slot, 2 PCIe 4.0 x16 slots and 1 PCIe 3.0 x1 slot
  • 1 M.2 PCIe 5.0 x4 port and 2 M.2 PCIe 4.0 x4 ports
  • M.2 Shield Frozr: heatsink that keeps the SSD from slowing down
  • 4 SATA 6 Gb/s ports
  • Thunderbolt 4 Type-C port up to 40 Gb/s, 15 W charging
  • Intel Wi-Fi 7 up to 5.8 Gb/s and Bluetooth 5.4
  • 2.5 Gb/s networking
  • 2 USB-C ports at 20 Gb/s, 8 USB ports at 5 Gb/s and 4 USB 2.0 ports
  • HDMI 2.1 output in 4K 60 Hz and DisplayPort 1.4
  • Dual-rail 12+1+1+1 phase power delivery, two 8-pin connectors
  • Pre-installed I/O shield
  • Clip-on EZ Antenna, no screws
Ref.: 911-7E54-001

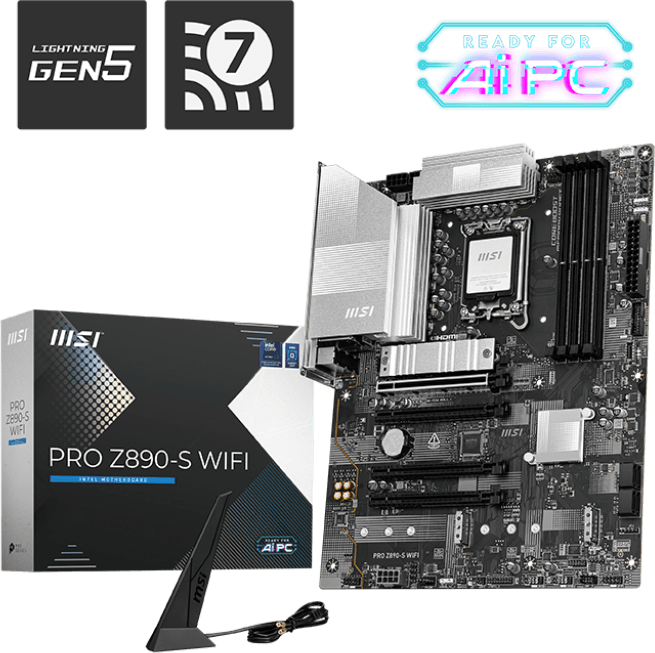

MSI PRO Z890-S WIFI Motherboard (911-7E54-001) — image 1

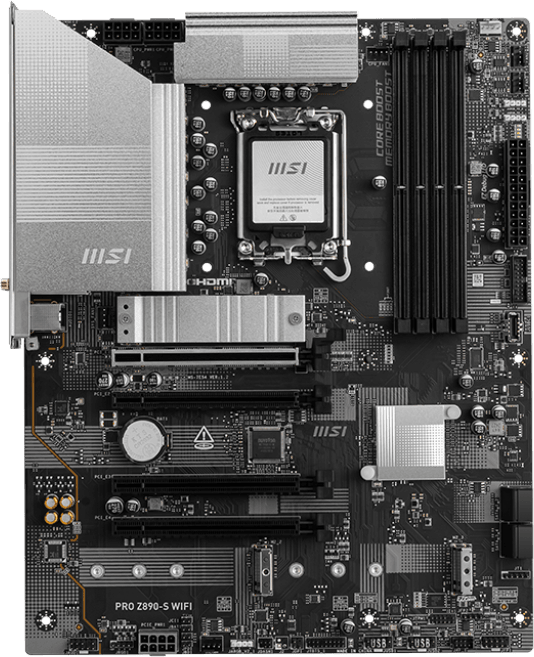

MSI PRO Z890-S WIFI Motherboard (911-7E54-001) — image 2

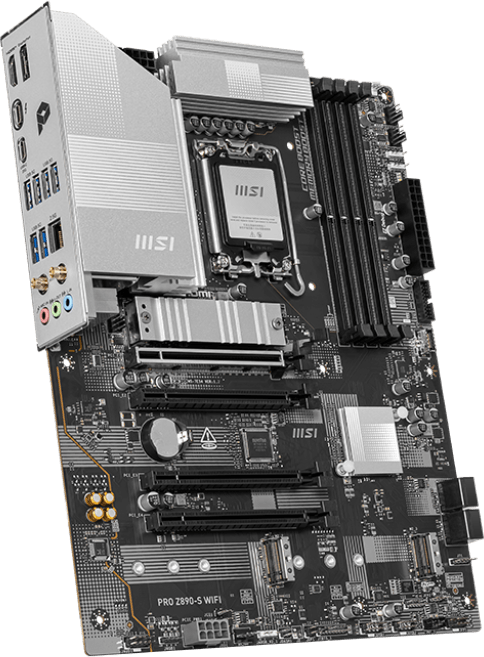

MSI PRO Z890-S WIFI Motherboard (911-7E54-001) — image 3

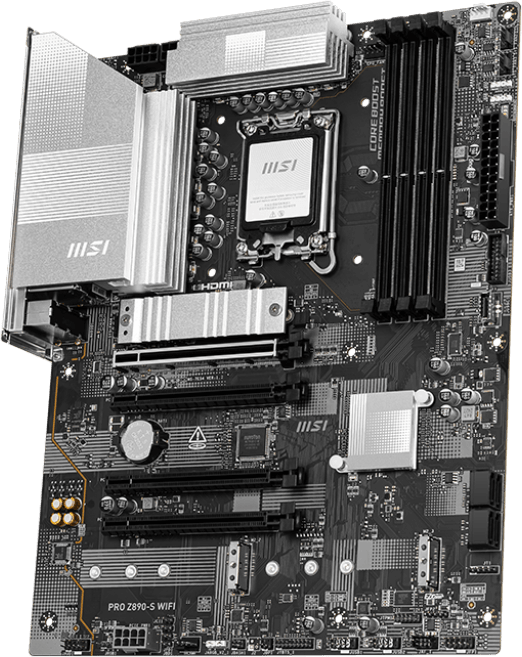

MSI PRO Z890-S WIFI Motherboard (911-7E54-001) — image 4

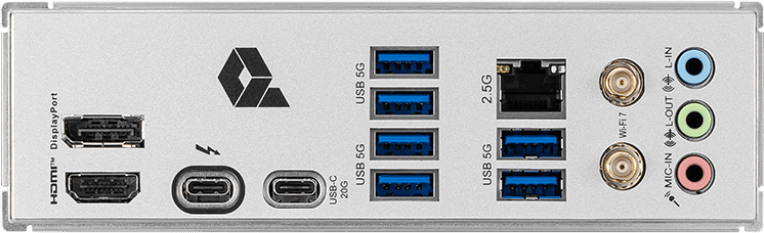

MSI PRO Z890-S WIFI Motherboard (911-7E54-001) — image 5

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Design and revisions : one component is produced by several partner manufacturers: cooler, backplate, RGB lighting and printing change with the version delivered.
  • Quantity : an image showing two memory modules or several fans does not mean the set is sold that way — check the packaging in the specifications.
  • Cooling : a processor may be sold without a cooler, and not all the fans visible inside a case are supplied.
  • Accessories : cables, adapters, screws, brackets and software licences are supplied only if the specifications say so.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/5
3 199,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 686 Ko — downloadable

Product overview

The MSI PRO Z890-S WIFI motherboard is designed for professionals and enthusiasts looking for advanced performance. Compatible with Intel® Core™ Ultra (Series 2) processors on the LGA 1851 socket, it supports DDR5-8800+ memory for extreme speed. Its PCIe 5.0 x16 slot and M.2 Gen5 slots deliver ultra-fast transfers. With Wi-Fi 7, Thunderbolt™ 4 and 2.5G LAN networking, it provides smooth connectivity. Its M.2 Shield Frozr protects your SSD from overheating.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Supported memory frequenciesUp to 8800+ MT/s (OC)
Audio8-channel (7.1) HD audio with Audio Boost
Ethernet network cardRealtek RTL8125D, 2.5 Gbps
BluetoothBluetooth 5.4
Wi-FiYes
Wi-Fi standardWi-Fi 7
CPU socketIntel LGA 1851
Compatible processorsIntel Core Ultra (Series 2)
ChipsetIntel Z890
Onboard video outputsHDMI 2.1 and DisplayPort 1.4, 4K at 60 Hz, plus 1 x Thunderbolt 4 (Type-C) — requires a processor with integrated graphics
Motherboard form factorATX
CPU power stages12+1+1+1 phases (dual rail)
Technical specifications (continued)
Power connectors2 x 8-pin connectors for the CPU
Memory typeDDR5
Memory slots4 x DDR5 DIMM, dual channel
Wired network2.5 Gbps
Rear panel connectorsDisplayPort, HDMI, USB-A 5 Gbps, USB-C 20 Gbps, Thunderbolt 4 40 Gbps (Type-C), 2.5 Gbps LAN, Wi-Fi antenna, audio jacks
USB ports1 x USB-C Thunderbolt 4 40 Gbps (15 W charging), 2 x USB-C 20 Gbps, 8 x USB-A 5 Gbps, 4 x USB 2.0
Number of M.2 slots3 slots
SATA ports4 x SATA 6 Gbps
M.2 slots1 x M.2 PCIe 5.0 x4 (128 Gbps), 2 x M.2 PCIe 4.0 x4 (64 Gbps)
PCI Express slots1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Warranty1 year
