TP-Link Omada AX3000 Gigabit VPN Router (ER706W)

Up to five internet links can be aggregated and balanced, and a 4G modem plugged into the USB 3.0 port takes over during an outage. Removable antennas, steel housing and central control from the Omada cloud or the app.

  • Up to 2,402 Mbps on the 5 GHz band and 574 Mbps on 2.4 GHz
  • 6 Gigabit ports: 1 SFP WAN/LAN, 1 RJ45 WAN and 4 LAN/WAN
  • Load balancing across up to 5 WAN ports
  • USB 3.0 port: 4G/3G dongle as a backup internet link, or storage
  • IPsec, SSL, WireGuard, OpenVPN, PPTP and L2TP VPN
  • 20 IPsec tunnels, 50 SSL tunnels, 55 OpenVPN tunnels
  • Advanced firewall, DoS defence and IP/MAC/URL filtering
  • 150,000 simultaneous sessions
  • Guest network and WPA3 Personal or Enterprise encryption
  • Omada mesh with compatible EAP access points
  • Central management through the Omada cloud, the app or a controller
  • Administration of 2 switches and 10 access points
  • Removable external antennas, steel chassis, desk or wall mounting
Ref.: ER706W

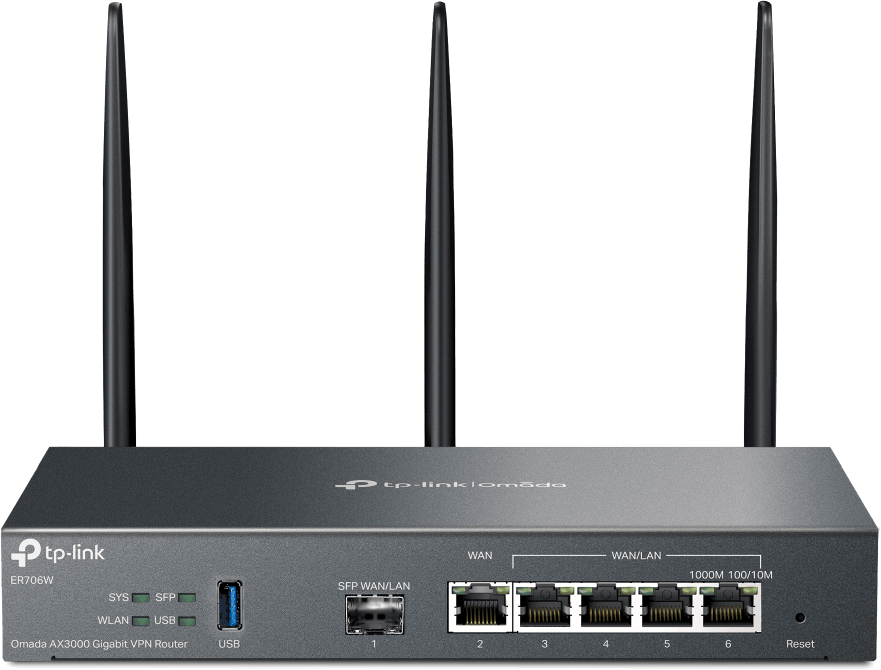

TP-Link Omada AX3000 Gigabit VPN Router (ER706W) — image 1

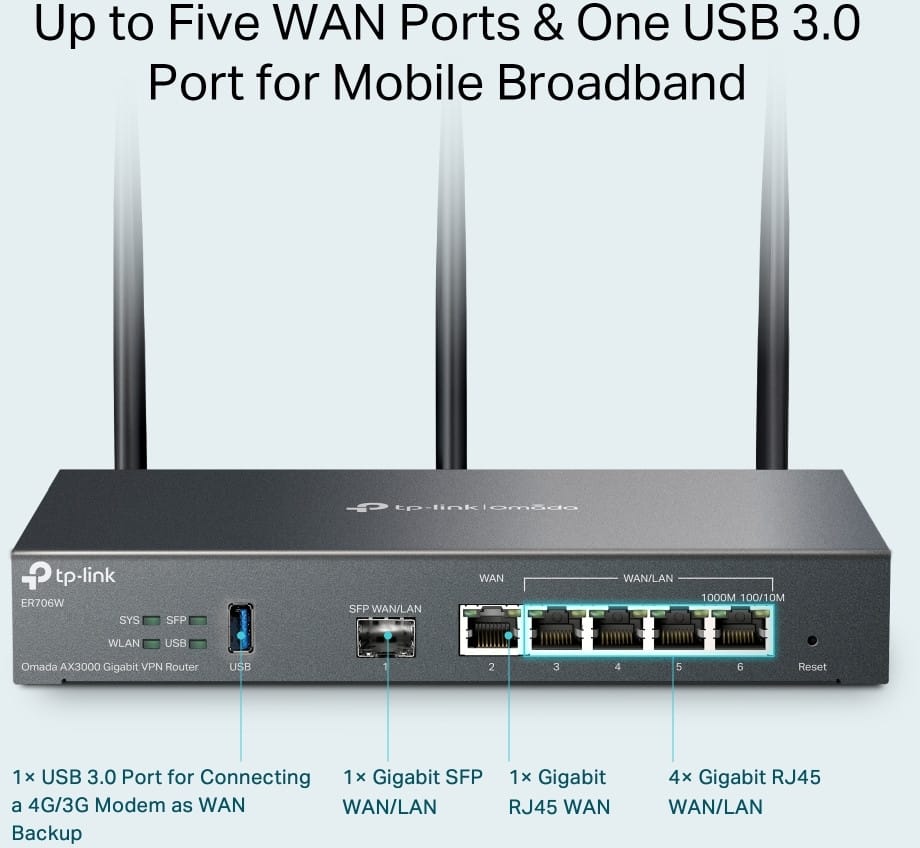

TP-Link Omada AX3000 Gigabit VPN Router (ER706W) — image 2

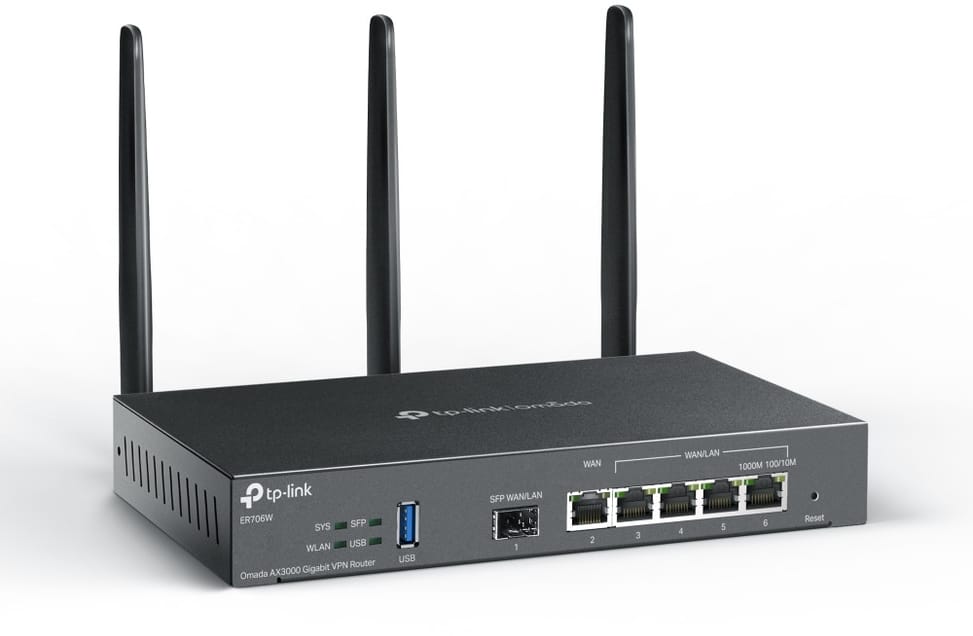

TP-Link Omada AX3000 Gigabit VPN Router (ER706W) — image 3

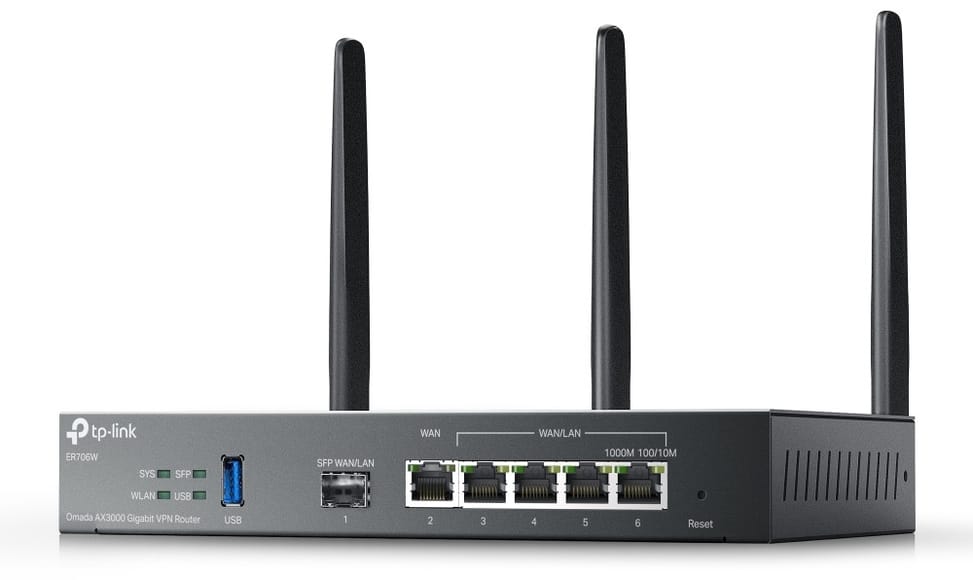

TP-Link Omada AX3000 Gigabit VPN Router (ER706W) — image 4

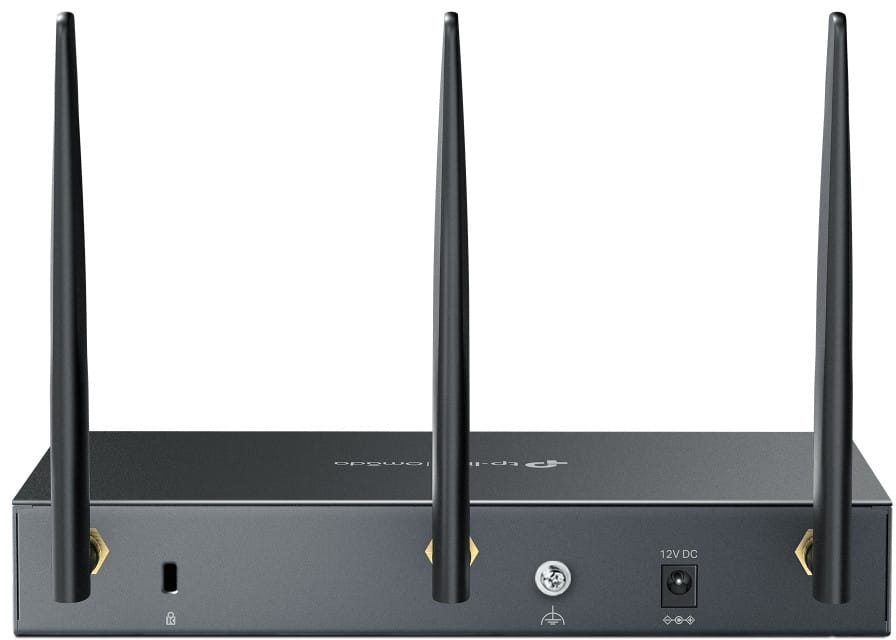

TP-Link Omada AX3000 Gigabit VPN Router (ER706W) — image 5

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/5
1 359,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

The TP-Link Omada AX3000 Gigabit VPN router delivers powerful network performance for businesses and demanding environments. With dual-band AX3000 WiFi (2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz), it provides a fast, stable connection for multiple devices. Its 6 Gigabit ports, including one SFP port, deliver ultra-fast wired connectivity. With Omada Mesh technology and centralised cloud management, setup and maintenance become simple and efficient. Its multiple VPN protocols and advanced firewall provide maximum security for your business data and communications.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Internal memory512 MB DDR4 RAM, 128 MB NAND flash memory
Interfaces1 Gigabit RJ45 WAN port, 4 Gigabit RJ45 WAN/LAN ports, 1 Gigabit SFP WAN/LAN port, 1 USB 3.0 port, 1 reset button
Concurrent sessions150,000 concurrent sessions, 5,100 new sessions per second
Rated routing throughput937.2 Mbps upstream and 936.1 Mbps downstream in static IP NAT
Supported WAN technologyEthernet; fibre via Gigabit SFP module; 4G/3G backup via USB dongle
Network standardsIEEE 802.11ax (Wi-Fi 6)
Advanced Wi-Fi technologiesOFDMA, beamforming, 1024-QAM, HE160
Maximum channel width160 MHz on 5 GHz
Spatial streams and MU-MIMOMU-MIMO
Maximum Wi-Fi throughput per band574 Mbps at 2.4 GHz, 2,402 Mbps at 5 GHz
Management modesHTTP/HTTPS web interface, SNMP v1/v2c/v3, command line, Omada app, hardware or software controller
Cloud management platformOmada SDN
Managed access points10 Omada access points and 2 switches
Layer 2 features802.1Q VLAN, IGMP v2/v3 proxy for IPTV, MAC address cloning
Roaming and meshSeamless roaming and Omada Mesh (compatible EAP access points required)
Technical specifications (continued)
Power consumption16.8 W maximum with a USB 3.0 device connected, 11.8 W without
Dimensions (W x D x H)226 x 131 x 35 mm (excluding antennas)
Number of ports6 to 10 ports
Frequency bandsDual-band: 2.4 GHz and 5 GHz
Antennas5 detachable dual-band external antennas: 2 x 3 dBi at 2.4 GHz and 3 x 4.5 dBi at 5 GHz
Security featuresWPA, WPA2 and WPA3 Personal and Enterprise, guest network, captive portal, web authentication via external RADIUS or LDAP
Power supplyExternal power adapter 12 V 2 A
FirewallTCP, UDP and ICMP flood defence, blocking of TCP scans and ping from the WAN, URL and web group filtering, ARP inspection, IP-MAC binding
VPNSite-to-site and client-to-site IPsec, OpenVPN, PPTP, L2TP, L2TP over IPsec, WireGuard, SSL
Concurrent VPN tunnels20 IPsec tunnels, 16 PPTP, 16 L2TP, 55 OpenVPN, 20 WireGuard, 50 SSL
Wi-Fi standardWi-Fi 6
Port speed1 Gbps (Gigabit)
Router typeWi-Fi router
Warranty1 year
