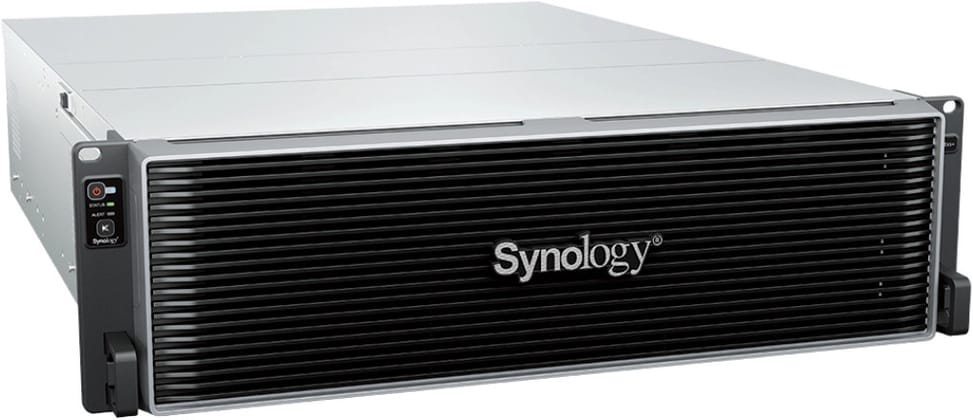

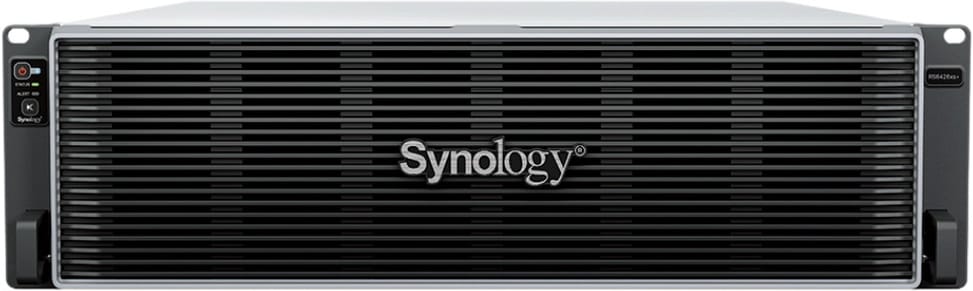

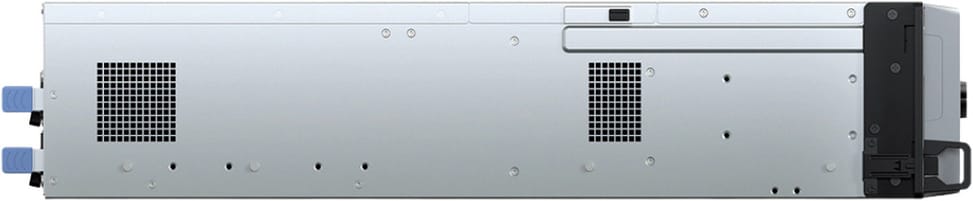

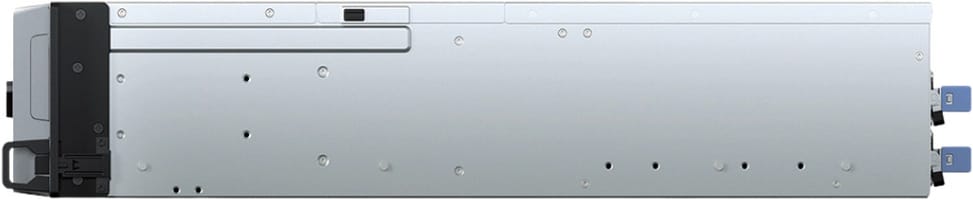

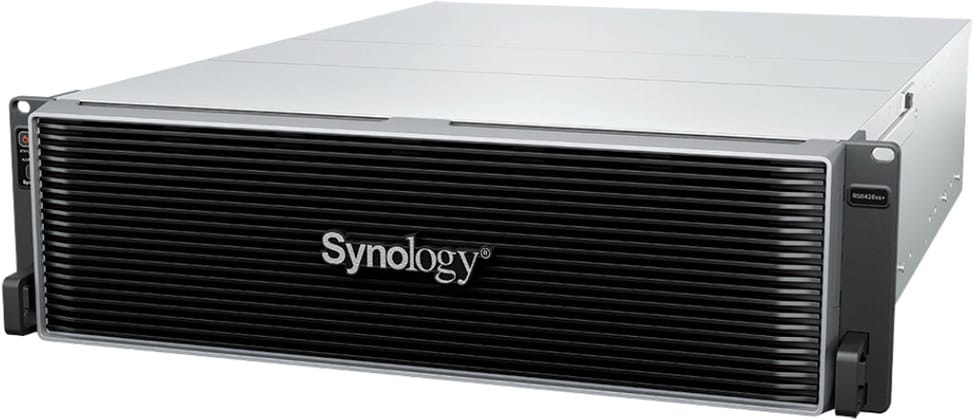

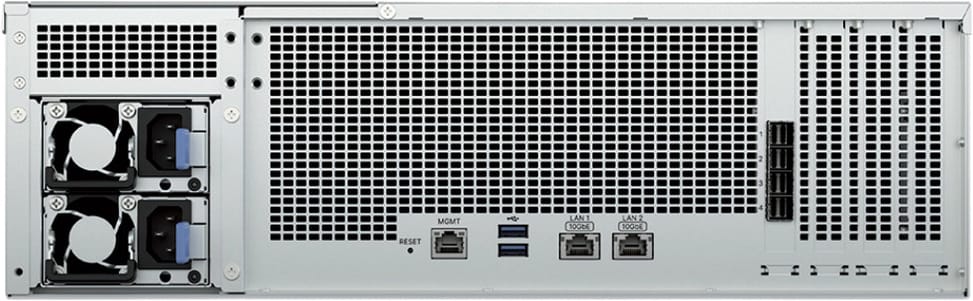

Synology RackStation® RS6426xs+ 16-Bay NAS Server
3U 16-bay rack NAS server to scale up to the petabyte: eight-core Xeon D-1739, 16 GB ECC expandable to 96 GB, expansion to 64 drives and 1,536 TB raw. Over 6,700 MB/s read, dual power supply. Drives not included.
- Eight-core, sixteen-thread Intel Xeon D-1739, up to 3.5 GHz
- 16 GB of DDR4 ECC RDIMM memory, expandable to 96 GB
- Over 6,700 MB/s sequential read and 4,300 MB/s sequential write
- 16 SATA bays for 3.5- and 2.5-inch drives, drives sold separately
- Expandable to 64 drives and 1,536 TB raw with four RX1225RP units
- Volumes up to 1 PB in RAID 6, with 64 GB of memory
- 2 x 10 GbE RJ-45 ports and 1 out-of-band management port
- Two redundant 550 W power supplies
- 2 PCIe 4.0 x8 slots: 25 GbE, Fibre Channel or M.2 cache
- Up to 285 IP cameras, 2 licences included
- Up to 65,536 snapshots and 10,240 local users
- 3U rack, optional RKS-02 sliding rails
Ref.: RS6426XS+
New
1/6
116 700,00 DHincl. VAT
Configuration · Synology RackStation xs+
- RS1626xs+ 4 bays Xeon D-1726 16 GB
- RS3626xs 12 bays Xeon D-1726 8 GB
- Configuration shown: RS6426xs+ 16 bays Xeon D-1739 16 GB
Limited quantity
Earn 300 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
5 years warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Certified cheque
Product overview
Rack NAS server for large volumes and multi-site video surveillance: 16 bays in 3U, eight-core Xeon and expansion to 64 drives.
Processor: Intel Xeon D-1739, 8 cores and 16 threads
Memory: 16 GB DDR4 ECC RDIMM, up to 96 GB
Expansion: up to 64 bays with four RX1225RP
Video surveillance: 285 IP cameras, 2 licences included
Network: 2 x 10 GbE ports and out-of-band management port
Power: 2 x 550 W redundant units
Four more bays than the RS4826xs+ out of the box, to put off buying an expansion unit.
Request a quoteShare:
Technical specifications
| Processor | Intel Xeon D-1739 |
|---|---|
| Processor details | 8 cores, 16 threads, 64-bit architecture |
| Surveillance cameras | 285 IP cameras maximum, 2 licences included |
| Hardware encryption | Yes (hardware encryption engine) |
| Installed RAM | 16 GB DDR4 ECC RDIMM (1 x 16 GB) |
| Maximum RAM | 96 GB (6 x 16 GB) |
| Operating system | Synology DiskStation Manager (DSM) |
| RAID | RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Typical power consumption | 165.45 W (access) |
| Standby power consumption | 73.38 W (drive hibernation) |
| Interfaces | 2 x USB 3.2 Gen 1, 4 x Mini-SAS HD expansion ports |
| Network ports | 2 x RJ-45 10 GbE, 1 out-of-band management port |
| Frequency | 3.0 GHz (3.5 GHz Turbo) |
| RAM slots | 6 slots |
| RAM type | DDR4 ECC RDIMM |
| Hard drive type | 3.5-inch SATA HDD, 2.5-inch SATA SSD |
| Hot-swappable | Yes |
| Storage bays | 16 bays (up to 64 with four RX1225RP expansion units) |
| M.2 NVMe slots | None built in; NVMe SSD cache possible with an M2D20 or E10M20-T1 card in a PCIe slot |
| Supplied storage | No drives supplied |
| Expansion slots | 2 PCIe Gen4 x8 slots (x8 link) |
| Power supply | 2 redundant internal PSUs, 550 W, 100-240 V |
| Weight | 17.9 kg |
|---|---|
| Dimensions | 132.3 x 482 x 656.5 mm (H x W x D) |
| Box contents | Main unit, accessory pack, 2 C13 to C14 power cables, front bezel |
| Operating temperature | 0 °C to 35 °C |
| Storage temperature | -20 °C to 60 °C |
| File system | Internal: Btrfs — External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| Sharing protocols | SMB, AFP, NFS, FTP, WebDAV, Rsync |
| Rack height | 3U (optional RKS-02 sliding rails) |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL |
| Fan | 3 fans (80 x 80 mm), easily replaceable |
| Network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, Kerberised NFS sessions, iSCSI, Fibre Channel, HTTP, HTTPS, FTP, SNMP, LDAP, CalDAV |
| Noise level | 42.2 dB(A) |
| Operating humidity | 8% to 80% RH |
| Form factor | Rack mount |
| Drive bays | Over 12 bays |
| Built-in M.2 slots | No |
| Port speed | 10 Gbps (10G) |
| Drives included | No |
| Redundant power supply | Yes |
| NAS processor | Intel Xeon |
| Warranty | 5 years |
Specific references
| MPN | RS6426xs+ |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Are drives included with the RS6426xs+?
No, the RS6426xs+ is sold without drives: its 16 bays take 3.5-inch SATA hard drives or 2.5-inch SATA SSDs, from the Enterprise HAT5300 series and the SAT5200 SSDs that Synology lists for it. With 24 TB drives, it provides 384 TB raw on its own and 1,536 TB with four expansion units.
What is the difference between the RS6426xs+ and the RS4826xs+?
Capacity: the RS6426xs+ is a 3U 16-bay rack expandable to 64 drives, versus 2U, 12 bays and 48 drives for the RS4826xs+. The Xeon D-1739 processor, memory expandable to 96 GB and 1 PB volumes are shared. The RS6426xs+ goes further in video surveillance, with 285 IP cameras versus 125.
How many cameras can the RS6426xs+ record?
Up to 285 IP cameras in 1080p with the H.265 codec, 280 with H.264, and up to 120 cameras in 4K. Two licences are included; additional ones are bought separately. Enough to centralise recording for a large site or several branches on a single server, on top of its storage functions.
Does the RS6426xs+ have M.2 slots for SSD cache?
Not internally: NVMe cache is installed with a card in one of the two PCIe 4.0 x8 slots, the M2D20 for two M.2 SSDs or the E10M20-T1, which adds a 10 GbE port. The second slot remains available for a 25 GbE E25G30-F2 card or for a Fibre Channel adapter.
How far can the RS6426xs+ memory be expanded?
Up to 96 GB: it ships with a 16 GB DDR4 ECC RDIMM module and has 6 slots, each accepting 16 GB (Synology part number D4ER02-16G). Installing at least 64 GB unlocks 1 PB volumes in RAID 6; with 32 GB, a volume remains limited to 200 TB.
Which rail kit does the RS6426xs+ need?
The Synology RKS-02 sliding rail kit, sold separately, for a 4-post 19-inch rack. The RS6426xs+ takes up 3U for 656.5 mm of depth and weighs 17.9 kg without drives: once its 16 bays are filled, plan for two people to mount it in the cabinet.
Can the RS6426xs+ be managed remotely?
Yes, thanks to its dedicated out-of-band management port: you turn the server back on, read its critical logs and diagnose a fault remotely, even when it is powered off. The two 10 GbE RJ-45 ports stay dedicated to data and can be aggregated to combine throughput or fail over automatically.
