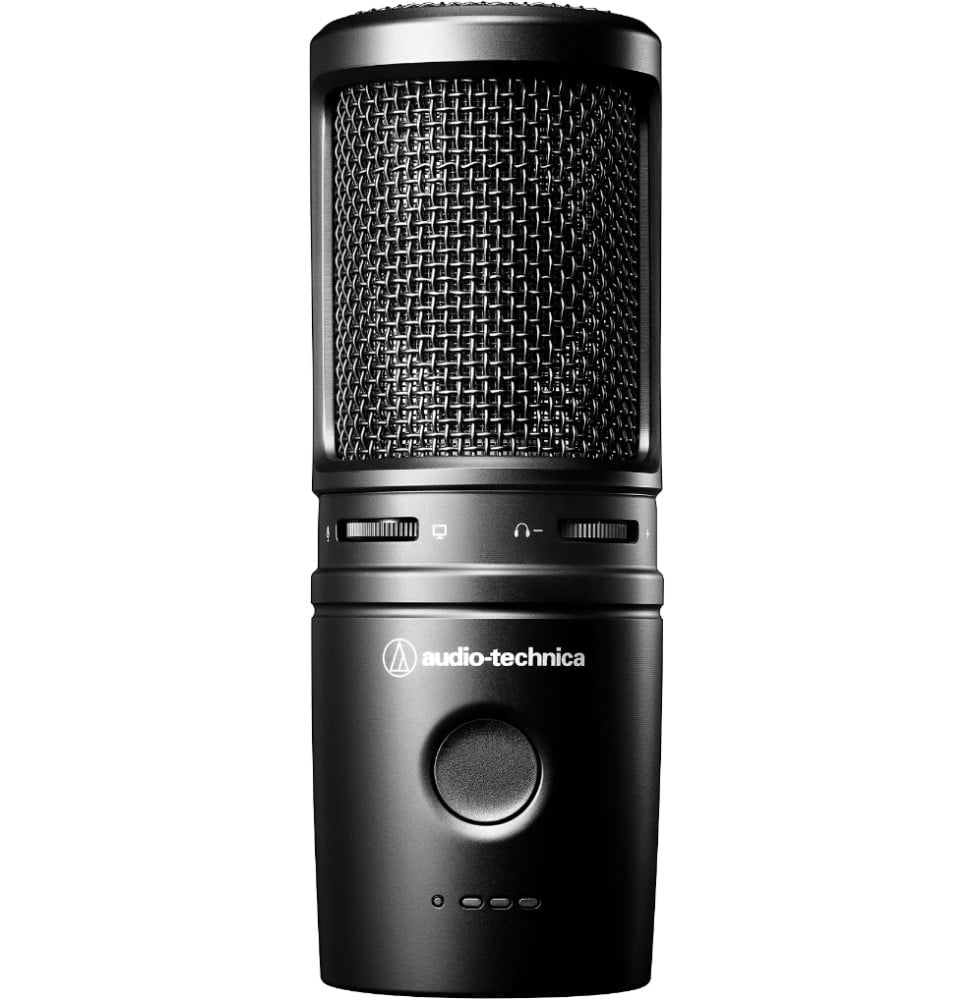

Audio-Technica AT2020USB-XP USB Microphone - Cardioid Condenser, Noise Reduction, USB-C
A cardioid USB-C condenser microphone for streaming, podcasting and remote work: three-level noise reduction, automatic gain, up to 24-bit/192 kHz. Zero-latency headphone output, mic/computer mix; desk stand and pop filter included.
A USB condenser microphone for streaming, podcasting and remote work: 3-level noise reduction, automatic gain and zero-latency monitoring. Capture: cardioid capsule, response from 20 Hz to 20 kHz, conversion up to 24-bit / 192 kHz Controls: headphone volume, mic/computer mix and touch mute, on the microphone Headphones: 3.5 mm jack, 110 mW into 32 ohms Connection: USB-C, 2 m cable and USB-A to USB-C adapter, Windows and macOS Supplied: desk stand and clip-on pop filter The sound of the AT2020 over USB, with digital processing that makes any software unnecessary.
The AT2020USB-XP takes the sound of the AT2020 studio microphone and brings it to USB-C, with built-in digital processing. It is aimed at streamers, podcasters, musicians and remote work: you plug it in and set everything on the microphone, with no software.
3Noise reduction levels
24bitsUp to 192 kHz
110mWHeadphone output
375gMicrophone only
Room noise, set on the microphone
A switch sets noise reduction to three levels, or turns it off, depending on the room you record in. Automatic gain control, which can be enabled separately, keeps a constant output level whether you speak softly or loudly. The microphone's indicators show the current setting. The cardioid electret capsule captures from 20 Hz to 20 kHz, and the converter goes up to 24 bits and 192 kHz.
Hear yourself with no delay
Headphones plug into the microphone's 3.5 mm jack, whose amplifier delivers 110 mW into 32 ohms: you hear your voice with zero latency, at the volume set on the knob. The mix control balances the microphone sound and the computer sound. A tap on the touch button mutes the microphone, and the light ring turns from blue to red.
Everything for the desk in the box

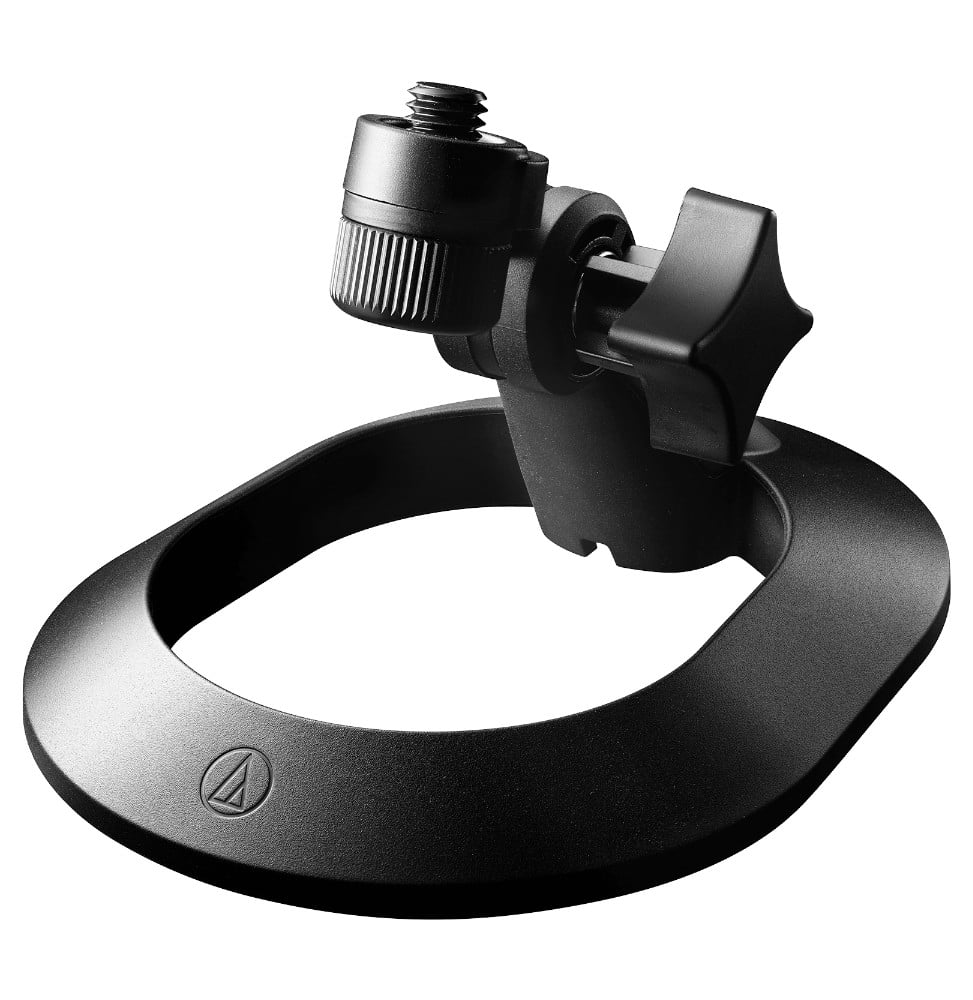

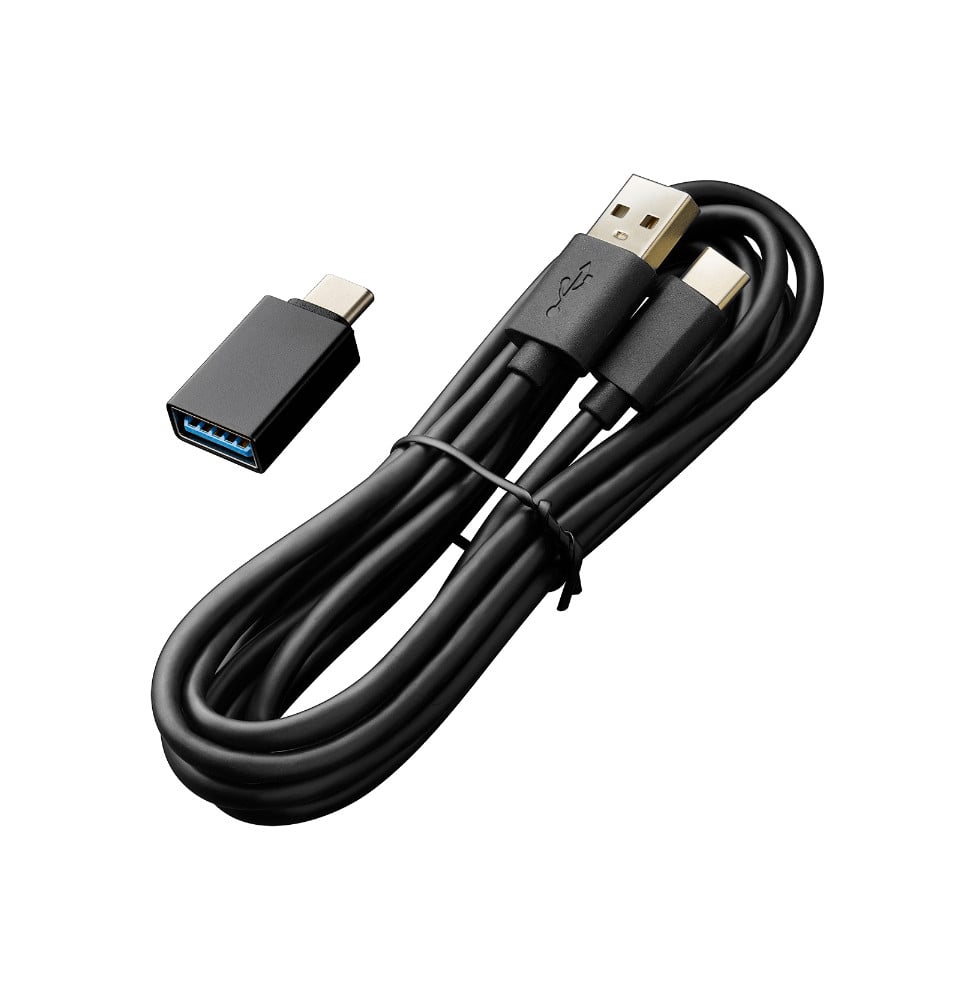

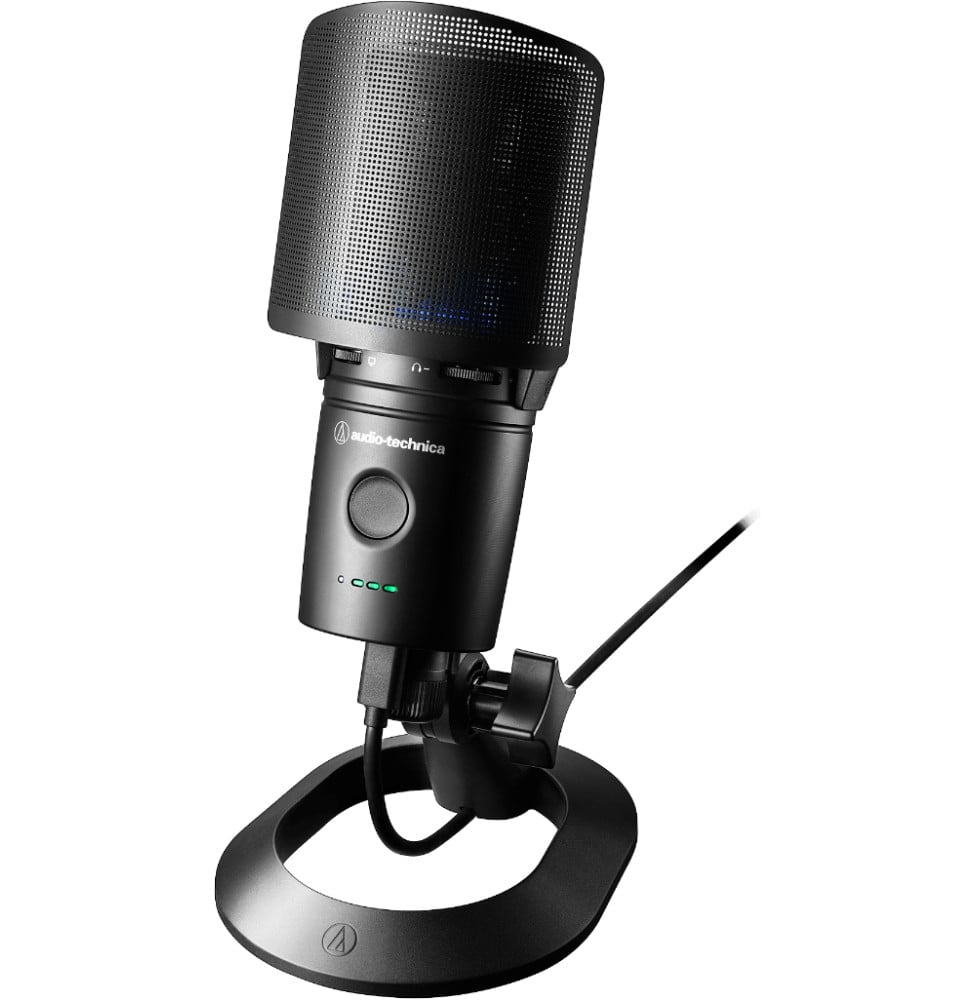

The desk stand gives a stable base, the pop filter clips onto the front of the grille, and a 5/8"-27 thread adapter lets you screw the microphone onto a stand or an arm. The 2 m USB cable and its USB-C adapter connect it to a USB-A port as well as a USB-C port, under Windows 10 and 11 or macOS.
Sampling
44.1 to 192 kHz, 16 or 24-bit
macOS
Catalina to Ventura
Shock mount
AT8455, sold separately
Stream Deck
20 Series plug-in
Capture goes up to 24 bits / 192 kHz, but playback at this setting is not possible through the microphone: to monitor through its headphone jack, choose a lower sample rate.
Values taken from the manufacturer's product page and user guide.
Technical specifications
Technical specifications
Dimensions (W x D x H)
52 mm diameter x 142 mm long
Compatible operating systems
Windows 10 and 11, macOS Catalina to Ventura
Computer interface
USB-C (USB 2.0 compatible)
Microphone frequency response
20 Hz to 20 kHz
Polar pattern selection
Fixed (cardioid)
Cable length
2 m USB-C to USB-A cable
Microphone connection
USB-C
Headphone output
3.5 mm stereo jack, 110 mW into 32 ohms, zero-latency direct monitoring
Wireless technology
None (wired microphone)
Box contents
AT2020USB-XP microphone, AT8702 desk stand, clip-on pop filter, 5/8"-27 to 3/8"-16 threaded adapter, 2 m USB-C to USB-A cable, USB-A to USB-C adapter
Pop and shock protection
Clip-on pop filter supplied; AT8455 shock mount sold separately
Weight
About 375 g
Product colour
Black
Power supply
Through the USB port (5 V DC)
Phantom power required
No (powered via the USB port)
Mounting
AT8702 desk stand supplied; compatible with the AT8455 shock mount, sold separately
Technical specifications (continued)
Mounting thread
5/8"-27, 3/8"-16 adapter included
Product type
Electret condenser USB microphone, cardioid, with noise reduction
Microphone type
Studio / desktop microphone
Capsule technology
Condenser
Polar pattern
Cardioid
Microphone use
Podcast & streaming, Gaming & calls
Power supply included
None (no power adapter supplied)
Wireless range
None (wired microphone)
Audio processing
3-level noise reduction (or off) and automatic gain control
Internal recording
None
Controls
On the mic: headphone volume, mic/computer mix, touch mute, noise reduction and automatic gain control
Lighting and indicators
LED ring blue (live) or red (muted), noise reduction and gain control indicators
Impedance
None (USB-C digital output)
Conversion resolution
16 or 24-bit, 44.1 to 192 kHz (no playback at 24-bit / 192 kHz)
Management software
None required; Audio-Technica 20 Series plug-in for Elgato Stream Deck available
Warranty
1 year
Specific references
EAN
4961310160685
MPN
AT2020USB-XP
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Do I need software to set up the AT2020USB-XP?
No. Noise reduction, automatic gain control, headphone volume, mix and mute are all set on the microphone body, and the light ring shows the status. An optional Audio-Technica plug-in for Elgato Stream Deck lets you control these functions from the console.
How does the AT2020USB-XP's noise reduction work?
A switch on the microphone offers three levels of reduction, or none, to reduce unwanted room noise. You choose the level according to the recording environment. Automatic gain control, which can be enabled separately, keeps a constant output level whether you speak softly or loudly.
Does the AT2020USB-XP connect to a computer over USB-C?
Yes. Its port is USB-C, and the box contains a 2 m cable, USB-C on the microphone side and USB-A on the computer side, plus a small adapter that turns this USB-A plug into USB-C: the microphone therefore connects to both types of port. It works with Windows 10 and 11 and with macOS, from Catalina to Ventura, plug and play.
What is in the AT2020USB-XP box?
The microphone and its desk stand, a pop filter that clips onto the front of the grille, a 5/8"-27 to 3/8"-16 thread adapter, the 2 m USB cable and its USB-C adapter. The AT8455 shock mount and a microphone arm are sold separately for anyone who wants to isolate the microphone from the desk.
Can I monitor myself live with the AT2020USB-XP?
Yes, with no latency: headphones plug into the microphone's 3.5 mm jack, whose amplifier delivers 110 mW into 32 ohms. The volume knob sets the level, and the mix control balances the microphone sound and the computer sound, to follow a call or a track while recording.
