Synology RackStation RS822+ 4-Bay NAS Server

Four 1 GbE ports that can be aggregated and 2,103/1,074 MB/s in sequential read/write in a 1U rack chassis. ECC memory expandable to 32 GB and expansion to 8 drives. Drives not included.

  • 2.5" or 3.5" SATA drives sold separately
  • AMD Ryzen V1500B 4 cores, 2.2 GHz
  • ECC memory DDR4 2 GB, expandable to 32 GB
  • RAID 1, 5, 6, 10 and SHR: work continues even if a drive fails
  • Hot-swappable drives
  • Four 1 GbE ports with automatic failover and load balancing
  • Expansion to 8 drives with an RX418 unit
  • Slot for an M.2 NVMe SSD cache card or a 10/25 GbE card
  • DSM system: workstation backup, private cloud, remote file access
  • Up to 40 IP cameras with Surveillance Station
  • 1U chassis for a 19-inch rack
Ref.: RS822PLUS

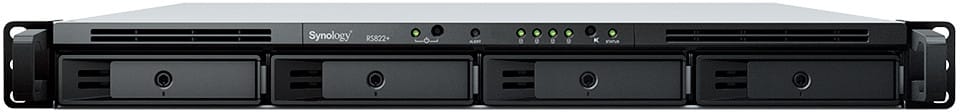

Synology RackStation RS822+ 4-Bay NAS Server — image 1

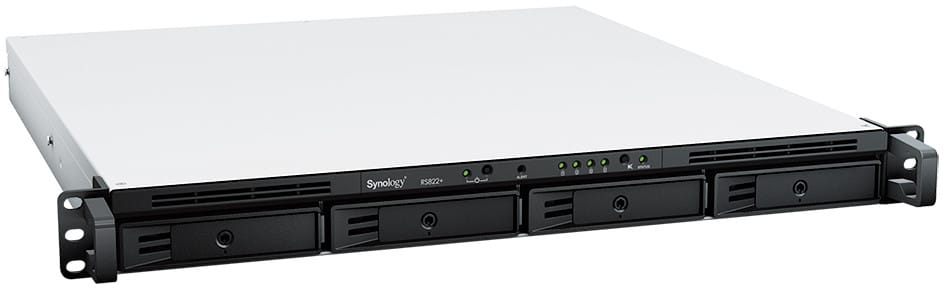

Synology RackStation RS822+ 4-Bay NAS Server — image 2
Synology RackStation RS822+ 4-Bay NAS Server — image 3
Synology RackStation RS822+ 4-Bay NAS Server — image 4
Synology RackStation RS822+ 4-Bay NAS Server — image 5

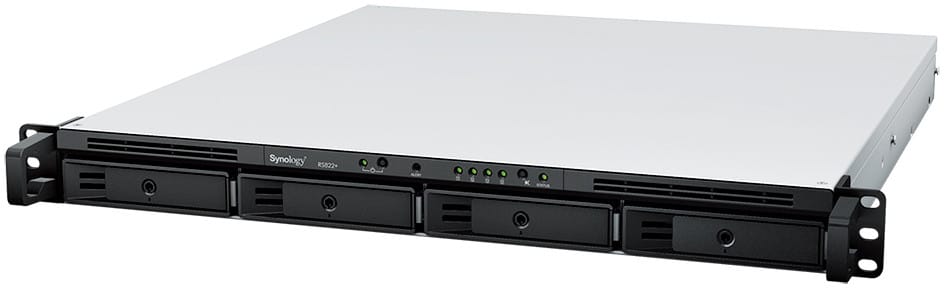

Synology RackStation RS822+ 4-Bay NAS Server — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Capacity : the capacity printed on the product photographed illustrates the range; the one sold is that of the title and the specifications.
  • Format and interface : 2.5 or 3.5 inch, SATA, NVMe M.2, with or without a heatsink: the photo is not enough to tell.
  • Drives not supplied : external enclosures, docking stations and NAS servers ship without a drive, unless explicitly stated.
  • Accessories : cables, adapters, caddies and screws are supplied only if the specifications say so.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6
14 299,00 DHincl. VAT

Configuration · Synology RackStation Plus

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 1006 Ko — downloadable

Product overview

Optimise your data management with the Synology RackStation® RS822+. This rack-mounted 4-bay NAS delivers high performance, with sequential read/write throughput of over 2,103/1,074 MB/s. It can hold up to 8 drives with a Synology RX418 expansion unit, for flexible expansion. Take advantage of flexible connectivity with four 1GbE ports and optional 10/25GbE upgrades. The RS822+ also supports SSD caching to boost random IOPS performance. Ideal for small and medium-sized businesses, this compact model will keep up with your growing data management needs.

Processor: AMD Ryzen V1500B (4-core 2.2 GHz)
Memory: 2 GB DDR4
Maximum memory capacity: 32 GB (16 GB x 2)
Network ports: 4 RJ-45 1GbE ports
USB ports: 2 USB 3.2 Gen 1 ports

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
ProcessorAMD Ryzen V1500B
Processor details4 cores, 64-bit architecture
Surveillance cameras40 IP cameras maximum, 2 licences included
Hardware encryptionYes
Installed RAM2 GB DDR4 ECC SODIMM
Maximum RAM32 GB (2 x 16 GB)
Operating systemSynology DiskStation Manager (DSM)
RAIDSynology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Typical power consumption47.69 W (access)
Standby power consumption16.70 W (drive hibernation)
Interfaces2 x USB 3.2 Gen 1
Network ports4 x RJ-45 1 GbE
Frequency2.2 GHz
RAM slots2 slots
Hard drive type3.5-inch SATA HDD, 2.5-inch SATA SSD
Hot-swappableYes
Storage bays4 bays (up to 8 with an RX418 expansion unit)
M.2 NVMe slotsNone
Supplied storageNo drives supplied
Technical specifications (continued)
Expansion slots1 PCIe Gen3 x8 slot (x4 link)
Power supplyInternal 150 W PSU, 100-240 V
Weight6.4 kg
Dimensions44 x 480 x 492.6 mm (H x W x D)
Box contentsMain unit, accessory pack, power cord, quick installation guide
Operating temperature0 °C to 35 °C
File systemInternal: Btrfs, ext4 — External: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT
Sharing protocolsSMB, AFP, NFS, FTP, WebDAV, Rsync
Fan3 fans (40 x 40 mm)
Noise level27.4 dB(A)
Form factorRack mount
Drive bays4 bays
Built-in M.2 slotsNo
Port speed1 Gbps (Gigabit)
Drives includedNo
Redundant power supplyNo
NAS processorAMD Ryzen
Warranty3 years

Specific references

EAN4711174724741

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Does the RackStation RS822+ have a redundant power supply?
No: it is the RS822RP+ that has the dual power supply. This model runs on a single power supply unit. If keeping services running through a power supply failure is your criterion, the RP version is the one to go for.
Are drives included with the RS822+?
No, they are purchased separately. The four bays accept 2.5" or 3.5" SATA drives, hard drives or SSDs. The NAS is supplied empty: the choice of drive capacity and type is entirely yours.
Will four bays be enough for long on the RS822+?
It scales to eight drives with an RX418 expansion unit. You can therefore double the capacity later, without replacing the NAS or rebuilding existing volumes — which is what makes the 4-bay format acceptable for a growing SME.
What transfer speeds does the Synology RS822+ reach?
2,103 MB/s sequential read and 1,074 MB/s sequential write. The gap between the two is normal: writing to a RAID-protected volume always costs more than reading. The processor is a 4-core, 2.2 GHz AMD Ryzen V1500B.
How are the four network ports of the RS822+ organised?
They are four Gigabit RJ-45 ports, which can be combined through link aggregation. You then get automatic failover if a link goes down, and load balancing across the remaining links.
Can SSD cache or 10 Gigabit networking be added to the RS822+?
Yes, one slot accepts either an M.2 NVMe SSD cache card or a 10/25 GbE network card. The cache speeds up random access, the network card bandwidth: two different bottlenecks, to be identified before choosing.
How far can the RS822+ memory be expanded?
From 2 GB to 32 GB of DDR4 ECC, as two 16 GB modules. ECC corrects on the fly the memory errors that would otherwise silently corrupt a file — a safeguard that ordinary RAM does not offer.
Can the RS822+ be made highly available?
Yes, by pairing two identical units with Synology High Availability: they form an active/passive cluster, and the second takes over if the first fails. This is the answer to the fact that this model has only one power supply.
Can the RS822+ record CCTV cameras?
Yes, up to 40 IP cameras with Surveillance Station. It then combines the roles of file server, backup target for workstations and network video recorder, in a 1U chassis for 19-inch racks.
Is the Synology RS822+ new and under warranty?
New, part number RS822PLUS, in original Synology packaging, with a 3-year warranty, the invoice serving as the warranty document. The datasheet details all the specifications.
