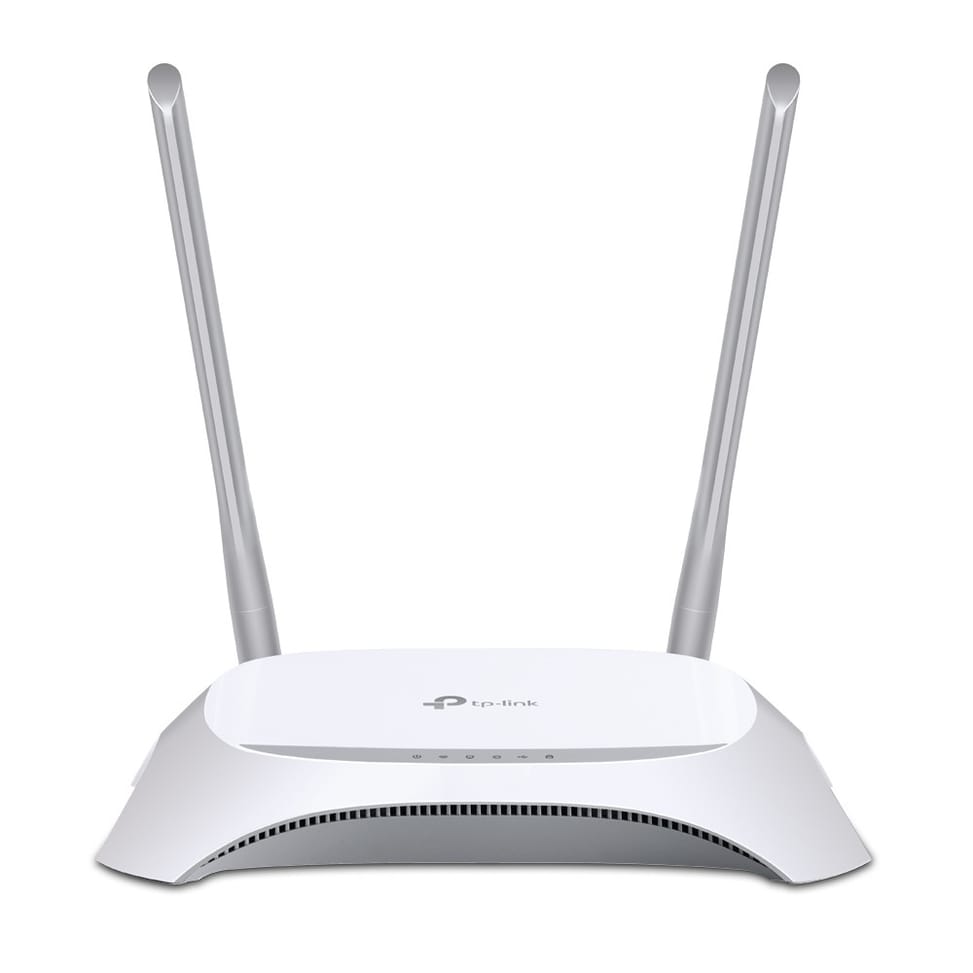

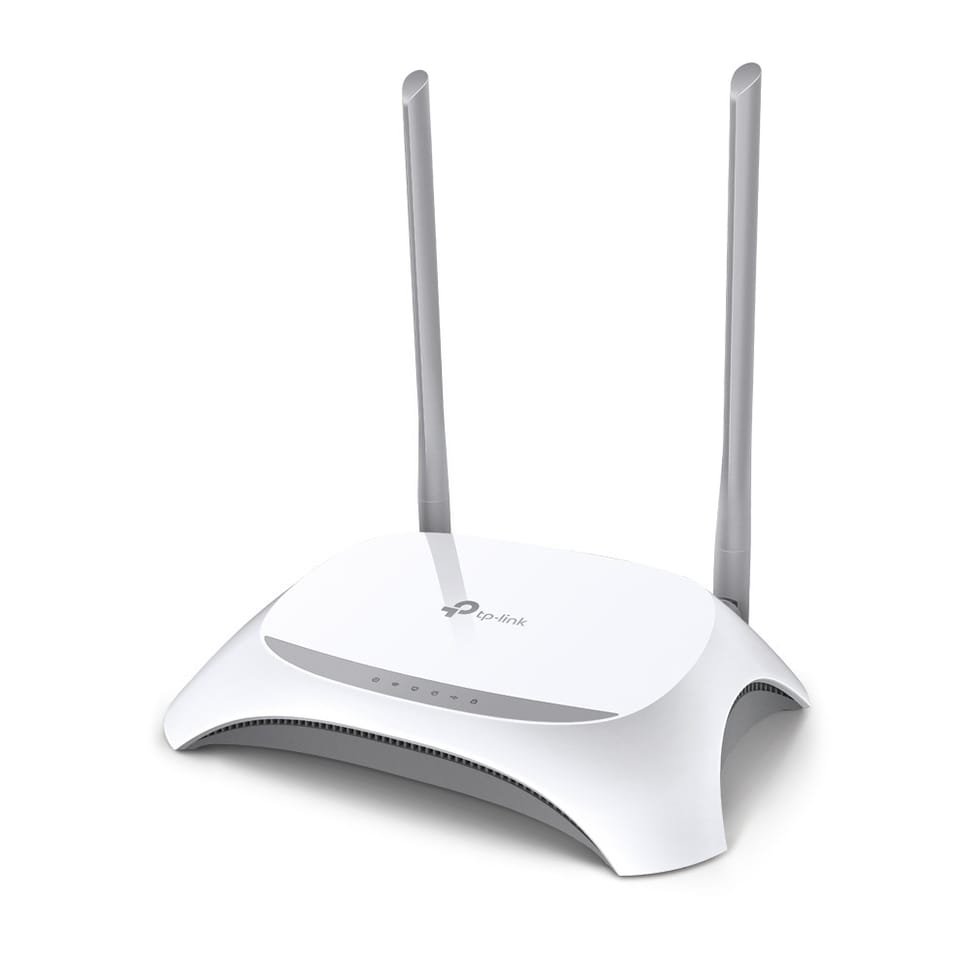

TP-Link TL-MR3420 Single-Band Fast Ethernet Wireless Router (2.4 GHz) Black, White (TL-MR3420)

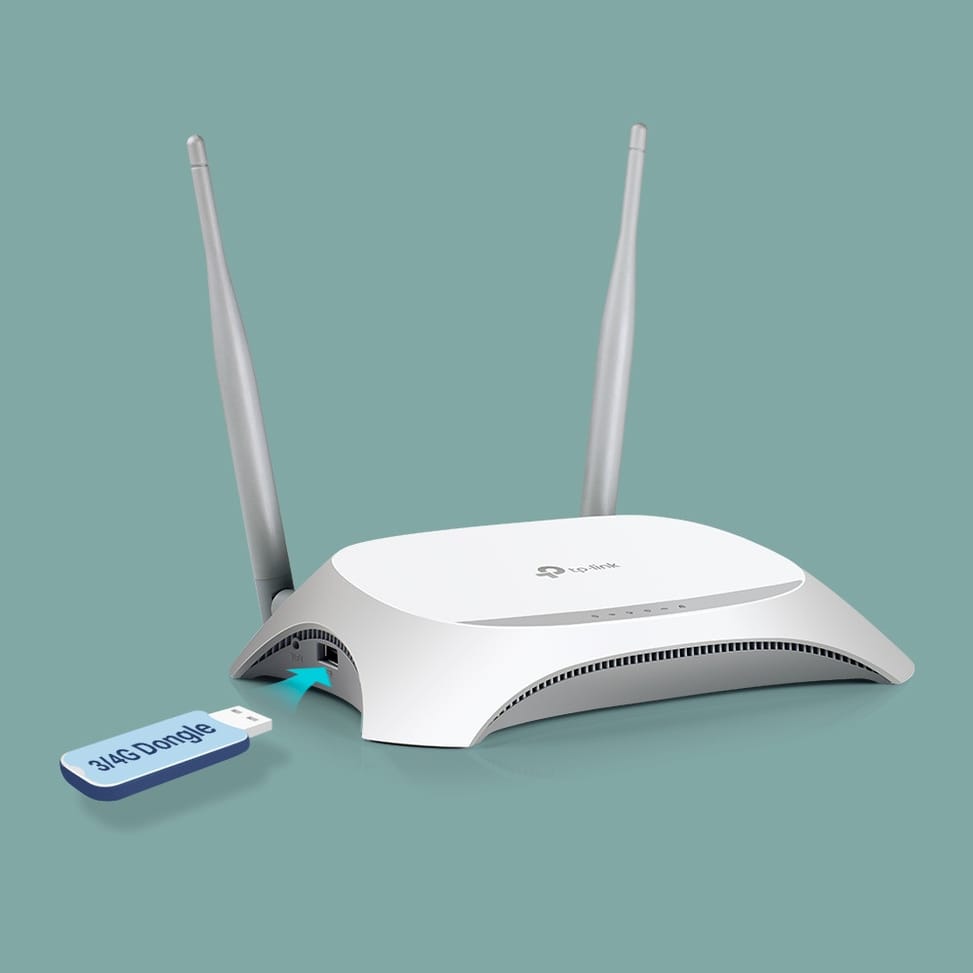

When the wired line is missing or goes down, a 3G/4G dongle plugged into the USB port takes over. Two removable 5 dBi antennas and four Ethernet sockets complete the set.
USB port for a 3G/4G dongle, as main access or as backup
- Router, Black, White - Single-band (2.4 GHz) Wi-Fi 4 (802.11n) 300 Mbps - Fast Ethernet - Ethernet WAN, USB 3G/4G modem compatible - Number of Ethernet LAN (RJ-45) ports: 4 - USB port - Web-based management
3G/4G wireless N router, 2 antennas, power adapter, Ethernet cable, resource CD, quick installation guide
Interfaces

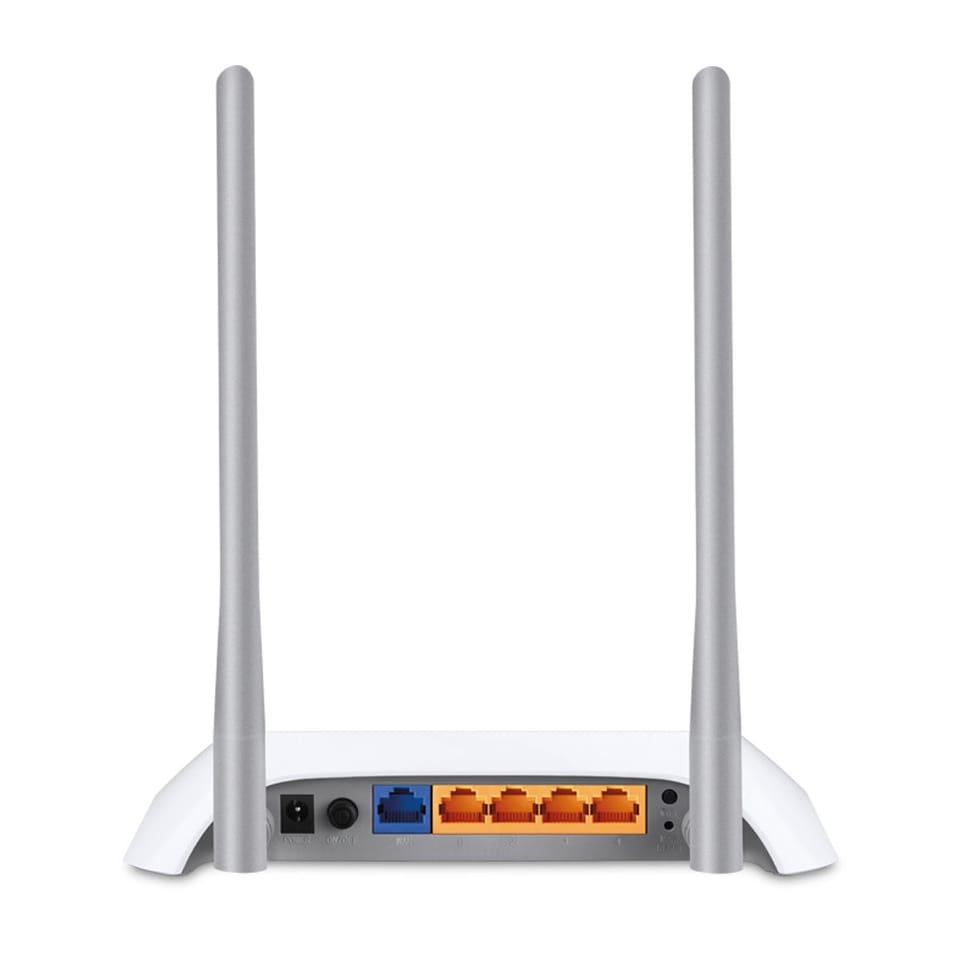

1 RJ45 10/100 WAN port, 4 RJ45 10/100 LAN ports with auto-negotiation and auto MDI/MDIX, 1 USB 2.0 port for a mobile dongle, 1 WPS/reset button, 1 Wi-Fi button, 1 power on/off button
Supported WAN technology
4G LTE, HSPA+, HSUPA, HSDPA, UMTS and EVDO via USB dongle, or 10/100 Ethernet
Network standards
IEEE 802.11b, 802.11g, 802.11n
Management modes
HTTP web interface, SNMP v1/v2c, firmware update via the web interface
Layer 2 features
WMM quality of service
Dimensions (W x D x H)
204 x 138 x 44 mm
Number of ports
5 ports or fewer
Frequency bands
Single-band: 2.4 GHz (2.4 to 2.4835 GHz)
Antennas
2 detachable external 5 dBi omnidirectional antennas with RP-SMA connector
Technical specifications (continued)
Maximum transmit power
< 20 dBm
Security features
64- and 128-bit WEP, WPA-PSK and WPA2-PSK, wireless MAC filtering
Power supply
External power adapter 12 V DC 1 A
Firewall
NAT and SPI firewall, filtering by MAC address, IP, packet, application and URL, protection against denial-of-service attacks, SYN flooding and ping of death
Operating temperature
0 to 40 °C
Operating humidity
10 to 90% non-condensing
Wi-Fi standard
Wi-Fi 4
Port speed
100 Mbps (Fast Ethernet)
Router type
Wi-Fi router
Warranty
1 year
Specific references
EAN
6935364051495
