Synology RackStation RS822RP+ 4-Bay NAS Server (RS822RPPLUS)

Power redundancy through two units: service continues if a cord is unplugged or a unit fails. ECC memory expandable to 32 GB, four 1 GbE ports and hot-swappable drives, in a 1U chassis.

  • Redundant power supply, two 150 W units
  • AMD Ryzen V1500B 4 cores, 2.2 GHz
  • ECC DDR4 memory 2 GB, expandable to 32 GB
  • RAID 1, 5, 6, 10 and SHR: you keep working even if a drive fails
  • Hot-swappable drives
  • Takes 3.5" SATA hard drives and 2.5" SATA SSDs
  • Four 1 GbE network ports
  • Expandable to 8 drives with an RX418 unit
  • Slot for an M.2 NVMe SSD cache card or a 10 GbE card
  • AES-NI hardware encryption
  • Up to 40 IP cameras with Surveillance Station
  • 1U chassis for a 19-inch rack
Ref.: RS822RPPLUS

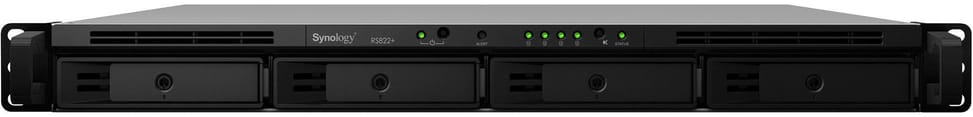

Synology RackStation RS822RP+ 4-Bay NAS Server (RS822RPPLUS) — image 1
Synology RackStation RS822RP+ 4-Bay NAS Server (RS822RPPLUS) — image 2

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Capacity : the capacity printed on the product photographed illustrates the range; the one sold is that of the title and the specifications.
  • Format and interface : 2.5 or 3.5 inch, SATA, NVMe M.2, with or without a heatsink: the photo is not enough to tell.
  • Drives not supplied : external enclosures, docking stations and NAS servers ship without a drive, unless explicitly stated.
  • Accessories : cables, adapters, caddies and screws are supplied only if the specifications say so.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/2
18 099,00 DHincl. VAT

Configuration · Synology RackStation Plus

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 811 Ko — downloadable

Product overview

The Synology RackStation RS822RP+ NAS server is a versatile, reliable storage system for medium-sized businesses. With 4 SATA drive bays, a quad-core AMD Ryzen processor and 2 GB of DDR4 ECC RAM expandable to 32 GB, it delivers fast sequential reads and writes. Four Gigabit Ethernet ports with failover support provide stable connectivity, while RAID support and the AES-NI hardware encryption engine strengthen data security. Compact and scalable, it adapts to growing data management needs and covers file sharing, backup and synchronisation. Enjoy exceptional performance with this high-performance NAS server, ideal for growing businesses.

Processor: AMD Ryzen V1500B (4-core 2.2 GHz)
Memory: 2 GB DDR4
Maximum memory capacity: 32 GB (16 GB x 2)
Network ports: 4 RJ-45 1GbE ports
USB ports: 2 USB 3.2 Gen 1 ports

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
ProcessorAMD Ryzen V1500B
Processor details4 cores, 64-bit architecture
Surveillance cameras40 IP cameras maximum, 2 licences included
Hardware encryptionYes
Installed RAM2 GB DDR4 ECC SODIMM
Maximum RAM32 GB (2 x 16 GB)
Operating systemSynology DiskStation Manager (DSM)
RAIDSynology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Typical power consumption47.69 W (access)
Standby power consumption16.70 W (drive hibernation)
Interfaces2 x USB 3.2 Gen 1
Network ports4 x RJ-45 1 GbE
Frequency2.2 GHz
RAM slots2 slots
Hard drive type3.5-inch SATA HDD, 2.5-inch SATA SSD
Hot-swappableYes
Storage bays4 bays (up to 8 with an RX418 expansion unit)
M.2 NVMe slotsNone
Supplied storageNo drives supplied
Technical specifications (continued)
Expansion slots1 PCIe Gen3 x8 slot (x4 link)
Power supply2 redundant internal PSUs, 150 W, 100-240 V
Weight8.0 kg
Dimensions44 x 480 x 518.6 mm (H x W x D)
Box contentsMain unit, accessory pack, 2 power cords, quick installation guide
Operating temperature0 °C to 35 °C
File systemInternal: Btrfs, ext4 — External: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT
Sharing protocolsSMB, AFP, NFS, FTP, WebDAV, Rsync
Fan2 fans (40 x 40 mm)
Noise level38.8 dB(A)
Form factorRack mount
Drive bays4 bays
Built-in M.2 slotsNo
Port speed1 Gbps (Gigabit)
Drives includedNo
Redundant power supplyYes
NAS processorAMD Ryzen
Warranty3 years

Specific references

EAN4711174724758

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

What exactly does the redundant power supply of the RS822RP+ cover?
Two 150 W units work in parallel: if one fails, or if a power cable is unplugged by mistake, the second keeps services running without interruption. This is what the “RP” in the model name stands for, and the only substantive difference from the RS822+.
Which drives should you plan for the RS822RP+?
Its four bays accept 3.5" SATA hard drives as well as 2.5" SATA SSDs, to be ordered separately: the NAS is supplied empty, like the whole RackStation range. This is the first item to budget for, as it determines the capacity and the final price.
Is the data on the RS822RP+ encrypted?
It has an AES-NI hardware encryption engine: encryption of shared folders is handled by the processor rather than by software, which avoids the collapse in throughput caused by purely software-based encryption.
Will four bays be enough on the RS822RP+?
It scales to eight drives with an RX418 expansion unit. Capacity doubles without changing the NAS or rebuilding the volumes in place — a point that matters on a chassis with only four bays.
What transfer speeds does the Synology RS822RP+ reach?
2,103 MB/s sequential read and 1,074 MB/s sequential write. The two figures go together: writing to a RAID-protected volume always costs more than reading. The processor is a 4-core, 2.2 GHz AMD Ryzen V1500B.
How can you expand the network or speed up the RS822RP+?
Four 1 GbE ports are built in and can be aggregated. One slot then accepts either a 10 GbE card, if bandwidth is the bottleneck, or an M.2 NVMe SSD cache card, if random access is.
Can the RS822RP+ memory be expanded?
Yes, from 2 to 32 GB of DDR4 ECC, as two 16 GB modules. ECC corrects the memory errors that would otherwise alter a file without warning — that is the difference between NAS RAM and ordinary RAM.
Can the RS822RP+ record surveillance cameras?
Yes, up to 40 IP cameras with Surveillance Station. In a 1U chassis for 19-inch racks, it then combines file server, backup target and network video recorder.
Is the Synology RS822RP+ new and under warranty?
New, part number RS822RPPLUS, in original Synology packaging, with a 3-year warranty, the invoice serving as the warranty document. The datasheet sets out all the specifications.
