APC Smart-UPS X 2200VA Line-Interactive UPS - Rack/Tower (SMX2200RMHV2U)

For servers and business network equipment: 1980 W usable with an excellent power factor (0.9). Runtime of around 25 minutes at half load.

  • Usable power 1980 W
  • Power factor 0.9 — almost all the power usable in watts
  • Runtime around 25 min at half load (990 W), 16 min at 70%
  • Runtime extendable with additional battery modules
  • 8 C13 outlets + 1 reinforced C19 outlet, all battery-backed
  • USB port and SmartSlot (optional network card)
  • Pure sine wave output
  • LCD control and status display
Ref.: SMX2200RMHV2U

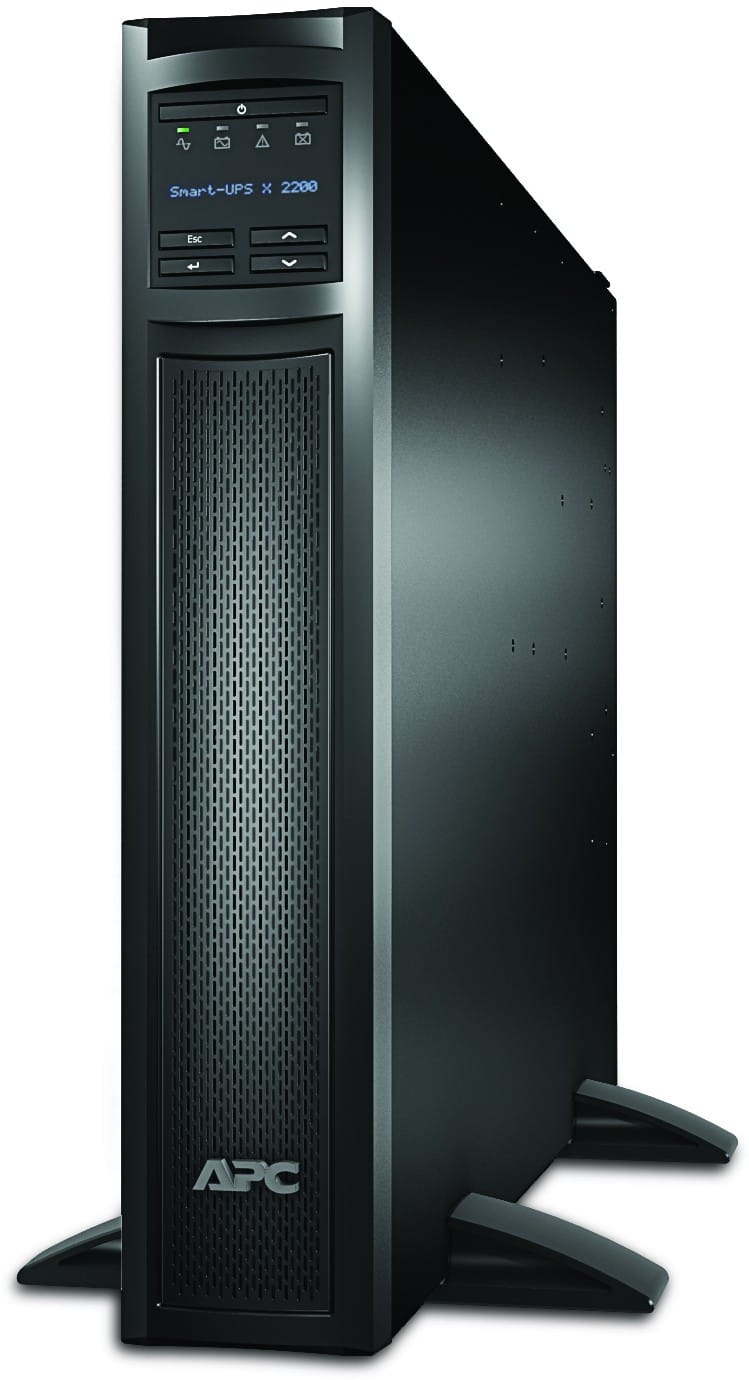

APC Smart-UPS X 2200VA Line-Interactive UPS - Rack/Tower (SMX2200RMHV2U) — image 1

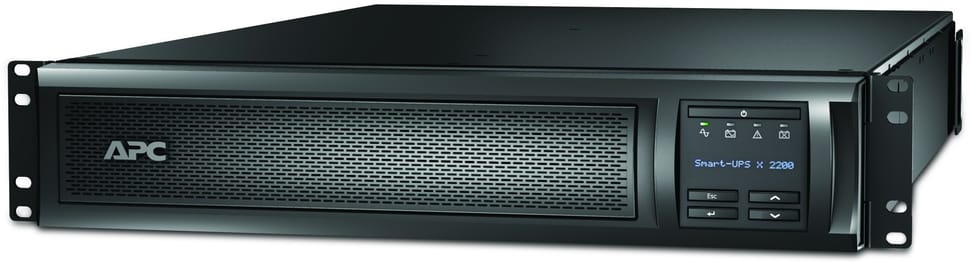

APC Smart-UPS X 2200VA Line-Interactive UPS - Rack/Tower (SMX2200RMHV2U) — image 2

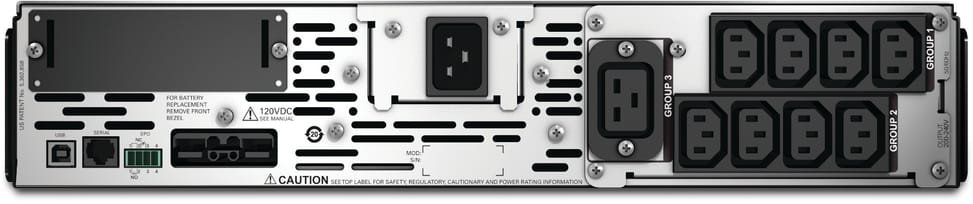

APC Smart-UPS X 2200VA Line-Interactive UPS - Rack/Tower (SMX2200RMHV2U) — image 3

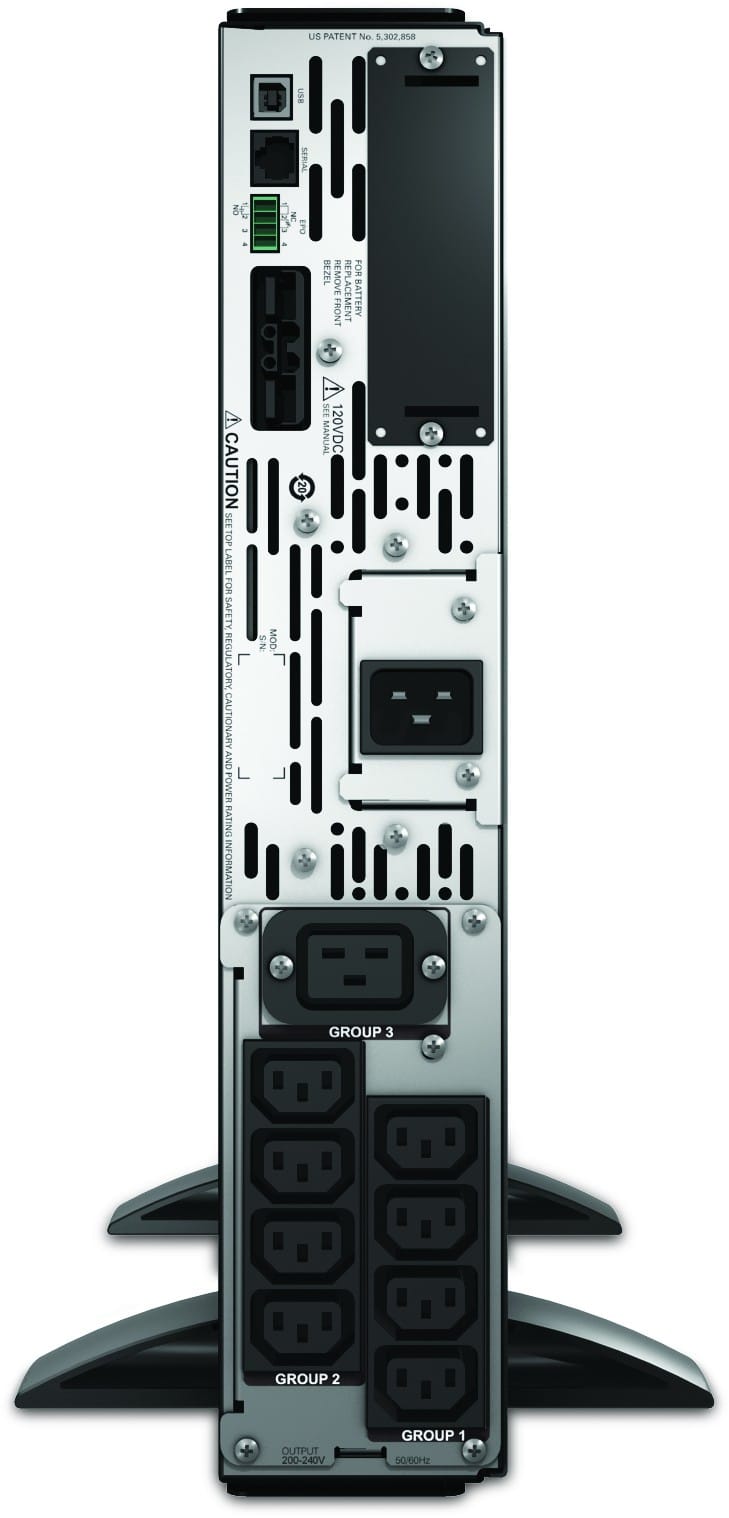

APC Smart-UPS X 2200VA Line-Interactive UPS - Rack/Tower (SMX2200RMHV2U) — image 4

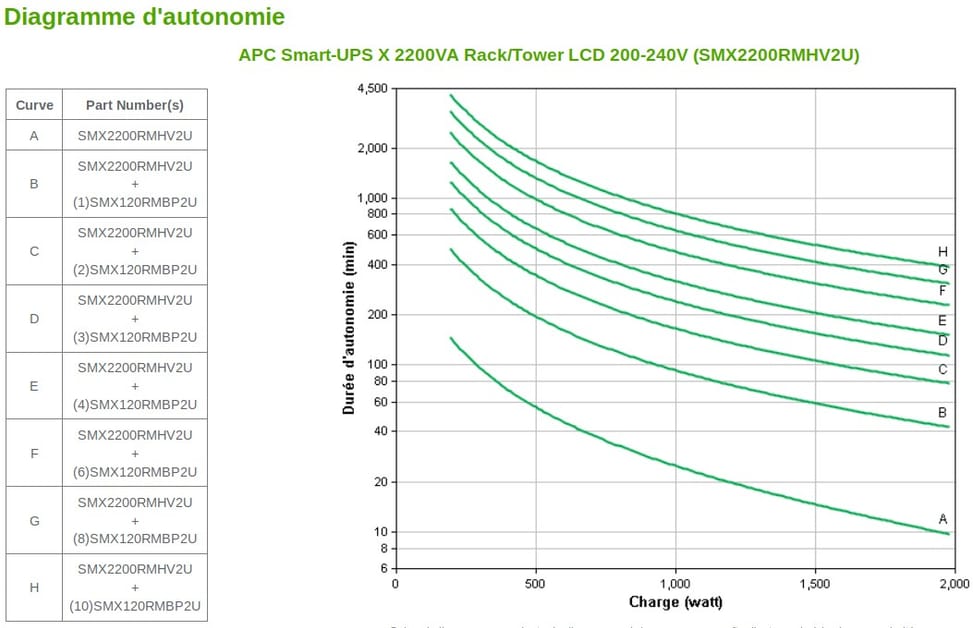

APC Smart-UPS X 2200VA Line-Interactive UPS - Rack/Tower (SMX2200RMHV2U) — image 5

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/5
30 299,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 105 Ko — downloadable

Product overview

Professional UPS, convertible between rack and tower: line-interactive with voltage regulation, 2200 VA / 1980 W.
Technology & protection: it switches to battery the instant the power cuts out, absorbs surges and continuously corrects voltage fluctuations without drawing on the battery.
Power: 2200 VA for 1980 W of usable output — its excellent power factor (0.9) lets you use almost all of its capacity in watts.
Runtime: approx. 25 minutes at half load (990 W), 16 minutes at 70%.
Outlets: 8 C13 outlets + 1 heavy-duty C19 outlet for power-hungry equipment.
Convertible rack or tower form factor.
LCD display: it shows the load, battery level and remaining runtime at a glance — so you can monitor the UPS without any software.
Ideal, for example, for servers, storage or business networking equipment.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage230V
Waveform typeSine wave
Output connections(8) IEC 320 C13 (Battery backup) (2) IEC jumpers (Battery backup) (1) IEC 320 C19 (Battery backup)
Input voltage208V, 230V
Input frequency50/60 Hz +/- 3 Hz (auto-sensing)
Input connectionsIEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Cord length1.83 metres
Voltage range140-280 V
Automatic voltage regulation (AVR)AVR (automatic voltage regulation)
Battery typeSealed maintenance-free lead-acid battery with suspended electrolyte: leakproof - Replacement battery: APCRBC117 (internal battery: 2 years)
Typical recharge time3 hours
Interface portSmartSlot, USB
User interfaceIlluminated display with operation, battery mode, replace battery and overload indicators, Multifunction LCD status and control console
Audible alarmAlarm when switching to battery mode; distinct low-battery alarm; configurable delays
Weight (kg)37.32 kg
Dimensions (W x D x H) (mm)432 x 667 x 85
Estimated battery service life (years)3 to 5 years
TechnologyLine Interactive
Power (VA)2,200
Technical specifications (continued)
Voltage stabiliserYes
Box contentsSoftware CD, Documentation CD, Rack mounting brackets, RS-232 cable for Smart UPS connection, USB cable, User manual
Replacement batteryAPCRBC117
Communication card slot1 free SmartSlot
Rack height2U
Surge protection and filtering645 J
Transfer/switching time2 to 4 ms
Output voltage distortionLess than 5%
Emergency power-off switchYes
Audible noise< 55 dBA
Output frequency50/60 Hz +/- 3 Hz
Output typeC13 outlets
Power (W)1,980 W
Runtime50% load (990 Watts): 25 minutes / 70% load (1,386 Watts): 16 minutes
Form factorConvertible rack/tower
Battery-backed outlets9 outlets or more
Control & communicationUSB, Card slot
Warranty3 years

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How long does the Smart-UPS X 2200 run on battery?
25 minutes at 50% load, i.e. 990 W, and 16 minutes at 70%, i.e. 1386 W. That is very comfortable for a 2200 VA unit, and runtime can be extended with additional battery packs.
Can the Smart-UPS X 2200 be installed in a rack or as a tower?
Both: it is a convertible chassis 85 mm high (2U), 432 mm wide and 667 mm deep, weighing 37.3 kg. The rack mounting brackets are included.
Are all the outlets backed up by the battery?
Yes: eight C13 outlets, one heavy-duty C19 outlet and two IEC jumpers, all on battery backup. The input accepts a C20, Schuko or British connection, with a 1.83 m cord.
What voltage range does the Smart-UPS X accept?
140 to 280 V — a window considerably wider than the category average. On a mains supply that regularly sags, the AVR corrects the voltage without drawing on the battery, which remains available for real outages.
Why does 2200 VA give 1980 W on this model?
Thanks to a power factor of 0.9, almost all of the apparent power remains usable as watts. That is what sets a professional UPS apart from a desktop model, where the same 2200 VA would provide only 1200 W.
How do you monitor the Smart-UPS X 2200?
Via a USB port and an RS-232 cable, both included, and through a SmartSlot that accepts an optional network card. The software CD and the manual complete the package.
What does the UPS show during a power outage?
Two interfaces: an illuminated display with four indicators — online, on battery, replace battery, overload — and a more detailed multifunction LCD console. The audible alarms have configurable delays.
How long does the battery take to recharge?
3 hours, with a charging power of 233 W. This power is added to that of your equipment during recharging: take it into account on an electrical circuit sized with little headroom.
Is the APC Smart-UPS X SMX2200RMHV2U new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for a period of 3 years. It delivers a pure sine wave and stays below 55 dBA: install it in a rack or an equipment room. The datasheet covers the rest.
