TP-Link Omada ER707-M2 Multi-Gigabit VPN Router

Seven ports, two of them at 2.5 Gbps, and up to six of them configurable as internet connections to combine several subscriptions. 500,000 simultaneous sessions, 100 IPsec tunnels and centralised management in the Omada cloud.

  • 1 WAN port at 2.5 Gbps and 1 WAN/LAN port at 2.5 Gbps
  • 1 Gigabit SFP port and 4 Gigabit RJ45 ports, all switchable between WAN and LAN
  • Up to 6 WAN ports with intelligent load balancing and failover
  • USB 2.0 port: a 4G/3G dongle as backup internet access, or storage
  • 500,000 simultaneous sessions, NAT throughput above 2.3 Gbps
  • 100 IPsec tunnels, 66 OpenVPN, 60 PPTP/L2TP, 20 WireGuard
  • Firewall, DoS defence, IP/MAC/URL filtering and IP-MAC binding
  • Captive portal with voucher, SMS or Radius authentication
  • 802.1Q VLAN and policy routing
  • Wired gateway, to be completed with Omada access points
  • Centralised Omada SDN management, cloud and app
  • Fanless steel chassis, 4 kV surge protection
  • Desk or wall mounting
Ref.: ER707-M2

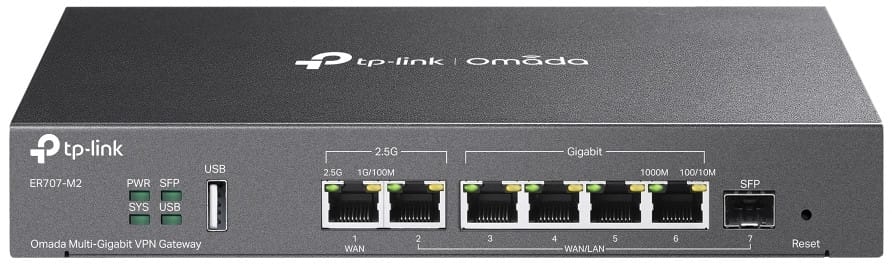

TP-Link Omada ER707-M2 Multi-Gigabit VPN Router — image 1

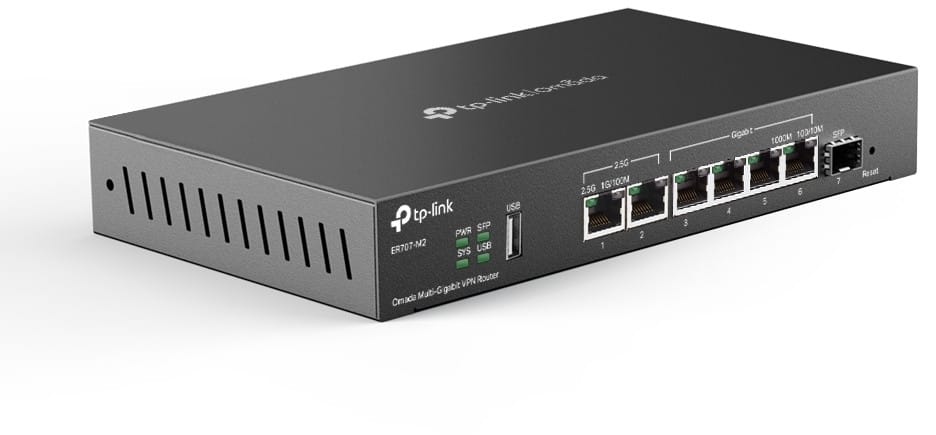

TP-Link Omada ER707-M2 Multi-Gigabit VPN Router — image 2

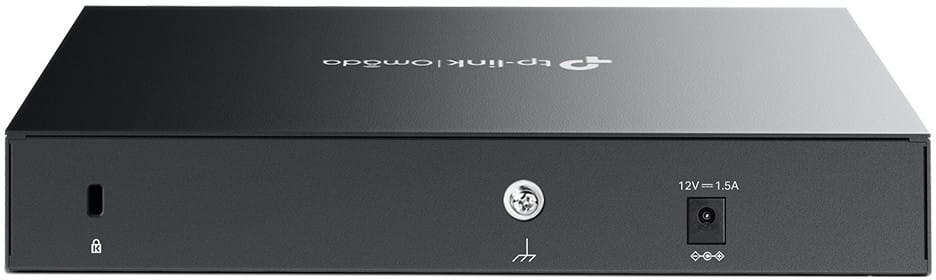

TP-Link Omada ER707-M2 Multi-Gigabit VPN Router — image 3

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/3
2 839,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

Take full control of your network with the TP-Link Omada ER707-M2 VPN router, designed for demanding business environments. With its 2.5 Gbps ports and up to 6 WAN ports with load balancing, it makes the most of your multiple Internet lines for stable, fast performance. Its highly secure VPN (SSL, IPSec, OpenVPN, L2TP, PPTP) effectively protects traffic between head offices, branches and remote workers. Integrated with Omada SDN, it offers centralised management via the cloud and the Omada app. Advanced firewall, DoS defence and IP/MAC/URL filtering provide complete, reliable network security.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Package contentsER707-M2 router, power adapter, quick installation guide
Internal memory1 GB DDR4 RAM, 128 MB NAND flash memory
Interfaces1 RJ45 2.5 Gbps WAN port, 1 RJ45 2.5 Gbps WAN/LAN port, 4 Gigabit RJ45 WAN/LAN ports, 1 Gigabit SFP WAN/LAN port, 1 USB 2.0 port, 1 reset button
Concurrent sessions500,000 concurrent sessions, 4,200 new sessions per second
Rated routing throughput2,364.45 Mbps upstream and 2,343.28 Mbps downstream in static IP NAT
Supported WAN technologyGigabit and 2.5 Gigabit Ethernet; fibre via Gigabit SFP module; 4G/3G backup via USB dongle
Network standardsIEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q
Management modesHTTP/HTTPS web interface, remote management, SNMP v1/v2c/v3, Omada app, hardware or software controller
Cloud management platformOmada SDN
Managed access pointsNone
Layer 2 features802.1Q VLAN, IGMP v2/v3 proxy for IPTV, MAC address cloning
Power consumption14.2 W maximum with a USB 2.0 device connected, 7.1 W without
Dimensions (W x D x H)226 x 131 x 35 mm
Number of ports6 to 10 ports
Technical specifications (continued)
Frequency bandsNone
AntennasNone
Security featuresCaptive portal, web authentication by password, voucher, SMS or external RADIUS, access control by source and destination IP address
Power supplyExternal power adapter 12 V 1.5 A
FirewallTCP, UDP and ICMP flood defence, blocking of TCP scans and ping from the WAN, URL and web group filtering, ARP inspection, IP-MAC binding
Status indicatorsPower, system, SFP, USB, WAN (speed and link/activity), LAN (speed and link/activity)
VPNSite-to-site and client-to-site IPsec, OpenVPN, PPTP, L2TP, L2TP over IPsec, WireGuard, SSL
Concurrent VPN tunnels100 IPsec tunnels, 60 shared PPTP and L2TP tunnels, 66 OpenVPN tunnels, 20 WireGuard tunnels
Operating temperature0 to 40 °C
Operating humidity10 to 90% non-condensing
Wi-Fi standardNo Wi-Fi
Port speed1 Gbps (Gigabit), 2.5 Gbps (Multi-Gig)
Router typeWired router (no Wi-Fi)
Warranty1 year
