Eleven internet connections can be shared by load balancing, two of them on 2.5 Gbps ports. One million concurrent sessions, intrusion detection and 150 IPsec tunnels, in a chassis supplied with its rack brackets.
Quad-core ARMv8 processor at 2 GHz, 1 GB of DDR4
2 x 2.5 Gbps RJ45 ports switchable to WAN or LAN
2 SFP ports and 8 Gigabit RJ45 ports, all switchable to WAN or LAN

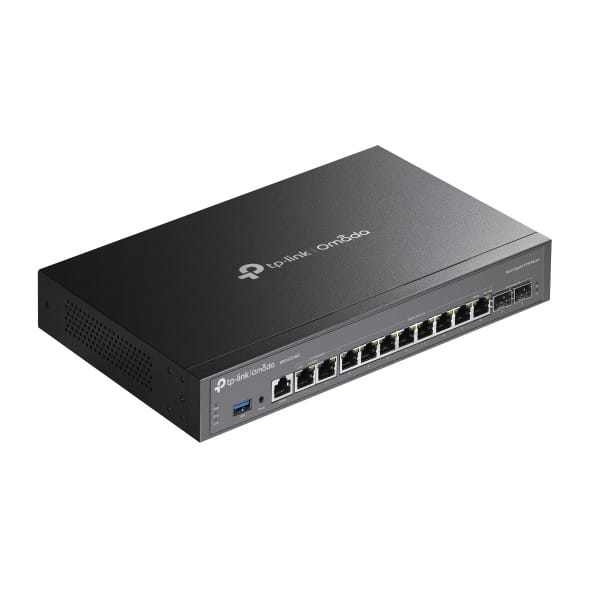

TP-Link ER7412-M2 multi-gigabit Gigabit Multi-WAN VPN router: a powerful, secure network core for your SME. Ports: up to 4 WAN links and 2.5 GbE ports to combine bandwidth or keep the connection running. VPN:IPSec, PPTP, OpenVPN tunnels for sites and mobile staff. Security: advanced firewall, filtering and DoS defence. Management: centralised Omada SDN, simplified multi-site deployment. Use cases: SMEs, branches, networks that require high availability. A robust multi-gigabit VPN router for businesses that cannot afford any downtime.
HTTP/HTTPS web interface, SNMP v1/v2c/v3, command line, Omada app, hardware or software controller
Cloud management platform
Omada SDN
Managed access points
None
Layer 2 features
802.1Q VLAN, IGMP v2/v3 proxy for IPTV in custom and bridge modes, MAC address cloning
Power consumption
18.5 W maximum with a USB 3.0 device connected
Dimensions (W x D x H)
294 x 180 x 44 mm
Number of ports
11 to 18 ports
Technical specifications (continued)
Frequency bands
None
Antennas
None
Security features
Captive portal, web authentication by password, voucher, SMS, external RADIUS or LDAP
Power supply
Internal power supply 100-240 V AC, 50/60 Hz
Firewall
TCP, UDP and ICMP flood defence, deep packet inspection, intrusion detection and prevention, URL filtering, IPv4 and IPv6 stateful access control lists
VPN
Site-to-site and client-to-site IPsec, OpenVPN, PPTP, L2TP, L2TP over IPsec, WireGuard, GRE, SSL
