Synology RackStation® RS2423RP+II 12-Bay NAS Server

2U 12-bay rack NAS server for SMEs: Ryzen V1780B, 8 GB ECC, built-in 10 GbE port and two hot-swappable power supplies. Over 3,500 MB/s sequential read, expandable to 24 drives with the RX1223RP. Drives not included.

  • Quad-core AMD Ryzen V1780B, 3.35 GHz (3.6 GHz Turbo)
  • 8 GB of DDR4 ECC UDIMM memory, expandable to 32 GB
  • Over 3,500 MB/s sequential read and 1,700 MB/s sequential write
  • Over 155,000 random read IOPS
  • 12 SATA bays for 3.5- and 2.5-inch drives, drives sold separately
  • 1 x 10 GbE port and 2 x 1 GbE RJ-45 ports
  • Two hot-swappable redundant power supplies
  • PCIe 3.0 slot: optional 25 GbE or M.2 SSD cache
  • Expandable to 24 drives with an RX1223RP unit
  • Failover cluster with Synology High Availability
  • Up to 75 IP cameras, 2 licences included
  • 2U rack, optional RKS-02 sliding rails
Ref.: RS2423RP+II
New

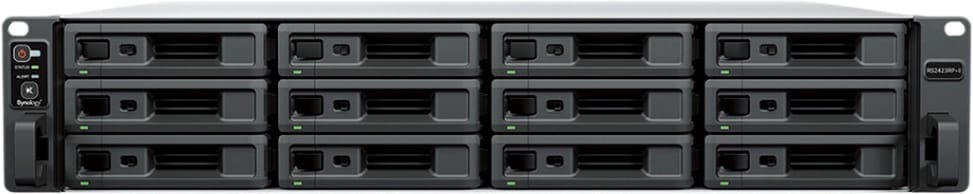

Synology RackStation® RS2423RP+II 12-Bay NAS Server

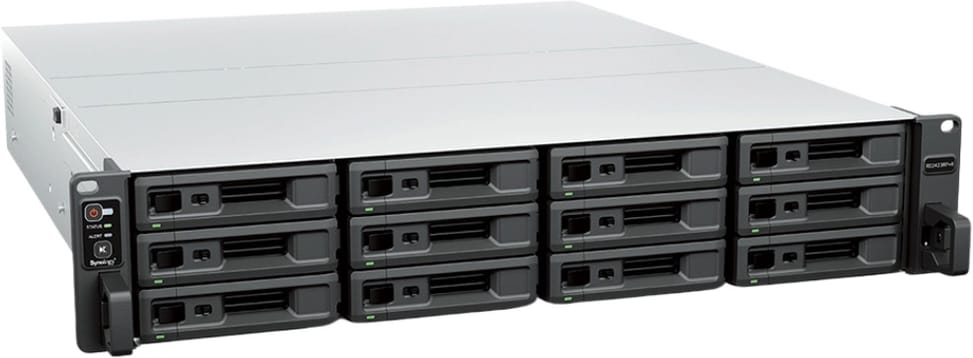

Synology RackStation® RS2423RP+II 12-Bay NAS Server – view 2

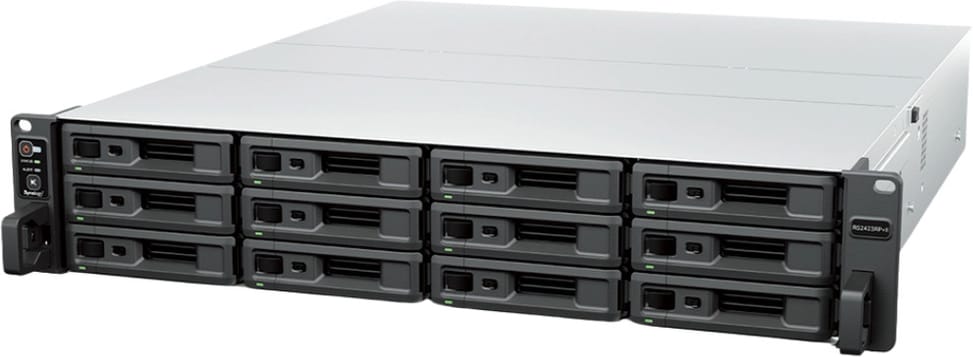

Synology RackStation® RS2423RP+II 12-Bay NAS Server – view 3
Synology RackStation® RS2423RP+II 12-Bay NAS Server – view 4
Synology RackStation® RS2423RP+II 12-Bay NAS Server – view 5

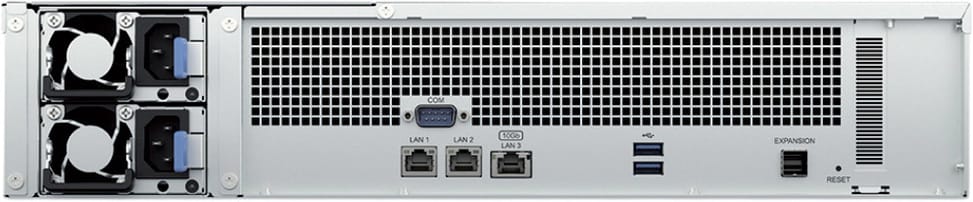

Synology RackStation® RS2423RP+II 12-Bay NAS Server – view 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Capacity : the capacity printed on the product photographed illustrates the range; the one sold is that of the title and the specifications.
  • Format and interface : 2.5 or 3.5 inch, SATA, NVMe M.2, with or without a heatsink: the photo is not enough to tell.
  • Drives not supplied : external enclosures, docking stations and NAS servers ship without a drive, unless explicitly stated.
  • Accessories : cables, adapters, caddies and screws are supplied only if the specifications say so.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6
53 208,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 1,9 Mo — downloadable

Product overview

Rack NAS server for SMEs that want capacity without interruption: 12 bays in 2U, built-in 10 GbE port and two redundant power supplies.
Processor: AMD Ryzen V1780B, 4 cores at 3.35 GHz
Memory: 8 GB DDR4 ECC, up to 32 GB
Network: 1 x 10 GbE port and 2 x 1 GbE ports
Expansion: up to 24 bays with the RX1223RP
Upgrade: 1 PCIe Gen3 x8 slot for an M.2 cache or a network card
Power: 2 x 550 W redundant units
The dual power supply version of the RS2423+, for the server rack where service continuity comes first.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
ProcessorAMD Ryzen V1780B
Processor details4 cores, 8 threads, 64-bit architecture
Surveillance cameras75 IP cameras maximum, 2 licences included
Hardware encryptionYes (hardware encryption engine)
Installed RAM8 GB DDR4 ECC UDIMM (1 x 8 GB)
Maximum RAM32 GB (2 x 16 GB)
Operating systemSynology DiskStation Manager (DSM)
RAIDSynology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Typical power consumption114.86 W (access)
Standby power consumption42.33 W (drive hibernation)
Interfaces2 x USB 3.2 Gen 1, 1 x Mini-SAS HD expansion port
Network ports2 x RJ-45 1 GbE, 1 x RJ-45 10 GbE
Frequency3.35 GHz (3.6 GHz Turbo)
RAM slots2 slots
RAM typeDDR4 ECC UDIMM
Hard drive type3.5-inch SATA HDD, 2.5-inch SATA SSD
Hot-swappableYes
Storage bays12 bays (up to 24 with one RX1223RP expansion unit)
M.2 NVMe slotsNone built in; NVMe SSD cache possible with an M2D20 or E10M20-T1 card in the PCIe slot
Supplied storageNo drives supplied
Expansion slots1 PCIe Gen3 x8 slot (x4 link)
Power supply2 redundant internal PSUs, 550 W, 100-240 V
Technical specifications (continued)
Weight11.9 kg
Dimensions88 x 482 x 578 mm (H x W x D)
Box contentsMain unit, accessory pack, 2 AC power cords, quick installation guide
Operating temperature0 °C to 35 °C
Storage temperature-20 °C to 60 °C
File systemInternal: Btrfs — External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
Sharing protocolsSMB, AFP, NFS, FTP, WebDAV, Rsync
Rack height2U (optional RKS-02 sliding rails)
CertificationsFCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL
Fan3 fans (60 x 60 mm), easily replaceable
Network protocolsSMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, Kerberised NFS sessions, iSCSI, HTTP, HTTPS, FTP, SNMP, LDAP, CalDAV
Noise level56.2 dB(A)
Operating humidity8% to 80% RH
Form factorRack mount
Drive bays12 bays
Built-in M.2 slotsNo
Port speed1 Gbps (Gigabit), 10 Gbps (10G)
Drives includedNo
Redundant power supplyYes
NAS processorAMD Ryzen
Warranty3 years

Specific references

MPNRS2423RP+II

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Are drives included with the RS2423RP+II?
No, no drives are included: the 12 bays take 3.5-inch SATA hard drives or 2.5-inch SATA SSDs. Synology lists its HAT3300 and HAT5300 series drives and its SAT5200 SSDs as compatible. With 20 TB drives, raw capacity reaches 240 TB before any expansion.
What is the difference between the RS2423RP+II and the RS2423+?
The power supply: the RS2423RP+II has two redundant, hot-swappable units, which keep the service running if one of the power sources fails. The Ryzen V1780B processor, 12 bays, 10 GbE port and expansion to 24 drives are common to both models, which Synology presents together.
Does the RS2423RP+II have M.2 slots for SSD cache?
Not internally: an NVMe SSD cache is added with a card in its PCIe 3.0 x8 slot, the M2D20 for two M.2 SSDs, or the E10M20-T1, which adds a 10 GbE port. The same slot can also take a 25 GbE E25G30-F2 card or a 10 GbE card, if the built-in 10 GbE port is no longer enough.
How far can the RS2423RP+II memory be expanded?
Up to 32 GB: it comes with an 8 GB DDR4 ECC UDIMM module and has 2 slots, each taking a 16 GB module (D4EU02-8G or D4EU02-16G from Synology). Memory matters for large volumes: above 108 TB, a volume requires 32 GB installed, up to 200 TB.
How many computers can the RS2423RP+II back up?
Synology rates it for backing up 300 computers and servers, in addition to 75 IP cameras under Surveillance Station or file sync between sites. It supports up to 510 concurrent SMB connections, 930 Synology Drive users and 1,024 local accounts.
Which rail kit does the RS2423RP+II need?
The Synology RKS-02 sliding rail kit, sold separately, for a 4-post 19-inch rack. The RS2423RP+II takes up 2U for 578 mm of depth and weighs 11.9 kg without drives. Sliding rails let you pull the server out of the rack to replace a power supply or a fan.
Is the RS2423RP+II noisy?
Yes, it is intended for a server room or technical cabinet: its three 60 mm fans reach 56.2 dB(A) in operation, and Synology designed them to be easily replaceable. It draws 114.86 W in access and 42.33 W when the drives are in hibernation, powered by two redundant 550 W units.
