APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V Line-Interactive UPS

In a 4U rack (tower-convertible): 1980 W usable, power factor 0.9 — almost all the power usable in watts. Runtime extendable with additional battery modules.

  • Usable power 1980 W
  • Power factor 0.9 — almost all the power usable in watts
  • Runtime around 25 min at half load (990 W), 16 min at 70%
  • Runtime extendable with additional battery modules
  • 8 C13 outlets + 2 reinforced C19 outlets
  • USB port and SmartSlot (optional network card)
  • Pure sine wave output
  • 4U rack format (tower-convertible)
Ref.: SMX2200HV

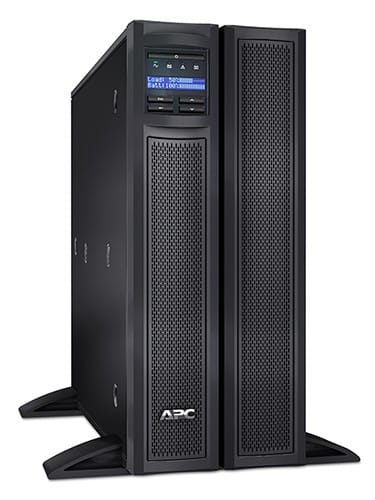

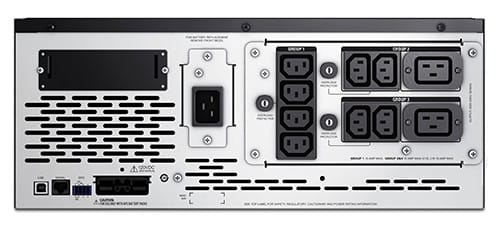

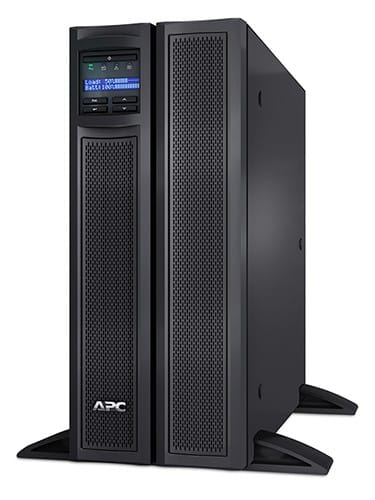

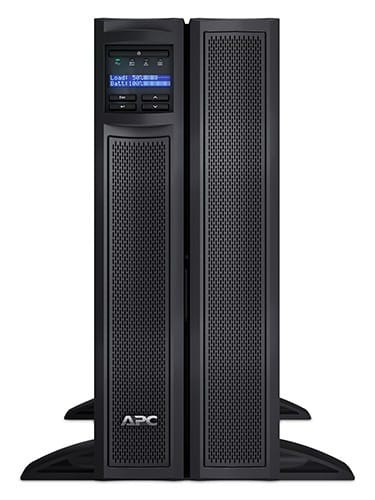

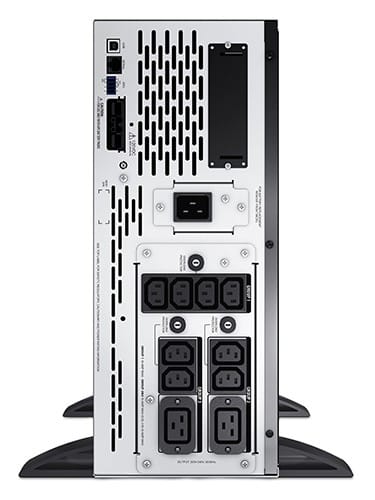

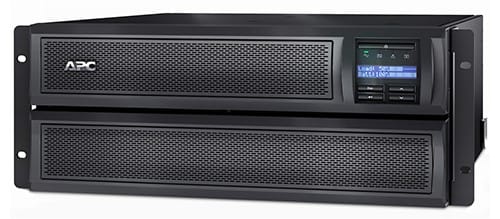

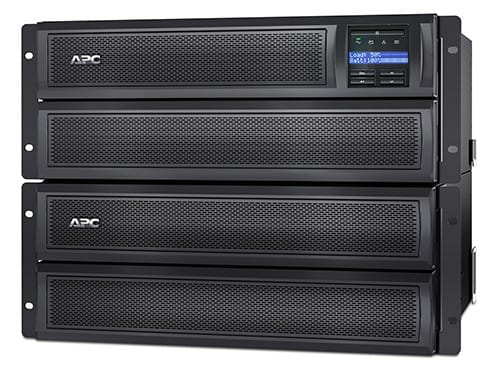

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V Line-Interactive UPS — image 1
APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V Line-Interactive UPS — image 2
APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V Line-Interactive UPS — image 3
APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V Line-Interactive UPS — image 4
APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V Line-Interactive UPS — image 5
APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V Line-Interactive UPS — image 6
APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V Line-Interactive UPS — image 7

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/7
21 799,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 116 Ko — downloadable

Product overview

Professional UPS, convertible between rack and tower: line-interactive with voltage regulation, 2200 VA / 1980 W and an LCD display.
Technology & protection: it switches to battery the instant the power cuts out, absorbs surges and continuously corrects voltage fluctuations without drawing on the battery.
Power: 2200 VA for 1980 W of usable output — several servers or networking equipment.
Outlets: 8 C13 outlets + 2 heavy-duty C19 outlets for power-hungry equipment.
Convertible rack or tower form factor; runtime can be extended with an additional battery pack.
LCD display: it shows the load, battery level and remaining runtime at a glance — so you can monitor the UPS without any software.
Ideal, for example, for servers, storage or business networking equipment.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage230V
Waveform typeSine wave
Output connections(8) IEC 320 C13, (2) IEC 320 C19
Input voltage208V, 230V
Input frequency50/60 Hz +/- 3 Hz (auto-sensing)
Input connectionsIEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Cord length1.83 metres
Voltage range140-280 V
Automatic voltage regulation (AVR)AVR (automatic voltage regulation)
Battery typeSealed maintenance-free lead-acid battery with suspended electrolyte: leakproof
Typical recharge time3 hours
Interface portSmartSlot, USB
User interfaceIlluminated display with operation, battery mode, replace battery and overload indicators, Multifunction LCD status and control console
Audible alarmAlarm when switching to battery mode; distinct low-battery alarm; configurable delays
Weight (kg)38.56 kg
Dimensions (W x D x H) (mm)178 x 483 x 432 mm
Estimated battery service life (years)3 to 5 years
TechnologyLine Interactive
Technical specifications (continued)
Power (VA)2,200
Voltage stabiliserYes
Box contentsSoftware CD, Rack-mounting hardware, RS-232 cable for Smart UPS connection, USB cable, User manual
Replacement batteryAPCRBC143
Communication card slot1 free SmartSlot
Rack height4U
Surge protection and filtering645 J
Output voltage distortionLess than 5%
Emergency power-off switchYes
Audible noise55 dBA
Output frequency50/60 Hz +/- 3 Hz synchronised to mains
Output typeC13 outlets
Power (W)1,980 W
Runtime50% load (990 Watts): 25 minutes / 70% load (1,386 Watts): 16 minutes
Form factorConvertible rack/tower
Battery-backed outlets9 outlets or more
Control & communicationUSB, Card slot
Warranty2 years

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How long does the Smart-UPS X 2200 run on battery?
25 minutes at 50% load, i.e. 990 W, and 16 minutes at 70%, i.e. 1386 W. Runtime can be extended with additional battery packs, and recharging takes 3 hours.
How much rack height does this Smart-UPS X 2200 take up?
4U — 178 mm — with a width of 483 mm, a depth of 432 mm and a weight of 38.6 kg. It trades height for a moderate depth: the opposite of the usual compromise, which helps it fit into shallow rack cabinets.
How can a line-interactive UPS offer 1980 W from 2200 VA?
Its power factor of 0.9 turns almost all of the apparent power into watts. A desktop UPS at 0.54 would offer only 1190 W for the same rated power.
Can the Smart-UPS X 2200 be plugged into a wall socket?
Yes: the input accepts a C20, Schuko or British connection, with a 1.83 m cord. No hardwiring and no electrician needed for a UPS of this power.
What outlets does the UPS have on the output side?
Eight C13 outlets and two heavy-duty 16 A C19 outlets. The rack-mounting hardware, a USB cable and an RS-232 cable come with the unit.
What voltage range does the Smart-UPS X 2200 accept?
140 to 280 V — a window considerably wider than the average for this category. On a grid that frequently sags, the AVR corrects the voltage without drawing on the battery.
What does the UPS show during a power cut?
Two interfaces: an illuminated display with four indicators — on-line, on battery, replace battery, overload — and a more detailed multifunction LCD console, with alarms on configurable delays.
Is the APC Smart-UPS X 2200 new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 2 years. It delivers a pure sine wave, is rated at 55 dBA, and a SmartSlot accepts an optional network card. The datasheet covers the rest.
