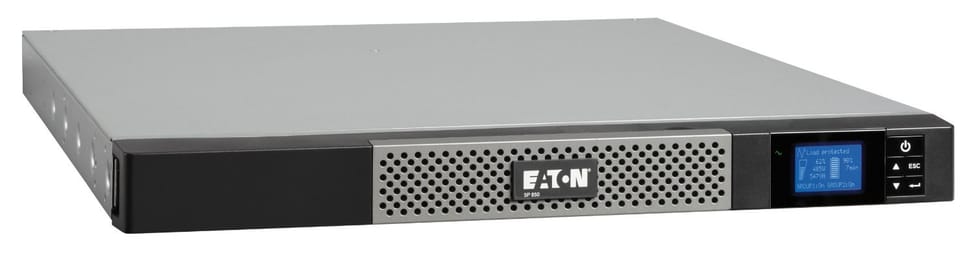

Eaton 5P 650i VA Line-Interactive UPS - Rack 1U (5P650IR)
Ultra-compact professional UPS with pure sine wave output, for a clean signal even on battery. 1U rack format that saves space in the cabinet, hot-swappable batteries.
420 W genuinely usable
Runtime around 9 minutes at half load (6 minutes at 70%)
4 C13 outlets (the format used by computer and server power cords)
USB port and RS232 serial port for automatic system shutdown
Slot for an optional SNMP network card
Pure sine wave output
1U rack format — space saved in the cabinet
Hot-swappable batteries, without interrupting the power supply

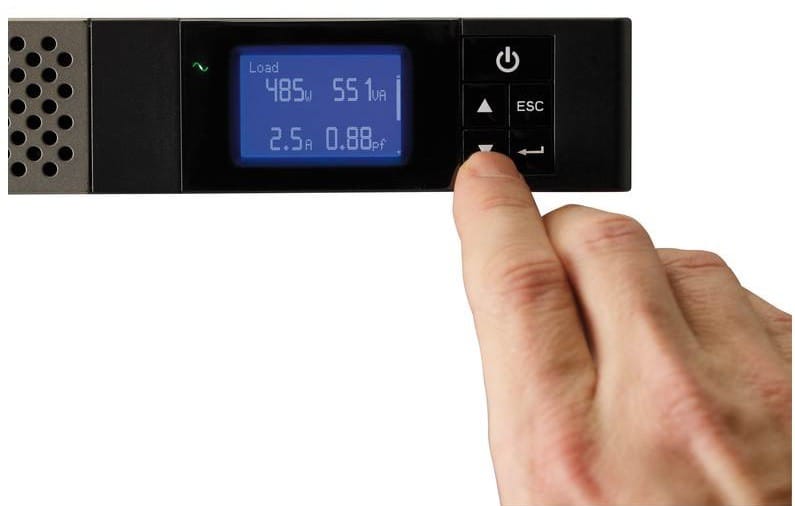

Ultra-compact professional UPS for a server rack: line-interactive with voltage regulation, 650 VA / 420 W, in a 1U rack form factor. Technology & protection: it switches to battery the instant the power cuts out, absorbs surges and continuously corrects voltage fluctuations without drawing on the battery. Power: 650 VA for 420 W of usable output. Outlets: 4 C13 outlets (for computer and server power cords). Pure sine wave output; the 1U form factor saves rack space. Quiet operation (below 40 dB). LCD display: it shows the load, battery level and remaining runtime at a glance — so you can monitor the UPS without any software. Ideal, for example, for a rack-mounted switch, firewall or small server. Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
A UPS that takes up only 1U in a rack — is that possible?
Yes: the 5P 650i fits in 1U — 43.2 mm high — with a width of 438 mm, a depth of 364 mm and a weight of 8.6 kg. That is half the height of a conventional rack-mount UPS, a real gain when every U counts.
How long does the 5P 650i run on battery?
9 minutes at 50% load and 6 minutes at 70%. With 420 W of usable power, that is enough to shut down a switch, a router and a small rack server cleanly.
Is the output of the 5P 650i a pure sine wave?
Yes, the output waveform is a pure sine wave — it is stated explicitly, and it is rare on a line-interactive UPS of this size. The signal stays clean even when the UPS switches to battery.
What voltage and frequency range does the 5P 650i accept?
From 160 to 294 V, adjustable down to 150 V, and from 47 to 70 Hz on a 50 Hz system — down to 40 Hz in low-sensitivity mode. This last setting is what allows it to cope with a very unstable power source.
Why does 650 VA only give 420 W?
The power factor is 0.64: 650 × 0.64 ≈ 420 W actually available. Compare this figure in watts with the combined power draw of everything you install in the rack — switch, router, small NAS.
What is in the 5P 650i's box?
The rack-mounting kit, a cable locking system — which prevents a cord from being accidentally unplugged in the rack —, a USB cable, a serial cable, two IEC-IEC cords, the quick start guide and the safety instructions.

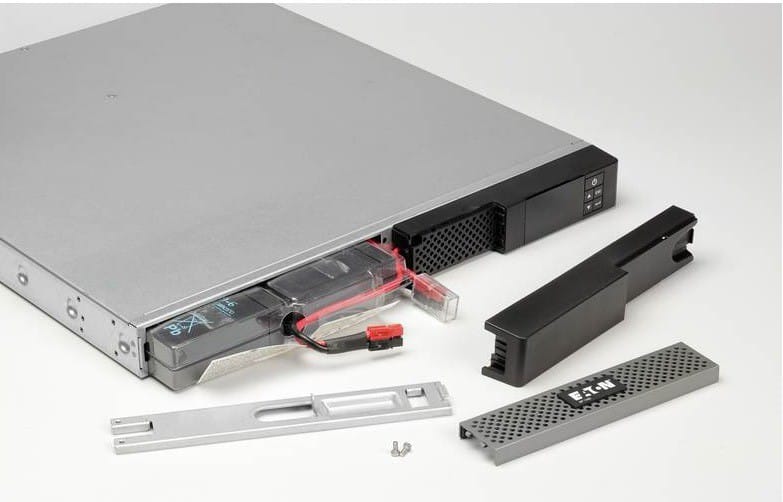

Can the 5P 650i's batteries be changed without cutting the power?
Yes, they are hot-swappable. ABM technology charges them only when necessary, which prevents corrosion and considerably extends their service life.
Can the USB port and the serial port be used simultaneously?
No, the two do not work at the same time. The UPS also has relay contacts, a remote on/off mini-connector and a slot for a Network-MS, ModBus-MS or Relay-MS card.
Is the Eaton 5P 650i Rack 1U new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 3 years on a standard-exchange basis, batteries included. It stays below 40 dBA and has four C13 outlets with a C14 inlet. The datasheet covers the rest.
