Visit the Bosch store

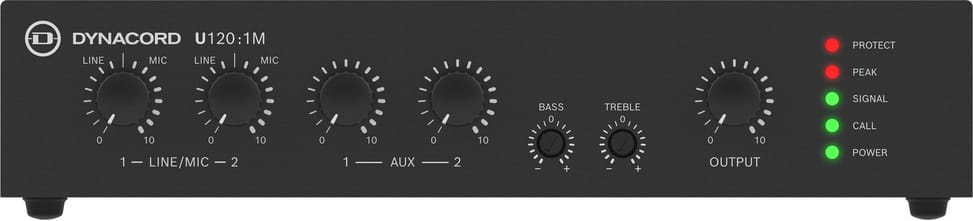

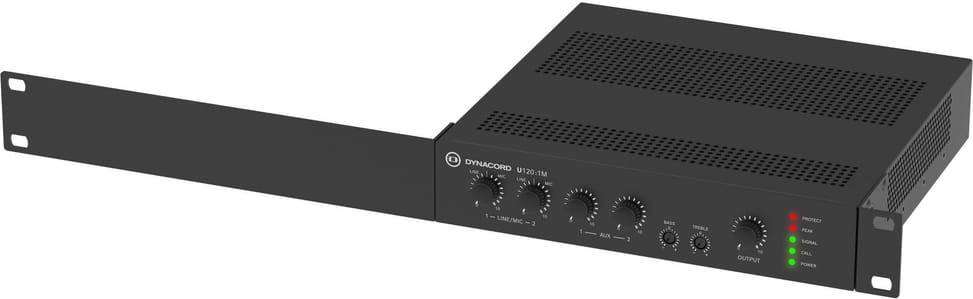

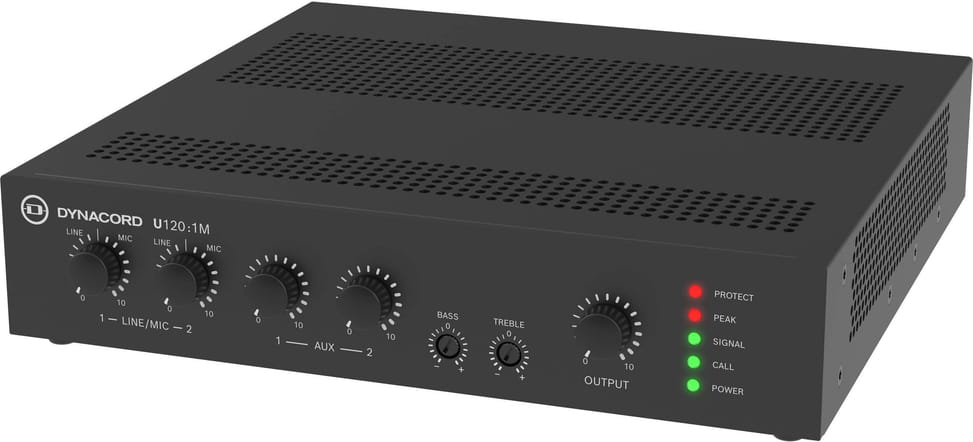

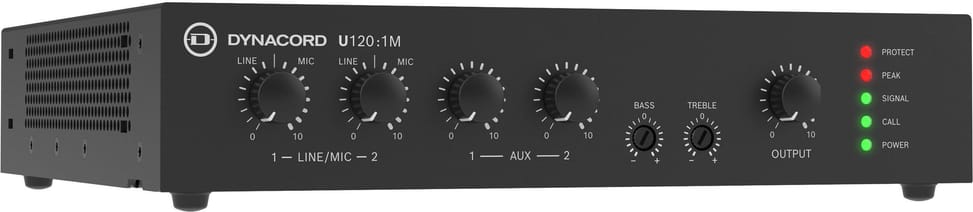

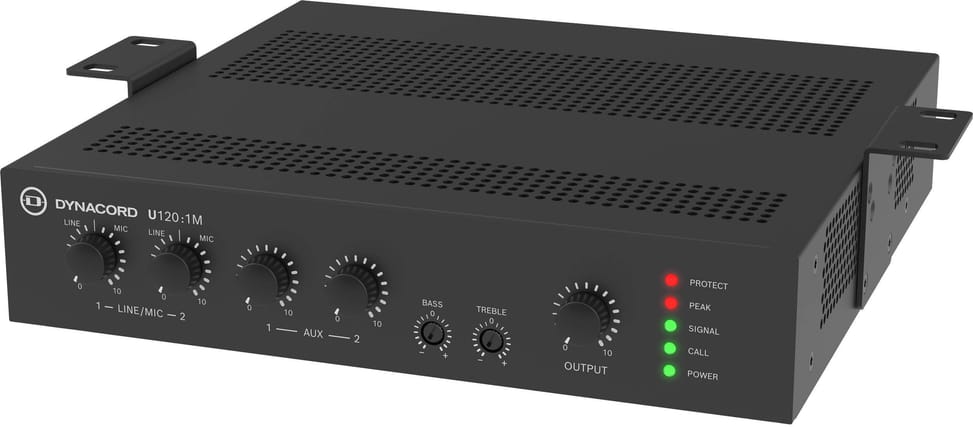

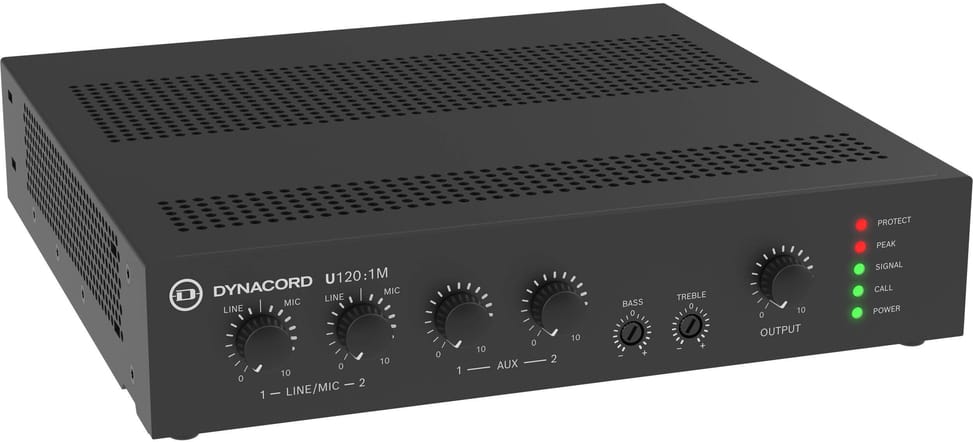

Bosch Mixer Amplifier 1 channel 19'' 120W (U120:1M-EU)
Two units fit side by side in a single rack height thanks to the half-rack format. Four inputs, two of them microphone with phantom power, VOX ducking during announcements and a priority emergency input.

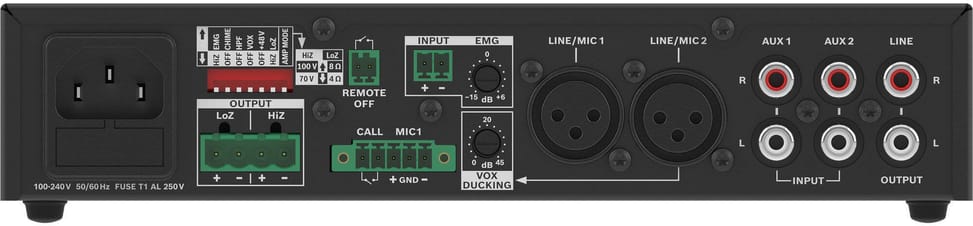

- 4 inputs: 2 XLR microphone/line and 2 RCA auxiliary
- Switchable 48 V phantom power
- Outputs 4 Ω, 8 Ω, 70 V and 100 V
- Priority input for emergency messages
- VOX ducking during announcements
- Priority contact for a call station with a two-tone chime
- Switchable 120 Hz high-pass filter
- Frequency response from 20 Hz to 20 kHz
- Class D amplification
- Four-speed fan
- Remote standby
- 1U half-rack chassis, 1.9 kg
Ref.: U120:1M-EU
4 879,00 DHincl. VAT
Out of stock
Manufacturer's datasheetView the PDF · 2,6 Mo — downloadable
Product overview
Power, reliability and flexibility combined in a single unit. The Bosch 1 channel 19'' 120W mixer amplifier is designed to deliver optimal sound quality in small to medium-sized installations. With 4 versatile inputs, including 2 mic/line inputs with phantom power, it offers connectivity suited to a variety of needs. Its compatibility with 4Ω, 8Ω, 70 V and 100 V makes integration into different systems simple. With VOX Ducking, background music adjusts automatically for clear voice announcements. Compact and energy-efficient, it is an ideal choice for restaurants, schools, shops and conference centres.
Request a quoteShare:
Technical specifications
| Dimensions (W x D x H) | 218 x 217.7 x 44.2 mm |
|---|---|
| Video resolution | None (device has no camera) |
| Field of view | None (device has no camera) |
| Camera range | None (device has no camera) |
| Optical zoom | None (device has no camera) |
| Microphone frequency response | None (amplifier without microphone) |
| Audio power | 120 W (1 channel), 70 V, 100 V, 4 Ω and 8 Ω speakers |
| Digital zoom | None (device has no camera) |
| Camera sensor | None (device has no camera) |
| Auto framing | None (device has no camera) |
| Camera motorisation | None (device has no camera) |
| Wireless technology | None (wired device) |
| Microphone type | None (amplifier without microphone) |
| Microphone pickup range | None (amplifier without microphone) |
| Talk time | None (device is permanently powered) |
| Standby time | None (device is permanently powered) |
| Built-in display | None |
|---|---|
| Weight | 1.9 kg |
| Product colour | Traffic black (RAL 9017) |
| Power supply | Mains 100 to 240 V ±10%, 50/60 Hz |
| Mounting | Standalone, 19-inch rack, side-by-side rack, 19-inch half-rack, on or under a table |
| Product type | Mixer amplifier |
| Recommended room size | Small and medium-sized installations |
| Wireless range | None (wired device) |
| Driver size | None (amplifier without built-in speaker) |
| Audio processing | VOX attenuation, 120 Hz high-pass filter, bass and treble adjustment, limiter |
| Controls | Bass and treble adjustment, per-input level, remote power on and off |
| Operating mode | Standalone public address amplifier, remote power on and off |
| Audio bandwidth | 70 Hz to 18 kHz (-3 dB) |
| Connectivity | 4 inputs (2 auxiliary, 2 mic/line with phantom power), 100 V emergency input, 3-pin XLR and Eurostyle |
| Warranty | 1 year |
