Visit the Bosch store

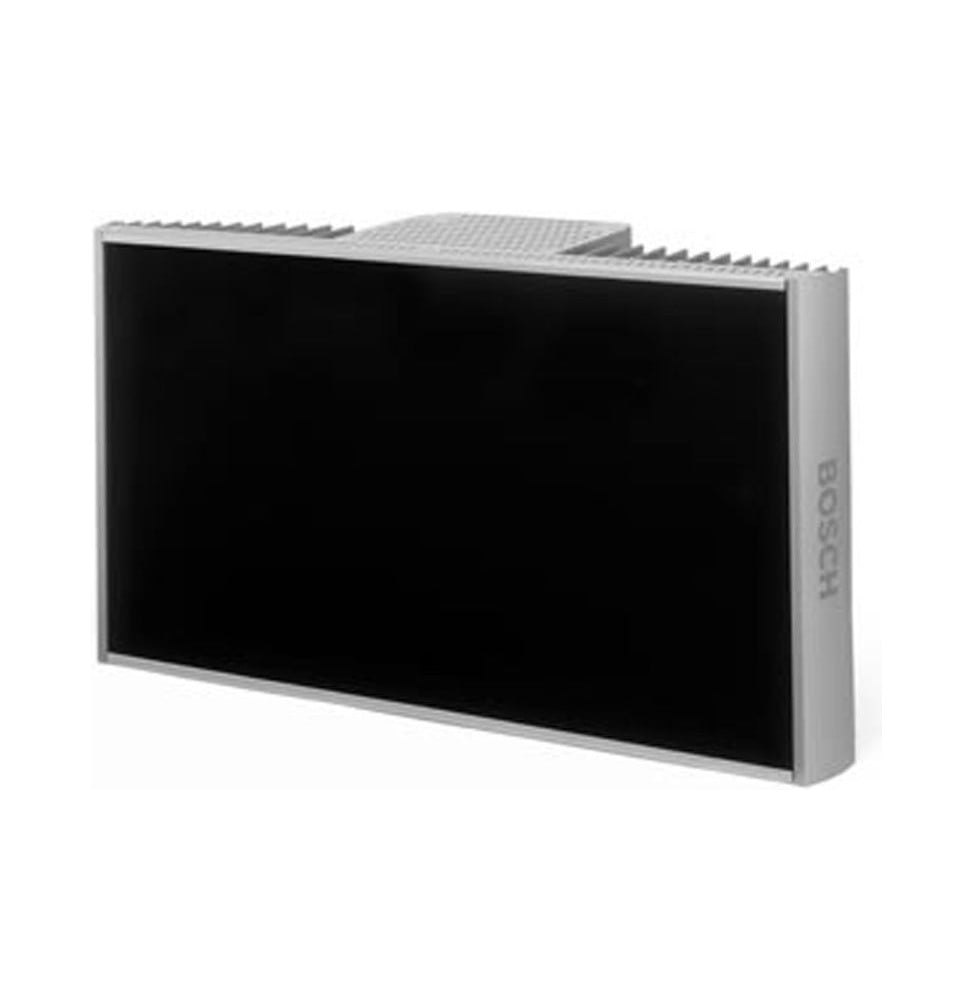

Bosch Integrus medium-power infrared radiator, up to 1,300 m² (LBB4511/00)
Bosch Integrus LBB4511/00 medium-power infrared radiator: it distributes the transmitter's interpretation channels over up to 1,300 m² (one carrier, 4 channels). 260 diodes, fanless cooling, ceiling bracket included.
- Up to 1,300 m² (1 carrier, 4 channels)
- 260 infrared diodes
- Fanless
- Loop-through BNC HF input/output
- Switchable half power
- Ceiling bracket included
- 100-240 V, 100 W
- 6.8 kg without bracket
Ref.: LBB4511/00
New
33 099,00 DHincl. VAT
Limited quantity
Earn 300 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
free
In stockReceive it between Mon 5 Oct and Wed 7 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Certified cheque
Product overview
Infrared radiator to distribute simultaneous interpretation in a small or medium conference room: up to 1,300 m², 260 infrared diodes and fanless cooling.
Coverage: 1,300 m² with one carrier of 4 channels in standard quality
Connection: BNC HF input and output to loop through up to 30 radiators on one output of the Integrus transmitter
Settings: switchable half power, cable delay compensation, automatic equalisation
Power: 100-240 V, 100 W operating, 8 W standby
Mounting: ceiling bracket and floor-stand plates included, angle adjustable from 0 to 90°
The medium-power radiator of the Integrus range; the LBB4512/00 doubles the covered area.
Request a quoteShare:
Description
Bosch Integrus · Reference LBB4511/00
Interpretation,
distributed by light.
The LBB4511/00 is the medium-power radiator of the Integrus system. It receives the language channels from the transmitter and distributes them in the room as infrared radiation, picked up by the participants' pocket receivers. It covers up to 1,300 m² with one carrier of four channels.
- 1,300 m²1 carrier, 4 channels
- 260infrared diodes
- 100 Win operation
- 6.8 kgwithout bracket
Silent above the delegates
The radiator has no fan: its fins cool it by simple convection, with no noise and no moving part to wear out. If its diodes get too hot, a protection circuit switches it to half power by itself. On the ceiling, Bosch asks for at least one cubic metre of free space behind it so that air can circulate.
Looped through on a single cable
At the rear, two BNC sockets receive the high-frequency signal from the transmitter and pass it on to the next radiator: up to thirty radiators can follow one another on one transmitter output. Cable termination and line-loss equalisation are automatic. Two ten-position switches compensate for cable length differences between radiators, and a third halves the emission when the room is small. The radiator switches on and goes to standby together with the transmitter.
Rear of an Integrus radiator: safety eye (1), mains socket (4), BNC input and output (5), half power (6), delay compensation (7).On the ceiling, on a stand or on the wall
The supplied suspension bracket fixes the radiator directly to the ceiling; its angle adjusts from 0 to 90° in 15° steps to aim at the listening area. Plates with M10 and 1/2 inch Whitworth threads, also supplied, fit it to most floor stands, at 0, 15 or 30°, with a mounting height of at least 1.80 m. For the wall, the LBB3414/00 wall bracket is needed. A safety eye takes a safety sling.
- Optical peak intensity
- 12 W/sr
- Angle of half intensity
- ±22°
- HF input
- 1 Vpp nominal
- Standby
- 8 W
- Weight with bracket
- 7.6 kg
The radiator only works with an Integrus transmitter, connected by coaxial cable to its BNC sockets. For a larger room, the LBB4512/00 doubles the covered area.
The Integrus INT-TXO transmitter drives the radiator, and the LBB4550/10 battery equips the receivers. The rest of the system is in the video conferencing section and on the Bosch page.
Values taken from the Bosch LBB4511/00 data sheet and the INTEGRUS system manual.
Technical specifications
| Dimensions (W x D x H) | 500 × 175 × 200 mm (without bracket) |
|---|---|
| Features | Convection cooling, no fan; thermal protection that switches to half power; diodes protected by a cover plate; safety eye |
| Standby power consumption | 8 W |
| Wireless technology | Infrared distribution: 260 infrared emitting diodes (IRED), total optical peak intensity 12 W/sr, angle of half intensity ±22° |
| Power consumption | 100 W in operation |
| Standards | Safety EN 60065; EMC EN 55032 and EN 55035 (class A); RoHS; CE marking |
| Box contents | LBB4511/00 radiator, mains cable, ceiling mounting bracket, floor-stand mounting plates |
| Weight | 6.8 kg without bracket, 7.6 kg with bracket |
| Power supply | Mains 100-240 V AC, 50-60 Hz, automatic voltage selection |
| Status indicators | 2 yellow LEDs (transmitting) and 2 red LEDs (standby, panel failure, thermal protection) |
| Mounting | Suspension bracket supplied (ceiling); floor-stand plates with M10 and 1/2" Whitworth thread; optional LBB3414/00 wall bracket; angle 0 to 90° (wall, ceiling) or 0, 15 and 30° (floor stand) |
| Operating temperature | 5 °C to 35 °C |
|---|---|
| Operating humidity | 15 % to 90 % |
| Product type | Infrared interpretation radiator, medium power |
| Recommended room size | Small and medium conference rooms, up to 1,300 m² on one carrier and 4 channels |
| Wireless range | Up to 1,300 m² coverage (one carrier, 4 standard-quality channels) |
| Audio processing | Automatic gain control of the diodes, automatic cable equalisation and termination |
| Controls | Half-power reduction switch; two 10-position delay compensation switches |
| Operating mode | Radiator connected to an Integrus transmitter; switches on and to standby with the transmitter |
| Compatible products | Transmitter of the Bosch Integrus infrared interpretation system (INT-TXO); up to 30 radiators looped through per HF output |
| Connectivity | HF input and output on 2 BNC (loop-through to other radiators); male Euro mains socket |
| Warranty | 1 year |
Specific references
| MPN | LBB4511/00 |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
What area does the LBB4511/00 radiator cover?
Up to 1,300 m² with one carrier carrying 4 standard-quality channels. Coverage decreases when the transmitter spreads its channels over several carriers, and it also depends on the mounting height and angle. For a larger room, several radiators are looped through on the same transmitter output, or the high-power LBB4512/00 model is chosen.
What is the difference between the LBB4511/00 and the LBB4512/00?
Power. The LBB4511/00 carries 260 diodes for 12 W/sr of peak intensity and covers up to 1,300 m²; the LBB4512/00 carries 480, covers twice the area and draws 180 W instead of 100 W. The LBB4511/00 is also lower (200 mm instead of 300) and lighter. It targets small and medium rooms.
How does the radiator connect to the transmitter?
By coaxial cable on its BNC sockets: one input coming from the Integrus transmitter, one output to loop through to the next radiator, up to 30 radiators per HF output. Cable termination is automatic, as is the equalisation of line losses. Two switches compensate for differences in cable length between the radiators of the same room.
How is it mounted on the ceiling, on a wall or on a floor stand?
The supplied suspension bracket allows direct ceiling mounting, with an angle adjustable from 0 to 90° in 15° steps. The supplied plates, threaded M10 and 1/2 inch Whitworth, fit most floor stands (0, 15 or 30°). Wall mounting requires the LBB3414/00 bracket, sold separately. A safety eye takes a safety sling.
Does the radiator make noise when operating?
No, it has no fan: it is cooled by convection. If its diodes get too hot, it switches to half power by itself. Air must therefore circulate around it, with at least 1 m³ of free space behind it when ceiling-mounted. It switches on and goes to standby automatically with the transmitter.
