TP-Link LS105LP 5-Port 10/100 Mbps Desktop Switch with 4 PoE+ Ports

A single network cable carries data and power to four cameras, Wi-Fi access points or IP phones. Plug it in and it works: no setup, no fan, and an Extend mode that carries PoE up to 250 m.

  • 4 PoE+ ports up to 30 W each
  • 41 W total PoE budget
  • Extend mode: 250 m (ports at 10 Mbps)
  • Automatic restart of frozen PoE devices
  • Plug-and-play, no setup
  • Fanless, silent
  • Desktop or wall mounting
  • 100 × 98 × 25 mm metal casing
Ref.: LS105LP
New

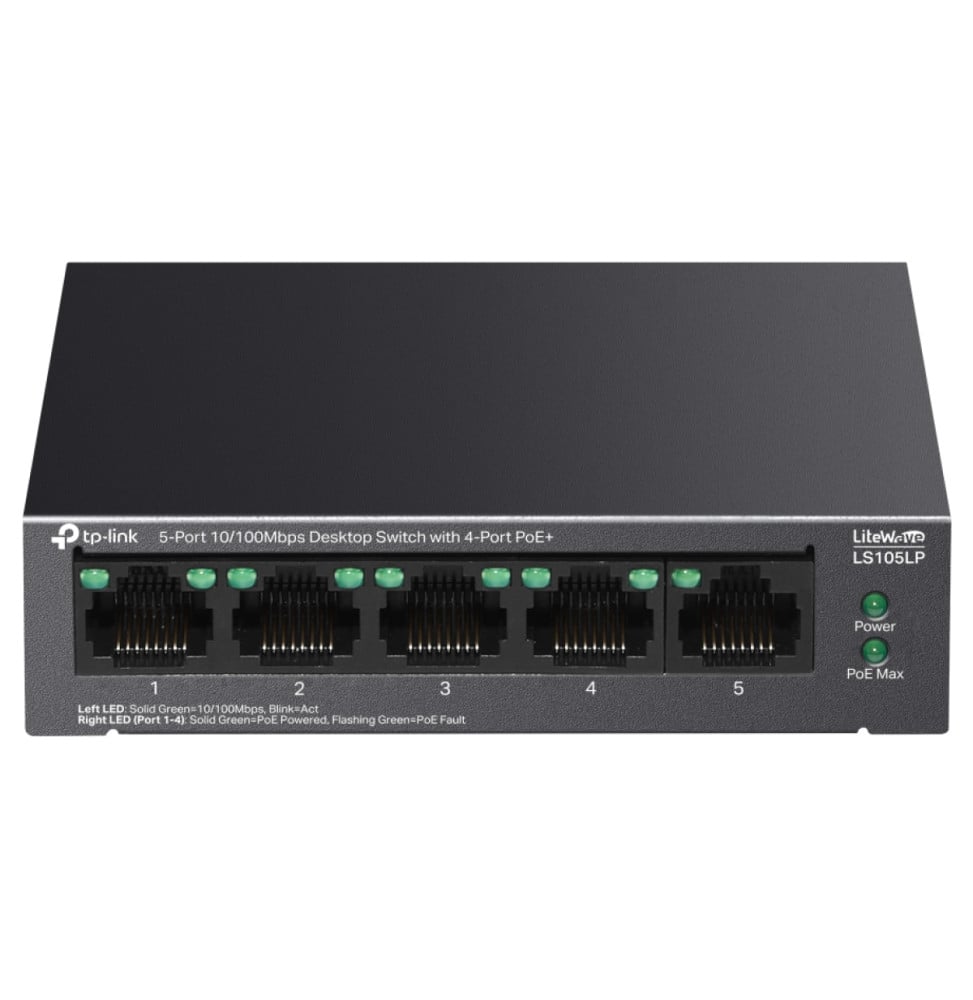

TP-Link LS105LP 5-Port 10/100 Mbps Desktop Switch with 4 PoE+ Ports — image 1

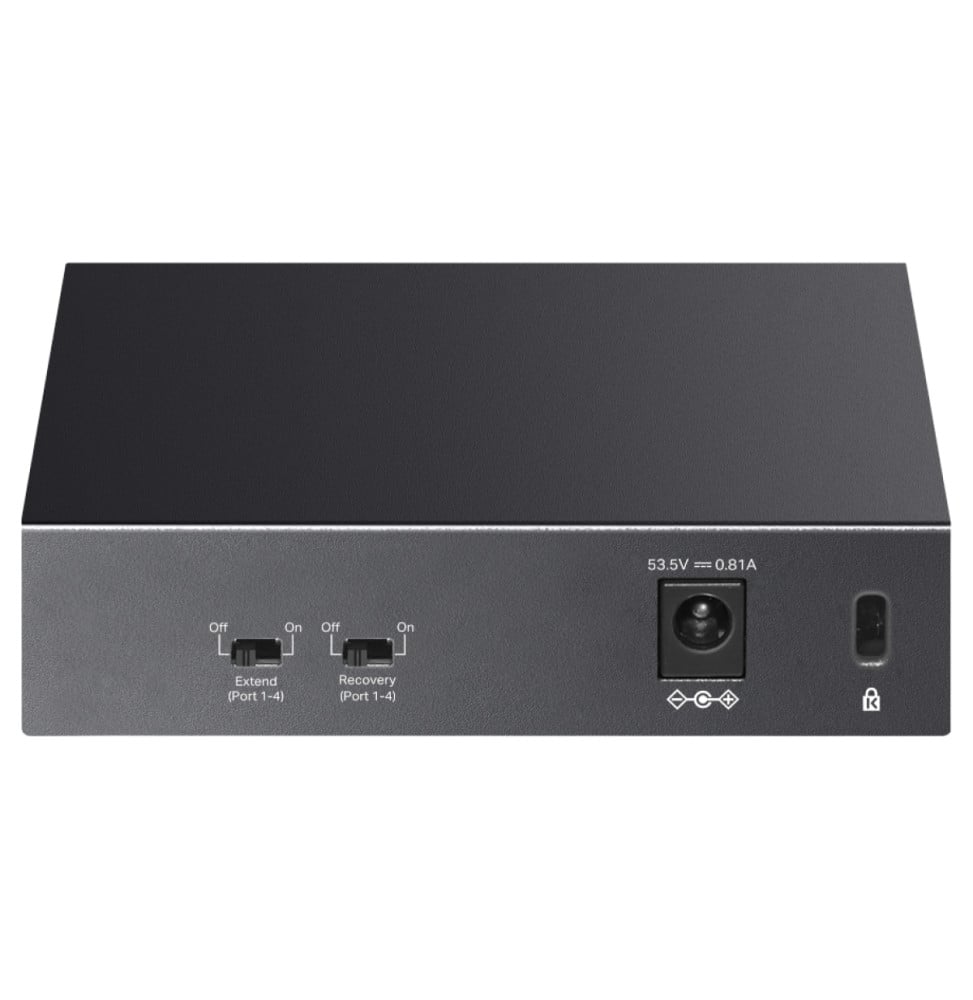

TP-Link LS105LP 5-Port 10/100 Mbps Desktop Switch with 4 PoE+ Ports — image 2

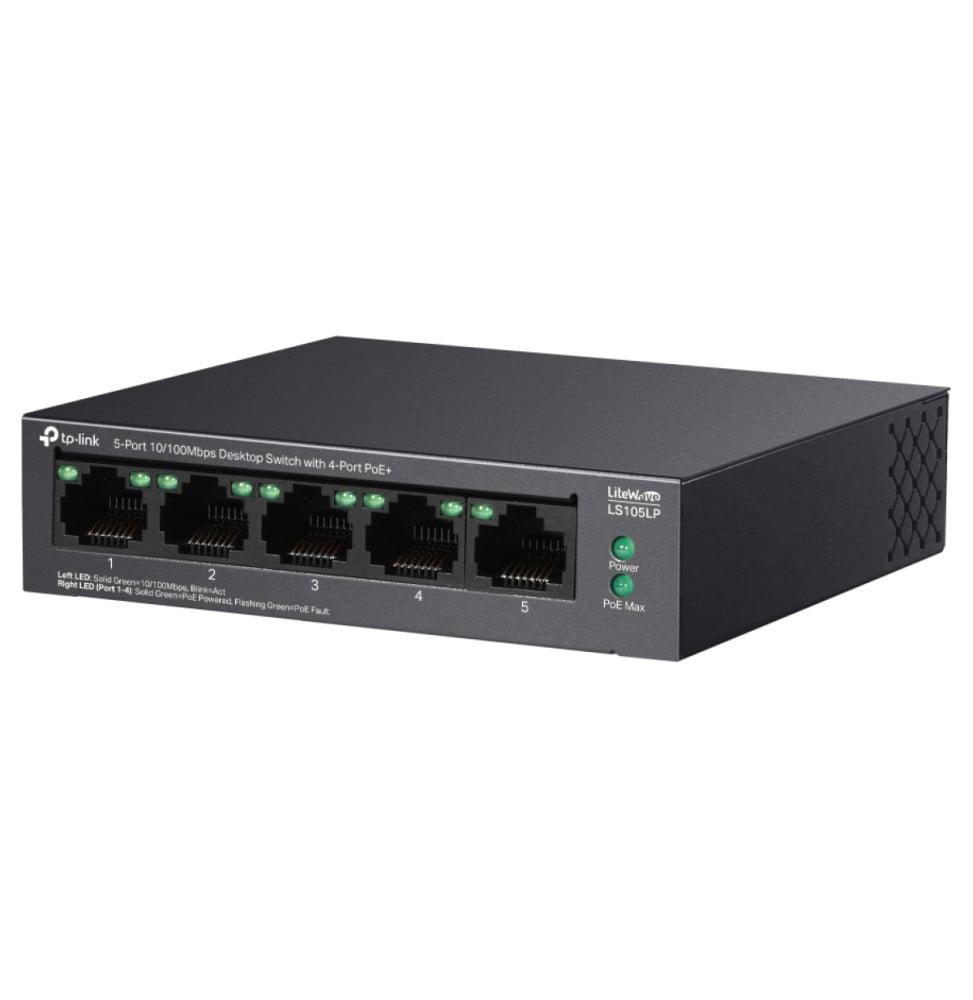

TP-Link LS105LP 5-Port 10/100 Mbps Desktop Switch with 4 PoE+ Ports — image 3

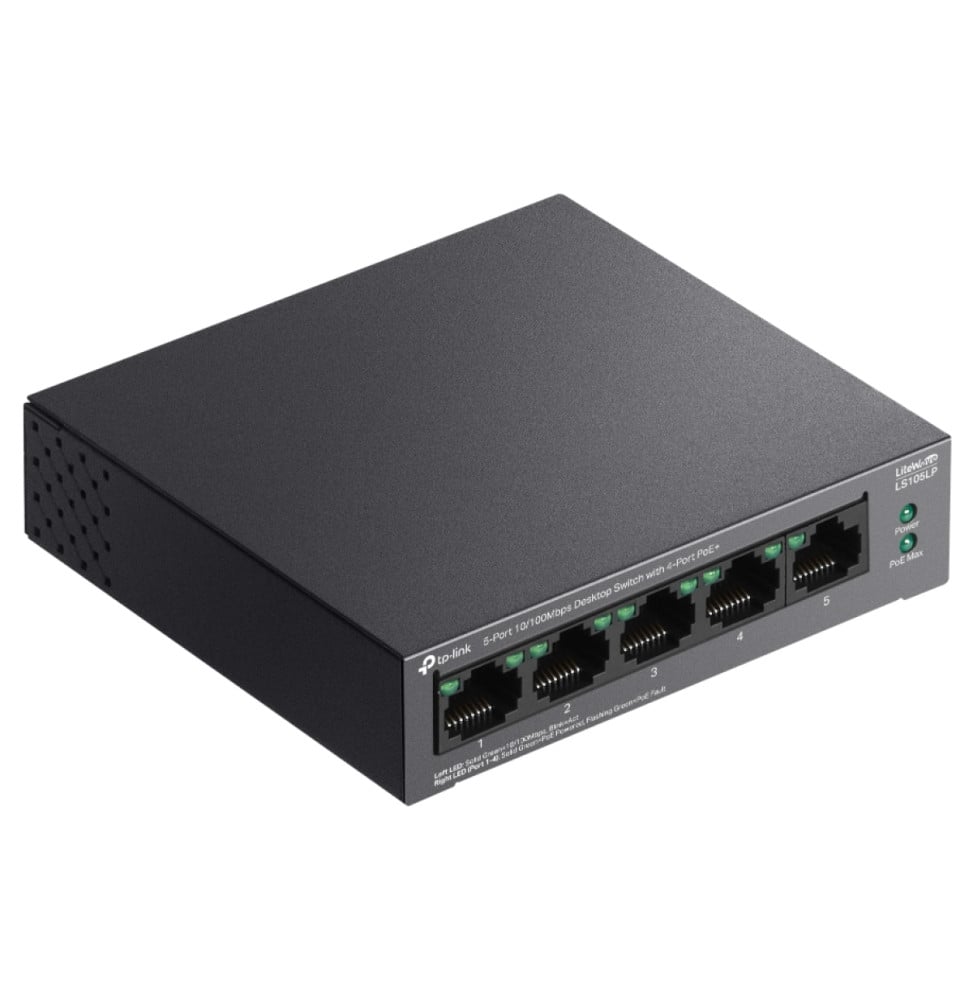

TP-Link LS105LP 5-Port 10/100 Mbps Desktop Switch with 4 PoE+ Ports — image 4

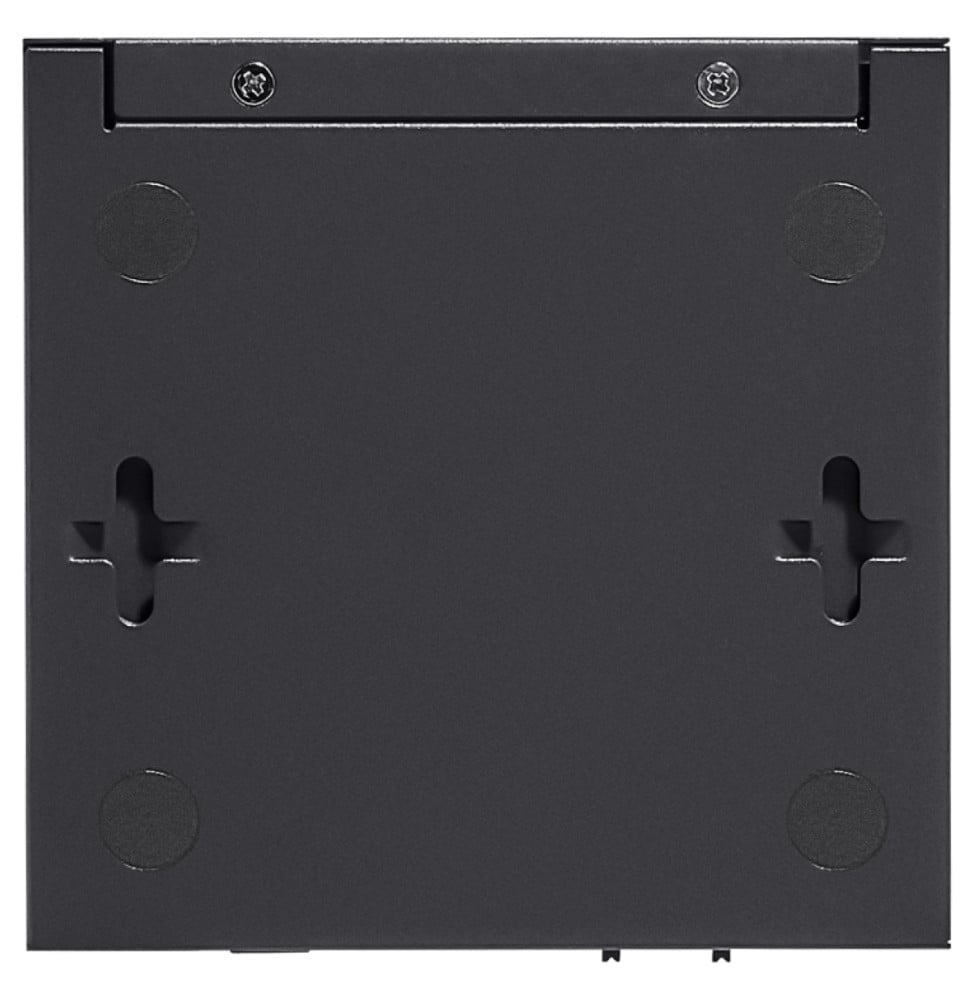

TP-Link LS105LP 5-Port 10/100 Mbps Desktop Switch with 4 PoE+ Ports — image 5
TP-Link LS105LP 5-Port 10/100 Mbps Desktop Switch with 4 PoE+ Ports — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6
240,00 DHincl. VAT

In stock

Quantity
Order on WhatsAppOn WhatsAppQuick reply

Earn 3 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

3 ways to get it

In-store collection — free

Casablanca store
Available within 24 h
We bring it there and call you when it arrives

Manoir des Roses Residence, Lot 18, El Hachmi El Filali Boulevard, Bachkou Roundabout, Casablanca

Opening hours

  • Mon–Fri: 10am – 7pm
  • Sat: 10am – 2pm
  • Closed on Sundays and public holidays

Payment on site: cash, bank card via terminal, certified cheque.

View the map on Google Maps

Témara pickup point
Available within 48 h
We bring it there and call you when it arrives

Hassan II Boulevard, Les Perles de Témara Residence, Building 5, Apartment 2, Témara

Opening hours

  • Mon–Thu: 8.30am – 6pm
  • Fri: 8.30am – 1.30pm / 2.30pm – 6pm
  • Sat: 8.30am – 12.30pm
  • Closed on Sundays and public holidays

Payment on site: cash, bank card via terminal, certified cheque.

View the map on Google Maps

Delivery anywhere in Morocco

40 DH incl. VAT

In stockReceive it between Fri 9 Oct and Mon 12 Oct ·

Delivery to your address

Receive it between Fri 9 Oct and Mon 12 Oct — delivery 40 DH incl. VAT all over Morocco

The estimate is refined using actual delivery rounds to your city.

  • Free delivery from 3 000 DH of purchases, all over Morocco.
  • Below that, the same rate in every city for parcels up to 30 kg (delivery to your home or workplace) — the exact amount is shown above, then in the basket.
  • Above 30 kg, the rate follows the parcel's weight. In Casablanca, the flat rate holds up to 120 kg.
  • You are notified by SMS, then called by the courier before your parcel is handed over (delivered by Sapress).
  • Observed delivery time: 1 to 5 working days depending on the city.

Casablanca store

Free pickup

Available within 24 hWe bring it there and call you when it arrives

Témara pickup point

Free pickup

Available within 48 hWe bring it there and call you when it arrives

1 year warranty — free repair in Morocco if it breaks down during the warranty period

1 year manufacturer's warranty

This product is covered for 1 year by a manufacturer's warranty (the brand's official warranty). Your iris.ma invoice serves as the warranty document: keep it safe.

A problem with your product? Don't worry: contact us by phone, WhatsApp or e-mail. Depending on the brand, we direct you either straight to the repairer appointed by the brand to fix your product, or to us — and we take care of the rest.

  • If a repair is possible, it is carried out free of charge.
  • If the product cannot be repaired, the brand offers an exchange for another product.
  • If no product is available, a refund is issued as soon as the brand confirms it.

Faulty straight out of the box? Some brands offer an immediate exchange, others a repair. Contact us to find out what applies to your product.

The warranty covers breakdowns occurring under normal use, as defined by the brand's terms. Product breakage (drop, impact, liquid…) is not covered, nor are certain consumable parts.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

New, never opened — our commitment

All our products are new, delivered in their sealed original packaging.

We commit to never sending you a product that has been opened, unboxed or returned by another customer — even one “just opened for checking”.

Any doubt on delivery (damaged box, seal already opened)? Point it out to the courier or contact us immediately: we take the product back and send you another one.

Sales invoice

Every order comes with its sales invoice, included with the parcel (handed over in person for a store collection).

Ordering for a company? Using the details you give at checkout (company name and ICE), the invoice is issued in your company's name, with its ICE.

Need a quote? Request a free quote — reply within 24 working hours.

100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque

Accepted payment methods

Bank transfer

Simply transfer the amount shown to account 007 826 0002684000000426 89 — SGM2I, Attijariwafa bank. The rest (the reference to quote, sending us the proof, tracking) is explained right after confirmation and by email. An instant transfer is recommended: it saves you 24 hours on the delivery time.

Bank card

Your everyday Moroccan bank card is enough — Visa, Mastercard or CMI, no special card required. Foreign cards are accepted too. Secure payment by Attijari Payment.

Cash on delivery

Pay the courier in cash on delivery — no fee.

Certified cheque

Certified cheque payable to “sgm2i”. Have your bank certify the cheque, then send us a copy on WhatsApp (+212 6 64 10 46 24) or to service.client@iris.ma — we dispatch as soon as we receive it.

Cash at a bank branch

Pay the cash in at any of the 3,400 Attijariwafa Bank branches in Morocco, to the SGM2I account no. 0268 D 000 000 426. You do not need an account there: your ID and the cash are enough.

The methods offered depend on the order total and the carrier — checkout shows the final list.

Google reviews4.6(569 reviews)
Manufacturer's datasheetView the PDF · 3,0 Mo — downloadable

Product overview

5-port desktop switch with 4 PoE+ ports TP-Link LS105LP: power and connect IP cameras, Wi-Fi access points or IP phones over a single cable.
Ports: 5 RJ45 ports at 10/100 Mbps, including 4 PoE+ ports (ports 1 to 4).
PoE: up to 30 W per port, total budget of 41 W, automatic restart of frozen devices (PoE Auto Recovery).
Long range: Extend mode to carry data and power up to 250 m.
Installation: plug-and-play, no setup; fanless, therefore silent; on a desk or on the wall.
Format: compact 100 × 98 × 25 mm casing, external power adapter included.
The simplest way to power a few cameras or an access point without a power socket nearby.

See all the specifications ↓
Request a quote

Be notified of a price drop

Share:

Technical specifications

Technical specifications
MAC table size2 000 entrées
Number of VLANsAucun
Interfaces5 ports RJ45 10/100 Mbit/s dont 4 PoE+ (ports 1 à 4), auto-négociation, Auto MDI/MDIX
PoE ports4 ports PoE+ (802.3at), jusqu'à 30 W par port
Total PoE budget41 W
Network standardsIEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3af, 802.3at
Switching capacity1 Gbit/s
Forwarding rate0,744 Mpps
Management modesAucun (prêt à l'emploi)
Cloud management platformAucune
Layer 2 featuresContrôle de flux 802.3x, mode Extend jusqu'à 250 m (ports 1 à 4), PoE Auto Recovery, apprentissage automatique des adresses MAC, trames jumbo 2 Ko
IP routingAucun
Power consumption46,45 W maximum avec 41 W de charge PoE, 2,40 W sans appareil alimenté (220 V)
Dimensions (W x D x H)100 x 98 x 25 mm
Technical specifications (continued)
Package contentsSwitch LS105LP, adaptateur secteur, guide d'installation
Number of ports5 ports or fewer
ManagedNo
Security featuresAucune
Power supplyAdaptateur secteur externe 53,5 V CC, 0,81 A
Cooling systemSans ventilateur
Operating temperature0 à 40 °C
PoE powerYes
Port speed100 Mbps (Fast Ethernet)
PoE standardPoE+ (802.3at, up to 30 W/port)
PoE budgetUp to 65 W
Fibre slots (SFP)No
MountingDesktop
Warranty1 year
