Visit the Aruba store
Aruba Instant On 1430 24G Switch (R8R49A)
Silent plug-and-play switch, ready to extend a wired network in an open space or a training room with no configuration and no technical skills.
- Unmanaged: plug-and-play operation, no configuration needed
- Fanless operation, complete silence
- Switching capacity 48 Gbps, throughput 35.71 Mpps
- Automatic QoS for voice and video, with no setting to adjust
- Auto-negotiation and Auto MDI/MDI-X on every port
- 19-inch rack mounting (kit included), wall or desk placement
- Energy savings (Energy Efficient Ethernet, IEEE 802.3az)
Ref.: R8R49A
3 490,00 DHincl. VAT
Configuration · Aruba Instant On 1430
- 5 × RJ45
- 8 × RJ45
- 8 × RJ45 PoE+ 64 W
- 16 × RJ45
- 16 × RJ45 PoE+ 124 W
- Configuration shown: 24 × RJ45
- 26 × RJ45 2 × SFP
In stock
Earn 35 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
3 years warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview

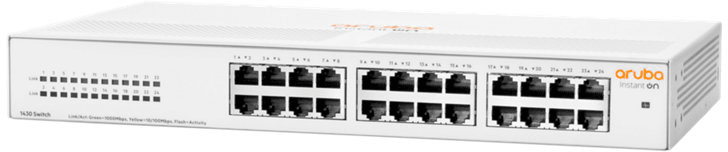

Unmanaged Aruba Instant On 1430 24-port Gigabit switch — a quiet plug-and-play solution for open-plan offices and meeting rooms, with no network configuration.
Connectivity: 24 10/100/1000BASE-T RJ45 ports — no SFP port — fanless design for completely silent operation.
No PoE: connected devices use their own power supply; ideal for workstations, printers and network peripherals.
Performance: 48 Gbps non-blocking switching capacity, 35.71 Mpps forwarding rate, 8,192-entry MAC table; automatic QoS for voice and video with no manual configuration.
Plug-and-play: no management interface — up and running as soon as it is plugged in, with no network training and no account to create.
19" rack mounting (kit included), flat surface or wall mounting.
Ideal for SMEs, micro-businesses, training rooms and open-plan spaces where noise is a concern.
Request a quoteShare:
Technical specifications
| MAC table size | 8,192 entries |
|---|---|
| Number of VLANs | None |
| Internal memory | 128 Kbit EEPROM |
| Interfaces | 24 autosensing 10/100/1000 RJ-45 ports |
| PoE ports | None |
| Total PoE budget | None |
| Network standards | IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX), 802.3ab (1000BASE-T), 802.3az (Energy Efficient Ethernet) |
| Switching capacity | 48 Gbps |
| Forwarding rate | 35.71 Mpps |
| Packet buffer | 2 MB |
| Management modes | None (plug-and-play) |
| Cloud management platform | None |
| Layer 2 features | Jumbo frames up to 9,216 bytes, flow control, Energy Efficient Ethernet 802.3az |
| IP routing | None |
| Quality of service (QoS) | DSCP or IEEE 802.1p prioritisation |
| Power consumption | 11.7 W maximum, 3.2 W idle |
| Weight | 1.91 kg |
|---|---|
| Dimensions (W x D x H) | 340 x 225 x 44 mm |
| Package contents | 2-post rack mounting kit included, mounting brackets supplied |
| Latency | 100 Mbps: < 2.7 µs · 1 Gbps: < 1.80 µs |
| Number of ports | 19 to 28 ports |
| Managed | No |
| Security features | None |
| Power supply | Internal power supply 100-127 V AC / 200-240 V AC, 50/60 Hz, 0.3 A/0.2 A |
| Cooling system | Fanless |
| Operating temperature | 0 to 40 °C |
| PoE power | No |
| Port speed | 1 Gbps (Gigabit) |
| Fibre slots (SFP) | No |
| Mounting | 19-inch rack-mountable |
| Warranty | 3 years |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Can it be controlled from the Aruba Instant On app?
No. Despite the range name, the 1430 is an unmanaged switch: no management interface, no account to create, and it is not managed by the Instant On console. You plug it in and it works, with no settings to adjust — and none possible.
Does this model power cameras or Wi-Fi access points over PoE?
No, the 1430 24G has no PoE: every connected device needs its own power supply, and therefore a mains outlet nearby. In the 1430 series, only the 8-port (64 W) and 16-port (124 W) models deliver Class 4 PoE, up to 30 W per port.
Are there SFP fibre ports to link two buildings?
No, all 24 ports are copper RJ45 10/100/1000, with automatic speed negotiation. In the series, it is the 26-port model (R8R50A) that includes 2 SFP 1 Gbps ports, intended for long-distance fibre links via transceivers.
Does this switch need an external power adapter?
No, this model has an internal power supply: a simple mains cable is enough, at 100-127 V or 200-240 V, 50/60 Hz. The 5- and 8-port models in the series, on the other hand, use an external adapter that has to be tucked away behind the furniture.
How much power does it draw if left on permanently?
Very little: 11.7 W maximum and 3.2 W at idle. It complies with Energy Efficient Ethernet (802.3az), which reduces power during periods of low activity. On equipment running 24/7, the difference from a more power-hungry switch shows on the annual electricity bill.
Is it noisy in an office or meeting room?
No, it is completely fanless: no mechanical noise, which means it can sit in the open in a meeting room or open-plan office. It is designed to operate from 0 to 40 °C, at 15 to 95% non-condensing humidity, and up to 3,000 m altitude.
Can it be mounted in a 19-inch rack?
Yes: the 19-inch rack-mount kit is included and the chassis is 44 mm high, i.e. 1U, 340 mm wide and 225 mm deep, weighing 1.91 kg. Horizontal placement on furniture and wall mounting are also supported.
Is it suitable for a home installation?
It is certified Class A (EN 55032 / CISPR 32 and FCC Part 15), the category for equipment intended for business environments. In the 1430 series, only the 5- and 8-port models are certified Class B, the class that explicitly targets home office networks.
Do you need crossover network cables to daisy-chain two switches?
No. All 10/100/1000 ports support auto MDI/MDI-X: the switch detects on its own whether it is dealing with a straight-through or crossover cable and adapts the pinout. The ports accept half or full duplex at 10/100 Mbps, and full duplex only at 1 Gbps.
Does it prioritise voice and video conferencing without configuration?
Yes, automatically. QoS classifies delay-sensitive packets (VoIP, video) according to DSCP or IEEE 802.1p markings, and flow control prevents packet loss on a congested port. End-to-end priority applies to wired voice as well as to Instant On Wi-Fi.
Does it pass through the 802.1x and Spanning Tree traffic of my existing network?
Yes. 802.1x EAPoL frames pass through the switch, allowing workstations to authenticate with a device located upstream, and Spanning Tree BPDU frames are relayed so that loop prevention keeps working across the entire topology.
Can it handle heavy transfers to a NAS?
Its switching capacity reaches 48 Gbps at 35.71 Mpps, i.e. non-blocking across all 24 ports, with latency below 1.80 µs at Gigabit. It supports jumbo frames up to 9,216 bytes, valuable for large files and overnight backups.
How many devices can it handle, and is it built to last?
Its MAC address table holds 8,192 entries, far beyond what an SME connects to 24 ports. The stated MTBF is 199.5 years and compliance covers the EN/IEC 62368-1, UL 62368-1 and EN/IEC 60950-1 safety standards.
Is the Aruba 1430 24G switch new, and how long is the warranty?
Yes, new and sealed in its original packaging, supplied with its invoice, which serves as the warranty document for 3 years. Details of throughput, power consumption and safety standards are in the manufacturer's datasheet (PDF).
