Aruba Instant On 1430 8G Class4 PoE 64W Switch (R8R46A)
Compact plug-and-play switch that powers up to eight IP devices over Power over Ethernet in an office, a meeting room or a small shop, with no network configuration.
- Unmanaged: plug-and-play operation, no configuration to plan
- All 8 ports deliver up to 30 W each (IEEE 802.3af/at, class 4)
- Dynamic PoE power sharing between the connected devices
- Fanless operation, completely silent
- 16 Gbps switching capacity, 11.9 Mpps forwarding rate
- Auto-negotiation and Auto MDI/MDI-X on every port
- Compact desktop format
Ref.: R8R46A
2 479,00 DHincl. VAT
Configuration · Aruba Instant On 1430
- 5 × RJ45
- 8 × RJ45
- Configuration shown: 8 × RJ45 PoE+ 64 W
- 16 × RJ45
- 16 × RJ45 PoE+ 124 W
- 24 × RJ45
- 26 × RJ45 2 × SFP
In stock
Earn 25 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 370 DH by card or bank transfer) · Certified cheque
Product overview
The Aruba Instant On 1430 8G PoE 64W is a compact, fully PoE+ plug-and-play switch to power and connect up to eight IP devices in an office, meeting room or small shop, with no network configuration at all.
8 Gigabit RJ45 ports, all able to deliver Class 4 PoE power: each port supplies up to 30 W (IEEE 802.3af/at), for a total budget of 64 W managed automatically according to the needs of connected devices.
Unmanaged (Plug & Play): plug in and use straight away, with no management interface and no IT team needed.
Silent, fanless operation, suited to noise-sensitive open-plan workspaces.
16 Gbps switching capacity, 11.9 Mpps forwarding rate, 8,192-entry MAC table, 90 W maximum power consumption. Ref. R8R46A.
Request a quoteShare:
Technical specifications
| MAC table size | 8,192 entries |
|---|---|
| Number of VLANs | None |
| Internal memory | 128 Kbit EEPROM |
| Interfaces | 8 Class 4 PoE autosensing 10/100/1000 RJ-45 ports |
| PoE ports | 8 Class 4 PoE ports (802.3af/at), up to 30 W per port |
| Total PoE budget | 64 W |
| Network standards | IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX), 802.3ab (1000BASE-T), 802.3az (Energy Efficient Ethernet), 802.3af, 802.3at |
| Switching capacity | 16 Gbps |
| Forwarding rate | 11.90 Mpps |
| Packet buffer | 2 MB |
| Management modes | None (plug-and-play) |
| Cloud management platform | None |
| Layer 2 features | Jumbo frames up to 9,216 bytes, flow control, Energy Efficient Ethernet 802.3az |
| IP routing | None |
| Quality of service (QoS) | DSCP or IEEE 802.1p prioritisation |
| Power consumption | 90 W maximum, 4.1 W idle |
| Weight | 0.77 kg |
| Dimensions (W x D x H) | 177 x 150 x 37 mm |
|---|---|
| Package contents | 2-post rack mounting kit included, mounting brackets supplied |
| Latency | 100 Mbps: < 2.7 µs · 1 Gbps: < 1.80 µs |
| Number of ports | 6 to 10 ports |
| Managed | No |
| Security features | None |
| Power supply | External AC adapter 100-240 V AC, 50/60 Hz, 2 A (output 54 V DC, 1.58 A) |
| Cooling system | Fanless |
| Operating temperature | 0 to 40 °C |
| PoE power | Yes |
| Port speed | 1 Gbps (Gigabit) |
| PoE standard | PoE+ (802.3at, up to 30 W/port) |
| PoE budget | Up to 65 W |
| Fibre slots (SFP) | No |
| Mounting | Desktop |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How many devices can the 64 W of PoE power?
Two 30 W devices, or four 15 W cameras: the 64 W is shared between the Class 4 PoE ports of this 8-port model. 15.4 W 802.3af devices are supported in the same way. The budget, not the number of ports, sets the limit.
Can this PoE switch be configured?
No: the 1430 is an unmanaged switch, with no management interface. No VLANs, no monitoring, no port settings: it powers devices and switches traffic as soon as it is plugged in. That is the series' deliberate choice — simplicity in exchange for no control.
How is this 8-port PoE model powered?
By an external adapter rated 54 V at 1.58 A: make sure there is a power outlet nearby and room for the power brick. Power consumption reaches 90 W at full PoE load and drops to 4.1 W at idle.
Does a PoE switch of this size make any noise?
No, none: the entire 1430 series is fanless, PoE models included. The unit measures 177 × 150 × 37 mm, weighs 770 grams and can sit on a desk or in a small cabinet without any noise.
Do 802.1X authentication frames pass through this switch?
Yes: 802.1X EAPOL frames are forwarded, so a computer connected behind it can authenticate with the managed switch upstream. BPDU frames also pass through, which lets spanning tree do its job above it.
Are voice and video prioritised without any configuration?
Yes. Quality of service recognises packets tagged with DSCP or IEEE 802.1p and sends them ahead of the rest of the traffic. Flow control, meanwhile, limits packet loss when a network node is congested.
What internal performance does this 8-port PoE model offer?
16 Gbps of switching capacity and 11.90 Mpps, with an 8,192-entry MAC address table, a 2 MB buffer and latency below 1.80 µs at Gigabit speed. Jumbo frames go up to 9,216 bytes to speed up large transfers.
In what conditions can this switch operate?
From 0 to 40 °C, at 15 to 95% non-condensing humidity, and at altitudes of up to 3 km. The IEEE 802.3az standard reduces power consumption during periods of low activity, which limits heat build-up in a closed cabinet.
Is the switch new and covered by a warranty?

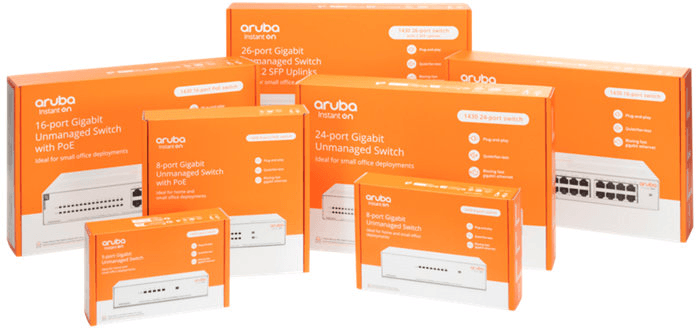

Yes, new equipment, with the invoice serving as the warranty document. The manufacturer's document details the seven models in the 1430 series and their respective PoE budgets: datasheet (PDF).
