Visit the Grandstream store

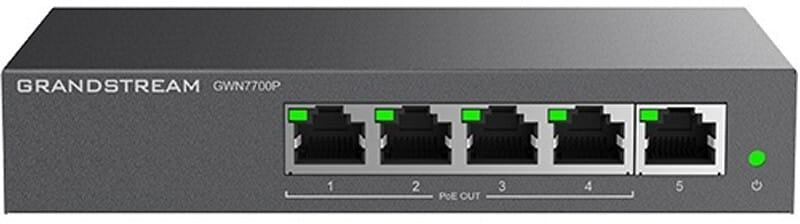

Grandstream GWN7700P Unmanaged Switch
5 Gigabit ports, 4 of them PoE+ powered, to connect IP cameras or Wi-Fi access points without an electrician, the 5th port handling the uplink — with no configuration at all.
- 5 Gigabit 10/100/1000 Mbps ports
- 4 PoE+ ports (802.3af/at), total budget 60 W, up to 30 W per port
- Plug-and-play operation, no configuration required
- 10 Gbps switching capacity
- Compact metal casing 145 × 80 × 27 mm
- IGMP Snooping and IEEE 802.3x flow control
Ref.: GWN7700P
465,00 DHincl. VAT
In stock
Earn 5 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Certified cheque
Product overview
Grandstream GWN7700P unmanaged Gigabit switch: 5 Gigabit ports, 4 of them PoE+, to power IP cameras, Wi-Fi access points or IP phones straight through the network cable — all in a compact casing, with no configuration at all.
PoE: the 4 Gigabit RJ45 ports comply with IEEE 802.3af/at and deliver up to 30 W per port within a total 60 W PoE budget — enough to power up to four security cameras or Wi-Fi access points without calling in an electrician. The 5th Gigabit port is the uplink to your router or main switch.
Form factor: rugged metal casing (145 × 80 × 27 mm) that sits on a desk or mounts on a wall — discreet and perfect for tight spaces.
Also: 10 Gbit/s switching capacity, 2,000-entry MAC table, auto-negotiation and auto MDI/MDIX on all ports, IEEE 802.3x flow control, IGMP Snooping, 2 W at 220 V excluding PoE.
Request a quoteShare:
Technical specifications
| MAC table size | 2,000 entries |
|---|---|
| Number of VLANs | None |
| Interfaces | 5 RJ45 10/100/1000 Mbps ports, auto-negotiation, Auto MDI/MDIX |
| PoE ports | 4 PoE+ ports (802.3af/at), ports 1 to 4, up to 30 W per port |
| Total PoE budget | 60 W |
| Network standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3af, 802.3at |
| Switching capacity | 10 Gbps |
| Management modes | None (plug-and-play) |
| Cloud management platform | None |
| Layer 2 features | MAC address auto-learning and auto-aging, 802.3x flow control, 802.1p/DSCP QoS, IGMP snooping (Fast-Leave, automatic router port learning), 9 KB jumbo frames |
| IP routing | None |
| Quality of service (QoS) | 802.1p/DSCP |
| Power consumption | 2 W maximum, excluding delivered PoE power |
| Weight | 0.26 kg |
| Dimensions (W x D x H) | 145 x 80 x 27 mm |
| Package contents | 1 switch, 1 AC adapter, 1 quick installation guide |
|---|---|
| Number of ports | 5 ports or fewer |
| Managed | No |
| Housing material | Metal |
| Security features | Broadcast, multicast and unicast storm control (fixed at 100 Mbps) |
| Power supply | External AC adapter 48-53.5 V DC, 1.22 A |
| Operating temperature | 0 to 40 °C |
| PoE power | Yes |
| Port speed | 1 Gbps (Gigabit) |
| PoE standard | PoE+ (802.3at, up to 30 W/port) |
| PoE budget | Up to 65 W |
| Fibre slots (SFP) | No |
| Mounting | Desktop |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How many of the GWN7700P's ports are PoE-powered?
Four out of five. Ports 1 to 4 deliver 802.3af/at-compliant PoE+ at up to 30 W each, within a total budget of 60 W. The fifth port powers nothing: it serves as the uplink to the router or main switch.
What happens if the four cameras exceed 60 W?
In the event of an overload, the switch cuts power to the lowest-priority port, working down from port 4 to port 1. So connect the most critical device — the camera you can never afford to lose — to port 1, and the least important one to port 4.
Does this switch require any configuration before use?
No: it is an unmanaged model, with no interface or app. You plug it in and it works, with auto-negotiation detecting each device's speed on its own and auto MDI/MDIX correcting the pinout, whether the cable is straight-through or crossover.
How is the GWN7700P powered, and how much power does it use?
By an external 48–53.5 V, 1.22 A power adapter: make sure there is a power outlet nearby and room for the adapter. The switch itself uses only 2 W, excluding the PoE power delivered to connected devices.
Is the casing suitable for installation in a technical room?
Yes, the chassis is metal, unlike the non-PoE GWN7700, which is plastic. It sits on a desk or mounts on a wall, measures 145 × 80 × 27 mm, weighs around 260 grams and operates from 0 to 40 °C without a fan.
Does this small switch handle video traffic properly?
Yes: IGMP snooping, with fast leave and automatic router port learning, sends multicast streams only to the ports that request them. 802.1p/DSCP prioritisation puts voice and video first, and jumbo frames go up to 9 KB.
What internal performance does this 5-port model offer?
10 Gbps of switching capacity and a 2,000-entry MAC address table, with automatic address learning and ageing. 802.3x flow control limits packet loss if a port is saturated — enough to handle four cameras and an uplink without congestion.
Is the switch new, and where can I see its datasheet?
Yes, new equipment, with the invoice serving as the warranty document. The manufacturer's document compares the GWN7700P with the non-PoE model and details the ports, PoE configuration and environmental conditions: datasheet (PDF).
