Visit the TP-Link store

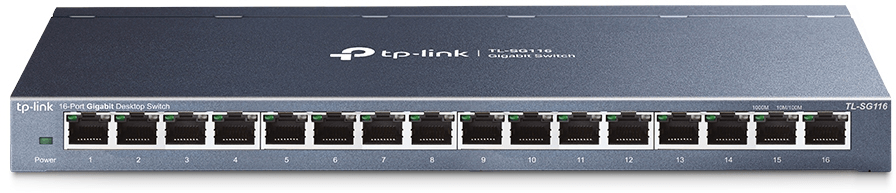

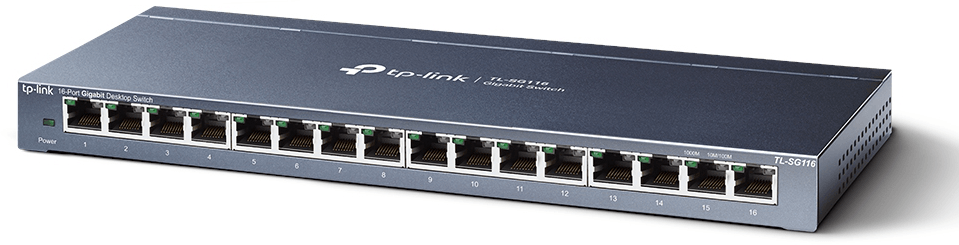

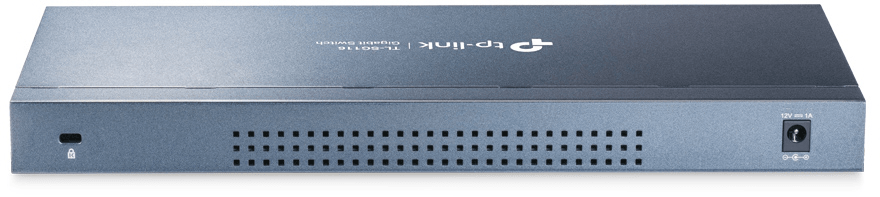

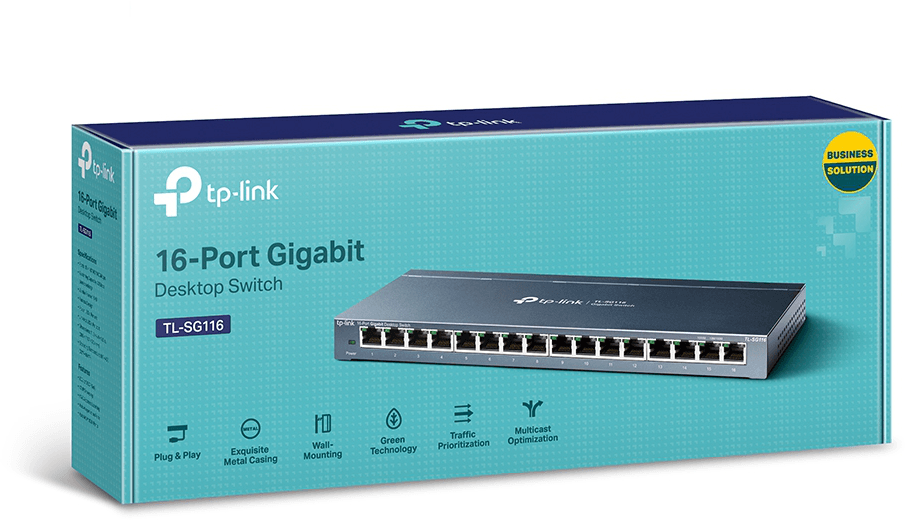

TP-Link TL-SG116 Gigabit 16-Port Desktop Switch
Sturdy metal casing, plug-and-play with no configuration. 802.1p/DSCP QoS and IGMP Snooping for optimised traffic, Green Ethernet technology to cut power use.
- Plug-and-play, no configuration
- Auto-negotiation and Auto MDI/MDIX
- 32 Gbps switching capacity
- 802.1p/DSCP QoS and IGMP Snooping
- Green Ethernet technology (energy saving)
- Metal casing, fanless
- Wall-mountable, compact 286 × 112 × 25 mm format
Ref.: TL-SG116
709,00 DHincl. VAT
In stock
Earn 8 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 300 DH by card or bank transfer) · Certified cheque
Product overview
TP-Link TL-SG116 desktop switch: 16 Gigabit 10/100/1000 Mbps ports to quickly extend a wired network at home, in the office or in a creative studio — plug and play, no configuration.
Ports: 16 RJ45 ports with auto-negotiation and Auto-MDI/MDIX — no more need for crossover cables; each port automatically adapts to the speed of the connected device (10, 100 or 1,000 Mbps).
Energy efficiency: green technology detects the status of each link and cuts the power consumption of idle ports; power draw also adapts to the length of the cable used.
Form factor: metal case, fanless, desktop or wall-mountable.
Also: 32 Gbps switching capacity, 23.8 Mpps forwarding rate, 8K MAC table, 802.1p/DSCP QoS, IGMP snooping, 802.3x flow control, 286 × 112 × 25 mm.
Request a quoteShare:
Technical specifications
| MAC table size | 8,000 entries |
|---|---|
| Number of VLANs | None |
| Interfaces | 16 RJ45 10/100/1000 Mbps ports, auto-negotiation, Auto MDI/MDIX |
| PoE ports | None |
| Total PoE budget | None |
| Network standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p |
| Switching capacity | 32 Gbps |
| Forwarding rate | 23.8 Mpps |
| Packet buffer | 4.1 Mbit |
| Management modes | None (plug-and-play) |
| Cloud management platform | None |
| Layer 2 features | 802.3x flow control, IGMP snooping, 10 KB jumbo frames |
| IP routing | None |
| Quality of service (QoS) | 802.1p/DSCP |
| Power consumption | 9.78 W maximum (220 V/50 Hz) |
| Dimensions (W x D x H) | 286 x 111.7 x 25.4 mm |
|---|---|
| Package contents | 16-port 10/100/1000 Mbps desktop switch, AC adapter, setup guide, rubber feet |
| Number of ports | 11 to 18 ports |
| Managed | No |
| Housing material | Steel |
| Security features | None |
| Power supply | External AC adapter 12 V DC, 1 A |
| Cooling system | Fanless |
| Operating temperature | 0 to 40 °C |
| PoE power | No |
| Port speed | 1 Gbps (Gigabit) |
| Fibre slots (SFP) | No |
| Mounting | Desktop |
| Warranty | 1 year |
Specific references
| EAN | 6935364084325 |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Can VLANs be created on the TL-SG116?
No: it is an unmanaged switch, with no configuration interface. You plug it in and it works; no settings are possible or needed. To segment the network into VLANs, prioritise a service or monitor a port, you need a managed model. The TL-SG116 remains the simplest way to add sixteen Gigabit ports to an existing network.
Does this switch detect a cabling loop?
Loop prevention is found on the TL-SG105 and TL-SG108 in the same family, not on the 16-port model. So make sure that no cable connects two of its ports together, whether directly or through another switch: on an unmanaged network, a loop saturates the link within seconds.
Is a crossover cable needed to connect two switches together?
No. All sixteen ports support auto-MDI/MDIX: they correct the pinout on their own, whether the cable is straight-through or crossover. Auto-negotiation also detects the speed of each connected device (10, 100 or 1,000 Mbps), and each link runs in full duplex, giving 2,000 Mbps combined in both directions.
Are voice and video handled without any configuration?
Yes, through two automatic mechanisms. 802.1p/DSCP quality of service moves packets marked as priority by the devices themselves to the front of the queue, and IGMP snooping sends multicast streams only to the ports that request them, instead of flooding all sixteen. 802.3x flow control limits losses when the link is saturated.
How is the TL-SG116 powered, and how much does it consume?
Through an external 12 V / 1 A power adapter: make sure there is a free socket next to the case, and room for the adapter in a cabinet. Consumption peaks at 9.78 W at 220 V/50 Hz, and green technology reduces it further: idle ports go into sleep mode and power adjusts to the length of the connected cable.
Can this switch be wall-mounted or rack-mounted?
On the wall or on a desk: the 286 × 112 × 25 mm steel case is designed for both, and having no fan makes it completely silent. At 28.6 cm wide, however, it does not fill a 19-inch rack. It handles 0 to 40 °C in operation, at 10 to 90% humidity (non-condensing).
What performance does this model offer for sixteen Gigabit links?
32 Gbps switching capacity and 23.8 Mpps in store-and-forward mode, with an 8,000-entry MAC address table and a 4.1 Mbit packet buffer: all sixteen Gigabit links can work at the same time. Jumbo frames go up to 10 KB, which is useful for transferring large files between workstations and a server.
Is the switch new, and where can I find its datasheet?
Yes, new equipment, with the invoice serving as the warranty document. The comparison table of the TL-SG105, TL-SG108 and TL-SG116, with power consumption, dimensions and advanced features, is in the manufacturer's document: datasheet (PDF).
