EPSON EB-L730U WUXGA Laser Projector (V11HA25040)

Edge blending and wide-range lens shift: several units sit side by side to cover a whole wall, or one alone reaches 500 inches. 7,000 lumens hold their own against the lighting of a lecture hall or a shop window.

  • 7,000 lumens (white and colour), 4,900 lumens in eco mode
  • Laser source, 20,000 h (30,000 h in eco mode)
  • 3LCD technology
  • Contrast above 2,500,000:1
  • Image from 50 to 500 inches
  • Manual lens shift: vertical plus or minus 50%, horizontal plus or minus 20%
  • 1.6x optical zoom
  • Edge blending for multi-projection
  • HDBaseT and HDMI output
  • 2 HDMI inputs, VGA, USB and Ethernet
  • 5 GHz Wi-Fi and Miracast
  • 360-degree installation
  • 10 W speaker
  • Weight 8.4 kg
Ref.: V11HA25040

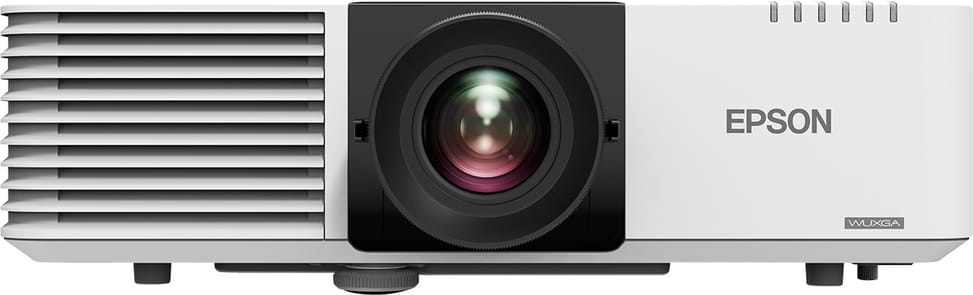

EPSON EB-L730U WUXGA Laser Projector (V11HA25040) — image 1

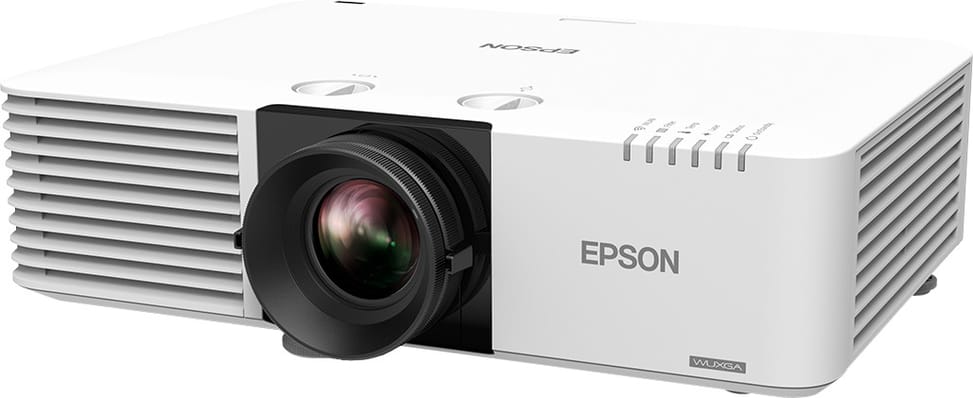

EPSON EB-L730U WUXGA Laser Projector (V11HA25040) — image 2

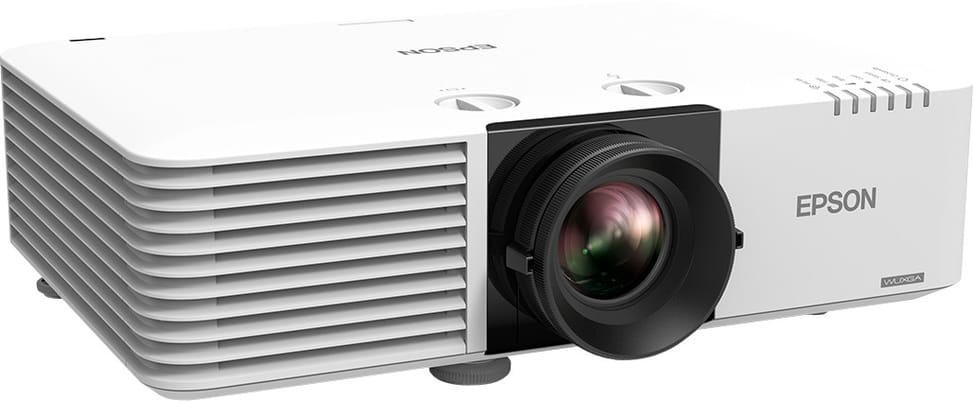

EPSON EB-L730U WUXGA Laser Projector (V11HA25040) — image 3

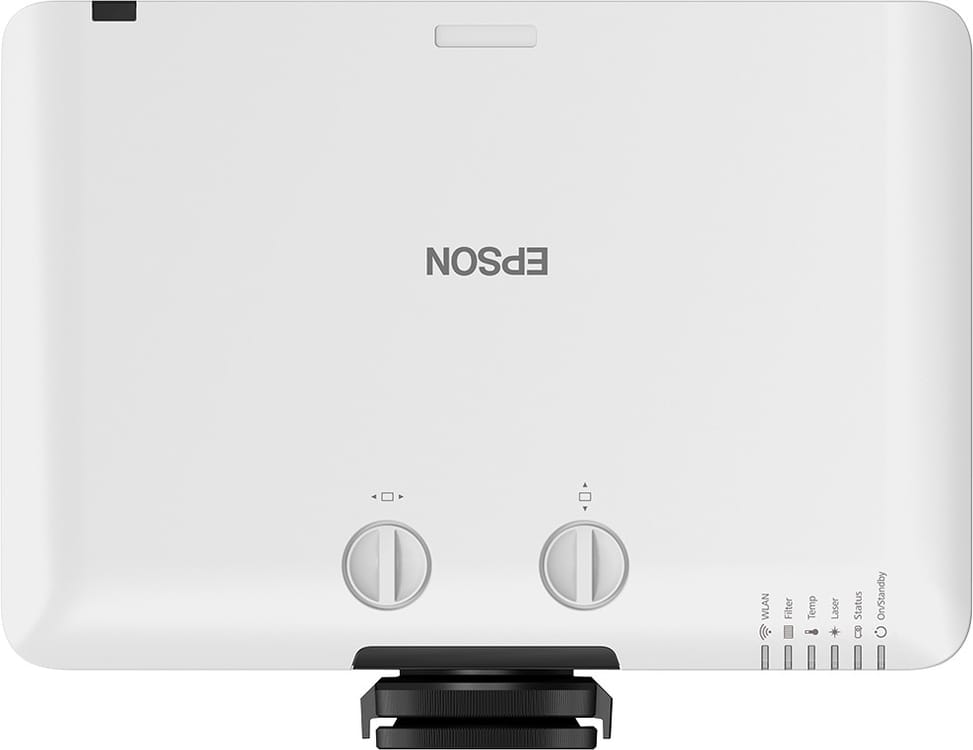

EPSON EB-L730U WUXGA Laser Projector (V11HA25040) — image 4

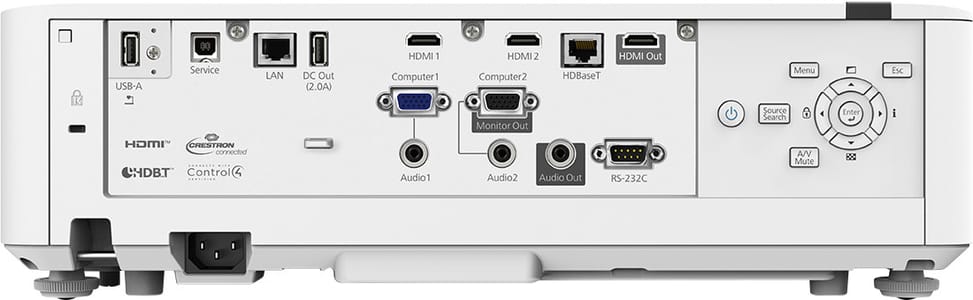

EPSON EB-L730U WUXGA Laser Projector (V11HA25040) — image 5

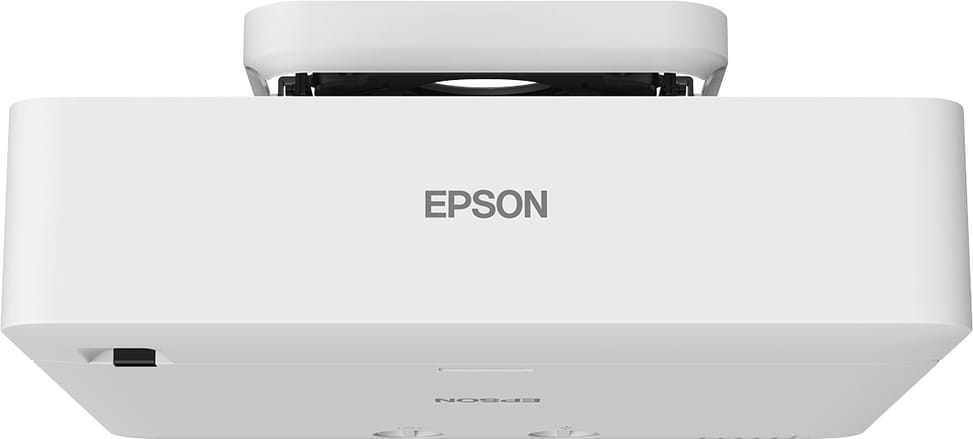

EPSON EB-L730U WUXGA Laser Projector (V11HA25040) — image 6

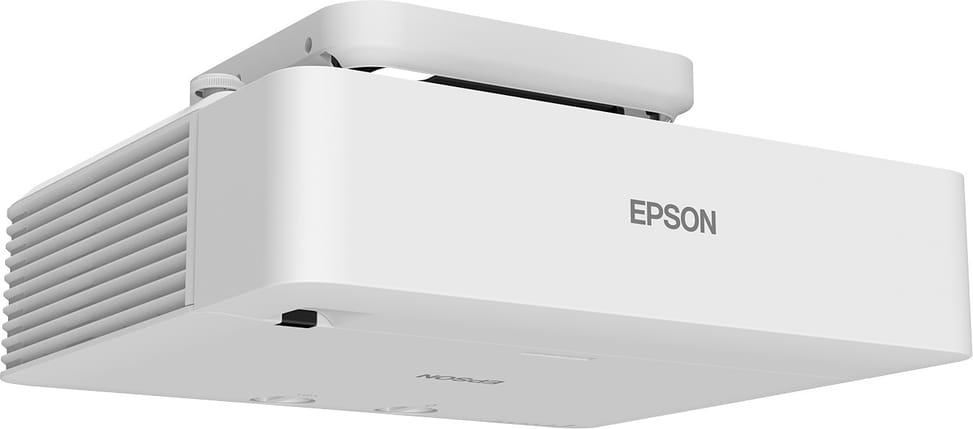

EPSON EB-L730U WUXGA Laser Projector (V11HA25040) — image 7

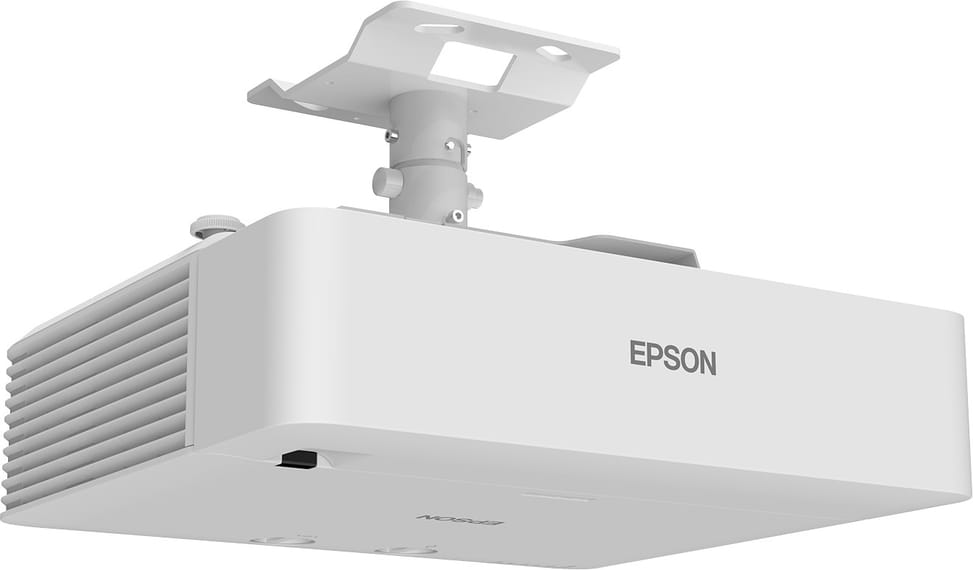

EPSON EB-L730U WUXGA Laser Projector (V11HA25040) — image 8

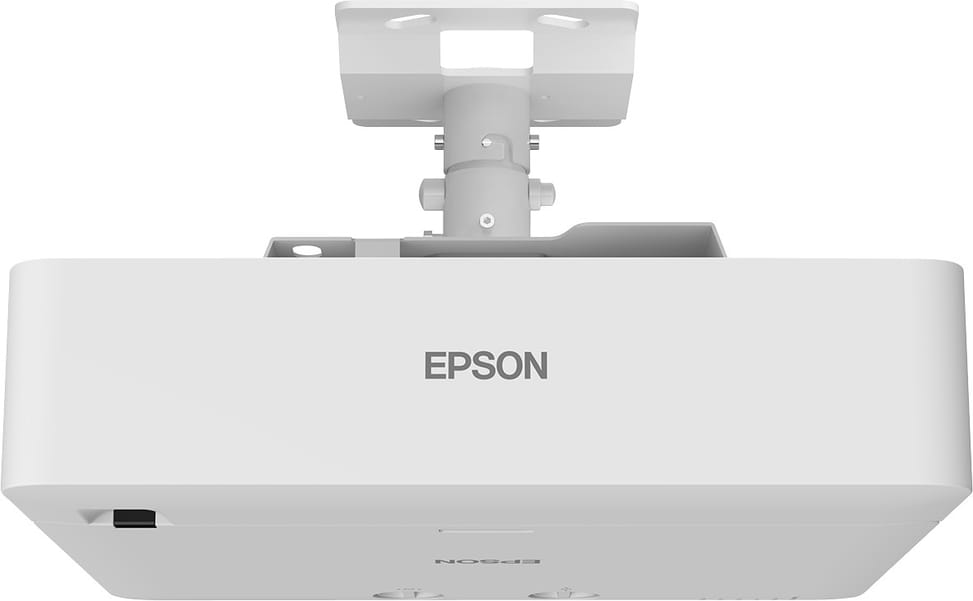

EPSON EB-L730U WUXGA Laser Projector (V11HA25040) — image 9

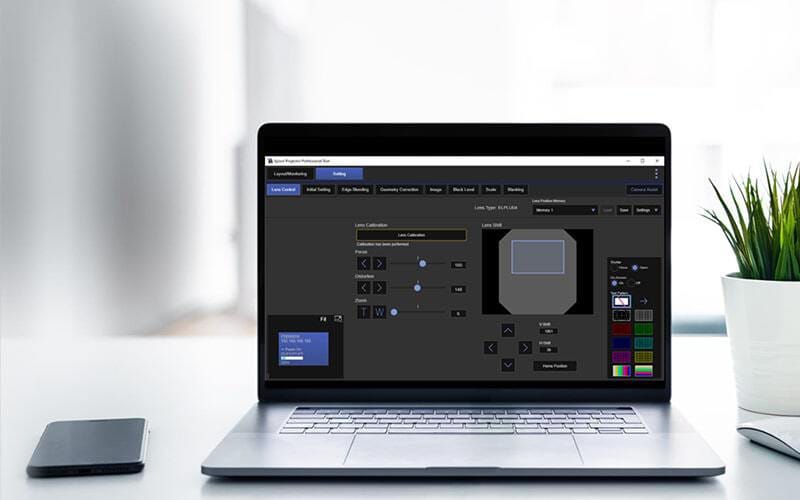

EPSON EB-L730U WUXGA Laser Projector (V11HA25040) — image 10

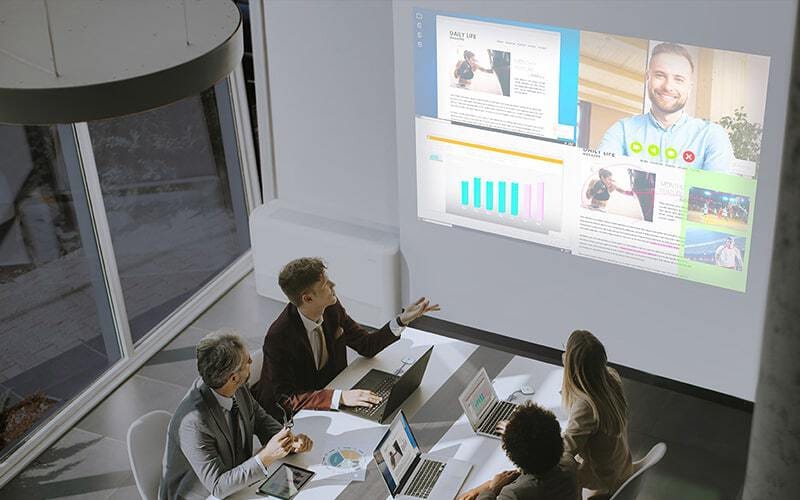

EPSON EB-L730U WUXGA Laser Projector (V11HA25040) — image 11

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • On-screen image : the content visible on the screen is a composite: it represents neither the real picture quality nor any content supplied with the product.
  • Stand and mount : the shape of the stand changes between versions; wall mounts, arms and ceiling fixings are not included unless stated.
  • Connectors and sound : the number of HDMI, DisplayPort and USB ports, and the presence of speakers, a tuner or a network port, are read in the specifications.
  • Panel : bezels, curved format, touch, matte or glossy finish and refresh rate cannot be judged from a photo.
  • Accessories : remote control, cables, 3D glasses and projection screen are supplied only if the specifications say so.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/11
46 099,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 689 Ko — downloadable

Product overview

Professional projector for large rooms: laser, 7,000 lumens, WUXGA.
Picture: WUXGA resolution (1920 × 1200), 3LCD technology for vivid colours.
Brightness: 7,000 lumens (4,900 lumens in eco mode), sharp images even in very bright rooms.
Contrast: ratio above 2,500,000:1 for deep blacks.
Light source: maintenance-free laser, lifespan up to 20,000 h (30,000 h in eco mode).
Projection: standard throw, image from 50 to 500 inches, throw ratio 1.35–2.20:1, manual lens shift.
Ports: 2 HDMI, HDBaseT, USB, VGA, Ethernet, 5 GHz Wi-Fi, Miracast, screen mirroring.
Sound: built-in 10 W speaker.
Ideal for meeting rooms, lecture theatres, digital signage and projection mapping.
Edge blending, 1.6x optical zoom, horizontal and vertical keystone correction, wireless projection and split screen.
This Epson laser projector combines power, reliability and flexibility for uncompromising large-format projection.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Ethernet network card100 Mbps (100 Base-TX/10 Base-T)
BluetoothNone
Standby power consumption0.3 W
Brightness7,000 lumens (colour IDMS15.4 / white ISO 21118:2020)
Brightness in eco mode4,900 lumens (IDMS15.4)
Contrast ratioOver 5,000,000:1
Keystone correctionManual vertical ± 30°, manual horizontal ± 30°
ResolutionWUXGA (1920 x 1200)
Focal length20 mm - 31.8 mm
Projection lensOptical, f/1.5 – 1.7
Projection distanceWide 1.4 to 14.8 m, tele 2.4 to 23.8 m
ZoomOptical, 1.6x
Digital zoomYes
Displayable colours1.07 billion colours
Light sourceLaser
Replacement lampNone (laser light source, no lamp to replace)
Light source life (eco mode)30,000 h
Light source life (normal mode)20,000 h
Audio input2 mini-jack inputs
Audio output1 mini-jack output (3.5 mm)
Connector(s)RS-232C, HDMI output, HDBaseT, Miracast
Power consumption345 W
Eco mode power consumption258 W
Technical specifications (continued)
Dimensions (W x D x H)440 x 339 x 136 mm
Weight8.4 kg
Box contentsCable cover, HDMI cable, projector, power cable, remote control with batteries, guide, warranty
Aspect ratio16:10
Wi-FiBuilt-in Wi-Fi 5 (802.11a/b/g/n/ac), 2.4 and 5 GHz
FocusManual
Throw ratio1.35 - 2.20:1
Projection size50 inches - 500 inches
OffsetManual lens shift: vertical ± 50%, horizontal ± 20%
Speaker10 W
USB1 USB 2.0 Type-A port (PC-free JPEG image playback), 1 USB 2.0 port
Display technology3LCD technology, RGB liquid crystal shutter
SecurityKensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Noise level38 dB(A)
Noise level in eco mode27 dB(A)
EthernetYes
UseLarge hall & auditorium
HDMI2 HDMI inputs (HDCP 2.3) and 1 HDMI output
VGA2 inputs, 1 output
Projection technology3LCD
Throw typeStandard throw
Interactive projectorNo
Warranty3 years

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How long is the warranty on the Epson EB-L730U?
Three years, on new equipment for which the invoice serves as the warranty document. For a laser projector meant to stay installed on a room's ceiling for several years, this period is a selection criterion at least as important as brightness.
What do the EB-L730U's 7,000 lumens let you do?
Project without switching off the lights, in a lecture theatre, a lobby or a shop window. The figure drops to 4,900 lumens in Eco mode, and the contrast ratio exceeds 2,500,000:1, which preserves the dark areas of a very bright image.
How do you position the EB-L730U's image without moving the unit?
With the manual lens shift, which moves the image optically by ± 50% vertically and ± 20% horizontally, and with the 1.6× optical zoom. Unlike keystone correction, this shift does not distort the pixels: the image stays sharp across its entire surface.
How much throw distance does the EB-L730U need in a large room?
From 1.4 m to 14.8 m at the widest setting, up to 23.8 m at the telephoto setting, for images from 50 to 500 inches. The throw ratio ranges from 1.35 to 2.20:1: the distance to the wall is 1.35 to 2.20 times the width of the image you want.
Can several EB-L730U units cover an entire wall?
Yes. Edge blending merges the join between the images of several units so that they form a single one, and the daisy-chained multi-projection function synchronises them. Arc correction also compensates for a curved surface.
Can the EB-L730U be positioned at any angle?
Yes, 360-degree installation is supported: ceiling, floor, tilted or vertical. It also supports an ultra-wide 16:6 format, which uses the full width of a wall with no black bars.
Do you need a computer to play content on the EB-L730U?
No. The built-in media player and the JPEG image viewer display content from a USB flash drive, and 5 GHz Wi-Fi with Miracast streams from a laptop or a mobile device. A scheduling function programmes power-on and power-off.
What does the EB-L730U's HDBaseT port let you do?
Place the source at a distance over a simple network cable, carrying both the image and control, when the control room is far from the projector. A 4K signal is accepted as input, and an HDMI output lets you send the image on to a second device.
What maintenance does the EB-L730U require?
No lamp to replace: the laser source is rated for 20,000 hours in normal mode and 30,000 hours in Eco mode. On a unit suspended high up, this removes the heaviest operating constraint.
Is the EB-L730U noisy in operation?
38 dB(A) in normal mode and 27 dB(A) in Eco mode, for 8.4 kg and 440 × 339 × 136 mm. In a large room where the unit is far from the audience, normal mode goes unnoticed; in a closed meeting room, Eco mode is preferable.
What is in the EB-L730U box?
The unit, a cable cover, the power cable, the remote control and its batteries, the user guide and the warranty documents. You will need the HDMI cable or the HDBaseT installation suited to your control room, as well as the mounting bracket.
Is the EB-L730U laser projector new?
Yes, new equipment, with a three-year warranty, the invoice serving as the warranty document. Quote the part number V11HA25040 for any accessory: the EB-L series includes models with very similar names but different brightness levels, from 5,200 to 7,300 lumens.
