EPSON EB-L520U WUXGA Laser Projector (V11HA30040)

HDBaseT to place the source far from the unit over a simple network cable, and 5,200 lumens on an image of up to 500 inches. The laser source lasts 20,000 hours with no lamp to replace.

  • 5,200 lumens, 3,640 lumens in eco mode
  • Laser source, 20,000 h (30,000 h in eco mode)
  • 3LCD technology
  • 2,500,000:1 contrast
  • Native resolution 1920 x 1200
  • Image from 50 to 500 inches
  • Throw ratio 1.35 - 2.20:1
  • HDBaseT
  • 2 HDMI inputs, VGA, USB and Ethernet
  • Wi-Fi and Miracast optional
  • 10 W speaker
  • Weight 7.7 kg
Ref.: V11HA30040

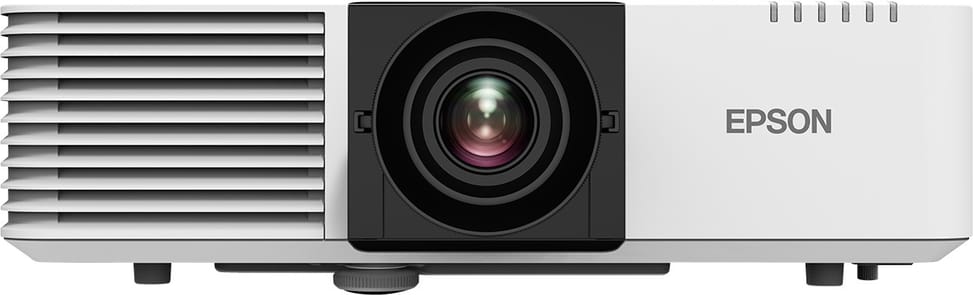

EPSON EB-L520U WUXGA Laser Projector (V11HA30040) — image 1

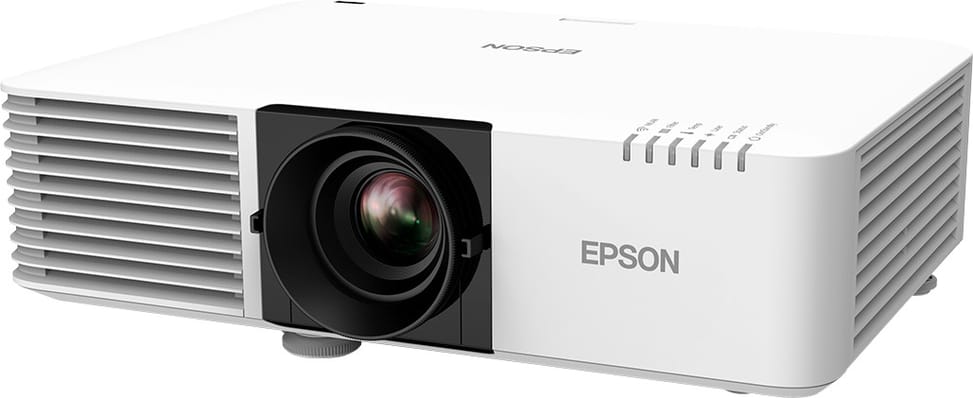

EPSON EB-L520U WUXGA Laser Projector (V11HA30040) — image 2

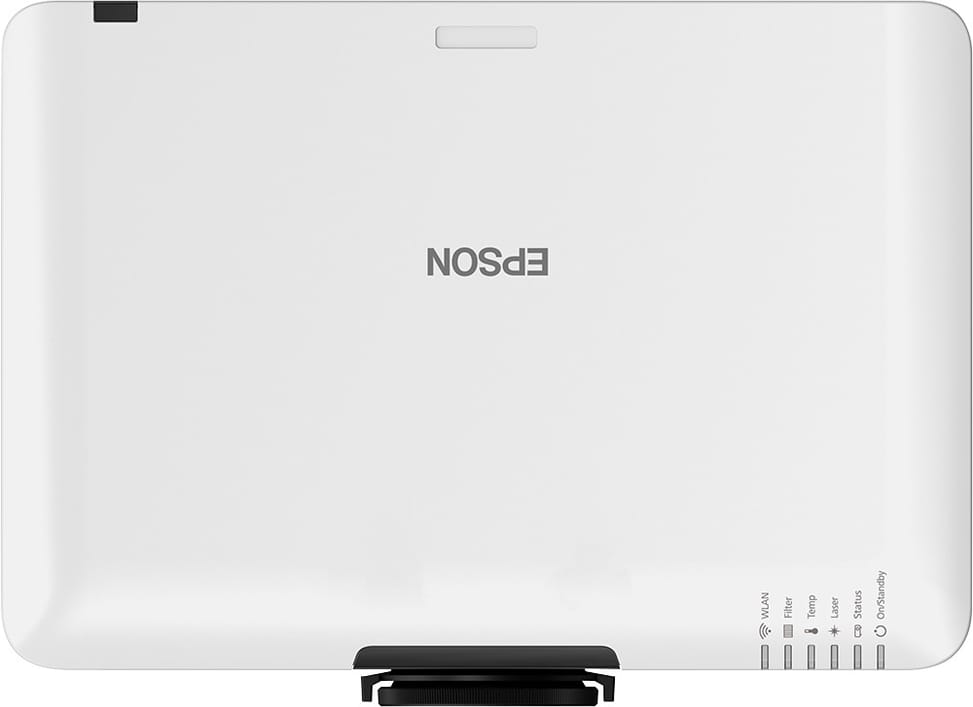

EPSON EB-L520U WUXGA Laser Projector (V11HA30040) — image 3

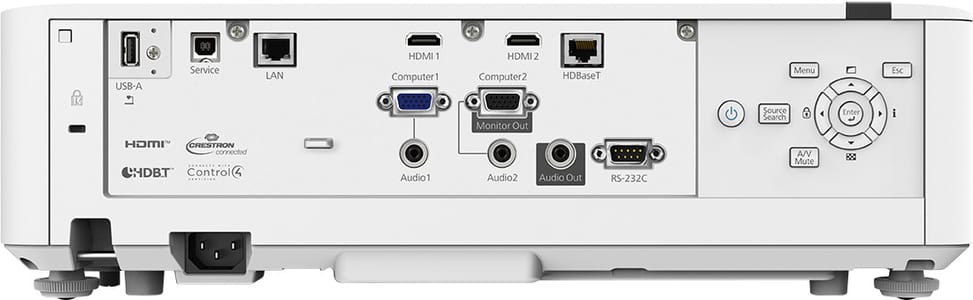

EPSON EB-L520U WUXGA Laser Projector (V11HA30040) — image 4

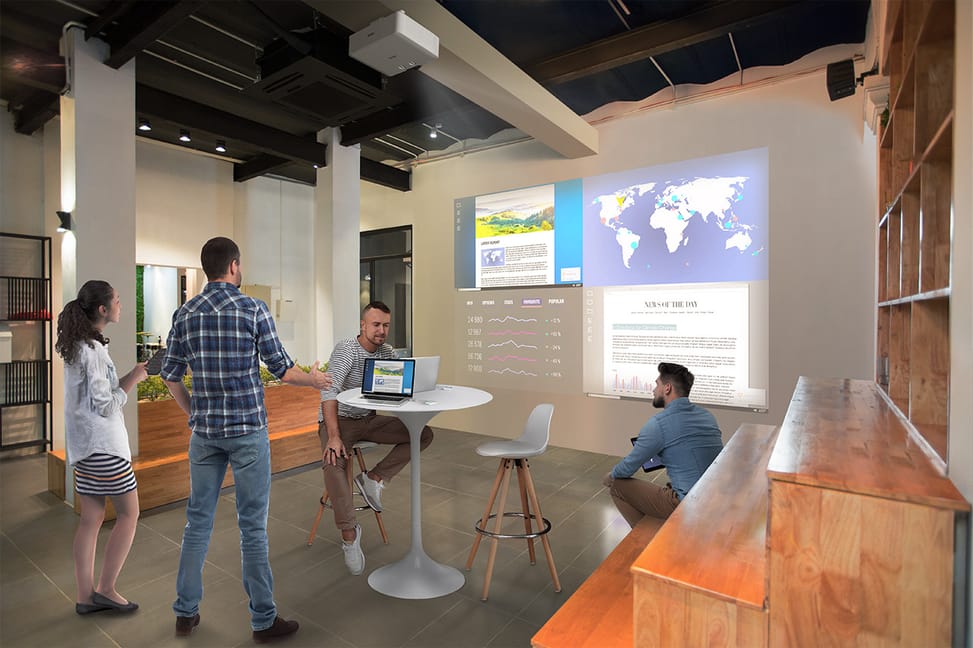

EPSON EB-L520U WUXGA Laser Projector (V11HA30040) — image 5

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • On-screen image : the content visible on the screen is a composite: it represents neither the real picture quality nor any content supplied with the product.
  • Stand and mount : the shape of the stand changes between versions; wall mounts, arms and ceiling fixings are not included unless stated.
  • Connectors and sound : the number of HDMI, DisplayPort and USB ports, and the presence of speakers, a tuner or a network port, are read in the specifications.
  • Panel : bezels, curved format, touch, matte or glossy finish and refresh rate cannot be judged from a photo.
  • Accessories : remote control, cables, 3D glasses and projection screen are supplied only if the specifications say so.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/5
23 999,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

Professional projector for large rooms: WUXGA laser and high brightness.
Picture: WUXGA (1920 × 1200), 3LCD technology for vivid colours.
Brightness: up to 5,200 lumens, 3,640 lumens in eco mode.
Contrast: 2,500,000:1 contrast ratio for deep blacks.
Light source: laser with no lamp to replace, up to 20,000 h (30,000 h in eco mode).
Projection: standard throw, image from 50 to 500 inches, throw ratio 1.35–2.20:1.
Ports: 2 HDMI, HDBaseT, VGA, USB, Ethernet, optional Wi-Fi and Miracast.
Sound: built-in 10 W speaker.
Ideal for meeting rooms, auditoriums and spaces that need large, bright images.
Enjoy a long-lasting installation and reliable performance with Epson laser technology.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Ethernet network card100 Mbps (100 Base-TX/10 Base-T)
BluetoothNone
Standby power consumption0.3 W
Brightness5,200 lumens (colour IDMS15.4 / white ISO 21118:2020)
Brightness in eco mode3,640 lumens (IDMS15.4)
Contrast ratio5,000,000:1
Keystone correctionManual vertical ± 30°, manual horizontal ± 30°
ResolutionWUXGA (1920 x 1200)
Focal length20 mm - 31.8 mm
Projection lensOptical, f/1.5 – 1.7
ZoomOptical, 1.6x
Displayable colours1.07 billion colours
Light sourceLaser
Replacement lampNone (laser light source, no lamp to replace)
Light source life (eco mode)30,000 h
Light source life (normal mode)20,000 h
Audio input2 mini-jack inputs (3.5 mm)
Audio output1 mini-jack output (3.5 mm)
Connector(s)RS-232C, HDBaseT, Miracast (optional)
Power consumption293 W
Eco mode power consumption223 W
Dimensions (W x D x H)440 x 304 x 122 mm
Weight7.7 kg
Technical specifications (continued)
Box contentsHDMI cable, power cable, remote control with batteries, user guide, warranty documents
Aspect ratio16:10
Wi-FiOptional (802.11a/n, 5 GHz, external module)
FocusManual
Throw ratio1.35 - 2.20:1
Projection size50 inches - 500 inches
Offset27:1
Speaker10 W
USB1 USB 2.0 Type-A port, 1 USB 2.0 port
Display technology3LCD technology, RGB liquid crystal shutter
SecurityKensington lock, Padlock, Security cable hole, Wireless LAN unit lock
Included softwareEasyMP Multi PC Projection
Noise level31 dB(A)
Noise level in eco mode23 dB(A)
EthernetYes
UseMeeting room, Large hall & auditorium
HDMI2 HDMI ports
VGA2 inputs, 1 output
Projection technology3LCD
Throw typeStandard throw
Interactive projectorNo
Warranty1 year

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Is Wi-Fi built into the Epson EB-L520U?
No, it is optional, as is Miracast screen sharing: both require the 5 GHz wireless LAN module to be added. For wired connections, the unit has an Ethernet 100 Mbps port (100 Base-TX / 10 Base-T), intended for controlling and managing the projector over the network.
What does the EB-L520U's HDBaseT port let you do?
Place the source at a distance over a simple network cable, carrying both the image and control: the control room or control desk can stay at the far end of the room without running a video cable. Two HDMI inputs and two VGA inputs complete the connectivity.
Does the EB-L520U need a replacement lamp?
No, its light source is a laser, rated for 20,000 hours in normal mode and 30,000 hours in Eco mode. On a 7.7 kg unit installed high up in an auditorium, this removes the heaviest maintenance constraint.
What image size can the EB-L520U cover?
From 50 to 500 inches, with a throw ratio of 1.35 to 2.20:1: the distance to the wall is 1.35 to 2.20 times the width of the image you want. At its native WUXGA resolution of 1,920 × 1,200, the image stays sharp even on very large diagonals.
Does the EB-L520U hold up in a very brightly lit room?
5,200 lumens, and 3,640 lumens in Eco mode, with a contrast ratio of 2,500,000:1. At this level, you can keep the lights on in a lecture theatre or a lobby: this is what sets an installation projector apart from a meeting-room model.
How does the EB-L520U's WUXGA resolution compare with Full HD?
120 more lines: 1,920 × 1,200 in 16:10 format, versus 1,920 × 1,080 in 16:9. On a spreadsheet, a plan or a projected document, this extra height saves scrolling and keeps the toolbar visible.
Is the EB-L520U's sound enough for a large room?
Its built-in speaker delivers 10 W: enough to accompany a video, not to fill an auditorium with sound. An output jack is provided to connect to the room's PA system, and two audio inputs accompany the VGA sources.
Is the EB-L520U laser projector new and under warranty?
Yes, new equipment, the invoice serving as the warranty document. Make sure you have a mount rated for its 7.7 kg and quote the part number V11HA30040 for any accessory: the EB-L series includes several models with similar names.
