TP-Link TL-SF1024D Unmanaged Fast Ethernet Network Switch (10/100) Black (TL-SF1024D)

Rack-mount format to connect a large number of workstations in an office or a network rack, with no configuration at all. High port density in a small footprint.

  • 24 RJ45 ports
  • 19" rack-mountable (mounting brackets included)
  • Auto MDI/MDIX
  • Switching capacity 10 Gbps
  • MAC table of 8,000 entries
  • 2 MB buffer memory
  • Universal 100-240 V power supply
Ref.: TL-SF1024D

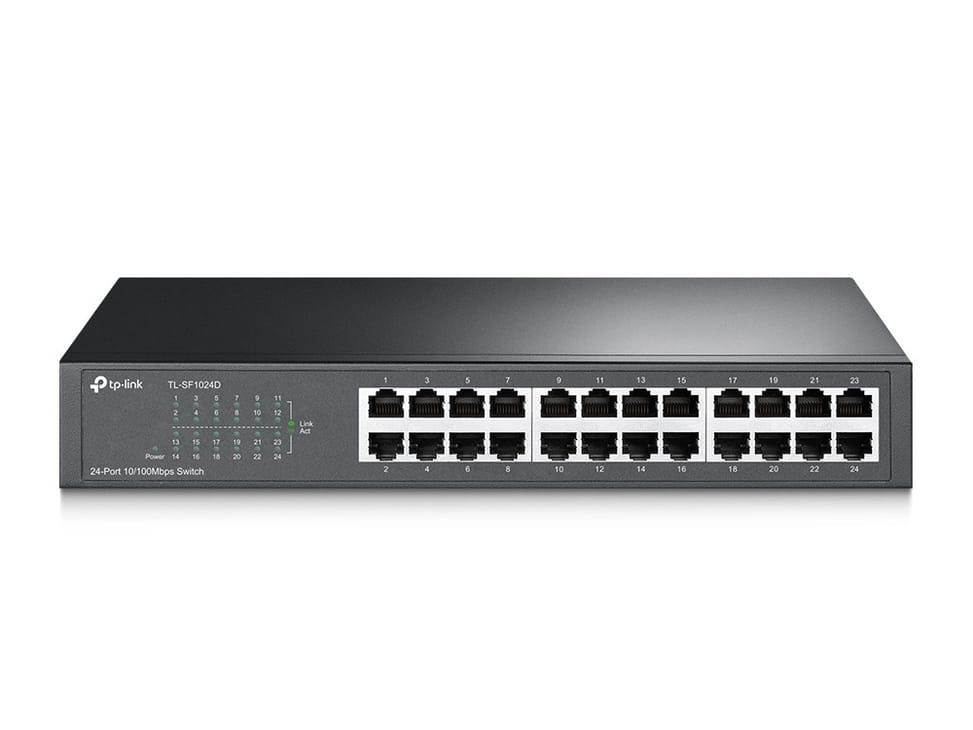

TP-Link TL-SF1024D Unmanaged Fast Ethernet Network Switch (10/100) Black (TL-SF1024D) — image 1

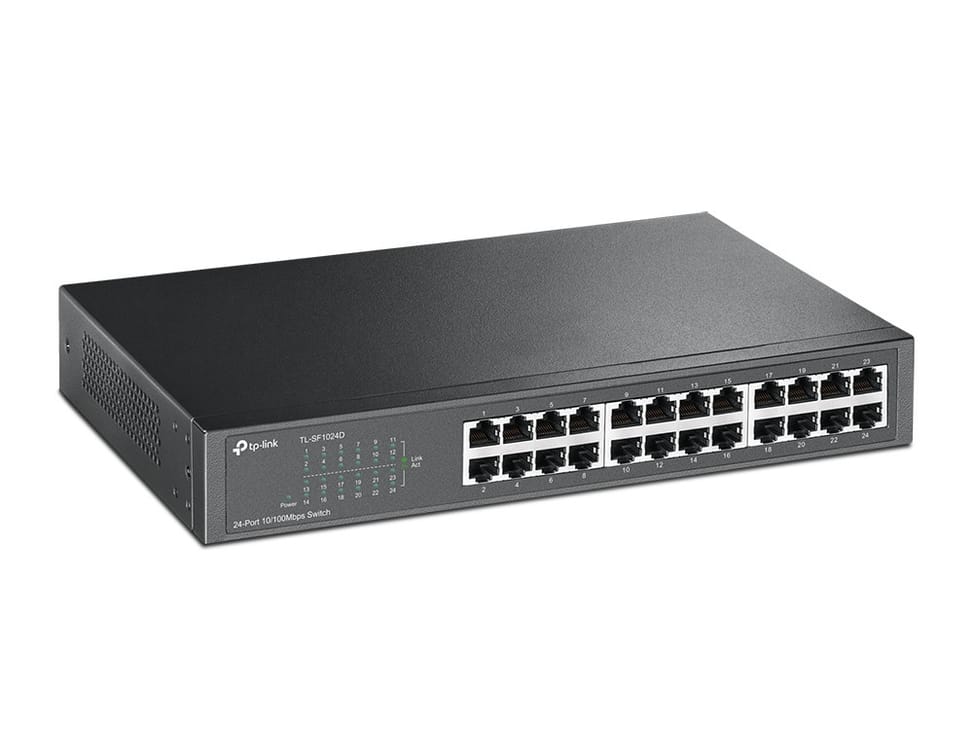

TP-Link TL-SF1024D Unmanaged Fast Ethernet Network Switch (10/100) Black (TL-SF1024D) — image 2

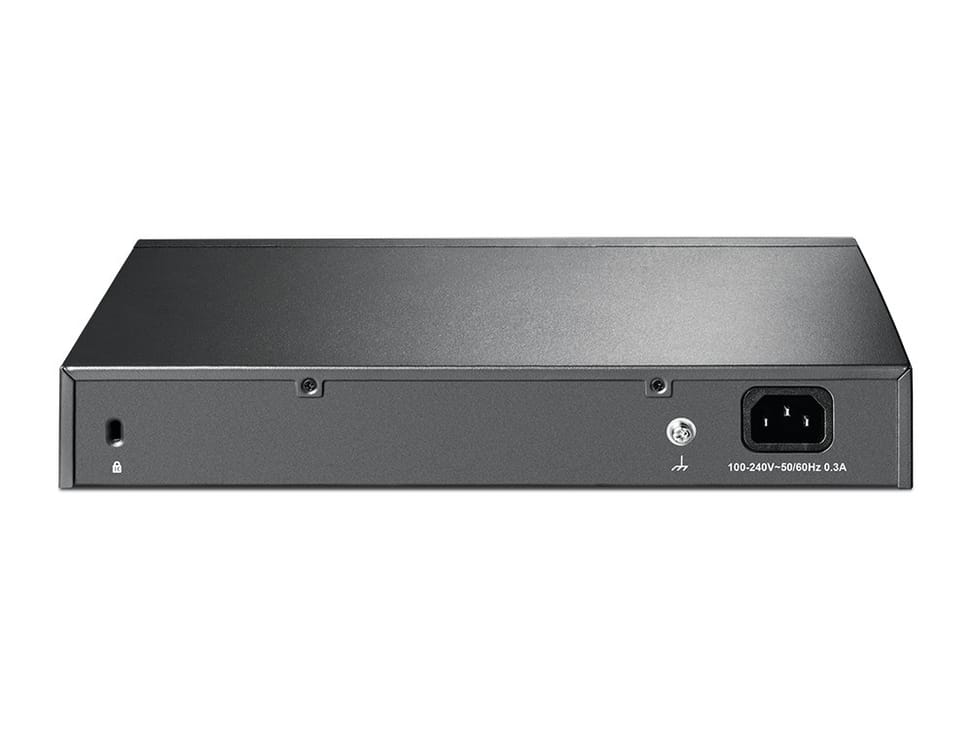

TP-Link TL-SF1024D Unmanaged Fast Ethernet Network Switch (10/100) Black (TL-SF1024D) — image 3
TP-Link TL-SF1024D Unmanaged Fast Ethernet Network Switch (10/100) Black (TL-SF1024D) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
879,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

TP-Link TL-SF1024D rackmount switch: 24 Fast Ethernet 10/100 Mbps ports, unmanaged, to connect a large number of workstations in an office or a network rack, with no configuration at all.
Ports: 24 RJ45 copper ports at 10/100 Mbps with Auto-MDI/MDIX — no crossover cable required. The switch mounts in a standard network rack (rack-mount kit included) and offers high port density in a small footprint.
Plug-and-play: nothing to set up; connect your devices and the network works immediately. Ideal for extending a corporate or small-business network with no software investment.
Also: 10 Gbps switching capacity, 3.57 Mpps forwarding rate, 8,000-entry MAC address table, 2 MB packet buffer, universal 100-240 V power supply.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size8,000 entries
Number of VLANsNone
Interfaces24 RJ45 10/100 Mbps ports, auto-negotiation, Auto MDI/MDIX; UTP cable category 3 to 5 for 10BASE-T, category 5/5e or higher for 100BASE-TX, 100 m maximum
PoE portsNone
Total PoE budgetNone
Network standardsIEEE 802.3i, 802.3u, 802.3x
Switching capacity10 Gbps
Forwarding rate3.57 Mpps
Packet buffer2 Mbit
Management modesNone (plug-and-play)
Cloud management platformNone
Layer 2 featuresMAC address auto-learning, Auto MDI/MDIX, store-and-forward switching
IP routingNone
Power consumption3.53 W maximum (220 V/50 Hz)
Technical specifications (continued)
Dimensions (W x D x H)294 x 180 x 44 mm
Package contents24-port 10/100 Mbps desktop or rack-mount switch, power cord, setup guide, rack mounting kit, rubber feet
Number of ports19 to 28 ports
ManagedNo
Housing materialSteel
Security featuresNone
Power supplyExternal AC adapter 9 V DC, 0.6 A
Cooling systemFanless
Operating temperature0 to 40 °C
PoE powerNo
Port speed100 Mbps (Fast Ethernet)
Fibre slots (SFP)No
Mounting19-inch rack-mountable
Warranty1 year

Specific references

EAN6935364021498

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Are the TL-SF1024D's 24 ports Gigabit?
No: they are 10/100 Mbps. This is a high-density Fast Ethernet switch, designed to connect a large number of workstations or terminals that do not need Gigabit — label printers, phones, PLCs.
Can this 24-port switch be rack-mounted?
Yes, it is designed for rack mounting. The case measures 294 × 180 × 44 mm, i.e. 1U high with a partial width: it sits just as well on a shelf as in a network cabinet.
How much power does this 24-port switch use?
3.53 W in normal use, on a universal 100-240 V, 50/60 Hz power supply. That is very little for twenty-four ports: at equal density, Fast Ethernet uses considerably less power than Gigabit.
What internal performance does this model offer?
10 Gbps switching capacity and 3.57 Mpps, with an 8,000-entry MAC address table and a 2 MB buffer — enough to handle a fleet of several dozen terminals without constant relearning.
Does this switch need configuring?
No: it is unmanaged. It does, however, support quality of service (QoS), which moves packets marked as priority by the devices to the front of the queue. Auto MDI/MDI-X means you need not worry about the cable type.
Is the switch new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document. This is the TP-Link TL-SF1024D, FCC, CE and RoHS certified, which operates from 0 to 40 °C with 10 to 90% relative humidity.
