GrandStream 4x4:4 MU-MIMO Dual-Band WiFi 5 Access Point (GWN7630LR)
300 m of coverage and more than 200 devices served at once, in an IP66 housing that stands up to rain and heat. Its four antennas can be removed to suit the area to be covered.
- Range of up to 300 m
- More than 200 devices connected at the same time
- Weatherproof IP66 housing, for vertical installation
- Up to 1,733 Mbps on 5 GHz and 600 Mbps on 2.4 GHz
- Combined wireless throughput of 2.33 Gbps
- 4 removable and interchangeable omnidirectional antennas
- 2 Gigabit Ethernet ports
- PoE 802.3af or PoE+ 802.3at, automatic power adjustment
- Free management via GWN.Cloud or GWN Manager
- Built-in controller driving up to 50 access points
- Mesh networks, captive portal and advanced QoS
- 16 Wi-Fi networks (SSIDs) per band
- Wall or pole mounting, kits included
Ref.: GWN7630LR
Back to school
-5%1 409,00 DHincl. VAT1 479,00 DH
You save 70,00 DH incl. VAT
Ends in, ends in 2 days and 23 hours
In stock
Earn 15 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 300 DH by card or bank transfer) · Certified cheque
Product overview
Grandstream GWN7630LR long-range Wi-Fi 5 access point: a 4x4:4 MU-MIMO outdoor unit for medium and large businesses.
Wi-Fi & speed: Wi-Fi 5 (802.11ac Wave-2), dual-band — up to 600 Mbps on 2.4 GHz and 1,733 Mbps on 5 GHz; aggregate speed of 2.33 Gbps.
Capacity: 4x4:4 MU-MIMO on both bands; more than 250 devices simultaneously; range up to 300 m.
Installation: indoor/outdoor, waterproof IP66 enclosure; wall or pole mounting (kits supplied); 4 detachable omnidirectional antennas.
Ports & power: 2 Gigabit ports; 802.3af PoE or 802.3at PoE+, auto-sensing — a single network cable provides both power and data.
Management: GWN.Cloud, GWN Manager, built-in controller for up to 50 APs; mesh networking, captive portal, advanced QoS.
Use cases: warehouses, hospitals, campuses, schools, multi-storey offices, outdoor commercial areas, campsites.
The 4x4:4 outdoor access point for covering large areas with a high density of users.
Request a quoteShare:
Technical specifications
| Package contents | Access point, wall and pole mounting kits included, getting started guide |
|---|---|
| IP protection rating | IP66 when the access point is mounted vertically |
| Number of SSIDs | 16 SSIDs per radio |
| Interfaces | 2 x 10/100/1000 Base-T Ethernet ports, 1 reset hole |
| Network standards | IEEE 802.11a/b/g/n/ac Wave 2, 802.1Q, 802.1p, 802.1x, 802.11e/WMM, 802.3af, 802.3at |
| Advanced Wi-Fi technologies | Automatic power adaptation on PoE or PoE+ detection, anti-hacking secure boot |
| Maximum channel width | 80 MHz on 5 GHz, 40 MHz on 2.4 GHz |
| Spatial streams and MU-MIMO | 4×4:4 MIMO at 2.4 GHz, 4×4:4 MU-MIMO at 5 GHz |
| Maximum Wi-Fi throughput per band | 600 Mbps at 2.4 GHz, 1,733 Mbps at 5 GHz, 2.33 Gbps combined |
| Management modes | Controller built into the web interface (50 access points), GWN.Cloud, GWN Manager |
| Cloud management platform | GWN.Cloud |
| Layer 2 features | VLAN, 802.1Q, 802.1p, 802.11e/WMM and TOS quality of service |
| Roaming and mesh | Mesh networking |
| Power consumption | 16.5 W maximum |
| Weight | 564 g |
| Dimensions (W x D x H) | 533.1 x 115 x 40 mm |
|---|---|
| Antennas | 4 detachable dual-band omnidirectional antennas, gain 3.5 dBi at 2.4 GHz and 3.5 dBi at 5 GHz |
| Stated range | Up to 300 m |
| Maximum transmit power | 21 dBm on 2.4 GHz, 25 dBm on 5 GHz |
| Security features | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, secure boot, unique per-device certificate |
| Power supply | PoE 802.3af or PoE+ 802.3at |
| Operating temperature | -30 to 60 °C |
| Operating humidity | 5 to 95% non-condensing |
| Wi-Fi standard | Wi-Fi 5 |
| Location | Indoor/outdoor |
| Mounting type | Multiple |
| Bands | Dual-band |
| PoE power | PoE (802.3af) |
| Simultaneously connected devices | More than 200 concurrent clients |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Does the GWN7630LR really withstand rain and sun?
Yes, its housing is rated IP66 — dust-tight and protected against water jets — provided it is installed vertically. It operates from -30 to 60 °C, which covers a sun-baked façade as well as a warehouse without air conditioning.
Is a PoE+ switch needed to power this outdoor access point?
It is preferable: its power consumption reaches 16.5 W, above the 15.4 W that an 802.3af port can deliver. It accepts both standards and adjusts its power on its own, but a PoE+ 802.3at port gives it full headroom, especially when all four radio chains are working.
Are the GWN7630LR antennas replaceable?
Yes, its four 3.5 dBi dual-band omnidirectional antennas are detachable and can be swapped. This is the real advantage of a long-range model: you replace the omnidirectional antennas with directional ones to cover a corridor, a platform or an aisle rather than the whole area around the pole.
What is the advertised 300-metre range worth in real-world conditions?
It is a range in open space, with no obstacle between the access point and the device; it drops as soon as a wall, a line of trees or a building gets in the way. It nevertheless remains this model's key strength: covering a courtyard, a car park or a campsite where an indoor access point stops at a few dozen metres.
How many devices can the GWN7630LR handle simultaneously?
More than 200 Wi-Fi clients at the same time, with a combined throughput of 2.33 Gbps: 1,733 Mbps on 5 GHz and 600 Mbps on 2.4 GHz, served in 4x4:4 MU-MIMO on each of the two bands.

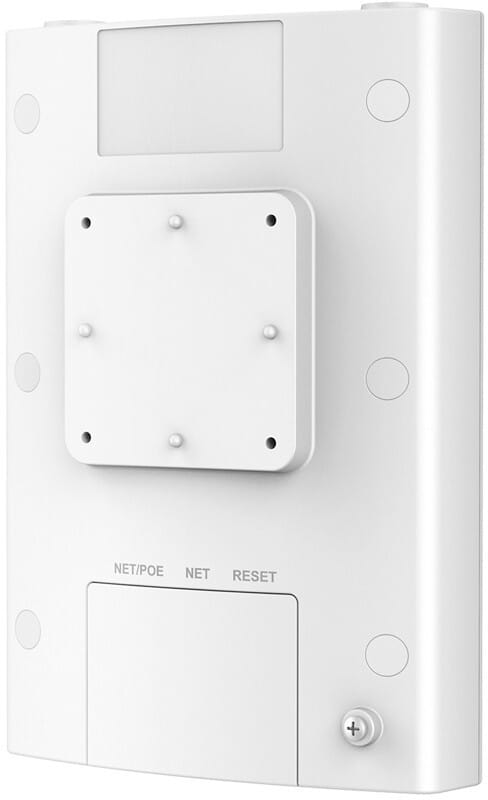

How is the GWN7630LR mounted, and are the brackets supplied?
By wall or pole mounting, with both kits supplied along with the access point and the quick start guide. The housing is long and narrow — 533.1 × 115 × 40 mm for 564 g, and 706 g once the brackets are fitted.
Is a hardware controller needed to manage several GWN7630LR units?
No. A controller is built into the web interface of the access point and manages up to 50 local GWN access points, with no licence or server. GWN.Cloud manages an unlimited number of devices free of charge from a browser or a mobile app.
Can two buildings be linked without running a cable between them?
Yes, GWN access points form a mesh network: a remote access point connects wirelessly to the wired one, which avoids digging a trench or laying a fibre link. It does, however, need its own PoE power supply on site.
Which frequency bands does the GWN7630LR operate on?
Across the entire 2.4 GHz band (2,412-2,484 MHz) and on all 5 GHz sub-bands, from 5,150 to 5,850 MHz, with 20, 40 or 80 MHz channels. The usable sub-bands depend on local regulations, which the access point applies automatically.
Is the GWN7630LR suitable for Wi-Fi IP phones and video?
Yes. Advanced QoS (802.11e/WMM, VLAN, TOS) reserves bandwidth for real-time streams: this is the stated use case for Wi-Fi IP phones and video phones, including outdoors.
Can a guest network be separated from the internal network on this access point?
Yes: 16 SSIDs per band, with 802.1Q VLAN tagging, 802.1x authentication and a captive portal for visitors. Each network has its own access rules, with no additional equipment.
How is the access point protected against malicious tampering?
By secure boot and the locking of critical data and commands with a digital signature, as well as by a unique certificate and a random factory password specific to each device: two access points from the same batch do not share the same default password.
Is the equipment new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for a period of one year. Details of the manufacturer's specifications are in this document: GWN7630LR (PDF).
