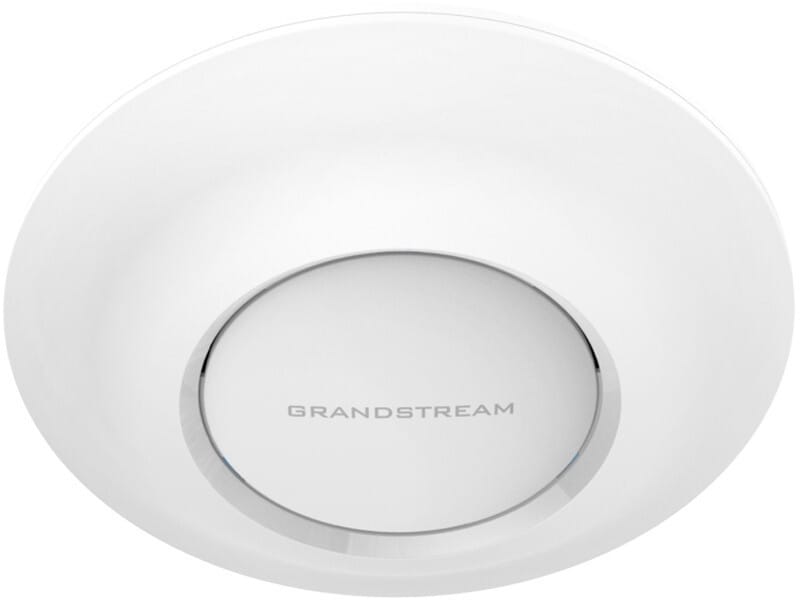

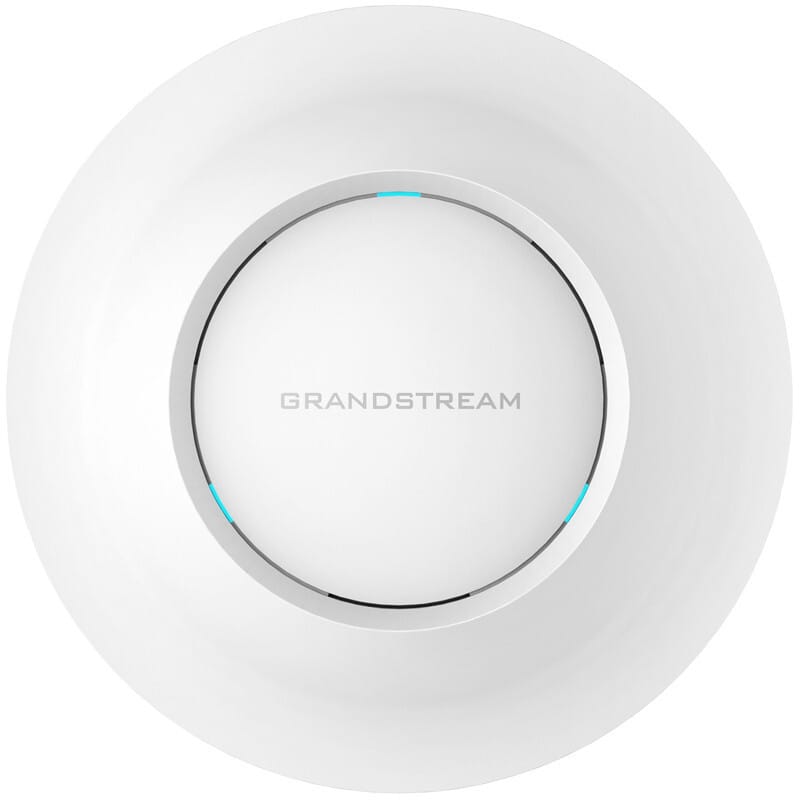

Grandstream Dual-Band 2x2:2 MU-MIMO WiFi 5 Access Point (GWN7605)
Compact and affordable, it covers up to 165 m and takes more than 100 devices. Two Gigabit ports, power over the network cable and free cloud administration: setting it up takes a few minutes.
- Up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
- Combined wireless throughput of 1.27 Gbps
- More than 100 devices connected at the same time
- Range of up to 165 m
- 2 Gigabit Ethernet ports
- PoE 802.3af or PoE+ 802.3at, automatic power adjustment
- Free management via GWN.Cloud or GWN Manager
- Built-in controller driving up to 50 access points
- Mesh networks and captive portal
- WPA3 encryption and secure boot
- 16 Wi-Fi networks (SSIDs), 8 per band
- Casing of 180.4 × 180.4 × 40.8 mm
- Wall or ceiling mounting, kits included
Ref.: GWN7605
Back to school
-5%849,00 DHincl. VAT890,00 DH
You save 41,00 DH incl. VAT
Ends in, ends in 3 days and 8 hours
In stock
Earn 9 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 300 DH by card or bank transfer) · Certified cheque
Product overview
Grandstream GWN7605 Wi-Fi 5 access point: a compact, affordable indoor unit for small and medium Wi-Fi deployments.
Wi-Fi & speed: Wi-Fi 5 (802.11ac Wave-2), dual-band, up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz; aggregate speed of 1.27 Gbps.
Capacity & performance: dual-band 2x2:2 MU-MIMO; more than 100 devices simultaneously; range up to 165 m.
Installation: indoor; wall or ceiling mounting, kits included.
Ports & power: 2 Gigabit ports; PoE (802.3af) or PoE+ (802.3at), a single cable is all it takes.
Management: GWN.Cloud, GWN Manager, built-in controller for up to 50 APs; mesh networking, captive portal.
Highlights: WPA3, advanced QoS, 16 configurable SSIDs.
Use cases: small offices, retail shops, restaurants, lounges, connected homes.
A scalable, easy-to-deploy Wi-Fi 5 access point for small to medium-sized networks.
Request a quoteShare:
Technical specifications
| Package contents | GWN7605 access point, mounting kits, quick start guide |
|---|---|
| Number of SSIDs | 16 SSIDs in total, 8 per radio |
| Interfaces | 2 x 10/100/1000 Base-T Ethernet ports, 1 reset pinhole, 1 Kensington lock |
| Network standards | IEEE 802.11a/b/g/n/ac Wave 2, 802.1Q, 802.1p, 802.1x, 802.11e/WMM, 802.3af, 802.3at |
| Advanced Wi-Fi technologies | Band beamforming, automatic power adaptation on PoE or PoE+ detection |
| Maximum channel width | 80 MHz on 5 GHz, 40 MHz on 2.4 GHz |
| Spatial streams and MU-MIMO | 2×2:2 MIMO at 2.4 GHz, 2×2:2 MU-MIMO at 5 GHz |
| Maximum Wi-Fi throughput per band | 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz, 1.27 Gbps combined |
| Management modes | Controller built into the web interface (50 access points), GWN.Cloud, GWN Manager |
| Cloud management platform | GWN.Cloud |
| Layer 2 features | VLAN, 802.1Q, 802.1p, 802.11e/WMM and TOS quality of service |
| Roaming and mesh | Mesh networking |
| Power consumption | 10.16 W maximum |
| Weight | 388.2 g |
| Dimensions (W x D x H) | 180.4 x 180.4 x 40.8 mm |
| Antennas | 2 internal dual-band antennas, gain 3 dBi at 2.4 GHz and 3 dBi at 5 GHz |
|---|---|
| Stated range | Up to 165 m |
| Maximum transmit power | 24 dBm on 2.4 GHz, 22 dBm on 5 GHz |
| Security features | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, secure boot, unique certificate |
| Power supply | PoE 802.3af or PoE+ 802.3at |
| Operating temperature | 0 to 40 °C |
| Operating humidity | 10 to 90% non-condensing |
| Wi-Fi standard | Wi-Fi 5 |
| Location | Indoor |
| Mounting type | Multiple |
| Bands | Dual-band |
| PoE power | PoE (802.3af) |
| Simultaneously connected devices | More than 100 concurrent clients |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
What is in the GWN7605 box and how is it powered?
It contains the access point, the wall or ceiling mounting kits and the quick start guide. Power comes over the network cable, via 802.3af PoE or 802.3at PoE+: you therefore need a PoE switch or an injector, to be provided separately. The access point detects the PoE type on its own. A single network cable then carries both data and power.
What is its power consumption, and is an entry-level PoE switch enough?
10.16 W at most. A standard 802.3af port is enough to power it: the access point accepts both PoE and PoE+ and automatically adapts its power according to what it detects on the cable. Power consumption therefore stays modest for an access point that is always on, and only one switch port is used.
Can it be installed outdoors, under a covered walkway or in an equipment room?
It is designed for indoor use: 0 to 40 °C in operation, 10 to 90% non-condensing humidity, and indoor wall or ceiling mounting kits. An area exposed to rain or intense heat falls outside this operating range. Opt for a false ceiling, a corridor or a room: the supplied kits are all you need for mounting.
How many separate Wi-Fi networks can be created on the GWN7605?
16 SSIDs in total, 8 per radio: 8 on 2.4 GHz and 8 on 5 GHz. Enough to separate the staff network, the guest network — with a captive portal — and the one for checkouts or cameras, each on its own 802.1Q VLAN.
Is it sized for a meeting room or a full restaurant?
It handles more than 100 simultaneous Wi-Fi devices, with dual-band 2×2:2 MU-MIMO and beamforming, which directs the signal towards each client rather than broadcasting it blindly. Advanced QoS protects real-time applications when the room is full. Aggregate throughput reaches 1.27 Gbps, i.e. 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz.
What does the advertised 165-metre range mean in practice?
It is a maximum that depends on the environment: load-bearing walls, partitions and interference reduce it markedly. The signal comes from 2 internal 3 dBi dual-band antennas, with a transmit power of 24 dBm on 2.4 GHz and 22 dBm on 5 GHz. As these antennas are built into the housing, there is nothing to aim or screw on during installation.
How can coverage be extended to a room that no cable reaches?
With a mesh network: a second GWN access point links to the cabled one over Wi-Fi and relays the coverage. It still needs a PoE power supply on site, but no longer a network cable back to the switch.
Do you have to pay for a controller or a subscription to manage several access points?
No. The controller is built into the access point's web interface and manages up to 50 local GWN access points. Beyond that, GWN.Cloud is a free cloud platform with no limit on the number of access points, and GWN Manager installs on your server for up to 3,000 access points. So there is no separate controller unit to buy.
What level of Wi-Fi security does the GWN7605 offer?
It supports WPA3, as well as WPA/WPA2-PSK and WPA/WPA2 Enterprise (TKIP/AES) with 802.1x. On top of this come an anti-hacking secure boot validated by digital signatures, a unique security certificate and a random default password specific to each device.
How can you stop the access point from being taken down in a shop open to the public?
The housing has a Kensington lock slot, and resetting is done via a pinhole, which cannot be triggered by accident. Three tri-colour LEDs show the device's status without anyone needing to touch it. The housing weighs only 388 g and mounts on the wall or ceiling with the supplied kits.
How much space does it take up once mounted on the ceiling?
180.4 × 180.4 × 40.8 mm for only 388 g: a square less than 18 cm across, which goes unnoticed on a false-ceiling tile or mounted on a wall. The complete package weighs 719 g. Only the network cable connects it to the switch: no electrical outlet or power adapter to fit in alongside.
Is the Grandstream GWN7605 access point new and under warranty?
Yes: new equipment, sealed in its original packaging, supplied with the invoice that serves as the 1-year warranty document. It holds FCC, CE, RCM and IC certifications. All the detailed measurements are in the manufacturer's datasheet (PDF).
