Bosch Handheld Wireless System with PL22 Dynamic Microphone (R300-HD/B)

14 hours of battery life on two AA batteries, and a single button to find the cleanest channel out of 32. The cardioid head rejects room noise and limits the risk of feedback on stage.

  • Cardioid head: picks up the voice in front, rejects the room and limits feedback
  • UHF wireless link, 32 preset channels
  • ClearScan: automatic search for the clearest channel at the touch of a button
  • EZsync: channel transfer by infrared from the receiver to the transmitter
  • 14 h of battery life with two AA alkaline batteries
  • Dual-antenna receiver to avoid signal loss
  • Metal handheld transmitter, backlit LCD screen with battery gauge
  • Metal receiver chassis, 19-inch rack mounting possible
  • Balanced and unbalanced outputs on the receiver
  • For singing, conferences and hosting
Ref.: R300-HD/B

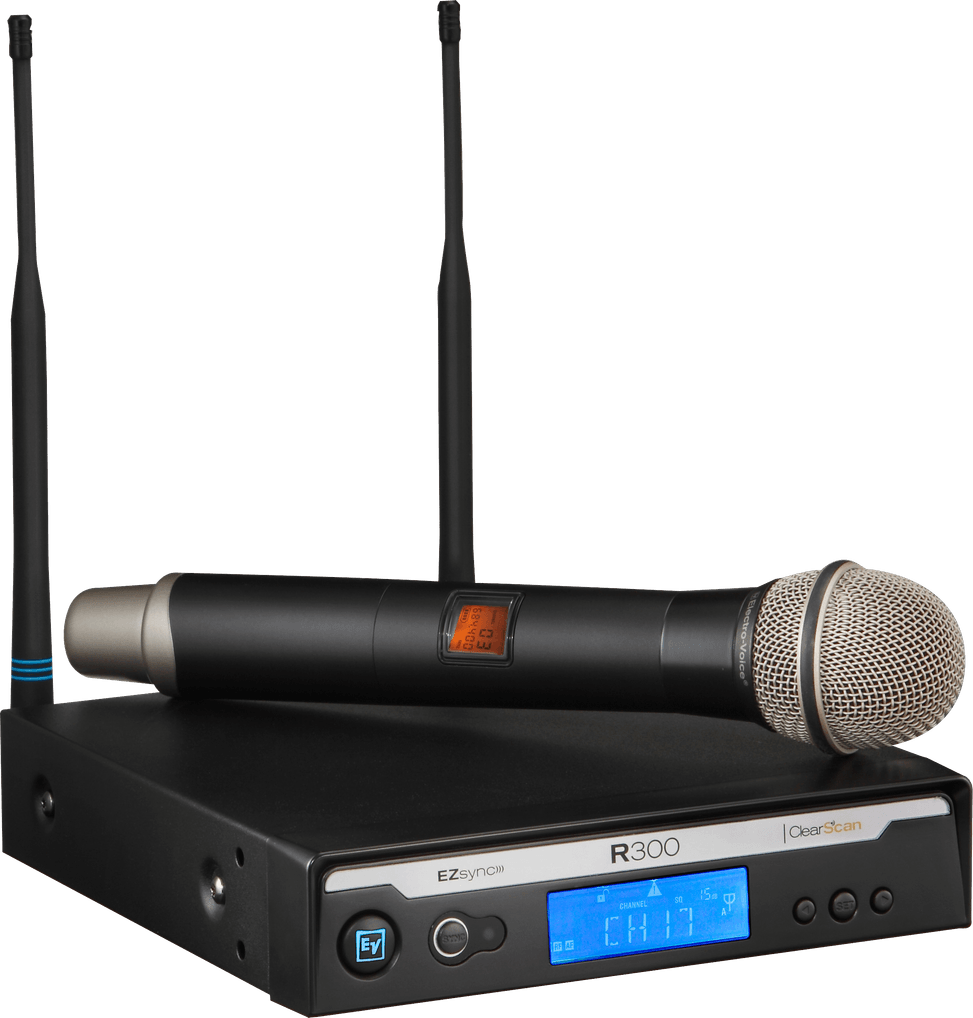

Bosch Handheld Wireless System with PL22 Dynamic Microphone (R300-HD/B) — image 1

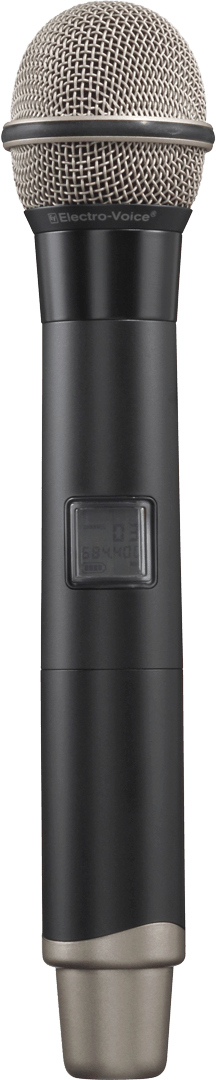

Bosch Handheld Wireless System with PL22 Dynamic Microphone (R300-HD/B) — image 2

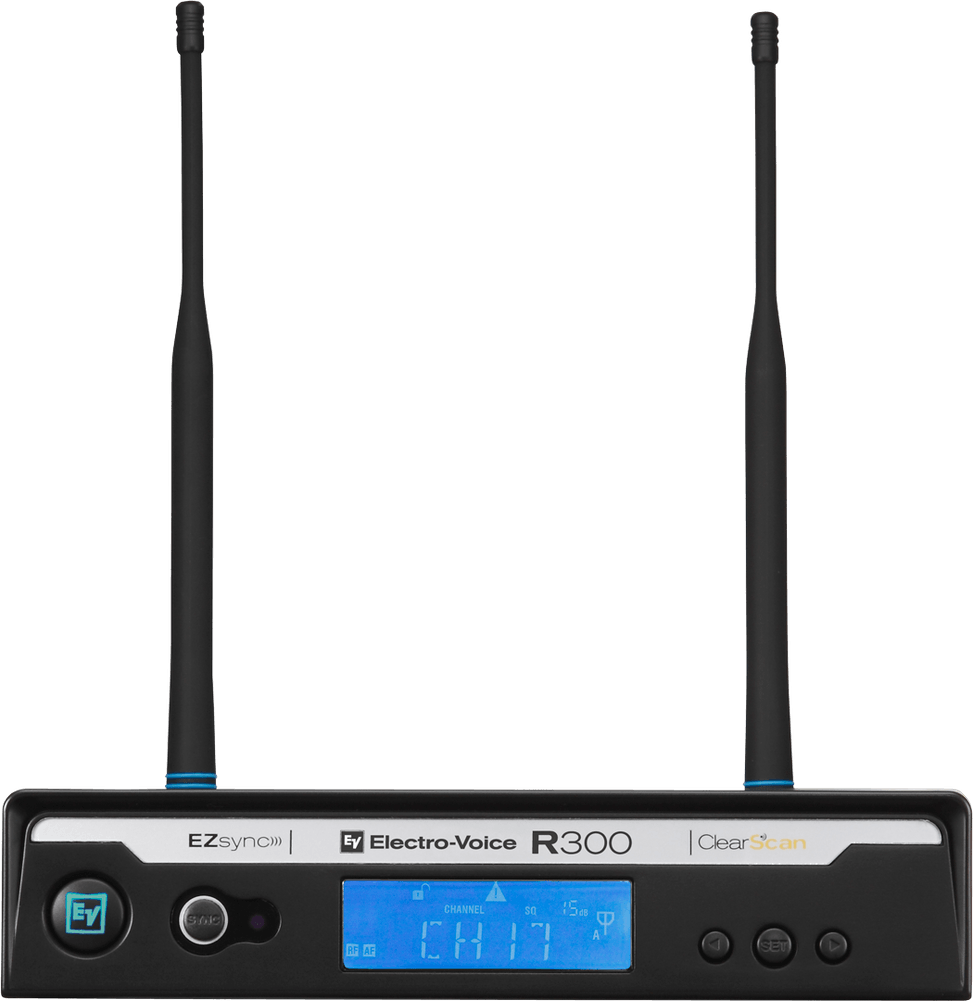

Bosch Handheld Wireless System with PL22 Dynamic Microphone (R300-HD/B) — image 3

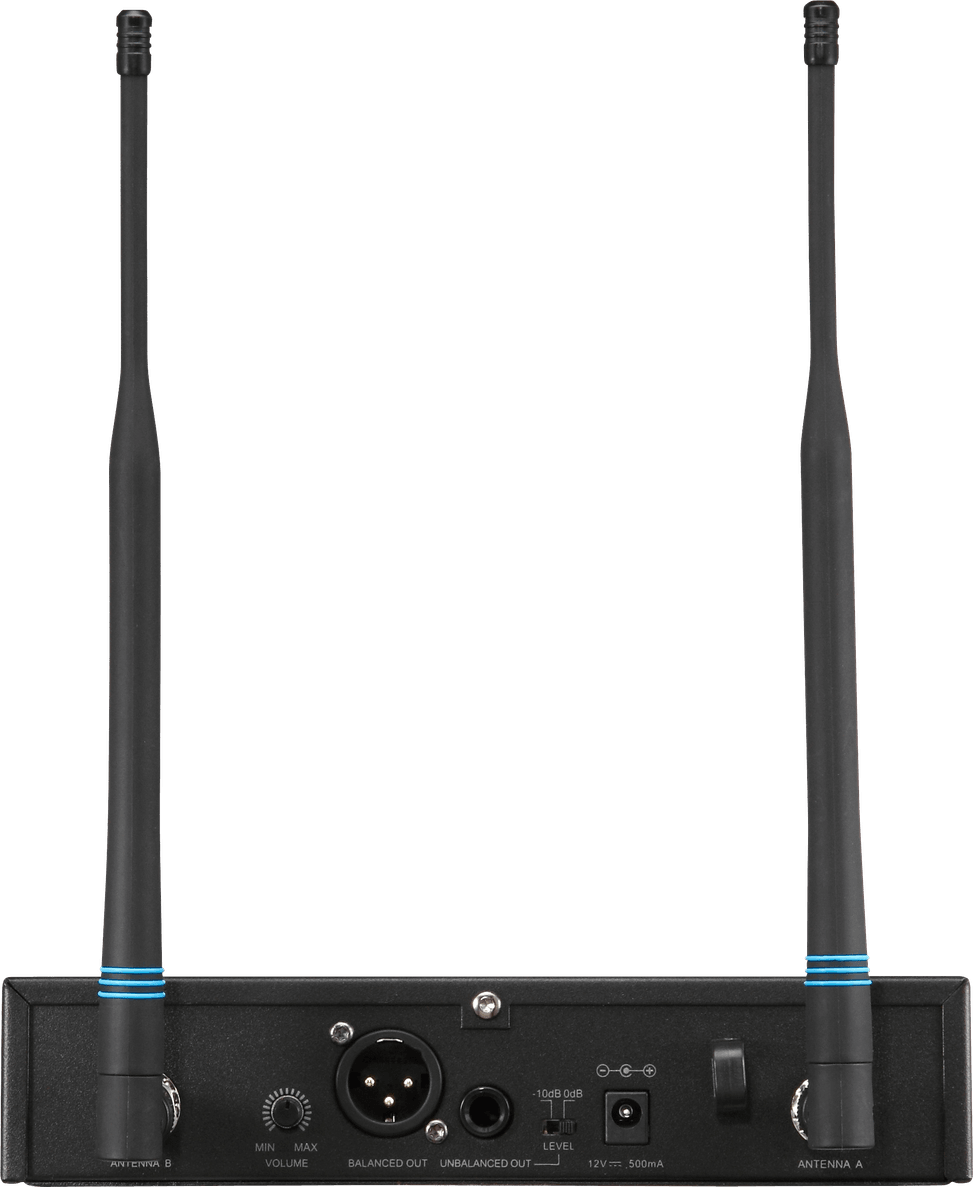

Bosch Handheld Wireless System with PL22 Dynamic Microphone (R300-HD/B) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Staging : microphone stand, boom arm, pop filter, mounts and ambient speakers photographed are not included unless stated.
  • Quantity : the number of speakers or channels visible in the image does not necessarily match the set sold.
  • Cables and tips : the cables, adapters, ear tips and cases supplied are those listed in the specifications.
  • Specifications : Bluetooth, jack socket, USB, noise cancellation and battery life cannot be read from a photo.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
4 979,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 886 Ko — downloadable

Product overview

Reliable audio performance for every show. The Bosch handheld wireless system with PL22 dynamic microphone combines ease of use with professional ruggedness. With ClearScan and EZsync technology, channel setup is quick and intuitive. The PL22 cardioid microphone captures voices clearly and precisely while reducing ambient noise and the risk of feedback. With 14 hours of battery life on two AA batteries and a rugged metal transmitter, it is built to last. Its metal-chassis receiver provides stable reception and can be rack-mounted for easy integration.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Dimensions (W x D x H)Receiver: 206 x 210 x 43 mm; handheld microphone: 267 mm long
Microphone frequency response80 Hz to 18 kHz, plus or minus 2 dB
Polar pattern selectionFixed (cardioid)
Microphone connectionUHF radio link to the receiver; balanced 3-pin XLR and 6.35 mm jack outputs
Headphone outputNone
Wireless technologyAnalogue UHF with PLL synthesis, true antenna diversity
System components1 HT-300 handheld transmitter microphone with PL22 capsule and 1 R300 receiver
Frequency bandsBand B: 678 to 694 MHz
Available radio channels32 channels per band, 8 simultaneous systems
Power supplyHandheld transmitter: 2 AA batteries; receiver: 12 to 16 V DC, 500 mA maximum
Phantom power requiredNo (handheld transmitter microphone running on 2 AA batteries)
MountingReceiver on a table or in a 19-inch rack; handheld microphone held or on a stand
RuntimeMore than 14 h per transmitter (2 alkaline AA batteries)
Technical specifications (continued)
Microphone typeHandheld microphone
Capsule technologyDynamic
Polar patternCardioid
Microphone useConference & meetings, Vocals & stage
Internal recordingNone
ControlsOn the receiver: on/off, Set, up, down and Sync, with ClearScan automatic scan
Lighting and indicatorsBacklit transmitter LCD screen: channel, frequency, mute and battery level
Conversion resolutionNone (analogue radio link, no converter)
Management softwareNone
Compatible productsElectro-Voice microphones for R300 systems: ULM18 lavalier, HM3 headworn and PL22 capsule
Signal-to-noise ratioGreater than 100 dB (A-weighted)
Dynamic rangeGreater than 95 dB
Warranty1 year
