Epson EB-685Wi Projector with interactive pen WXGA HD-ready (1280 x 800) (V11H741040)

Two pens included: a teacher and a pupil can annotate the image at the same time. With its ultra-short throw, the unit mounts just above the board and shows 100 inches at 60 cm from the wall, with no cast shadow.

  • 3,500 lumens (white and colour), 2,900 lumens in economy mode
  • 3LCD technology
  • Ultra-short throw, throw ratio 0.28 - 0.37:1
  • Image from 60 to 100 inches
  • Dual interactive pen for two simultaneous users
  • 250 W lamp, 5,000 h (10,000 h in economy mode)
  • Contrast 14,000:1
  • 3 HDMI inputs
  • VGA, USB, Ethernet and microphone input
  • Optional Wi-Fi
  • 16 W speaker
  • Wall mount included
  • Screen sharing and multi-PC projection software
  • Weight 5.9 kg
Ref.: V11H741040

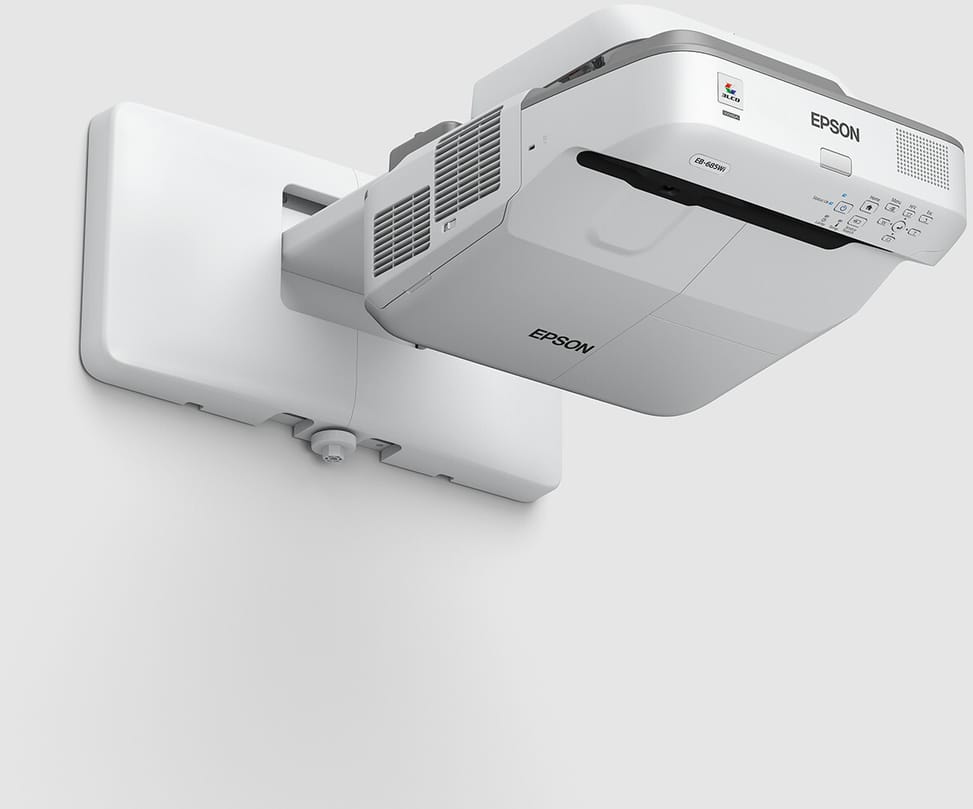

Epson EB-685Wi Projector with interactive pen WXGA HD-ready (1280 x 800) (V11H741040) — image 1

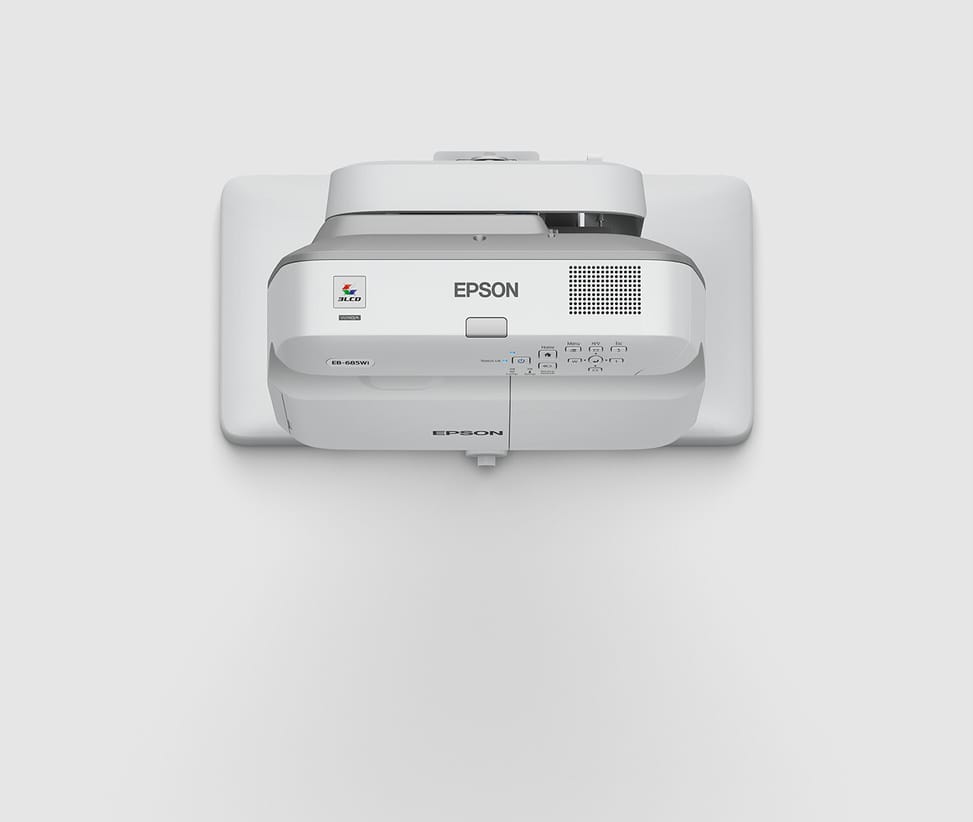

Epson EB-685Wi Projector with interactive pen WXGA HD-ready (1280 x 800) (V11H741040) — image 2

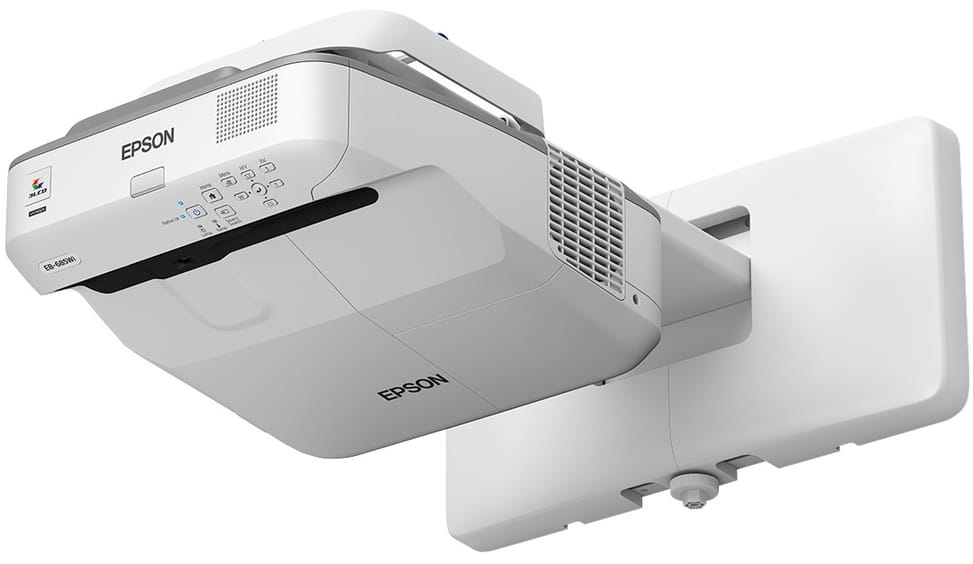

Epson EB-685Wi Projector with interactive pen WXGA HD-ready (1280 x 800) (V11H741040) — image 3
Epson EB-685Wi Projector with interactive pen WXGA HD-ready (1280 x 800) (V11H741040) — image 4

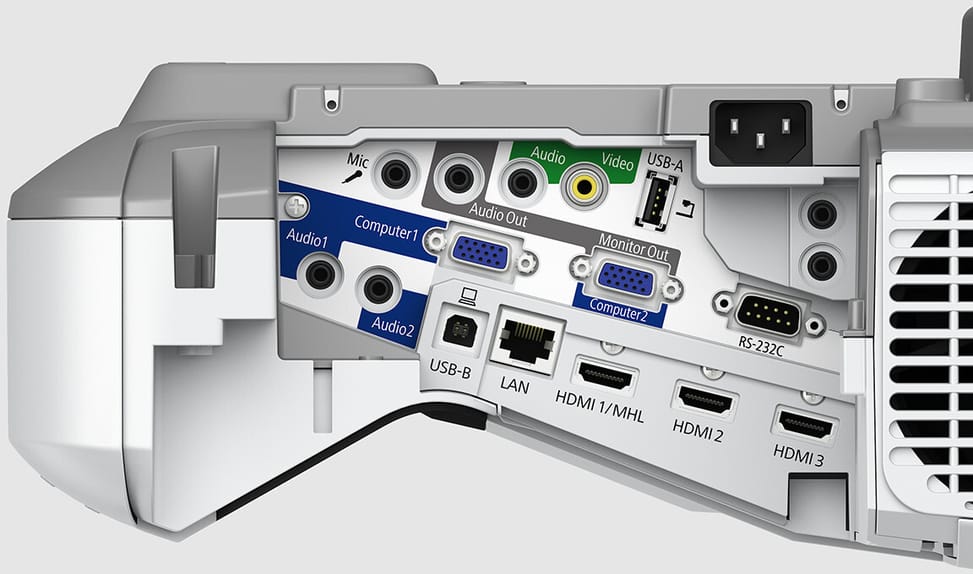

Epson EB-685Wi Projector with interactive pen WXGA HD-ready (1280 x 800) (V11H741040) — image 5

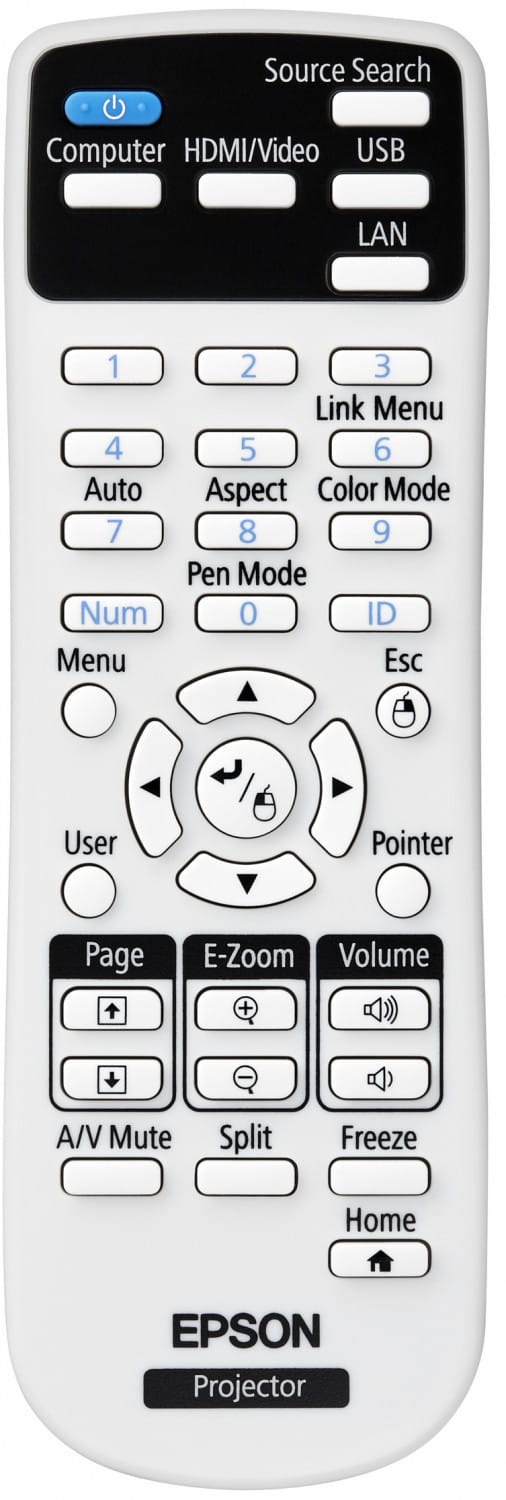

Epson EB-685Wi Projector with interactive pen WXGA HD-ready (1280 x 800) (V11H741040) — image 6
Epson EB-685Wi Projector with interactive pen WXGA HD-ready (1280 x 800) (V11H741040) — image 7

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • On-screen image : the content visible on the screen is a composite: it represents neither the real picture quality nor any content supplied with the product.
  • Stand and mount : the shape of the stand changes between versions; wall mounts, arms and ceiling fixings are not included unless stated.
  • Connectors and sound : the number of HDMI, DisplayPort and USB ports, and the presence of speakers, a tuner or a network port, are read in the specifications.
  • Panel : bezels, curved format, touch, matte or glossy finish and refresh rate cannot be judged from a photo.
  • Accessories : remote control, cables, 3D glasses and projection screen are supplied only if the specifications say so.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/7
18 799,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 855 Ko — downloadable

Product overview

Ultra-short-throw interactive projector: a touch-enabled picture and pens for collaborative learning.
Picture: WXGA (1280 × 800), 3LCD technology for vivid colours.
Brightness: 3,500 lumens (white and colour), 2,900 lumens in eco mode.
Contrast: 14,000:1 for sharp images even in broad daylight.
Light source: 250 W lamp, up to 5,000 h (10,000 h in eco mode).
Projection: ultra-short throw (0.28–0.37:1), image from 60 to 100 inches.
Ports: 3 HDMI, USB, VGA, Ethernet, MHL, optional Wi-Fi.
Sound: built-in 16 W speaker.
Who it's for: ideal for classrooms and collaborative spaces.
Dual interactive pens for simultaneous annotation, split screen, multi-PC software included. Simple wall mounting, fewer shadows and reflections.
Turn every lesson into an interactive experience with a large touch-enabled picture and collaborative tools.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Ethernet network card100 Mbps (100 Base-TX/10 Base-T)
BluetoothNone
Standby power consumption0.39 W
Brightness3,500 lumens (white ISO 21118:2012)
Brightness in eco mode2,900 lumens (white ISO 21118:2012)
Contrast ratio14,000 : 1
Keystone correctionManual vertical ± 3°, manual horizontal ± 3°
ResolutionWXGA (1280 x 800)
Focal length3.7 mm
Projection lensOptical, f/1.6
Projection distance0.4 m for 60 inches, 0.6 m for 100 inches
ZoomNone
Digital zoom1.35x
Displayable colours1.07 billion colours
Light sourceLamp, 250 W

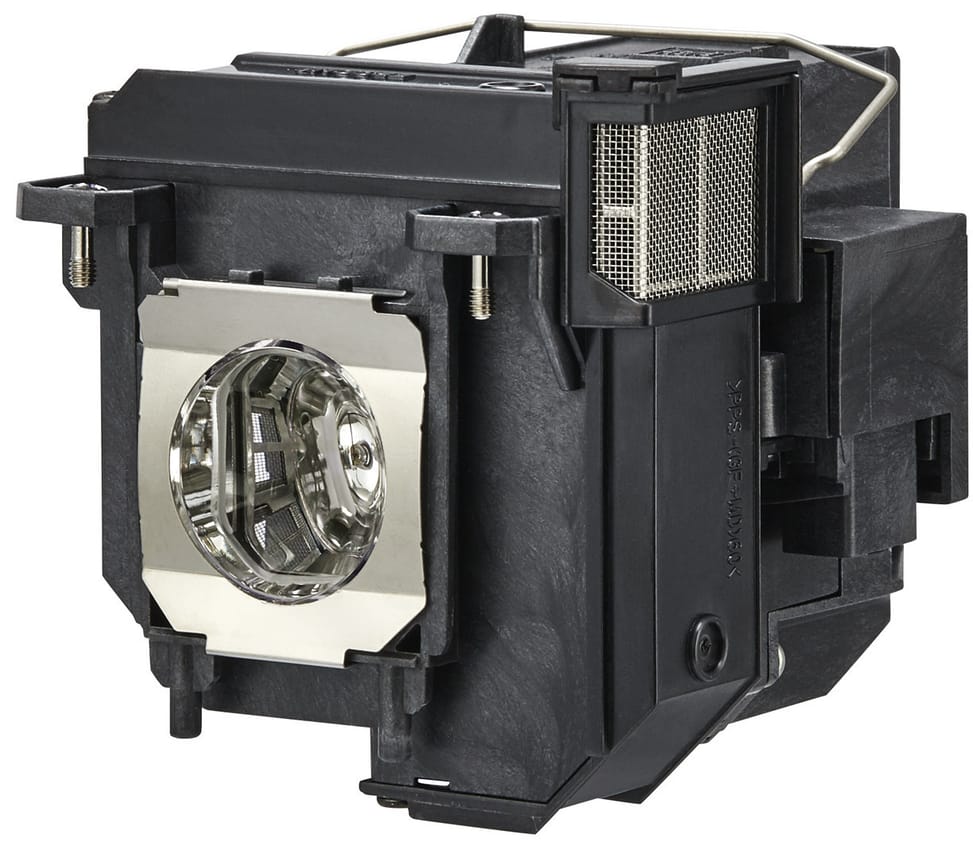

Replacement lampELPLP91
Light source life (eco mode)10,000 h (9,000 h in the second eco mode)
Light source life (normal mode)5,000 h
Audio input3 mini-jack inputs (3.5 mm), 1 microphone input
Audio output1 mini-jack output (3.5 mm)
Connector(s)RS-232C, composite input, RGB input (2x), RGB output, MHL, sync in and sync out
Power consumption354 W
Eco mode power consumption310 W
Dimensions (W x D x H)367 x 400 x 149 mm
Technical specifications (continued)
Weight5.9 kg
Box contentsInteractive pens, projector, pen tray, power cable, guide, remote control, USB cable, wall mount
Aspect ratio16:10
Wi-FiOptional (Wi-Fi 4, 802.11b/g/n, external module)
FocusManual
Throw ratio0.28 - 0.37:1
Projection size60 inches - 100 inches
Offset5.8:1
Speaker16 W
USB1 USB 2.0 Type-A port, 1 USB 2.0 Type-B port
Display technology3LCD technology
USB display function3-in-1: image, mouse and sound
SecurityKensington lock, password, cable hole, wireless LAN unit lock
Included softwareEasy Interactive Tools, Epson Projector Management, EasyMP Multi PC Projection
Noise level35 dB(A)
Noise level in eco mode30 dB(A) (29 dB(A) in Eco2 mode)
EthernetYes
UseClassroom & training
HDMI3 HDMI ports
VGA2 inputs, 1 output
Projection technology3LCD
Throw typeUltra-short throw
Interactive projectorYes
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Is the wall mount supplied with the Epson EB-685Wi?
Yes, the wall mount is included in the box, along with the two interactive pens, their pen holder, the USB cable, the power cable, the remote control and its batteries. It is the installation method intended for this model: mounted on the wall, just above the board.
How far from the wall is the EB-685Wi mounted for a 100-inch image?
About 60 cm — 40 cm for a 60-inch image. Its ultra-short-throw lens, with a ratio of 0.28 to 0.37:1, projects a large image from very close: the presenter does not cross the beam, with no shadow cast and no glare.
Can two people write at the same time on the EB-685Wi?
Yes, the two supplied pens work simultaneously. A teacher and a student, or two students, work on the same image with different pen settings. Annotation works even with no computer connected to the projector.
Do the EB-685Wi's pen tips wear out?
Yes, they are wear parts: replacement felt and Teflon tips are among the accessories available for this model. Felt glides more smoothly over the surface, Teflon lasts longer — it is a consumable to budget for in a heavily used room.
Does the EB-685Wi work with a Mac or a Linux computer?
Yes. Supported systems include Windows 10, 8 and 8.1, macOS 10.7 to 10.10, as well as Linux and several versions of Ubuntu, including 16.04 LTS. Easy Interactive Tools software comes with the unit for annotation.
Can the teacher choose which screen is displayed with the EB-685Wi?
Yes, with the Moderator function of the multi-PC projection software: participants' computers share their content and the teacher decides what appears. The split-screen function displays two pieces of content side by side, for example a lesson plan and a video.
Can two EB-685Wi units be combined to cover an entire wall?
Yes. Two projectors can be combined to create a single large interactive display area, each keeping its own pens. It is the intended solution when a room needs a wider working surface than a 100-inch board.
Does the EB-685Wi accept a microphone for the teacher?
Yes, a microphone input is provided, and the built-in speaker delivers 16 W: the voice goes through the projector, with no separate sound system. The connectivity also includes three HDMI inputs, two VGA inputs, Ethernet and MHL for a mobile device.
Is Wi-Fi built into the EB-685Wi?
It is optional: wireless projection and the iProjection app — including from a Chromebook — require the wireless network unit, to be purchased in addition. For wired use, the built-in Ethernet port is enough to connect the unit to the school's network.
Does the EB-685Wi have to be aligned precisely in front of the board?
Yes, mechanical alignment must be done carefully: its keystone correction covers only ± 3°, as on any ultra-short-throw projector. On the other hand, pen calibration is automatic and brightness adjusts itself to the room's lighting.
What brightness and noise level can you expect from the EB-685Wi in a classroom?
3,500 lumens in white and colour alike, 2,900 lumens in eco mode, with a 14,000:1 contrast ratio — readable in broad daylight. The noise level stays at 35 dB(A) in normal mode and drops to 29 dB(A) in Eco2 mode, with a power consumption of 354 W.
Is the EB-685Wi interactive projector new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. Plan a mounting suited to its 5.9 kg for 367 × 400 × 149 mm, and quote reference V11H741040 for any part or pen tip.
