Visit the Aruba store

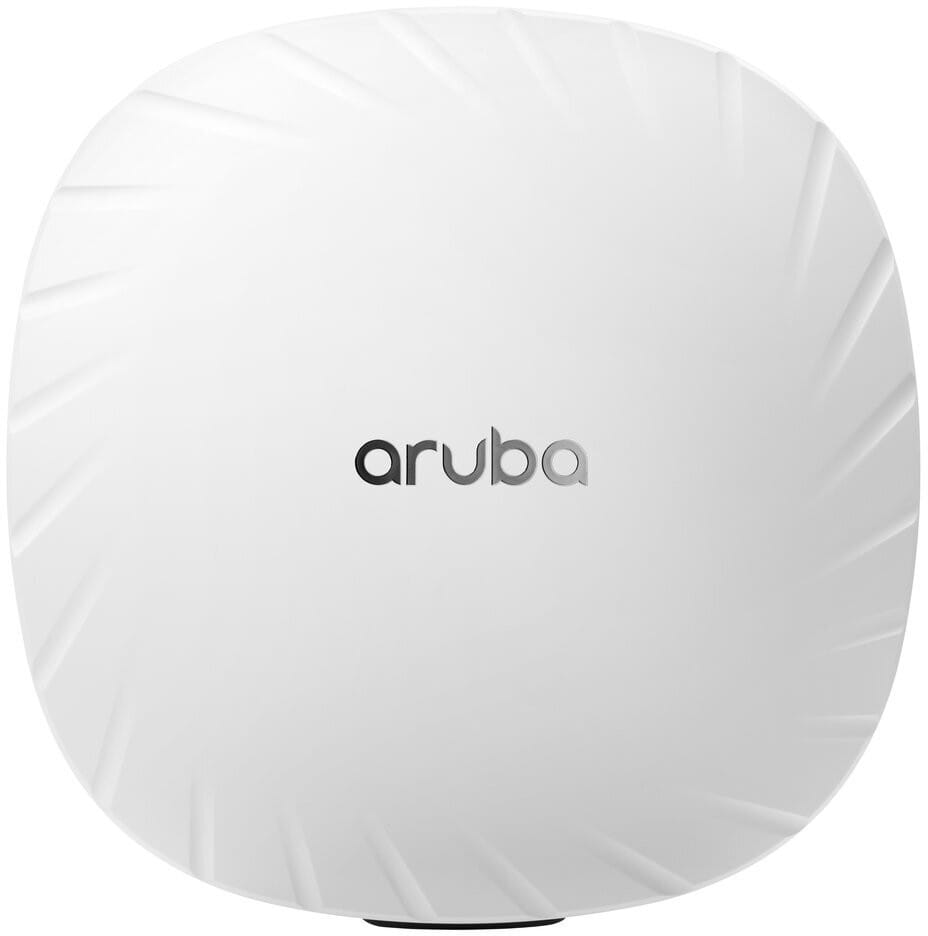

Aruba AP-535 (RW) Unified Campus WiFi 6 Access Point Dual Radio 4x4:4 802.11ax (JZ336A)
Two 5 Gbps ports and a combined throughput of 2.97 Gbps for places that pack people in: open space, lecture hall, hospital, hotel or training centre.
- Combined throughput up to 2.97 Gbps
- Two Multi-Gigabit 5 Gbps ports
- Two-way MU-MIMO and OFDMA for high device densities
- PoE+ (802.3at) power at minimum, PoE++ (802.3bt) for operation without restrictions
- HPE Aruba Networking Central cloud management
- Security with dynamic segmentation
- WPA3 encryption
- Bluetooth 5 and Zigbee radios for connected objects
- Internal antennas
- Designed for environments with a very high density of clients
Ref.: JZ336A
8 899,00 DHincl. VAT
Limited quantity
Earn 89 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 1 330 DH by card or bank transfer) · Certified cheque
Product overview
HPE Aruba AP-535 campus Wi-Fi 6 access point: high-density 4x4 performance for large professional spaces.
Wi-Fi & speed: Wi-Fi 6 (802.11ax) dual-band — aggregate speed of 2.97 Gbps, bidirectional 4x4 MU-MIMO and OFDMA.
Capacity: dual-radio 4x4 MIMO, designed for environments with a very high density of clients.
Installation: indoor, ceiling mounting — internal antennas.
Ports & power: two 5 Gbps Multi-Gigabit ports; PoE+ (802.3at) minimum — PoE++ (802.3bt) recommended for unrestricted operation.
Management: HPE Aruba Networking Central — unified view, AI-driven orchestration, dynamic segmentation security; WPA3, IoT (Bluetooth 5, Zigbee), built-in TPM.
Use cases: large open-plan space, hospital, training centre, hotel, lecture theatre, high-density meeting room.
Limited lifetime warranty — high-speed Wi-Fi 6 for the most demanding campus deployments.
Request a quoteShare:
Technical specifications
| Package contents | Optional mounting kits, optional power adapter: neither is included |
|---|---|
| Interfaces | 2 HPE Smart Rate RJ45 ports up to 5 Gbps, USB 2.0 Type A, micro-USB serial console, Kensington lock |
| Network standards | IEEE 802.11a/b/g/n/ac/ax, 802.3at, 802.3bt |
| Advanced Wi-Fi technologies | Uplink and downlink OFDMA, MU-MIMO, WPA3, Enhanced Open (OWE), Wi-Fi Agile Multiband, Passpoint |
| Spatial streams and MU-MIMO | 4×4 MIMO on each band, uplink and downlink OFDMA and MU-MIMO |
| Maximum Wi-Fi throughput per band | 1,150 Mbps at 2.4 GHz, 2.4 Gbps at 5 GHz, 3.55 Gbps combined |
| Management modes | HPE Aruba Networking Central, Zero Touch Provisioning |
| Cloud management platform | HPE Aruba Networking Central |
| Roaming and mesh | Wi-Fi Agile Multiband and Passpoint (Release 2), Wi-Fi CERTIFIED Location certification |
| Power consumption | 30 W maximum on PoE 802.3bt, 25 W on 802.3at, 29 W on power adapter |
| Weight | 1.0 kg |
| Dimensions (W x D x H) | 270 x 270 x 80 mm |
|---|---|
| Antennas | 4 integrated downtilt dual-band antennas, peak gain 3.5 dBi at 2.4 GHz and 5.4 dBi at 5 GHz |
| Security features | WPA, WPA2 and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) |
| Power supply | PoE 802.3bt (class 5) or 802.3at, or optional power adapter |
| Wi-Fi standard | Wi-Fi 6 |
| Location | Indoor |
| Mounting type | Ceiling mount |
| Bands | Dual-band |
| PoE power | PoE+ (802.3at) |
| Warranty | 1 year |
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Why does the AP-535 have two 5 Gbps ports?
Because its 4x4 radio goes well beyond Gigabit: with 2.97 Gbps combined, a 1 Gbps port would become the bottleneck. Its two ports negotiate 100 Mbps, 1, 2.5 or 5 Gbps depending on the switch at the other end, and can be aggregated or dedicated to separate uses.
What PoE power supply do you need for the AP-535?
An 802.3at PoE+ port at minimum. Below the required budget, intelligent power monitoring (IPM) disables certain features rather than shutting the access point down; an 802.3bt PoE++ source, on the other hand, gives it its full capabilities.
What difference does the AP-535's 4x4 MIMO make in a very busy room?
Four spatial streams per radio instead of two: the access point communicates with more devices in parallel. Combined with OFDMA and bidirectional MU-MIMO, this is what keeps a lecture theatre, an open-plan office or a training centre running at peak times.
Does the AP-535 help IoT devices save battery power?
Yes, the Target Wake Time feature schedules when each device needs to communicate with the access point, instead of leaving it listening all the time. Battery-powered sensors last longer, and contention for airtime decreases.
Can the AP-535 act as a gateway for IoT devices?
Yes, it integrates Bluetooth 5 and an 802.15.4 (Zigbee) radio, complemented by a USB port for an external module. Sensors, beacons and security solutions connect without an overlay network or a dedicated gateway.
How can you isolate IoT devices without multiplying VLANs?
With dynamic segmentation: the access policy follows the user or device instead of being fixed to a VLAN, an access control list or a subnet. The policy enforcement firewall encapsulates the traffic all the way to the gateway to encrypt and inspect it.
What level of encryption does the AP-535 provide?
WPA3 in Enterprise — with the CNSA option — and Personal (SAE) versions, as well as Enhanced Open (OWE) to encrypt an open guest network. A TPM module stores credentials, passwords and boot code separately from the rest of the system.
Does the AP-535 draw its full power all the time?
No: an AI-driven dynamic power-saving mode scales back its activity when demand drops, then automatically restores it as soon as connections return. Intelligent power monitoring also adjusts features according to the available PoE budget.
Can the AP-535 be installed in a suspended ceiling or a hospital?
Yes: it carries the UL 2043 plenum rating, required in the air-return space of a suspended ceiling, and complies with the EN 60601-1-1 and EN 60601-1-2 standards for medical equipment. The AP-535 additionally has its own railway certifications: EN 50155, EN 50121 and IEC 61373.
Are the AP-535's antennas internal, and how much space does the access point take up?
Internal: four downtilt omnidirectional dual-band antennas, rated at 3.5 dBi on 2.4 GHz and 5.4 dBi on 5 GHz. The enclosure measures 270 × 270 mm and 80 mm thick and weighs 1 kg: it is a large access point, best planned for an unobstructed ceiling.
Can the AP-535 be deployed at a remote site without a technician?
Yes, through zero-touch provisioning: the access point is shipped, plugged in on site, then configured remotely from HPE Aruba Networking Central, which provides a unified view of wired, wireless, WAN and VPN networks.
What management connectors does the AP-535 have?
Two RJ-45 Ethernet ports, a serial console on a micro-B connector, a USB 2.0 Type-A port and a Kensington lock slot. The console is invaluable when the access point no longer shows up on the network and has to be diagnosed on site.
Does the AP-535 fix devices that stay stuck on an access point that is too far away?
Yes, ClientMatch technology steers them to the access point with the best radio signal. Client Insights packet inspection completes the picture by identifying devices and continuously monitoring those that behave abnormally.
Is the equipment new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. The access point is Wi-Fi CERTIFIED for the a, b, g, n and ac standards, as well as Wi-Fi Agile Multiband and Wi-Fi CERTIFIED Location.
