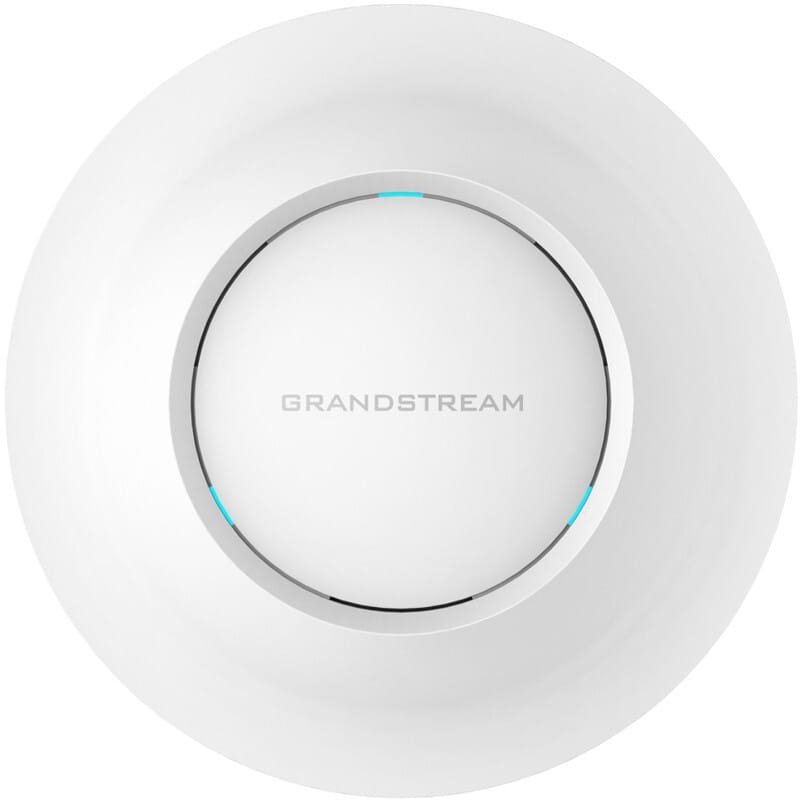

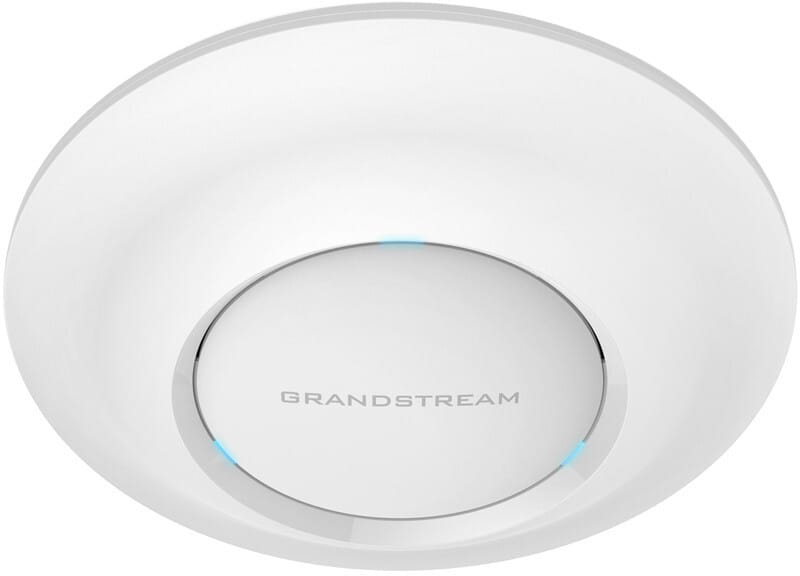

Grandstream Dual-Band 4×4:4 MU-MIMO WiFi 5 Access Point (GWN7630)
Designed for multi-storey offices and branches: more than 200 devices served at once, up to 175 m of range and 1,733 Mbps available on the 5 GHz band. Fleet management is free.
- Up to 1,733 Mbps on 5 GHz and 600 Mbps on 2.4 GHz
- Combined wireless throughput of 2.33 Gbps
- More than 200 devices connected at the same time
- Range of up to 175 m
- 2 Gigabit Ethernet ports
- PoE 802.3af or PoE+ 802.3at, automatic power adjustment
- Free management via GWN.Cloud or GWN Manager
- Built-in controller driving up to 50 access points
- Mesh networks, captive portal and advanced QoS
- WPA3 encryption and secure boot
- 4 internal dual-band antennas
- Maximum consumption of 16.5 W
- Wall or ceiling mounting, kits included
Ref.: GWN7630
1 329,00 DHincl. VAT
In stock
Earn 14 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 300 DH by card or bank transfer) · Certified cheque
Product overview
Grandstream GWN7630 high-performance Wi-Fi 5 access point: a 4x4:4 dual-band indoor unit for offices and commercial sites.
Wi-Fi & speed: Wi-Fi 5 (802.11ac Wave-2), dual-band, up to 600 Mbps on 2.4 GHz and 1,733 Mbps on 5 GHz; aggregate speed of 2.33 Gbps.
Capacity & performance: 4x4:4 MU-MIMO on both bands; more than 200 devices simultaneously; range up to 175 m.
Installation: indoor; wall or ceiling mounting, kits included.
Ports & power: 2 Gigabit ports; PoE+ (802.3at), maximum power consumption 16.5 W.
Management: GWN.Cloud (unlimited cloud), GWN Manager, built-in controller for up to 50 APs; mesh networking, captive portal, advanced QoS.
Highlights: WPA3, 4x4:4 MU-MIMO technology to serve many devices without slowing down.
Use cases: SMEs, multi-storey offices, branch offices, shops, hotels, schools.
The power of 4x4:4 MU-MIMO for smooth Wi-Fi, even when everyone connects at once.
Request a quoteShare:
Technical specifications
| Package contents | GWN7630 access point, mounting kits, quick start guide |
|---|---|
| Number of SSIDs | 15 SSIDs per access point |
| Interfaces | 2 x 10/100/1000 Base-T Ethernet ports, 1 reset pinhole, 1 Kensington lock |
| Network standards | IEEE 802.11a/b/g/n/ac Wave 2, 802.1Q, 802.1p, 802.1x, 802.11e/WMM, 802.3af, 802.3at, 802.3az |
| Advanced Wi-Fi technologies | Automatic power adaptation on PoE or PoE+ detection, anti-hacking secure boot |
| Maximum channel width | 80 MHz on 5 GHz, 40 MHz on 2.4 GHz |
| Spatial streams and MU-MIMO | 4×4:4 MIMO at 2.4 GHz, 4×4:4 MU-MIMO at 5 GHz |
| Maximum Wi-Fi throughput per band | 600 Mbps at 2.4 GHz, 1,733 Mbps at 5 GHz, 2.33 Gbps combined |
| Management modes | Controller built into the web interface (50 access points), GWN.Cloud, GWN Manager |
| Cloud management platform | GWN.Cloud |
| Layer 2 features | VLAN, 802.1Q, 802.1p, 802.11e/WMM and TOS quality of service |
| Roaming and mesh | Mesh networking |
| Power consumption | 16.5 W maximum |
| Weight | 590 g |
| Dimensions (W x D x H) | 205.3 x 205.3 x 45.9 mm |
| Antennas | 4 internal dual-band antennas, gain 4 dBi at 2.4 GHz and 5 dBi at 5 GHz |
|---|---|
| Stated range | Up to 175 m |
| Maximum transmit power | 27 dBm on 2.4 GHz, 25 dBm on 5 GHz |
| Security features | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, secure boot, unique per-device certificate |
| Power supply | PoE 802.3af or PoE+ 802.3at |
| Operating temperature | 0 to 40 °C |
| Operating humidity | 10 to 90% non-condensing |
| Wi-Fi standard | Wi-Fi 5 |
| Location | Indoor |
| Mounting type | Ceiling mount |
| Bands | Dual-band |
| PoE power | PoE+ (802.3at) |
| Simultaneously connected devices | More than 200 concurrent clients |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Do you need to buy a controller or a subscription to manage several GWN7630 units?
No. The controller is built into the web interface of the access point and manages up to 50 GWN access points on the local network. Beyond that, GWN.Cloud is a free cloud platform with no limit on the number of access points, and GWN Manager installs on your own server. So there is no separate controller appliance to buy, whatever the number of access points.
What is in the GWN7630 box and how is it powered?
The box contains the access point, the wall or ceiling mounting kits and the quick start guide. Power comes through the network cable, via PoE 802.3af or PoE+ 802.3at: you will need a PoE switch or an injector, sold separately. The access point detects the PoE type on its own and adjusts its power, 16.5 W at most. A single cable then carries both data and power.
Can this access point be installed outdoors or in a room without air conditioning?
It is designed for indoor use: 0 to 40 °C in operation and 10 to 90% humidity, non-condensing, with indoor wall or ceiling mounting kits. A terrace or an overheated technical room falls outside this operating range. Choose a suspended ceiling, a corridor or an office instead, where the access point mounts with the kits supplied.
What does the advertised 175-metre range really correspond to?
It is a maximum range in open conditions, which varies with the environment: walls, partitions and interference reduce it. It relies on 4 internal dual-band antennas (4 dBi gain on 2.4 GHz, 5 dBi on 5 GHz) and a transmit power of 27 dBm on 2.4 GHz and 25 dBm on 5 GHz. As these antennas are built into the housing, there is nothing to aim or screw on during installation.
How can you cover an extra floor without running a network cable?
The GWN7630 supports mesh networking: an additional access point connects over Wi-Fi to the wired one and extends the coverage. It still needs PoE power on site, but no longer an Ethernet link back to the switch.
What difference does 4×4:4 MU-MIMO make when the whole office connects?
4×4:4 MU-MIMO serves several devices in parallel instead of making each one wait its turn. The access point handles more than 200 concurrent clients for an aggregate throughput of 2.33 Gbps (600 Mbps on 2.4 GHz, 1,733 Mbps on 5 GHz). On the wired side, it has 2 auto-sensing Gigabit Ethernet ports.
Can you set up a guest Wi-Fi separate from the company network?
Yes. The access point supports multiple SSIDs, 802.1Q VLAN tagging and a captive portal for welcoming visitors. For encryption, it supports WPA3, WPA/WPA2-PSK and WPA/WPA2 Enterprise with 802.1x authentication for staff devices. Each radio has its own SSIDs, on 2.4 GHz as well as 5 GHz.
Is this access point suitable for Wi-Fi telephony?
Yes, it is even one of its preferred uses: advanced QoS (802.11e/WMM, VLAN, ToS) for low-latency real-time applications, and a link designed for Grandstream Wi-Fi IP phones. It is built for medium- to high-density deployments: multi-storey offices, branches, retail sites.
How can the access point be secured in a corridor or an area open to the public?
It has a Kensington lock slot and a pinhole reset button that cannot be triggered by accident. The firmware adds a digitally signed anti-hacking secure boot, a unique security certificate and a random default password specific to each device.
What is its power consumption and what PoE budget should be allowed for on the switch?
16.5 W at most, to be reserved in the switch's PoE budget. The access point supports the 802.3az energy-efficiency standard and automatically adjusts its power depending on whether it detects PoE or PoE+. Allow one PoE port per access point: it is the only cable to run, with data and power travelling over the same link.
What are its dimensions and weight for ceiling mounting?
The housing measures 205.3 × 205.3 × 45.9 mm and weighs 590 g, or 710 g once the mounting kits are attached, the thickness then increasing to 50.9 mm. That is a square of around twenty centimetres, unobtrusive on a suspended-ceiling tile. Three tri-colour LEDs show its status, which helps locate it on a ceiling with several access points.
Is the Grandstream GWN7630 access point new and under warranty?
Yes: the equipment is new, sealed in its original packaging and supplied with its invoice, which serves as the warranty document for 1 year. The device holds FCC, CE, RCM and IC approvals. Full details are in the manufacturer's datasheet (PDF).
