Visit the Ubiquiti store
Ubiquiti UAP-AC-HD WiFi 5 Access Point
Designed for full rooms: 4x4 MU-MIMO on both bands serves several devices at once instead of making them wait, and it holds more than 500 clients over 140 m². Powered over the network cable, adapter included.
- Up to 1,733 Mbps on the 5 GHz band
- Up to 800 Mbps on the 2.4 GHz band
- 4x4 MU-MIMO on each band, 8 spatial streams
- 140 m² coverage, more than 500 clients
- 2 Gigabit Ethernet ports, one of them a secondary port for bridging
- 802.3at PoE+ power, adapter included
- Managed by a UniFi controller, software or cloud
- Captive portal with access vouchers and online payment
- 802.11r fast roaming and 802.11v assisted transition
- VLAN assigned dynamically by RADIUS
- Wireless link between access points to extend coverage
- Ceiling or wall mounting, kits included, compatible with UAP-AC-PRO mounts
- Indoor use, 17 W maximum
Ref.: UAP-AC-HD
4 259,00 DHincl. VAT
In stock
Earn 43 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 640 DH by card or bank transfer) · Certified cheque
Product overview
Ubiquiti UAP-AC-HD high-density Wi-Fi 5 access point: 500+ devices at once over 140 m².
Wi-Fi & speed: Wi-Fi 5 (802.11ac Wave 2) standard, dual-band — up to 1,733 Mbps on 5 GHz and 800 Mbps on 2.4 GHz.
Capacity: 4x4 MU-MIMO on each band (8 spatial streams) — serves several devices without waiting.
Installation: indoor use, ceiling or wall mounting (kits included, compatible with UAP-AC-PRO mounts).

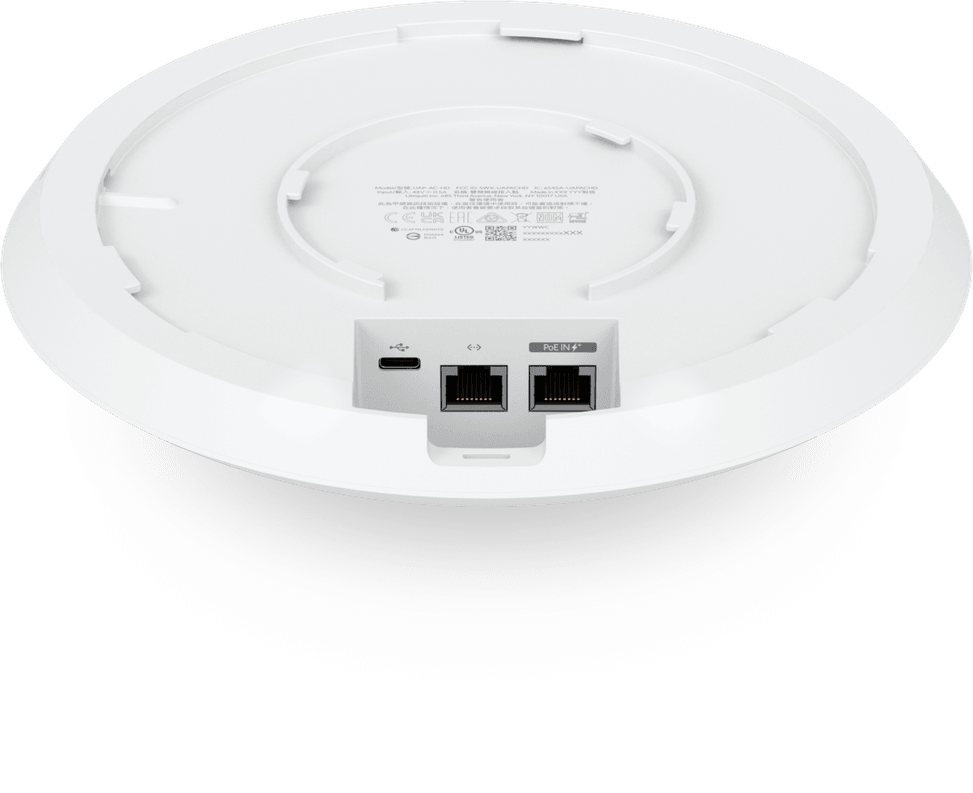

Ports & power: 2 Gigabit ports (including a secondary one for bridging); PoE+ (802.3at) power, adapter included.
Management: UniFi controller (software or cloud) — captive portal, dynamic VLAN, 802.11r roaming, mesh.
Use cases: open-plan offices, campuses, conference rooms, hotels, boarding schools, internet cafés, coworking spaces, high-density classrooms.
The UniFi Wi-Fi 5 benchmark for high-density deployments: reliability and limitless scalability.
Request a quoteShare:
Technical specifications
| Package contents | Access point, PoE adapter INCLUDED, Pro mounting bracket included |
|---|---|
| Number of SSIDs | 8 SSIDs per radio |
| Interfaces | 2 Gigabit RJ45 ports |
| Network standards | IEEE 802.11ac Wave 2 (Wi-Fi 5), compatible with 802.11n, 802.3at |
| Advanced Wi-Fi technologies | VHT and HT modulations, 802.11ac Wave 2 MU-MIMO, advanced radio management, band steering |
| Maximum channel width | 80 MHz on 5 GHz, 40 MHz on 2.4 GHz |
| Spatial streams and MU-MIMO | 4×4 at 2.4 GHz, 4×4 at 5 GHz, downlink MU-MIMO, 8 spatial streams |
| Maximum Wi-Fi throughput per band | 800 Mbps at 2.4 GHz, 1.7 Gbps at 5 GHz |
| Management modes | UniFi Network app and interface, management over Ethernet or Wi-Fi |
| Cloud management platform | UniFi Network |
| Layer 2 features | RADIUS-assigned dynamic VLAN, client device isolation, Wi-Fi rate limiting |
| Roaming and mesh | 802.11k, 802.11r and 802.11v, wireless mesh, band steering |
| Power consumption | 17 W maximum |
| Weight | 700 g, 830 g with the mount |
| Dimensions (W x D x H) | Ø 220 x 48.1 mm |
| Antennas | Gain 3 dBi at 2.4 GHz, 4 dBi at 5 GHz |
|---|---|
| Advertised coverage area | 140 m² |
| Maximum transmit power | 25 dBm on 2.4 GHz, 25 dBm on 5 GHz |
| Security features | Private pre-shared key (PPSK), RADIUS over TLS (RadSec), Passpoint (Hotspot 2.0), captive portal |
| Power supply | PoE+, voltage range 44 to 57 V DC |
| Operating temperature | -10 to 70 °C |
| Operating humidity | 5 to 95% non-condensing |
| Wi-Fi standard | Wi-Fi 5 |
| Location | Indoor |
| Mounting type | Multiple |
| Bands | Dual-band |
| PoE power | PoE+ (802.3at) |
| Simultaneously connected devices | 500+ clients |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Is the PoE injector supplied with the UAP-AC-HD?
Yes, a PoE adapter is included, so you can connect the access point without a PoE switch. It accepts PoE+ 802.3at for 17 W maximum, with an input voltage of 44 to 57 V DC.
What difference does the UAP-AC-HD's 4x4 MU-MIMO make in a full room?
It runs in 4x4 on both bands — eight spatial streams in total — and serves several devices in the same time slot rather than one after another. This is what allows it to claim more than 500 clients over 140 m².
What data rate does the UAP-AC-HD reach on each band?
1.7 Gbps on the 5 GHz band, with 80 MHz channels, and 800 Mbps on 2.4 GHz with 40 MHz channels. This is Wi-Fi 5 Wave 2: the gain lies in capacity in a busy room more than in the speed of a single device.
What is the second Ethernet port on the UAP-AC-HD for?
Both ports are Gigabit: the first connects the access point to the network and receives PoE, the second acts as a bridge for a nearby wired device — a desktop PC or a small switch in the same room.
Is the mounting bracket supplied with the UAP-AC-HD?
Yes, the Pro mount is included, for ceiling or wall installation, and it is compatible with UAP-AC-PRO mounts — handy for replacing an existing access point without drilling new holes. Allow 220 mm in diameter by 48 mm, 700 g on its own and 830 g with its mount.
Can you give each user a different Wi-Fi password?
Yes, thanks to PPSK — private pre-shared key: a single network accepts several passwords, each identifying a user or a device. Revoking one person's access then does not force anyone else to change their key.
How do you set up paid or time-limited guest access?
The captive portal can be customised with your branding and accepts authentication by access vouchers, password, online payment or via an external server. The guest network is isolated, and devices can also be isolated from one another.
Does the UAP-AC-HD integrate with enterprise RADIUS authentication?
Yes, with dynamic VLAN assignment via RADIUS and support for RadSec, which encrypts communication with the authentication server using TLS. Passpoint is also supported for automatic connection of recognised devices.
How many Wi-Fi networks can this access point broadcast?
8 networks per radio, or up to 16 across the two bands. Each one can be given its own bandwidth cap and activation schedule — enough to switch off a guest network outside opening hours.
Does the connection hold when moving between several UniFi access points?
Yes: 802.11r fast roaming, 802.11v transition management and 802.11k radio resource measurement switch the device over to the best access point without re-authentication. Band steering also pushes compatible devices onto the 5 GHz band.
Can you add an access point where no network cable reaches?
Yes, wireless mesh allows an access point to connect to the network over the air. It still needs to be powered on site, but no cable has to be run: useful for covering an annex or an isolated room.
Do you need a controller to manage the UAP-AC-HD?
The access point is managed with the UniFi controller, as software or hosted, which centralises configuration, monitoring and updates for all your devices. Management is done over the Ethernet network, or over Wi-Fi during initial setup.
Is the equipment new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document for 1 year. The access point is NDAA compliant and CE, FCC, IC and Anatel certified; the details are given in this document: UAP-AC-HD (PDF).
