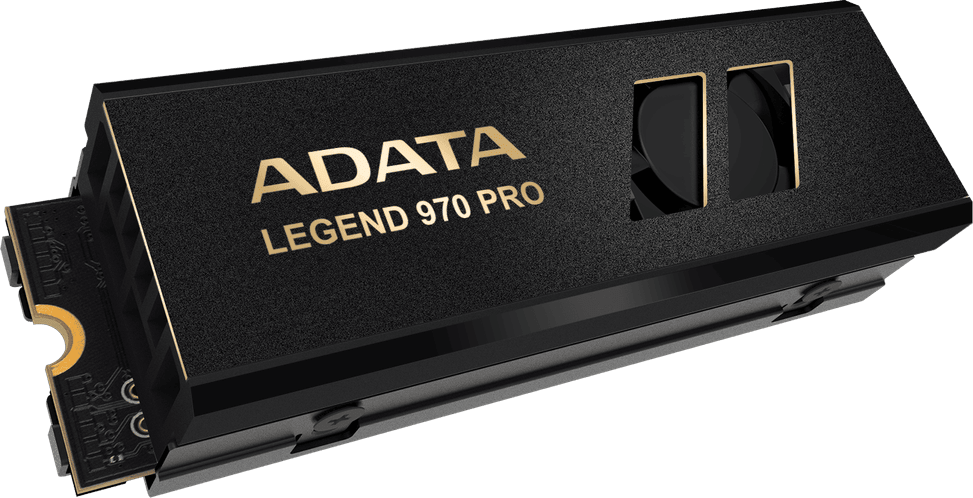

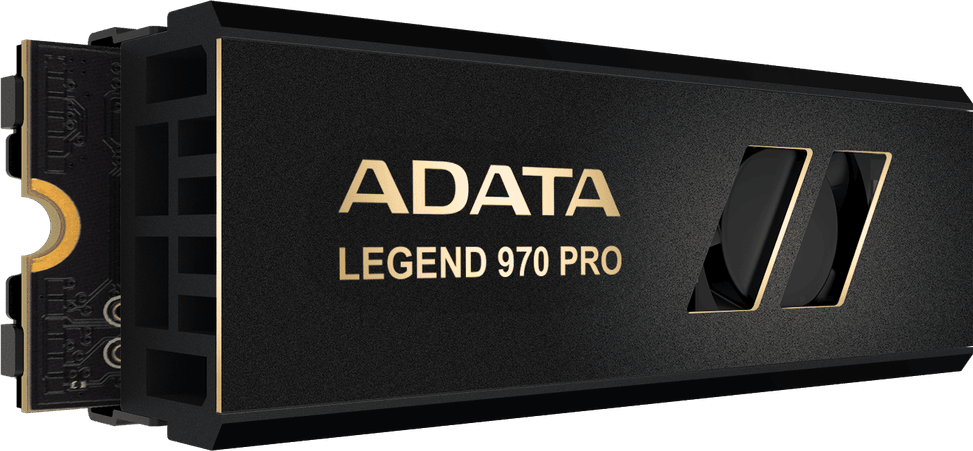

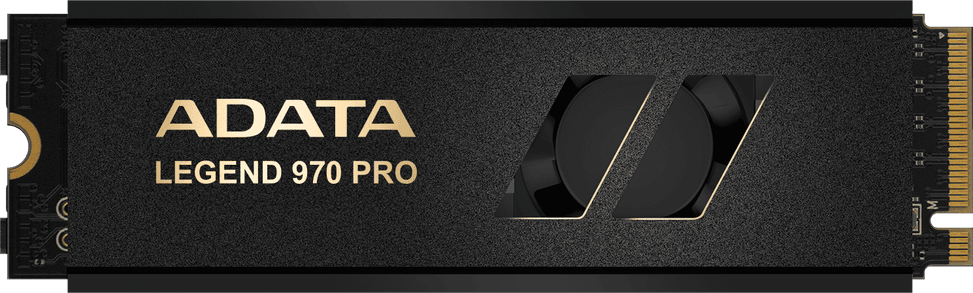

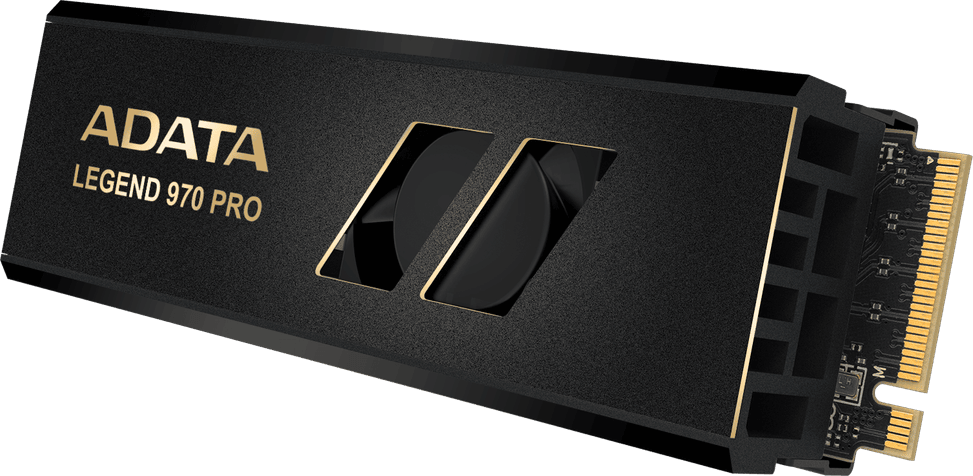

ADATA LEGEND 970 PRO PCIe Gen5 x4 M.2 2280 Internal SSD - 1TB (SLEG-970P-1TCI)

Active cooling: a built-in micro fan, with no extra power cable, keeps the speed up during long sessions. 13,000 MB/s read, 9,500 MB/s write and a dedicated DRAM cache.

  • Sequential read up to 13,000 MB/s
  • Sequential write up to 9,500 MB/s
  • NVMe 2.0 standard
  • 1,700 K IOPS in 4 KB random read, 1,250 K in write
  • Endurance 740 TB written (TBW)

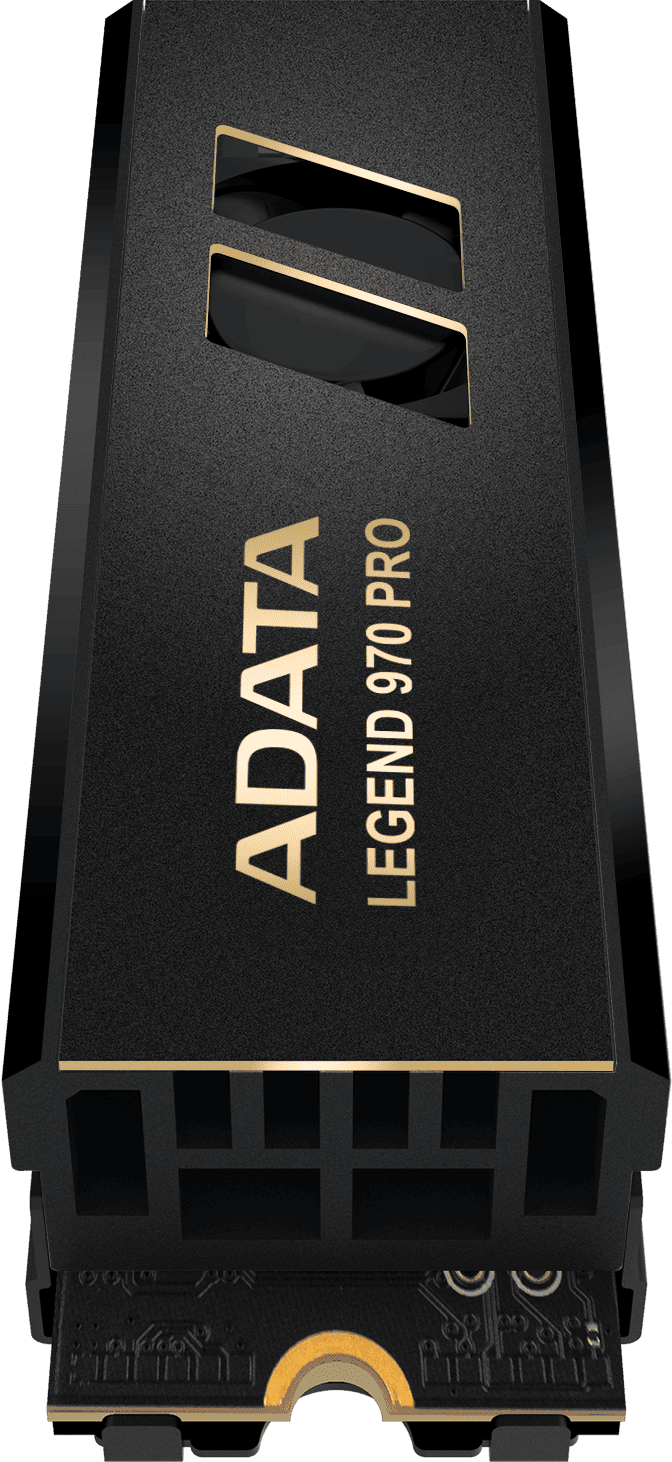

  • Double-layer aluminium heatsink and micro fan powered by the connector
  • Dedicated DRAM cache and SLC caching
  • 232-layer 3D TLC NAND memory
  • InnoGrit IG5666 controller
  • Hardware LDPC error correction
  • Backward compatible with PCIe 4.0 and 3.0, at reduced speed
  • 17.9 mm thick with the heatsink: check the space available
  • Mean time between failures 1,600,000 hours
  • SSD Toolbox software for S.M.A.R.T. monitoring
Ref.: SLEG-970P-1TCI
2 159,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 895 Ko — downloadable

Product overview

ADATA LEGEND 970 PRO 1 TB SSD, M.2 2280, PCIe Gen5 x4 NVMe: load your games in seconds and enjoy next-generation responsiveness.
Compatibility: M.2 2280 form factor, PCIe Gen5 x4 NVMe 2.0 interface, backward compatible with PCIe 4.0 and 3.0, Intel and AMD platforms; PS5 compatible for expanded storage.
Technology: 232-layer 3D TLC NAND memory, dedicated DRAM cache, SLC caching, InnoGrit IG5666 controller, LDPC ECC, active aluminium cooling and a micro-fan powered through the M.2 slot.
Performance: reads up to 13,000 MB/s, writes up to 9,500 MB/s, 4K IOPS up to 1,700K read and 1,250K write.
Endurance: TBW 740 TB, MTBF 1,600,000 h.
Highlights: Gen5 and DRAM for consistent performance, active cooling to sustain speed during intensive sessions.
Ideal for gaming PCs, creative workstations, 4K video editing, 3D animation and expanded storage on the PS5 console.
Take your PC's responsiveness to a whole new level with ADATA's new Gen5 benchmark.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Dimensions (W x D x H)80.6 x 24.2 x 17.9 mm
Net weight52.1 g
Read speedUp to 13,000 MB/s sequential read
Write speedUp to 9,500 MB/s sequential write
Random performance (IOPS)1,700,000 IOPS 4 KB read, 1,250,000 IOPS 4 KB write
Endurance740 TB written (TBW)
MTBF1.6 million hours
Operating temperature0 °C to 70 °C
Storage temperature-40 °C to 85 °C
Shock resistance1,500 G for 0.5 ms
Technical specifications (continued)
Storage capacity1 TB
Cache sizeDedicated DRAM cache, with SLC cache
InterfacePCIe Gen5 x4 (NVMe 2.0)
CertificationsCE, FCC, BSMI, KC, EAC, RCM, Morocco, UKCA, RoHS
Storage typeSSD, 3D TLC NAND flash memory
SSD controllerInnoGrit IG5666
Drive form factorM.2 2280
HeatsinkDual-layer aluminium fins and micro-fan powered by the M.2 connector
UseGaming, Creative & Multimedia
Warranty1 year

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How much space does this Gen5 SSD take up once installed?
17.9 mm high, for 80.6 by 24.2 mm and 52.1 g: this is the point to check before anything else. This height requires generous clearance above the M.2 slot and may conflict with a CPU air cooler or a graphics card.
Does this SSD really have a built-in fan?
Yes. Double-layer aluminium alloy fins are paired with a micro fan powered directly through the M.2 connector: there is no cable to connect. Together they form an active cooling system, designed to sustain speeds over long sessions.
What speeds does the 1 TB version deliver?
13,000 MB/s read and 9,500 MB/s write. The 14,000 and 11,000 MB/s advertised for the range apply to the 2 TB and 4 TB capacities: on the 1 TB, the figures are slightly lower, as this capacity uses fewer chips in parallel.
How good are its 4 KB random IOPS?
1,700,000 read and 1,250,000 write at this 1 TB capacity. These small accesses are what make multitrack editing or a 3D render loading thousands of assets run smoothly, more than peak sequential speed.
What is the write endurance of this 1 TB version?
740 TB, or 740 full drive writes, compared with 1,480 TB on the 2 TB and 2,960 TB on the 4 TB. The mean time between failures is rated at 1,600,000 hours and the module withstands shocks of 1,500 G over 0.5 ms.
Does it work on a PCIe 4.0 or 3.0 motherboard?
Yes, it is backward compatible with PCIe 4.0 and PCIe 3.0, at reduced speed: the motherboard's bus then caps the throughput. A Gen5 platform is needed to reach the advertised 13,000 MB/s read at this capacity.
Does this SSD have its own cache memory?
Yes, a dedicated DRAM cache, backed by SLC caching. The controller is an InnoGrit IG5666 and the memory is 232-layer 3D TLC NAND, with hardware LDPC error correction ensuring the accuracy of transferred data.
Is the drive new and under warranty?
It is new and your invoice serves as the warranty document. It carries the reference SLEG-970P-1TCI, to be quoted for any return. The datasheet gives the details of the three capacities in the range.
