Grandstream GWN7660ELR AX3000 WiFi 6 Access Point Dual-Band 2×2:2 MU-MIMO - Outdoor
IP67 certified and rated from −30 °C to +60 °C, it reaches up to 300 m. A 2.5 Gbps SFP port links it to the network over fibre, and up to 256 devices are served at the same time.
- IP67 housing against dust and water, in vertical installation
- Operates from −30 °C to +60 °C
- Stated range of up to 300 m, XTRA Range technology
- Up to 2,403 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Up to 256 devices served simultaneously
- 2.5 Gbps SFP port and Gigabit RJ45 port
- Powered by PoE (802.3af) or PoE+ (802.3at), automatic detection
- 5 internal antennas, 5.5 dBi gain on 2.4 GHz and 6 dBi on 5 GHz
- Built-in controller: drives up to 50 GWN access points with no dedicated hardware
- Free, unlimited cloud management through GWN.Cloud, or through GWN Manager
- Mesh network and captive portal
- WPA3 and WPA/WPA2 Enterprise encryption
- 32 Wi-Fi networks (SSIDs) in total, 16 per band
- Built-in Bluetooth Low Energy 5.2
- Wall or pole mounting, kits included
Ref.: GWN7660ELR
1 539,00 DHincl. VAT
In stock
Earn 16 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
40 DH incl. VAT
In stockReceive it between Tue 10 Nov and Thu 12 Nov ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 300 DH by card or bank transfer) · Certified cheque
Product overview
Grandstream GWN7660ELR long-range outdoor Wi-Fi 6 access point: cover terraces, car parks, warehouses and campuses with rugged IP67-certified Wi-Fi.
Wi-Fi & speed: Wi-Fi 6 (802.11ax) AX3000 dual-band — up to 574 Mbps (2.4 GHz) and 2,403 Mbps (5 GHz), i.e. 3 Gbps combined.
Capacity & performance: 2×2:2 MU-MIMO, XTRA Range technology, OFDMA — up to 256 devices simultaneously.
Installation: outdoor, IP67 enclosure (dust and water), operating temperature -30 °C to +60 °C; range up to 300 m; wall or stand mounting (kits included).
Ports & power: 1 Gigabit RJ45 port + 1 x 2.5G SFP port — powered by PoE+ (802.3at).
Management: built-in controller (50 APs) + GWN.Cloud (unlimited) + GWN Manager; mesh, captive portal, WPA3.
Ideal for businesses, warehouses, campuses, hospitals, hotels and multi-building outdoor sites.
IP67, 300 m range and a 2.5G SFP port: Wi-Fi 6 that stands up to anything, anywhere.
Request a quoteShare:
Technical specifications
| Package contents | GWN7660ELR access point, mounting kits, quick setup guide |
|---|---|
| IP protection rating | IP67 when the access point is mounted vertically |
| Number of SSIDs | 32 SSIDs in total, 16 per radio |

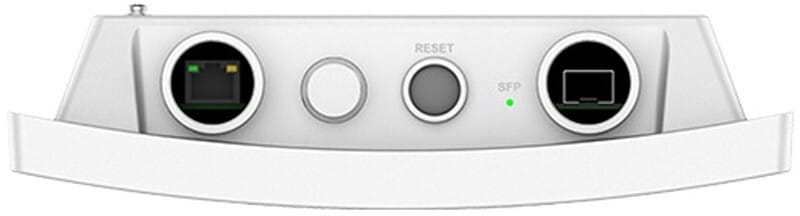

| Interfaces | 1 x 1 Gbps RJ45 port, 1 x 2.5 Gbps SFP port, 1 reset pinhole |
| Network standards | IEEE 802.11b/g/n/ac/ax, 802.1Q, 802.1p, 802.1x, 802.11e/WMM, 802.3af, 802.3at |
| Advanced Wi-Fi technologies | XTRA Range technology, Bluetooth BLE 5.2 |
| Maximum channel width | 160 MHz on 5 GHz, 40 MHz on 2.4 GHz |
| Spatial streams and MU-MIMO | 2×2:2 MU-MIMO at 2.4 GHz, 2×2:2 MU-MIMO at 5 GHz |
| Maximum Wi-Fi throughput per band | 573.5 Mbps at 2.4 GHz, 2,403 Mbps at 5 GHz |
| Management modes | Controller built into the web interface (50 access points), GWN.Cloud, GWN Manager |
| Cloud management platform | GWN.Cloud |
| Layer 2 features | VLAN, 802.1Q, 802.1p, 802.11e/WMM and TOS quality of service |
| Roaming and mesh | Mesh networking |
| Power consumption | 13 W maximum |
| Weight | 1 kg, mounts included |
| Dimensions (W x D x H) | 270 x 230 x 57 mm |
|---|---|
| Antennas | 5 internal antennas: 2 at 2.4 GHz (5.5 dBi gain), 2 at 5 GHz (6.0 dBi gain), 1 Bluetooth 4.5 dBi |
| Stated range | Up to 300 m |
| Maximum transmit power | 27 dBm on 2.4 GHz, 26 dBm on 5 GHz |
| Security features | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, secure boot, unique certificate |
| Power supply | PoE 802.3af or PoE+ 802.3at |
| Operating temperature | -30 to 60 °C |
| Operating humidity | 5 to 95% non-condensing |
| Wi-Fi standard | Wi-Fi 6 |
| Location | Outdoor |
| Mounting type | Pole/Mast |
| Bands | Dual-band |
| PoE power | PoE+ (802.3at) |
| Simultaneously connected devices | 256 concurrent clients |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Can the GWN7660ELR withstand direct exposure to rain?
Yes, its housing is rated IP67 — dust-tight and protected against temporary immersion — provided it is installed vertically. It operates from -30 to +60 °C, with technology described as heat-resistant.
What is the 2.5 Gbps SFP port on the GWN7660ELR for?
To connect it over fibre optic rather than copper: on a large site — car park, warehouse, campus —, fibre easily covers distances where copper stops at 100 m, and its 2.5 Gbps data rate exceeds that of the Gigabit RJ45 port alongside it.
How is the GWN7660ELR powered if it is connected over fibre?
Through the PoE of the RJ45 port, in 802.3af or 802.3at with automatic detection, for 13 W maximum. A fibre-only connection carries no power: the Ethernet cable is still required, or a dedicated power supply on site.
How far does the GWN7660ELR's signal reach?
Up to 300 metres, thanks to XTRA Range technology and five high-gain internal antennas — 5.5 dBi on 2.4 GHz and 6 dBi on 5 GHz. This range applies in open space: walls, trees and buildings reduce it considerably.
How many devices does the GWN7660ELR serve at the same time?
256 concurrent Wi-Fi clients, for a combined data rate of 3 Gbps: 2,403 Mbps on the 5 GHz band and 573.5 Mbps on 2.4 GHz, with 2×2 MU-MIMO on each of the two bands.
Are 160 MHz channels needed to reach the 2,403 Mbps?
Yes. The 5 GHz band accepts 20, 40, 80 or 160 MHz channels, and it is at 160 MHz that it reaches its maximum data rate, with a client device able to keep up. The 2.4 GHz band is limited to 20 or 40 MHz.
Does the GWN7660ELR support WPA3?
Yes, in addition to WPA2-PSK and WPA/WPA2 Enterprise with TKIP or AES. The hardware boots on digitally signed firmware, and each access point leaves the factory with its own certificate and its own random password.
What is the built-in Bluetooth on this outdoor access point for?
The access point includes a Bluetooth Low Energy 5.2 radio, with its own 4.5 dBi antenna. It acts as a relay for sensors, beacons and tracking tags installed nearby, with no additional gateway needed on site.
Do you need a hardware controller to manage several GWN7660ELR units?
No. A controller is built into the web interface of the access point and manages up to 50 access points of the GWN series locally, with no licence. GWN.Cloud manages an unlimited number of devices free of charge, and GWN Manager, installed on your own servers, scales up to 3,000 access points.
How many Wi-Fi networks can this access point broadcast?
32 SSIDs in total, 16 per band, with 802.1Q VLAN tagging, 802.1x authentication and a captive portal for visitors. Each network has its own rules, including on an outdoor site open to the public.
Is the GWN7660ELR suitable for Wi-Fi IP phones?
Yes. Advanced QoS (802.11e/WMM, VLAN, TOS) reserves bandwidth for real-time traffic and keeps latency low: this is the stated use case for Wi-Fi IP phones and IP video phones, including outdoors.

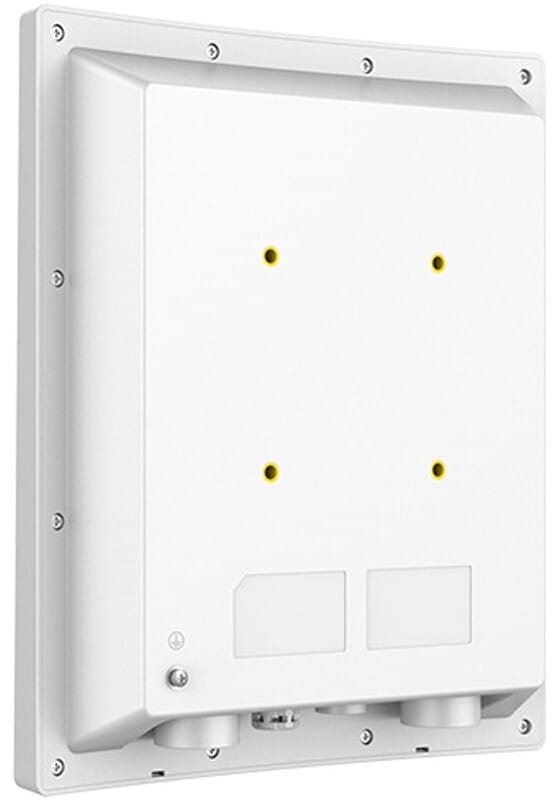

How is the GWN7660ELR mounted, and how much space does it take up?
On a wall or a pole, with the mounting kits supplied together with the installation guide. It is a bulky access point: 270 × 230 × 57 mm for 1 kg including brackets — check that the anchor point on a post is sturdy enough.
Is the equipment new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document for 1 year. The manufacturer's specifications are set out in this document: GWN7660ELR (PDF).
