Ugreen
Ugreen Flat CAT7 U FTP RJ45 Ethernet Cable - 3 metres (11262)
In stock
85 DHincl. VAT85,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
Visit the Cisco Systems store

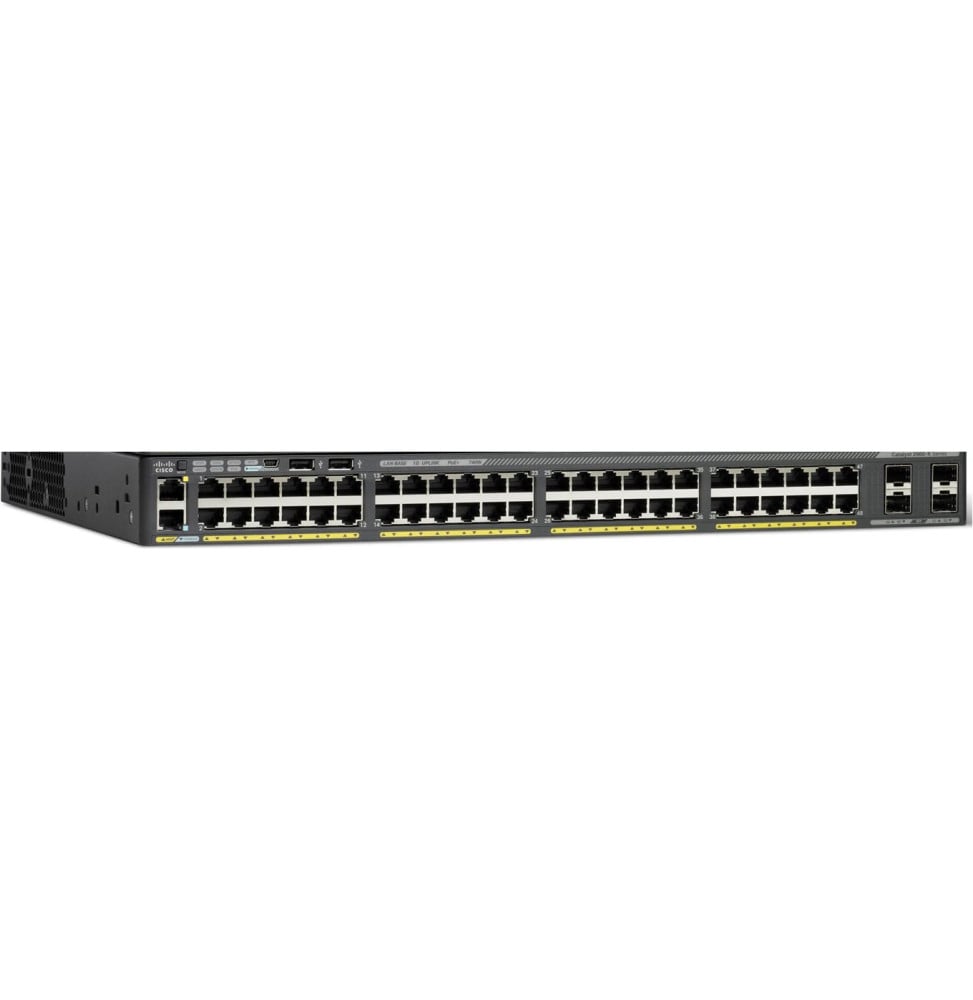

Cisco Catalyst 2960-X managed switch, 48 Gigabit PoE+ ports 740 W and 4 SFP (WS-C2960X-48FPS-L)
Cisco Catalyst 2960-X managed switch with LAN Base image: 48 Gigabit PoE+ ports with a 740 W budget and 4 SFP 1 Gbps ports. Supplied with the FlexStack-Plus C2960X-STACK stacking module (up to 8 switches) and the rack-mount kit. 1U, 5.8 kg.
- 48 Gigabit PoE+ ports
- 740 W PoE budget
- 4 SFP 1 Gbps ports
- C2960X-STACK stacking module included
- Stack of up to 8 switches
- LAN Base software image
- 216 Gbps switching
- 1U rack-mountable
Ref.: WS-C2960X-48FPS-L
New
2 399,00 DHincl. VAT
In stock
Earn 24 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
40 DH incl. VAT
In stockReceive it between Thu 1 Oct and Sat 3 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
Cisco managed switch to power and connect a large office floor: 48 Gigabit PoE+ ports, 740 W PoE budget and stacking module included.
PoE: up to 24 devices in PoE+ at 30 W or 48 in PoE at 15.4 W
Uplinks: 4 SFP 1 Gbps ports
Stacking: FlexStack-Plus C2960X-STACK module included, up to 8 switches and 80 Gbps stack bandwidth
Software: LAN Base image, IPv4 and IPv6 static routing, 802.1X, ACL, QoS with 8 queues per port
Form factor: 1U for 19-inch rack, rack-mount kit included
A Catalyst access switch ready to grow: the stack is built without buying another module.
Request a quoteShare:
Description
Cisco Catalyst 2960-X · Reference WS-C2960X-48FPS-L
Forty-eight sockets,
and the power with them.
The Catalyst 2960X-48FPS-L connects 48 workstations at Gigabit speed and powers the IP phones, Wi-Fi access points and cameras of a large office floor over the same cable. This reference comes with its stacking module: the stack is built the day a second switch joins the rack.
- 48Gigabit PoE+ ports
- 740 WPoE budget
- 4SFP 1 Gbps ports
- 8switches per stack
Twenty-four devices in PoE+, forty-eight in PoE
With 740 W to share, the switch powers up to 24 devices in PoE+ at 30 W, or its 48 ports in standard PoE at 15.4 W: the actual consumption of the connected devices sets the split. PoE power is maintained during a switch reload, so devices do not switch off at every update.
The stacking module is already in the box
The FlexStack-Plus C2960X-STACK module supplied with this reference fits into the rear of the chassis. Connected to other Catalyst 2960-X switches, it forms a stack of up to eight switches, managed under a single address, with 80 Gbps between members. An aggregated link can spread its cables across several switches in the stack, and the configuration is pushed once for all of them.
Access security built into the switch
802.1X authentication, port security, dynamic ARP inspection and IPv4 and IPv6 access control lists filter what enters the network right at the wall socket. Quality of service with 8 queues per port keeps priority for voice and video.
- Software image
- LAN Base, static routing
- Switching
- 216 Gbps, 107.1 Mpps
- Consumption
- 66.6 W excluding PoE
- Power supply
- Internal 100-240 V
- Footprint
- 1U, 445 x 368 x 45 mm
- Weight
- 5.8 kg
The stacking module is supplied, not the stack cables: they are ordered in the required length, from 0.5 to 3 m.
Compare with the other models in the managed switch category, or browse the Cisco range.
Values taken from the Cisco data sheet for the Catalyst 2960-X and 2960-XR.
Technical specifications
| MAC table size | 16,000 MAC addresses |
|---|---|
| Number of VLANs | 1,023 active VLANs, 4,096 VLAN IDs |
| Internal memory | 512 MB DRAM, 128 MB flash memory |
| Interfaces | 48 RJ-45 10/100/1000 ports, 4 SFP 1 GbE uplink ports, 1 RJ-45 10/100 management port, RJ-45 and USB consoles, 1 USB type A port for a storage drive |
| PoE ports | 48 PoE ports: up to 24 ports in PoE+ at 30 W or 48 ports in PoE at 15.4 W |
| Total PoE budget | 740 W |
| Network standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3ah, 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1X, 802.1AB (LLDP) |
| Switching capacity | 216 Gbps (forwarding bandwidth: 108 Gbps) |
| Forwarding rate | 107.1 Mpps (64-byte packets) |
| Management modes | Web interface, command line (CLI), SNMP, RJ-45 or USB console; Cisco Prime, Cisco Network Plug and Play and Cisco DNA Center |
| Layer 2 features | RSTP and MSTP (802.1w, 802.1s), PVRST+, Flex Links, cross-stack EtherChannel, LACP (802.3ad), PAgP, UDLD, IGMP and MLD snooping, voice VLAN, VTP, RSPAN, 9,216-byte jumbo frames |
| IP routing | IPv4 and IPv6 static routing (LAN Base image: 2,000 direct routes and 1,000 indirect routes) |
| Stacking and expansion | Stackable with the FlexStack-Plus C2960X-STACK module (included with this reference): up to 8 switches, 80 Gbps stack bandwidth |
| Quality of service (QoS) | 8 egress queues per port, strict priority queuing, SRR and WTD scheduling, up to 256 policers per port, 802.1p and DSCP, Auto-QoS |
| Power consumption | 66.6 W weighted average (51.9 W with no traffic, 66.8 W at 100% traffic) |
| Weight | 5.8 kg |
| Dimensions (W x D x H) | 445 x 368 x 45 mm |
| Package contents | Catalyst WS-C2960X-48FPS-L switch, C2960X-STACK stacking module and rack-mount kit |
|---|---|
| Processor | APM86392 dual-core at 600 MHz |
| Number of ports | 29 ports or more |
| Managed | Yes |
| Security features | 802.1X and flexible authentication, Port Security, dynamic ARP inspection, IP Source Guard, IPv6 first-hop security, IPv4 and IPv6 ACLs, private VLANs, SSH, SNMPv3, TACACS+ and RADIUS, BPDU Guard, Root Guard, Cisco TrustSec |
| Power supply | Internal 100-240 V AC, 50-60 Hz power supply; optional external Cisco RPS 2300 redundant power system |
| Operating temperature | -5 to 45 °C (up to 1,500 m altitude) |
| Operating humidity | 10 to 95%, non-condensing |
| PoE power | Yes |
| Port speed | 1 Gbps (Gigabit) |
| Management level | Layer 2+ |
| PoE standard | PoE+ (802.3at, up to 30 W/port) |
| PoE budget | Over 400 W |
| Fibre slots (SFP) | Yes |
| Mounting | 19-inch rack-mountable |
| Warranty | 1 year |
Specific references
| MPN | WS-C2960X-48FPS-L |
|---|
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How many devices can this switch power over PoE?
With a 740 W budget, it powers up to 24 devices in PoE+ at 30 W, or its 48 ports in standard PoE at 15.4 W. The calculation is based on the actual consumption of the IP phones, Wi-Fi access points and cameras connected, not on the number of ports alone.
Is the stacking module included?
Yes, this reference comes with the FlexStack-Plus C2960X-STACK module, which fits into the rear of the switch. It allows up to 8 Catalyst 2960-X switches to be stacked, managed under a single address, with 80 Gbps of stack bandwidth. Stack cables are ordered separately.
Can the Catalyst 2960X-48FPS-L route between VLANs?
The LAN Base image supports static routing for both IPv4 and IPv6, with tables of 2,000 direct routes and 1,000 indirect routes. It is a Layer 2+ access switch, made to distribute the network to the workstations of a floor, not to replace a core router.
Can the power supply be made redundant in case of failure?
The switch has a single internal power supply, from 100 to 240 V, which also carries the 740 W of PoE. Redundancy is provided by the Cisco RPS 2300 external redundant power system, connected to the rear connector and sold separately.
What power consumption should be expected for the switch itself?
Cisco measures 66.6 W as a weighted average, between 51.9 W with no traffic and 66.8 W at full load, excluding the energy supplied to PoE devices. The switch also supports 802.3az Energy Efficient Ethernet and scheduled hibernation.
How much space should be planned in the rack?
A single rack unit: the chassis measures 445 x 368 x 45 mm and weighs 5.8 kg, in the 19-inch rack format. The rack-mount kit is part of the delivery, along with the stacking module. Leave room at the rear for the stack cable and the power cord, and some depth: 36.8 cm of chassis, not counting the cables.
