Visit the Huawei store

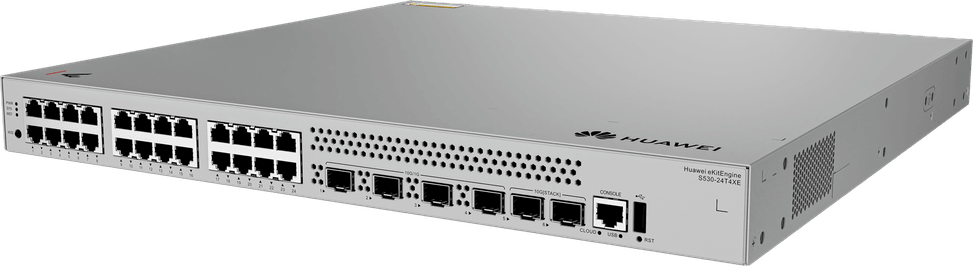

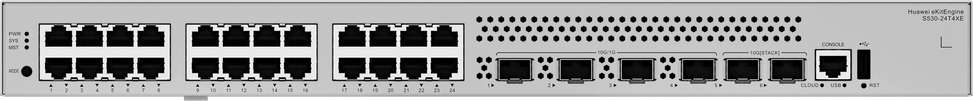

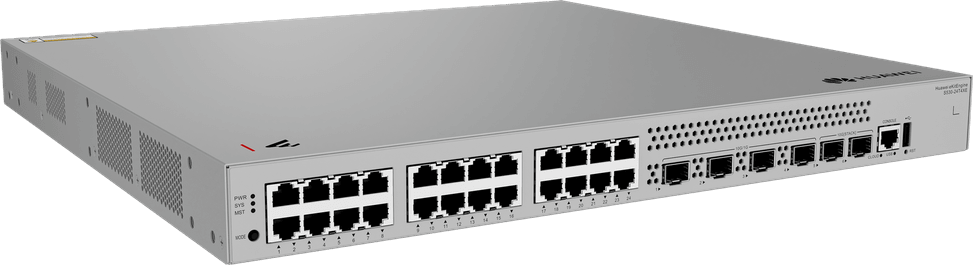

Huawei eKitEngine S530-24T4XE 24-Port Switch (98012554)
L3 aggregation switch for campus networks, with two 10 Gbps uplinks and two dedicated stacking ports. Hot-swappable 1+1 dual power supply for high availability.
- 24 Gigabit RJ45 ports
- 4 SFP+ 10 Gbps ports for uplinks
- 2 dedicated 10 Gbps stacking ports (iStack)
- Full L3 routing (OSPF, IS-IS, BGP, VRRP)
- Hot-swappable 1+1 dual power supply
- Management through the HUAWEI eKit App, web interface, CLI, SNMP
- 1U rack-mountable format
- Switching capacity 176 Gbps
- MAC table of 32,000 entries
Ref.: 98012554
7 599,00 DHincl. VAT
Configuration · Huawei eKitEngine S530
- Configuration shown: 24 × RJ45 1G
- 48 × SFP
Limited quantity
Earn 76 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 1 140 DH by card or bank transfer) · Certified cheque
Product overview
Huawei eKitEngine S530-24T4XE aggregation switch: 24 Gigabit RJ45 ports, 4 × 10G SFP+ uplinks and 1+1 redundant power for demanding campus networks and metro access.
Ports: 24 Gigabit RJ45 ports, 4 10 Gbit/s SFP+ ports for high-capacity uplinks, and 2 dedicated 10G stack ports to combine several switches into a single logical device via iStack.
Layer 3 & reliability: full L3 routing (OSPF, IS-IS, BGP, VRRP), 176 Gbit/s switching capacity, 132 Mpps forwarding rate; two 1+1 power supplies, hot-swappable for high availability.
Management: HUAWEI eKit App (cloud or local), web interface, CLI, SNMP v1/v2c/v3, SSH v2.0; IPv4/IPv6 dual-stack.
Form factor: 1U rack-mount chassis, smart active cooling.
Also: 32K MAC table, 4,094 VLANs, LACP, IGMP snooping, ERPS, QoS, anti-DoS protection.
Request a quoteShare:
Technical specifications
| MAC table size | 32,000 entries |
|---|---|
| Number of VLANs | 4,094 VLANs, voice VLAN, MUX VLAN, QinQ |
| Interfaces | 24 x 10/100/1000Base-T ports, 4 SFP+ 10 GE ports, 2 x 10 GE stacking ports |
| PoE ports | None |
| Total PoE budget | None |
| Network standards | IEEE 802.1d, 802.1w, 802.1s, 802.1ag, ITU-T G.8032 |
| Switching capacity | 176 Gbps |
| Forwarding rate | 132 Mpps |
| Management modes | SNMP v1/v2c/v3, RMON, web interface, system logs, port mirroring |
| Cloud management platform | Cloud management via Netconf/Yang |
| Layer 2 features | Smart Link, ERPS (G.8032), STP, RSTP, MSTP, BPDU and loop protection, LLDP, IGMP snooping v1/v2/v3 |
| IP routing | Static routing, RIPv1/v2, RIPng, OSPF, OSPFv3, IS-IS, BGP, ECMP, VRRP, policy-based routing |
| Stacking and expansion | iStack stacking via 2 dedicated 10 GE ports |
| Quality of service (QoS) | Rate limiting, redirection, 8 queues per port, DRR, SP or DRR+SP scheduling, 802.1p and DSCP remarking |
| Power consumption | 33.10 W maximum (two 80 W AC power modules) |
| Weight | 8.7 kg with packaging |
|---|---|
| Dimensions (W x D x H) | 442 x 420 x 43.6 mm |
| Number of ports | 19 to 28 ports |
| Managed | Yes |
| Security features | DoS/ARP/ICMP defence, IP-MAC-port-VLAN binding, port isolation and security, 802.1X authentication |
| Power supply | 80 W or 180 W AC modules 100-240 V, 50/60 Hz, or 1,200 W DC |
| Cooling system | Variable-speed fans |
| Operating temperature | -5 to 50 °C |
| Operating humidity | 5 to 95% RH, non-condensing |
| PoE power | No |
| Port speed | 1 Gbps (Gigabit) |
| Management level | Layer 3 (inter-VLAN routing) |
| Fibre slots (SFP) | Yes |
| Mounting | 19-inch rack-mountable |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
What sets this S530 apart from an access switch?
Its role as an aggregation switch: 24 Gigabit access ports, but above all 4 SFP+ uplinks at 10 Gbps, two dedicated stacking ports and dual redundant power supplies. It is the intermediate layer between the floor switches and the network core.
What happens if a power supply fails?

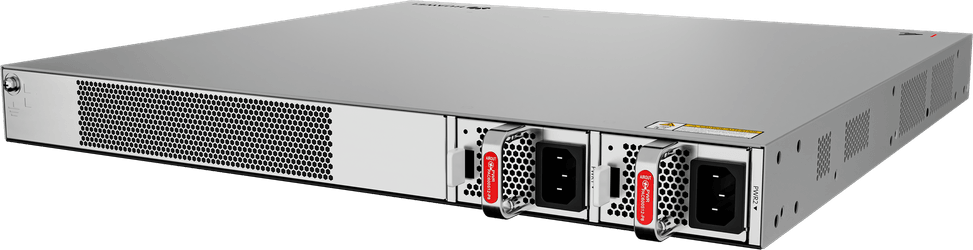

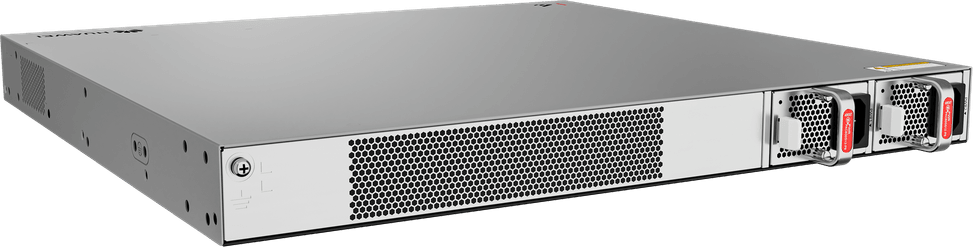

The second one takes over: two plug-in modules work in 1+1 redundancy and can be replaced without interrupting service. The manufacturer even allows AC and DC modules to be mixed, depending on the site's needs.
Does this switch support dynamic routing?
Yes, fully: static routes, RIP v1 and v2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+, with ECMP, VRRP and VRRP6, policy-based routing and routing policies. Enough to carry the routed topology of a campus.
Can several S530 units be stacked?
Yes, with iStack, using two dedicated 10 Gbps stacking ports: several chassis become a single logical switch, with redundancy between members and link aggregation across devices. You add ports by adding a member.
Is this switch suitable for carrying video?
Yes: it supports a wide range of Layer 2 and Layer 3 multicast protocols — PIM SM, PIM DM, PIM SSM and IGMP snooping — which the manufacturer explicitly intends for high-definition video and video conferencing.
What happens if the link to the network core is cut?
The Smart Link feature fails over to a backup link: the switch connects to several aggregation devices over separate links. VRRP, for its part, provides gateway redundancy on routed networks.
What performance does this switch deliver?
176 Gbps switching capacity and 132 Mpps, with a 32,000-entry MAC address table — twice that of a typical access switch. It operates from -5 to +50 °C, which leaves headroom in a comms room without air conditioning.
How are connected devices authenticated?
With 802.1X or MAC address authentication, with dynamic application of user policies — VLAN, quality of service and access control lists. Each workstation receives its rights the moment it connects, with no port-by-port configuration.
How is this switch managed day to day?
Through the HUAWEI eKit app, the web interface, the command line or SNMP. The chassis is in a rack-mountable 1U format: leave the clearance needed for ventilation and for access to the plug-in power modules.
Is the switch new, and where can I view its datasheet?
Yes, new equipment, with the invoice serving as the warranty document. The manufacturer's document details the eKitEngine S530 series, its routing, its iStack stacking and its power supply redundancy: datasheet (PDF).
