Zyxel XGS2220-54HP 48-Port Gigabit PoE L3 4 SFP Managed Switch (XGS2220-54HP-EU0101F)

Enterprise switch for hotels and sites rolling out Wi-Fi 6/6E and large-scale video surveillance: 2 extra Multi-Gigabit links and stacking of up to 4 units to grow the network.

  • 2 Multi-Gigabit copper ports (1G/2.5G/5G/10G), on top of the 48 Gigabit ports
  • PoE: 40 PoE+ ports (30 W) + 8 PoE++ ports (60 W), 600 W total budget
  • 4 SFP+ 10 Gbps ports (fibre)
  • L3 management: static routing, VLAN, QoS, IGMP snooping, LACP
  • Stackable up to 4 units (stacking)
  • Management through the Nebula cloud or a web interface
  • 1U rack-mountable
  • Switching capacity 216 Gbps
Ref.: XGS2220-54HP-EU0101F

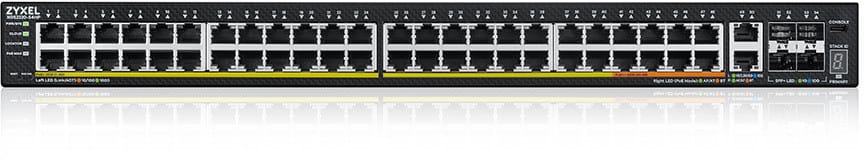

Zyxel XGS2220-54HP 48-Port Gigabit PoE L3 4 SFP Managed Switch (XGS2220-54HP-EU0101F) — image 1

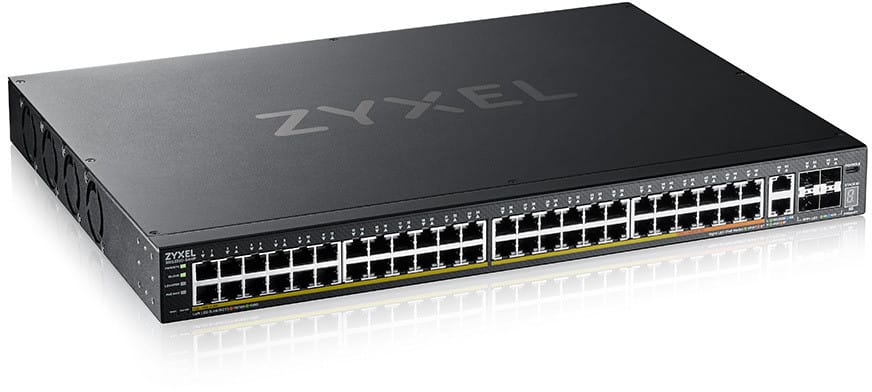

Zyxel XGS2220-54HP 48-Port Gigabit PoE L3 4 SFP Managed Switch (XGS2220-54HP-EU0101F) — image 2

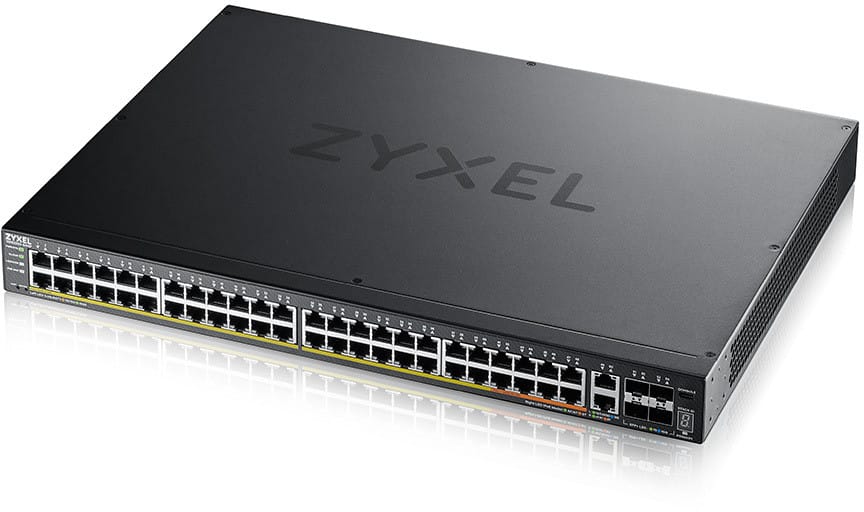

Zyxel XGS2220-54HP 48-Port Gigabit PoE L3 4 SFP Managed Switch (XGS2220-54HP-EU0101F) — image 3
Zyxel XGS2220-54HP 48-Port Gigabit PoE L3 4 SFP Managed Switch (XGS2220-54HP-EU0101F) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
19 899,00 DHincl. VAT

On order — delivery within 3 à 6 semaines

Quantity
Order on WhatsAppOn WhatsAppQuick reply

Earn 199 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

Delivery within 3 to 6 weeks — delivery free all over Morocco

Delivery to your address

The estimate is refined using actual delivery rounds to your city.

  • Free delivery from 3 000 DH of purchases, all over Morocco.
  • Below that, the same rate in every city for parcels up to 30 kg (delivery to your home or workplace) — the exact amount is shown above, then in the basket.
  • Above 30 kg, the rate follows the parcel's weight. In Casablanca, the flat rate holds up to 120 kg.
  • You are notified by SMS, then called by the courier before your parcel is handed over (delivered by Sapress).
  • Observed delivery time: 1 to 5 working days depending on the city.

1 year warranty — free repair in Morocco if it breaks down during the warranty period

1 year manufacturer's warranty

This product is covered for 1 year by a manufacturer's warranty (the brand's official warranty). Your iris.ma invoice serves as the warranty document: keep it safe.

A problem with your product? Don't worry: contact us by phone, WhatsApp or e-mail. Depending on the brand, we direct you either straight to the repairer appointed by the brand to fix your product, or to us — and we take care of the rest.

  • If a repair is possible, it is carried out free of charge.
  • If the product cannot be repaired, the brand offers an exchange for another product.
  • If no product is available, a refund is issued as soon as the brand confirms it.

Faulty straight out of the box? Some brands offer an immediate exchange, others a repair. Contact us to find out what applies to your product.

The warranty covers breakdowns occurring under normal use, as defined by the brand's terms. Product breakage (drop, impact, liquid…) is not covered, nor are certain consumable parts.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

New, never opened — our commitment

All our products are new, delivered in their sealed original packaging.

We commit to never sending you a product that has been opened, unboxed or returned by another customer — even one “just opened for checking”.

Any doubt on delivery (damaged box, seal already opened)? Point it out to the courier or contact us immediately: we take the product back and send you another one.

Sales invoice

Every order comes with its sales invoice, included with the parcel (handed over in person for a store collection).

Ordering for a company? Using the details you give at checkout (company name and ICE), the invoice is issued in your company's name, with its ICE.

Need a quote? Request a free quote — reply within 24 working hours.

100% secure payment: Bank transfer · Bank card

Accepted payment methods

Bank transfer

Simply transfer the amount shown to account 007 826 0002684000000426 89 — SGM2I, Attijariwafa bank. The rest (the reference to quote, sending us the proof, tracking) is explained right after confirmation and by email. An instant transfer is recommended: it saves you 24 hours on the delivery time.

Bank card

Your everyday Moroccan bank card is enough — Visa, Mastercard or CMI, no special card required. Foreign cards are accepted too. Secure payment by Attijari Payment.

Cash at a bank branch

Pay the cash in at any of the 3,400 Attijariwafa Bank branches in Morocco, to the SGM2I account no. 0268 D 000 000 426. You do not need an account there: your ID and the cash are enough.

The methods offered depend on the order total and the carrier — checkout shows the final list.

Google reviews4.7(553 reviews)
Manufacturer's datasheetView the PDF · 2,3 Mo — downloadable

Product overview

L3 switch Zyxel XGS2220-54HP: 48 Gigabit PoE ports and 6 × 10G links for businesses and hotels rolling out intensive Wi-Fi 6/6E and large-scale video surveillance.
Powerful PoE: 40 PoE+ ports (30 W/port, 802.3at) + 8 PoE++ ports (60 W/port, 802.3bt) + 2 Multi-Gig 10G PoE++ ports — 600 W total budget for Wi-Fi 6 access points, PTZ cameras and IP phones with no additional electrical wiring.
10G links: 4 × 10G SFP+ fibre + 2 Multi-Gig ports (1G/2.5G/5G/10G) copper to servers or aggregation switches.
L3 management: static routing, VLAN, QoS, IGMP snooping, LACP; stacking of up to 4 units; management via the Nebula cloud or web interface.
Form factor: 1U rack-mount (441 × 330 × 44 mm).
Key specs: 216 Gbit/s switching, 161 Mpps forwarding rate, 32K MAC table, IPv6, STP/RSTP/MSTP.

See all the specifications ↓
Request a quote

Be notified of a price drop

Share:

Technical specifications

Technical specifications
MAC table size32,000 entries
Number of VLANsStatic and dynamic 802.1Q VLANs: 4 K / 4 K, port-based, protocol-based, IP subnet-based and MAC-based VLAN, private VLAN, voice VLAN and QinQ
Internal memory1 GB RAM, 64 MB flash memory
Interfaces48 RJ45 10/100/1000 Mbps ports, 2 RJ45 multi-gigabit 1/2.5/5/10 Gbps ports, 4 slots for 1 Gbps SFP or 10 Gbps SFP+, 1 out-of-band USB-C console port
PoE ports50 powered ports: 40 PoE+ (802.3at) and 10 PoE++ (802.3bt), up to 60 W per port
Total PoE budget600 W
Network standardsIEEE 802.3z, 802.3ab, 802.3an, 802.3ae, 802.3af, 802.3at, 802.3bt, 802.3az, 802.3x, 802.3ad, 802.1D, 802.1w, 802.1s, 802.1Q, 802.1p, 802.1X, 802.1AB, 802.1AD
Switching capacity216 Gbps
Forwarding rate161 Mpps
Packet buffer2 MB
Management modesWeb interface, USB-C console, Telnet, SSH v2, Nebula Control Center, SNMP v1/v2c/v3, RMON (1, 2, 3, 9), syslog, LLDP and LLDP-MED
Cloud management platformZyxel Nebula (NebulaFlex)
Layer 2 features802.1Q VLAN, QinQ, private VLAN, voice VLAN, VLAN mapping and translation, STP/RSTP/MSTP, root guard and BPDU guard, LACP aggregation, IGMP and MLD snooping, flex link, loop guard
IP routingStatic and inter-VLAN routing, policy-based routing, 64 routes, 32 IP interfaces, table of 2,000 IPv4 and 2,000 IPv6 entries
Stacking and expansionPhysical stacking of up to 4 units, via 2 or 4 ports, and Zyxel iStacking management stacking
Quality of service (QoS)8 hardware queues per port (6 in stacking mode), 802.1p SPQ/WFQ/WRR scheduling, DiffServ (DSCP), rate limiting per port, per IP/TCP/UDP and per policy, storm control
Power consumption754.11 W maximum with PoE, 52.47 W without PoE, 30.8 W idle
Technical specifications (continued)
Weight5 kg
Dimensions (W x D x H)441 x 330 x 44 mm
Package contentsPower cord, rack-mount kit
Number of ports29 ports or more
ManagedYes
Security features802.1X, IPv4 and IPv6 ACL, Layer 2 MAC, Layer 3 IP and Layer 4 TCP/UDP filtering, multiple RADIUS and TACACS+, SSH v2, SSL, DHCP snooping, ARP inspection, IP source guard, port isolation
Power supplyInternal 100-240 V AC power supply, 50/60 Hz
Cooling systemVariable-speed fan
PoE powerYes
Port speed2.5 Gbps (Multi-Gig)
Management levelLayer 3 (inter-VLAN routing)
PoE standardPoE++ (802.3bt, up to 60 W/port)
PoE budgetOver 400 W
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How is PoE distributed on the Zyxel XGS2220-54HP?
40 PoE+ ports at 30 W, 8 PoE++ ports at 60 W and 2 Multi-Gigabit ports that are also PoE++, for a total budget of 600 W. Keep the 60 W ports for Wi-Fi 6E access points and motorised cameras.
What uplinks does this switch offer?
4 SFP+ 10 Gbps fibre slots and 2 Multi-Gigabit copper ports, the latter negotiating 1, 2.5, 5 or 10 Gbps depending on the connected device. Six high-speed links to carry the traffic of 48 access ports.
Does this switch route between VLANs?
Yes: Layer 3 management, with static routing, VLANs, quality of service, IGMP snooping and LACP aggregation. Traffic between internal segments is handled inside the switch, without going up to the router.
Can several XGS2220-54HP units be stacked?
Yes, up to 4 units. Stacking lets you manage them as a single device and spread links across several chassis, which limits the impact if one of them fails.
Can this switch be managed from the cloud?
Yes, through Zyxel's Nebula platform, or locally from the switch's web interface. The same hardware supports both modes, so you do not have to replace it when the way your network is organised changes.
What performance does this switch deliver?
216 Gbps of switching capacity and 161 Mpps, with a 32,000-entry MAC address table, IPv6 support and the STP, RSTP and MSTP spanning tree protocols.
How much rack space does this switch take up?
441 × 330 × 44 mm, i.e. 1U high and 33 cm deep. Plan for a deep 19-inch rack and proper ventilation: delivering 600 W of PoE generates a significant amount of heat.
Is the switch new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document. Full technical details are in the XGS2220-54HP datasheet.
