Zyxel NWA50BE WiFi 7 Access Point, BE5100 Dual-Radio NebulaFlex (NWA50BE-EU0102F)

The wireless mesh leans on two radios instead of one: more bandwidth and less latency when one access point relays another, with no cable to run. 2.5 Gbps port and mains adapter included.

  • Dual-radio Smart Mesh MLO: access points relay each other wirelessly, with no cable to run
  • Up to 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz
  • 2x2 MU-MIMO on each band
  • Multi-Gigabit port at 1/2.5 Gbps
  • Powered by PoE+ (802.3at)
  • Mains adapter included
  • NebulaFlex: local management or Nebula cloud, as you prefer
  • Fast roaming 802.11r/k/v
  • WPA3 encryption
  • Rogue access point detection and MAC filtering
  • Built-in 4G/5G interference filter
  • Compact 150 x 150 mm housing, internal antennas
Ref.: NWA50BE-EU0102F

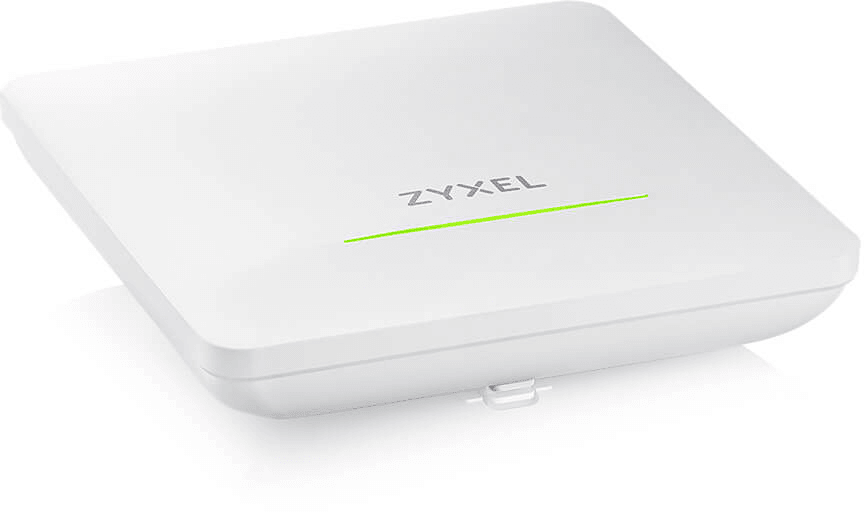

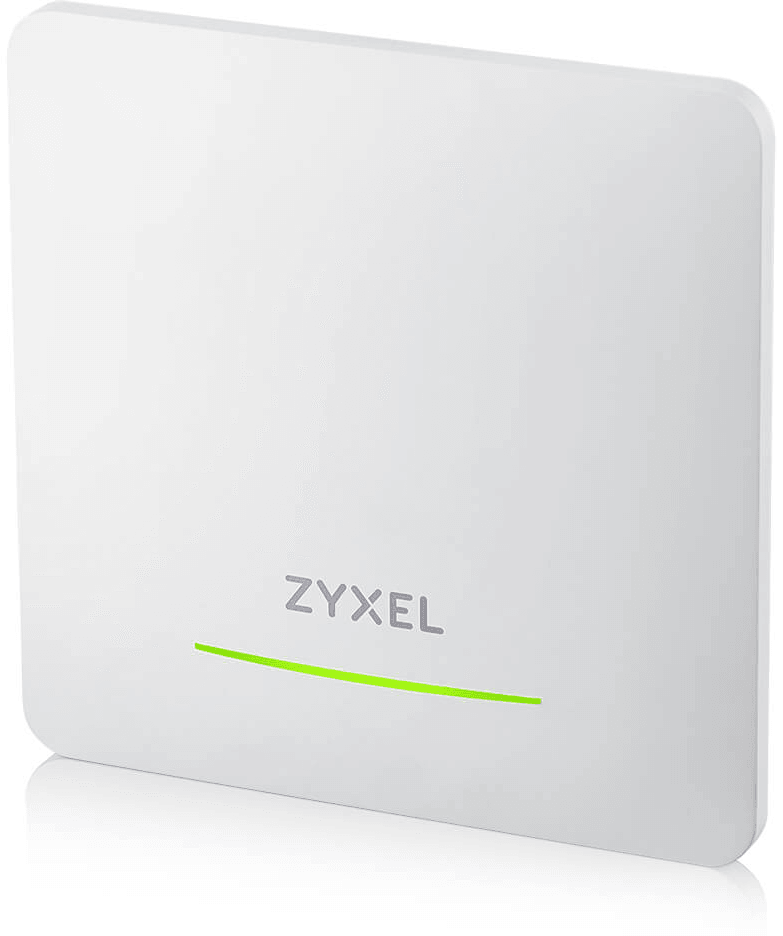

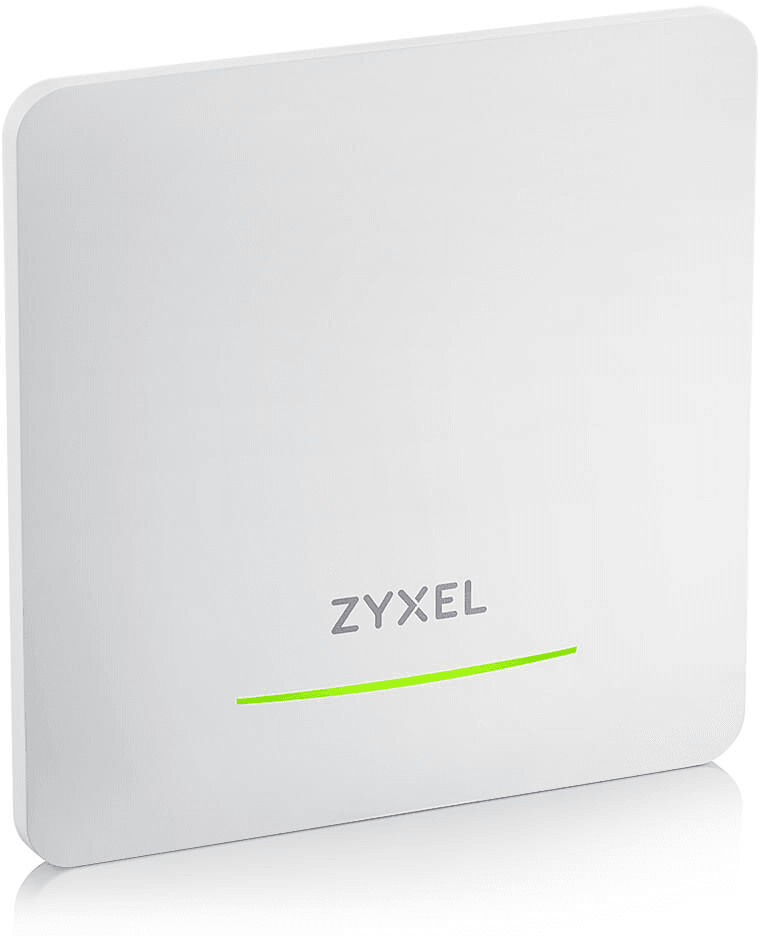

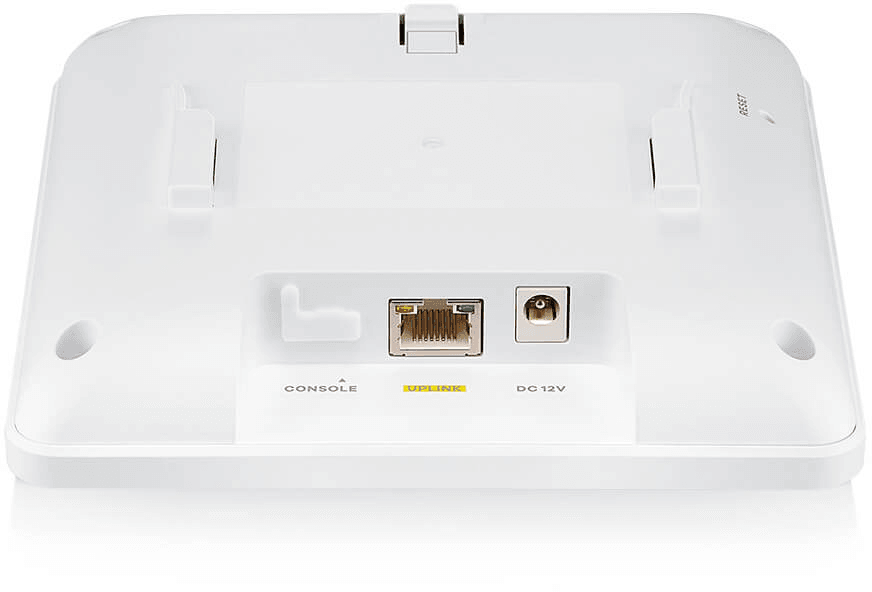

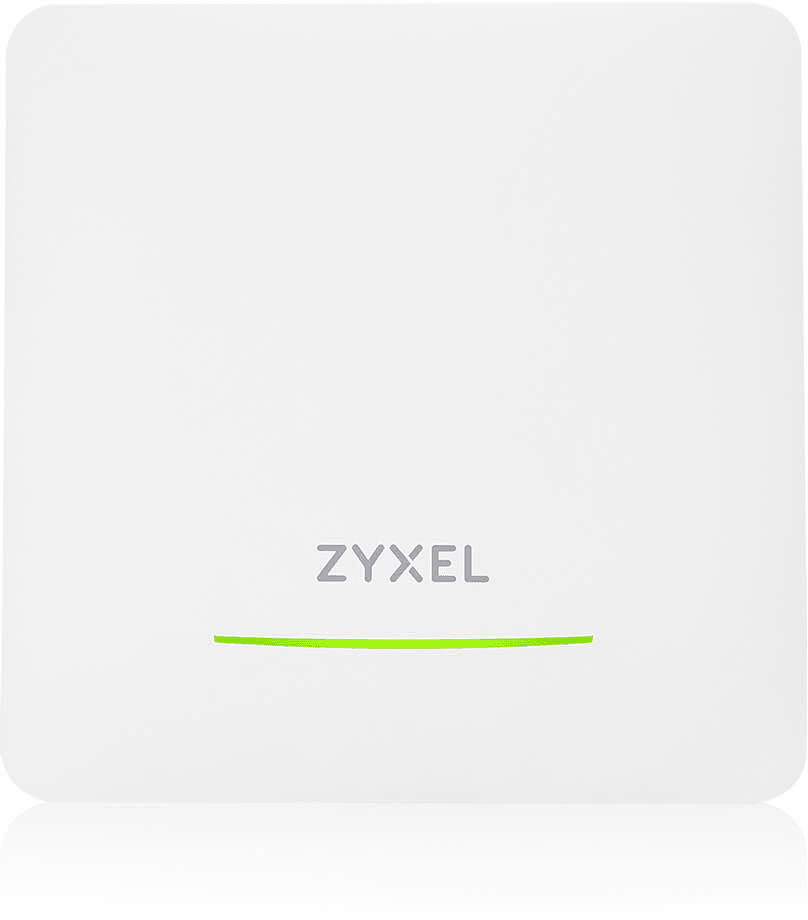

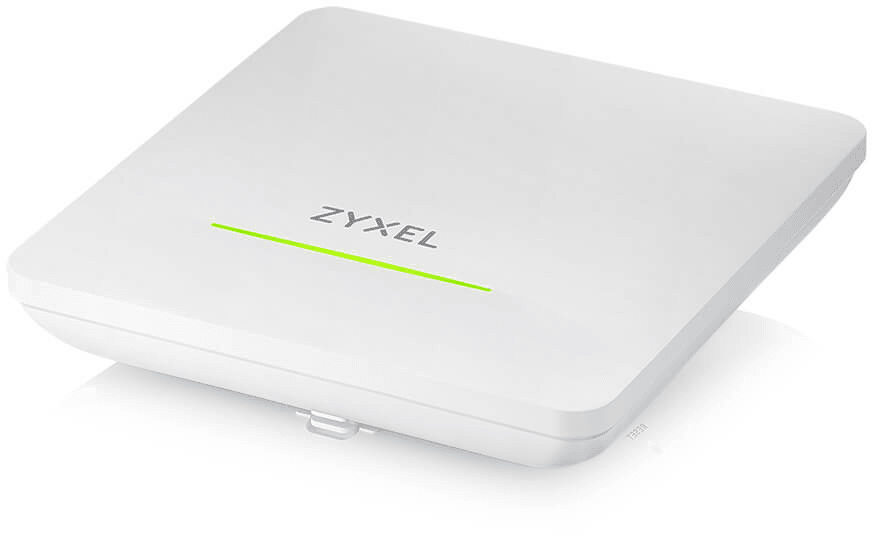

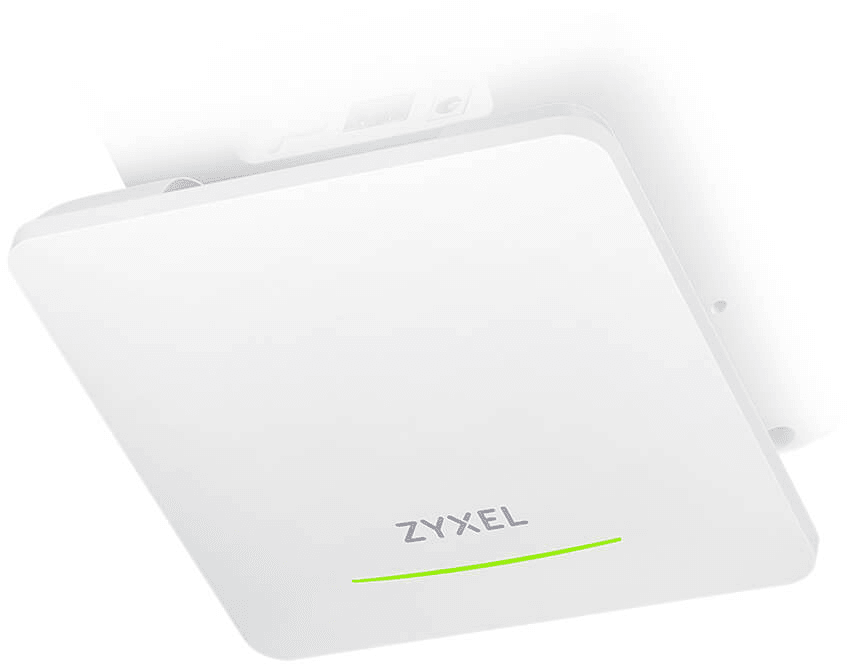

Zyxel NWA50BE WiFi 7 Access Point, BE5100 Dual-Radio NebulaFlex (NWA50BE-EU0102F) — image 1
Zyxel NWA50BE WiFi 7 Access Point, BE5100 Dual-Radio NebulaFlex (NWA50BE-EU0102F) — image 2
Zyxel NWA50BE WiFi 7 Access Point, BE5100 Dual-Radio NebulaFlex (NWA50BE-EU0102F) — image 3
Zyxel NWA50BE WiFi 7 Access Point, BE5100 Dual-Radio NebulaFlex (NWA50BE-EU0102F) — image 4
Zyxel NWA50BE WiFi 7 Access Point, BE5100 Dual-Radio NebulaFlex (NWA50BE-EU0102F) — image 5
Zyxel NWA50BE WiFi 7 Access Point, BE5100 Dual-Radio NebulaFlex (NWA50BE-EU0102F) — image 6
Zyxel NWA50BE WiFi 7 Access Point, BE5100 Dual-Radio NebulaFlex (NWA50BE-EU0102F) — image 7
Zyxel NWA50BE WiFi 7 Access Point, BE5100 Dual-Radio NebulaFlex (NWA50BE-EU0102F) — image 8

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/8
1 379,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 249 Ko — downloadable

Product overview

Compact, affordable indoor ceiling-mount Wi-Fi 7 access point for small businesses and home offices.
Wi-Fi & speed: Wi-Fi 7 (802.11be), BE5100 class, dual-band 2.4 + 5 GHz; up to 4,324 Mbps (5 GHz) + 688 Mbps (2.4 GHz).
Capacity: MU-MIMO 2x2:2, dual-radio MLO (wireless backhaul) for high bandwidth and lower latency.
Installation: indoor, ceiling mounting, compact design (150×150×35 mm), internal antennas.
Ports & power: 2.5 GbE port; PoE+ (802.3at) or the power adapter supplied.
Management: NebulaFlex — standalone or Nebula cloud mode, no dedicated controller required. Smart Mesh MLO and fast roaming (802.11r/k/v).
WPA3, rogue AP detection, VLAN.
Use cases: offices, shops, homes, practices, small organisations looking for an affordable way into Wi-Fi 7.
A simple, cost-effective path to Wi-Fi 7, with a 2.5 GbE port to unlock its full potential.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications

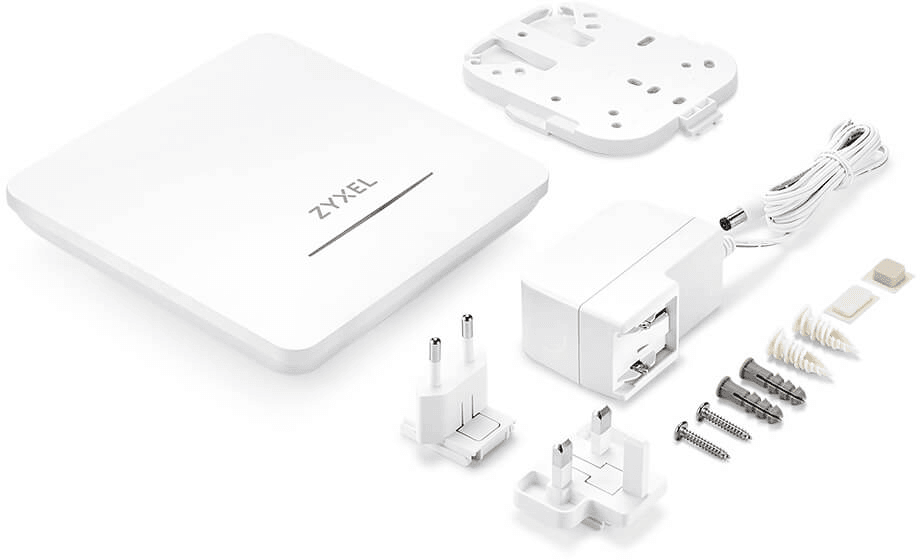

Package contentsPower adapter, mounting plate and fixing screws
Interfaces1 x 1/2.5 Gbps Ethernet port
Network standardsIEEE 802.11a/b/g/n/ac/ax/be
Advanced Wi-Fi technologiesBand steering, dynamic channel selection (DCS), advanced cellular coexistence; no load balancing
Maximum channel width240 MHz
Spatial streams and MU-MIMO2×2 with 2 spatial streams at 2.4 GHz and at 5 GHz, MU-MIMO
Maximum Wi-Fi throughput per band688 Mbps at 2.4 GHz, 4,324 Mbps at 5 GHz
Management modesStandalone or cloud-managed mode, web interface and command line; no SNMP
Cloud management platformZyxel Nebula
Layer 2 featuresVLAN, Layer 2 isolation, MAC filtering, rogue AP detection, WMM and U-APSD quality of service, IPv6
Roaming and meshFast roaming via pre-authentication, PMK caching and 802.11r/k/v; WDS mesh
Power consumption16 W on PoE+ 802.3at
Weight412 g
Technical specifications (continued)
Dimensions (W x D x H)150 x 150 x 35 mm
AntennasInternal antennas, gain 2 dBi at 2.4 GHz and 3 dBi at 5 GHz
Maximum transmit power20 dBm on 2.4 GHz and 25 dBm on 5 GHz in Europe, conducted power excluding antenna gain
Security featuresWPA, WPA2 and WPA3 Personal; no 802.1X or RADIUS authentication
Power supplyPoE+ 802.3at or PoE++ 802.3bt without restriction, or 100-240 V power adapter included (12 V 1.5 A output); 802.3af NOT supported
Operating temperature0 to 50 °C
Operating humidity10 to 95% non-condensing
Wi-Fi standardWi-Fi 7
LocationIndoor
Mounting typeCeiling mount
BandsDual-band
PoE powerPoE+ (802.3at)
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Is an 802.3af PoE switch enough for the NWA50BE?
No, 802.3af is not supported: you need a PoE+ 802.3at port, or 802.3bt, for unrestricted operation. The access point draws 16 W over PoE. A power adapter is included, however, so you can do without PoE.
Does this Wi-Fi 7 access point broadcast on the 6 GHz band?
No, the NWA50BE is dual-band: 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, with 2×2 MU-MIMO on each band. Wi-Fi 7 brings it Multi-Link Operation and the efficiency of the 802.11be standard, not the third band.
What does the NWA50BE's Smart Mesh MLO bring?
The link between access points uses Wi-Fi 7 Multi-Link Operation: a remote access point connects to the network wirelessly, over several bands at once, which increases this link's throughput and reduces latency compared with conventional mesh.
Do you need a controller or a subscription to manage the NWA50BE?
No: with NebulaFlex, the access point runs in standalone mode, managed locally, or in Nebula cloud mode. You can switch freely between the two, without dedicated controller hardware.
Why is the NWA50BE's network port 2.5 Gbps?
Because the radio far exceeds Gigabit speeds: with more than 4 Gbps on the 5 GHz band, a 1 Gbps port would become the bottleneck. The port negotiates 1 or 2.5 Gbps depending on the switch at the other end, and it is also the port that receives PoE.
Does the NWA50BE withstand interference from a mobile mast?
Yes, it has a built-in 4G and 5G interference filter, which reduces interference from nearby mobile networks. This is useful in a building fitted with an indoor mobile relay or close to a mobile mast.
Does the NWA50BE support WPA3?
Yes, complemented by rogue access point detection, MAC address filtering and VLAN segmentation: a guest network stays separate from the internal network on the same access point.
Does the connection hold when moving between several Zyxel access points?
Yes: roaming relies on 802.11r, 802.11k and 802.11v. The device switches to the neighbouring access point without re-authenticating, which keeps an ongoing call or video conference going.
How much ceiling space does the NWA50BE take up?
150 × 150 × 35 mm and 412 g, with internal antennas — nothing sticks out of the enclosure. The mounting plate and screws are supplied along with the power adapter.
In what conditions does the NWA50BE operate?
Indoors, between 0 and 50 °C, with 10 to 95 % non-condensing humidity — ten degrees more headroom than the average office access point, which allows for a poorly ventilated equipment room.
Is the equipment new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document for 1 year. The access point comes with its power adapter and mounting plate, ready to install with no additional accessories.
