Dell EMC S4128F-ON 28-Port 10GbE SFP+ 2 xQSFP28 Switch IO to PSU 2 PSU 1U (DS4128F-20SFP)

A top-of-rack switch for the data centre: non-blocking 960 Gbps cut-through fabric, redundant hot-swappable power supplies and fans. Open (ONIE), full L2/L3 stack with Dell SmartFabric OS10.

  • Non-blocking 960 Gbps cut-through fabric, very low latency
  • Forwarding rate 720 Mpps
  • Multi-rate QSFP28 ports (10/25/40/50/100 GbE), breakable out to 36 10 GbE ports with breakout cables
  • Open ONIE system: Dell SmartFabric OS10 or a third-party network operating system of your choice
  • Full L2/L3 features: VLAN, OSPF, BGP, policy-based routing, VXLAN gateway
  • Redundant hot-swappable power supplies and fans
  • MAC address table of 272,000 entries, up to 200,000 IPv4 routes
  • Data Center Bridging (PFC, ETS, DCBX) for reliable transport of sensitive traffic
  • Layer 2 extension between data centres via VLT
  • Weight 8.92 kg
Ref.: DS4128F-20SFP
New

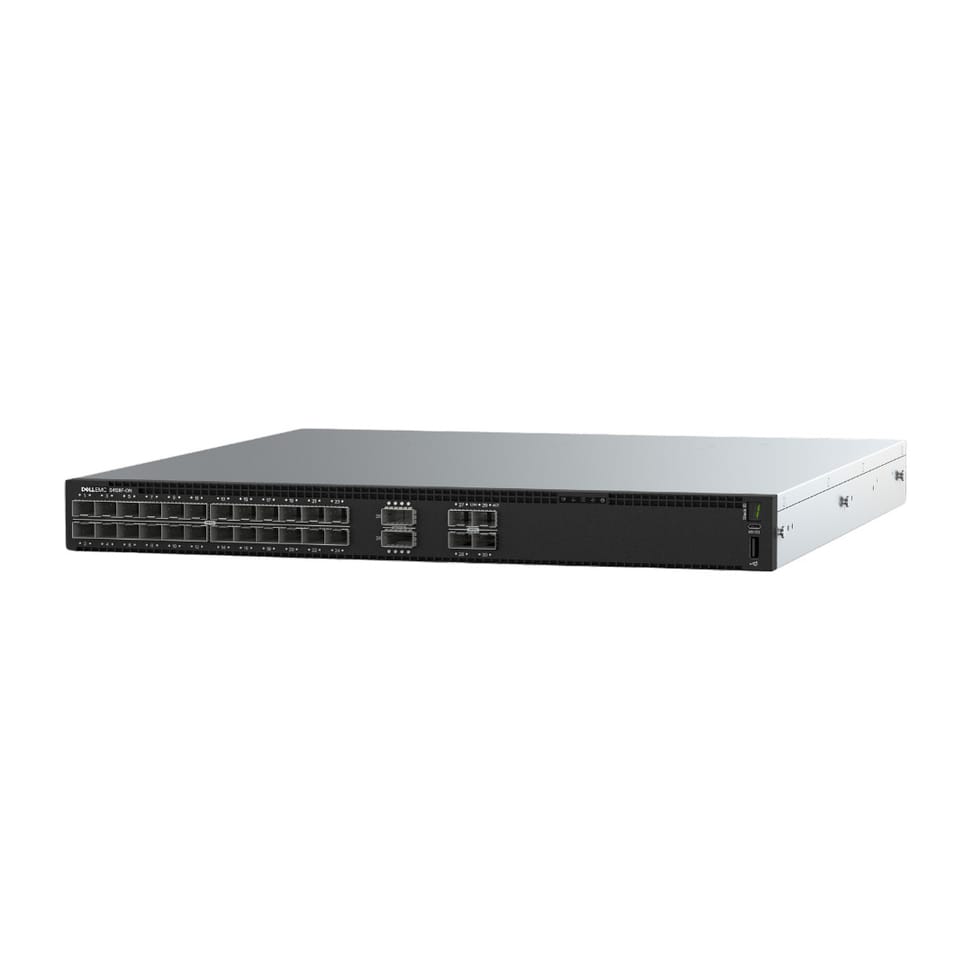

Dell EMC S4128F-ON 28-Port 10GbE SFP+ 2 xQSFP28 Switch IO to PSU 2 PSU 1U (DS4128F-20SFP) — image 1

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

131 799,00 DHincl. VAT

Limited quantity

Quantity
Order on WhatsAppOn WhatsAppQuick reply

Earn 300 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco

Delivery to your address

Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco

The estimate is refined using actual delivery rounds to your city.

  • Free delivery from 3 000 DH of purchases, all over Morocco.
  • Below that, the same rate in every city for parcels up to 30 kg (delivery to your home or workplace) — the exact amount is shown above, then in the basket.
  • Above 30 kg, the rate follows the parcel's weight. In Casablanca, the flat rate holds up to 120 kg.
  • You are notified by SMS, then called by the courier before your parcel is handed over (delivered by Sapress).
  • Observed delivery time: 1 to 5 working days depending on the city.
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)

In-store collection — free

Casablanca store
We bring it to the store within 24 h
We call you as soon as it arrives in store.

Résidence Manoir des Roses, Lot. 18, Boulevard El Hachmi El Filali, Rond-point Bachkou, Casablanca

Opening hours

  • Mon–Fri: 10am – 7pm
  • Sat: 10am – 2pm
  • Closed on Sundays and public holidays

Payment on site: cash, bank card via terminal, certified cheque.

View the map on Google Maps

Temara pickup point
We bring it to the store within 48 h
We call you as soon as it arrives in store.

Boulevard Hassan II, Résidence Les Perles de Témara, Immeuble 5, appartement 2, Témara

Opening hours

  • Mon–Fri: 8.30am – 1pm / 2pm – 6pm
  • Sat: 8.30am – 12.30pm
  • Closed on Sundays and public holidays

Payment on site: cash, bank card via terminal, certified cheque.

View the map on Google Maps

3 years warranty — free repair in Morocco if it breaks down during the warranty period

3 years manufacturer's warranty

This product is covered for 3 years by a manufacturer's warranty (the brand's official warranty). Your iris.ma invoice serves as the warranty document: keep it safe.

A problem with your product? Don't worry: contact us by phone, WhatsApp or e-mail. Depending on the brand, we direct you either straight to the repairer appointed by the brand to fix your product, or to us — and we take care of the rest.

  • If a repair is possible, it is carried out free of charge.
  • If the product cannot be repaired, the brand offers an exchange for another product.
  • If no product is available, a refund is issued as soon as the brand confirms it.

Faulty straight out of the box? Some brands offer an immediate exchange, others a repair. Contact us to find out what applies to your product.

The warranty covers breakdowns occurring under normal use, as defined by the brand's terms. Product breakage (drop, impact, liquid…) is not covered, nor are certain consumable parts.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

New, never opened — our commitment

All our products are new, delivered in their sealed original packaging.

We commit to never sending you a product that has been opened, unboxed or returned by another customer — even one “just opened for checking”.

Any doubt on delivery (damaged box, seal already opened)? Point it out to the courier or contact us immediately: we take the product back and send you another one.

Sales invoice

Every order comes with its sales invoice, included with the parcel (handed over in person for a store collection).

Ordering for a company? Using the details you give at checkout (company name and ICE), the invoice is issued in your company's name, with its ICE.

Need a quote? Request a free quote — reply within 24 working hours.

100% secure payment: Bank transfer · Bank card · Certified cheque

Accepted payment methods

Bank transfer

Simply transfer the amount shown to account 007 826 0002684000000426 89 — SGM2I, Attijariwafa bank. The rest (the reference to quote, sending us the proof, tracking) is explained right after confirmation and by email. An instant transfer is recommended: it saves you 24 hours on the delivery time.

Bank card

Your everyday Moroccan bank card is enough — Visa, Mastercard or CMI, no special card required. Foreign cards are accepted too. Secure payment by Attijari Payment.

Certified cheque

Certified cheque payable to “sgm2i”. Have your bank certify the cheque, then send us a copy on WhatsApp (+212 6 64 10 46 24) or to service.client@iris.ma — we dispatch as soon as we receive it.

The methods offered depend on the order total and the carrier — checkout shows the final list.

Google reviews4.7(553 reviews)

Product overview

Give your data centre the network it deserves. The Dell EMC PowerSwitch S4128F-ON brings together 28 × 10 GbE SFP+ ports and 2 × 100 GbE QSFP28 ports in a compact 1U form factor: enough to connect your servers and aggregation links without a single bottleneck. Its 960 Gbps non-blocking fabric forwards traffic in cut-through mode, with very low latency, even under full load. Open and scalable thanks to ONIE and Dell SmartFabric OS10, it adapts to your infrastructure rather than the other way round. Hot-swappable redundant power supplies and fans keep it available around the clock. A top-of-rack switch built for the most demanding virtualised environments.

See all the specifications ↓
Request a quote

Be notified of a price drop

Share:

Technical specifications

Technical specifications
MAC table size272,000 entries
Number of VLANs4,000 VLANs
Interfaces28 SFP+ 10 GbE ports, 2 QSFP28 100 GbE ports
PoE portsNone
Total PoE budgetNone
Switching capacity960 Gbps
Forwarding rate720 Mpps
Packet buffer12 MB
Management modesDell SmartFabric OS10 or third-party network operating system via ONIE
Cloud management platformNone
Layer 2 features4K VLANs, link aggregation, VLT, L2/L3 VXLAN gateway, Data Center Bridging (PFC, ETS, DCBX)
IP routingOSPF, BGP, policy-based routing, 200,000 IPv4 and 130,000 IPv6 routes
Quality of service (QoS)Quality of service and Data Center Bridging (PFC 802.1Qbb, ETS 802.1Qaz, DCBX)
Power consumption260 W maximum, 160 W typical
Technical specifications (continued)
Weight8.92 kg
Dimensions (W x D x H)431 x 457 x 43 mm
Number of ports29 ports or more
ManagedYes
Security featuresAccess control lists (ACL)
Power supply2 redundant hot-swappable AC power supplies, 100-240 V AC, 50/60 Hz
Cooling system4 hot-swappable fan modules
PoE powerNo
Port speed1 Gbps (Gigabit)
Management levelLayer 3 (inter-VLAN routing)
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty3 years

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How many 10 GbE links can this switch carry in total?
Up to 36: the 28 native SFP+ ports, plus 8 links obtained by splitting the two 100 GbE QSFP28 ports with breakout cables. These ports also support 10, 25, 40 and 50 GbE, and the SFP+ ports also handle 1 GbE.
Does this switch lock you into its operating system?
No: thanks to ONIE, you can install Dell SmartFabric OS10 or a third-party network operating system. Hardware and software are decoupled, which lets you align this switch with the software stack already in place in the server room.
What happens if a power supply fails?
Service continues: two redundant AC power supplies, hot-swappable, at 100-240 V, and four fan modules that are also hot-swappable. Airflow runs from the I/O panel towards the power supplies.
What is the latency of this top-of-rack switch?
It operates in cut-through mode: a frame starts being forwarded before it has been fully received, which reduces latency compared with store-and-forward mode. The non-blocking fabric reaches 960 Gbps with a forwarding rate of 720 Mpps.
What table sizes can this switch handle?
272,000 MAC addresses in Scaled L2 mode, up to 200,000 IPv4 routes and 130,000 IPv6 routes, with a 200,000-entry ARP table, a 12 MB packet buffer and 4 GB of CPU memory.
Can this switch carry storage over IP?
Yes: Data Center Bridging is supported — Priority-based Flow Control PFC (802.1Qbb), ETS (802.1Qaz) and DCBX —, designed precisely to prevent packet loss on storage traffic sharing the data network.
Can a Layer 2 domain be extended between two rooms?
Yes, with VLT, which extends a Layer 2 domain between two data centres, and with the Layer 2 and Layer 3 VXLAN gateway, which bridges physical and virtualised networks at line rate. The stack also covers VLANs, OSPF, BGP, policy-based routing, QoS and ACLs.
How much rack space and power should be planned for?
43.1 cm wide, 45.7 cm deep and 4.3 cm high, weighing 8.92 kg: a deep 1U chassis, best kept for a server room rack. Allow 160 W in typical use and 260 W at most, from 0 to 40 °C.
Is the switch new and covered by a warranty?
Yes, new equipment, with a 3-year warranty, the invoice serving as the warranty document. This is the Dell EMC PowerSwitch S4128F-ON, a top-of-rack switch for server rooms and virtualised environments.
