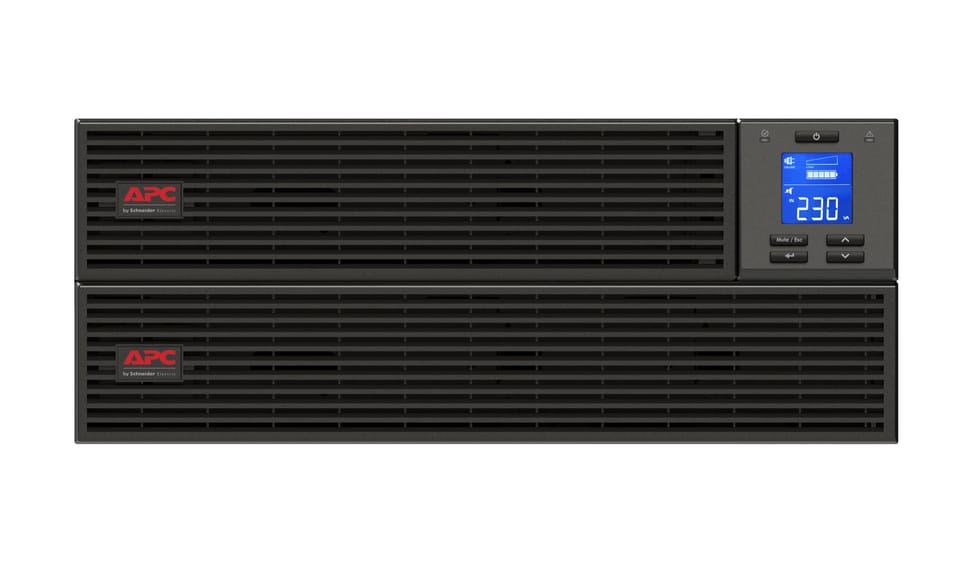

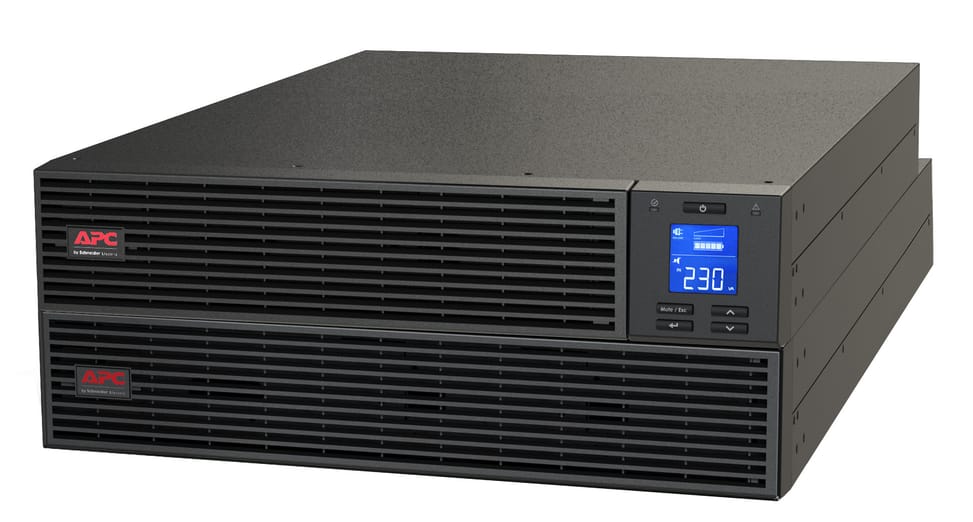

APC Easy UPS SRV Online UPS, rack-mount, 10 kVA 230 V (SRV10KRI)
All the power available in watts: 10,000 W usable, as many as the VA. Around 7 minutes of runtime at half load (5000 W) to shut down a full rack cleanly, in only 4U.
Usable power 10,000 W
Runtime 7 minutes at half load (5000 W)
4U height in a rack
3-wire terminal block connection: fixed wiring, to be installed by an electrician
Rack-mount fixings included
Sine wave output
94% efficiency at full load
Automatic and manual internal bypass
LCD status and control display
Free slot for a network management card
Emergency power off (EPO) button
Full battery recharge in 3 hours
Accepts an input of 176 to 300 V
Noise level 58 dB: to be installed in a rack or a technical room
USB and RS-232 cables included for automatic server shutdown
A very high-power online UPS for server rooms: online double conversion, 10 kW / 10 kVA, rack format. Technology & protection: power is fully and continuously regenerated — the equipment is never exposed to the mains, with zero transfer time. Maximum protection against outages, surges, voltage fluctuations and electrical noise. Power: 10 kVA for 10 kW of real power — sized for a full server rack. Runtime: about 9 minutes at half load (5000 W), 5 minutes at 70%. Ports: terminal block connection (hard-wired by an electrician). Rack format; active cooling (≈ 58 dB), to be installed in a rack or technical room. LCD display: shows load, battery level and remaining runtime at a glance — so you can monitor the UPS without any software. Designed, for example, for server racks and data centres. Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product

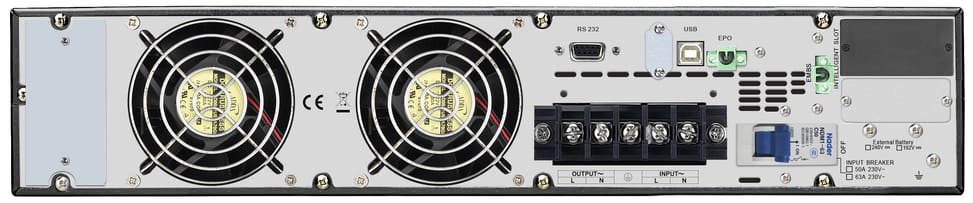

Does the SRV10KRI connect via outlets or a terminal block?
Via a 3-wire terminal block (live, neutral, earth), for both input and output: there are no outlets on the unit. The connection is fixed wiring, to be carried out by an electrician, and the dedicated circuit must be provided at the distribution board before the UPS is delivered.
Why is this 10 kVA unit rated at 10,000 W, and not 6,000 or 7,000?
Because its power factor is 1: the full 10,000 VA is available in watts. It is this figure that you should compare with the combined consumption of a complete rack — servers, storage, switches — and not the apparent power.
What rack height and depth do you need?
4U high (17.3 cm), 43.8 cm wide and 61.5 cm deep, and the rack-mount brackets are supplied. This depth rules out short-depth racks: check it, as well as cable routing at the rear, before ordering.
How much does the SRV10KRI weigh, and how is it rack-mounted?
68 kg unpacked, 79 kg with its packaging. At this weight, handling takes several people and the unit goes at the bottom of the cabinet, on rails or a shelf able to bear it: this is not an installation to improvise on your own.
What input voltage range does the UPS tolerate?
176 to 300 V at full load, widening to 110-300 V at half load: the more heavily the UPS is loaded, the narrower the tolerance. Frequency is accepted from 40 to 70 Hz, which leaves headroom on a very disturbed grid.
What is the quality of the output power?
A sine wave with a crest factor of 3:1, continuously regenerated by double conversion: the output is stabilised at 230 V (configurable to 220 or 240 V) and synchronised with the grid at 50/60 Hz ± 3 Hz.
Can the rack be kept powered during work on the UPS?
Yes, thanks to the automatic and manual internal bypass: manual mode deliberately transfers the load to the direct mains supply, while automatic mode takes over in the event of an internal fault. Conversely, an emergency power off (EPO) button cuts everything instantly.
How much noise does it make, and where should it be installed?
58 dB: it is a fan-cooled unit, best kept in a rack or technical room. It operates between 0 and 40 °C and up to 95% humidity non-condensing, with an IP20 rating that requires a clean, dry environment.
How long do the batteries take to recharge?
3 hours for a full recharge, with a charging power of 531 W. This power adds to that of your equipment while recharging: a point to bear in mind on an electrical circuit sized very tightly.
Which cables and ports allow the servers to be shut down cleanly?
A USB port, a DB-9 RS-232 serial port and an Intelligent Smart Slot for a management card. The USB and RS-232 cables are supplied, along with the software CD, the rack brackets and the user manual.
What can you read and adjust on the UPS without using software?
A front-panel multifunction LCD control and status console. It is backed by three distinct audible alarms: switch to battery, low battery threshold, and a continuous tone in the event of overload.
Is the APC Easy UPS SRV10KRI new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for a period of 2 years covering repair or replacement. It is CE-certified and complies with the IEC 62040-1-1 and 62040-1-2 standards; the datasheet lists all the values.
